Product description

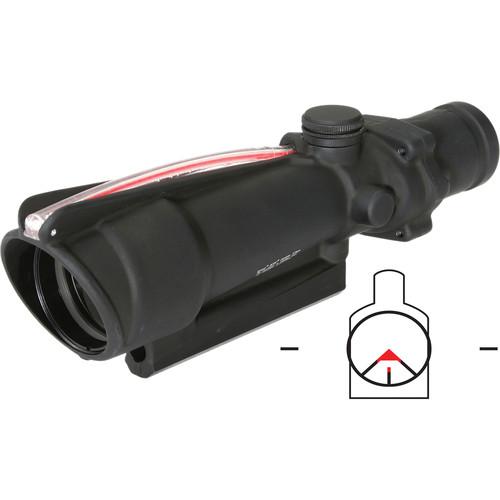

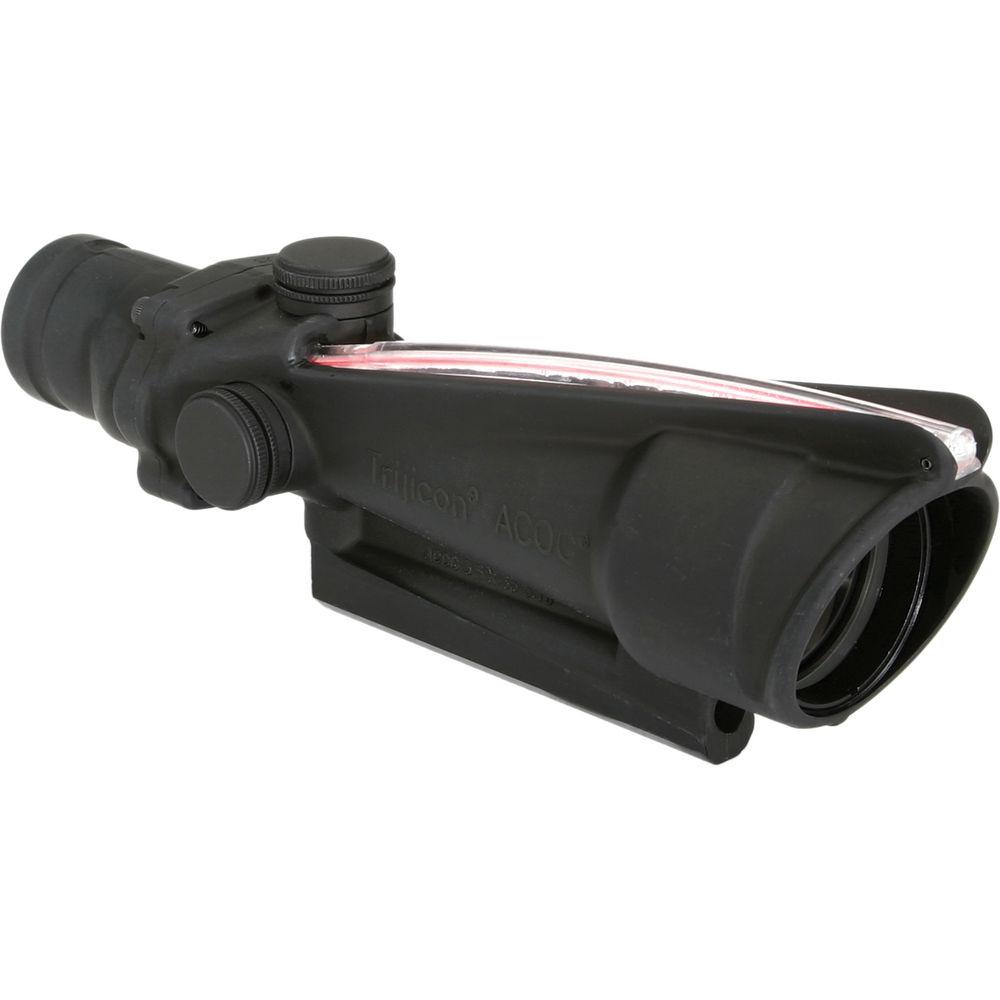

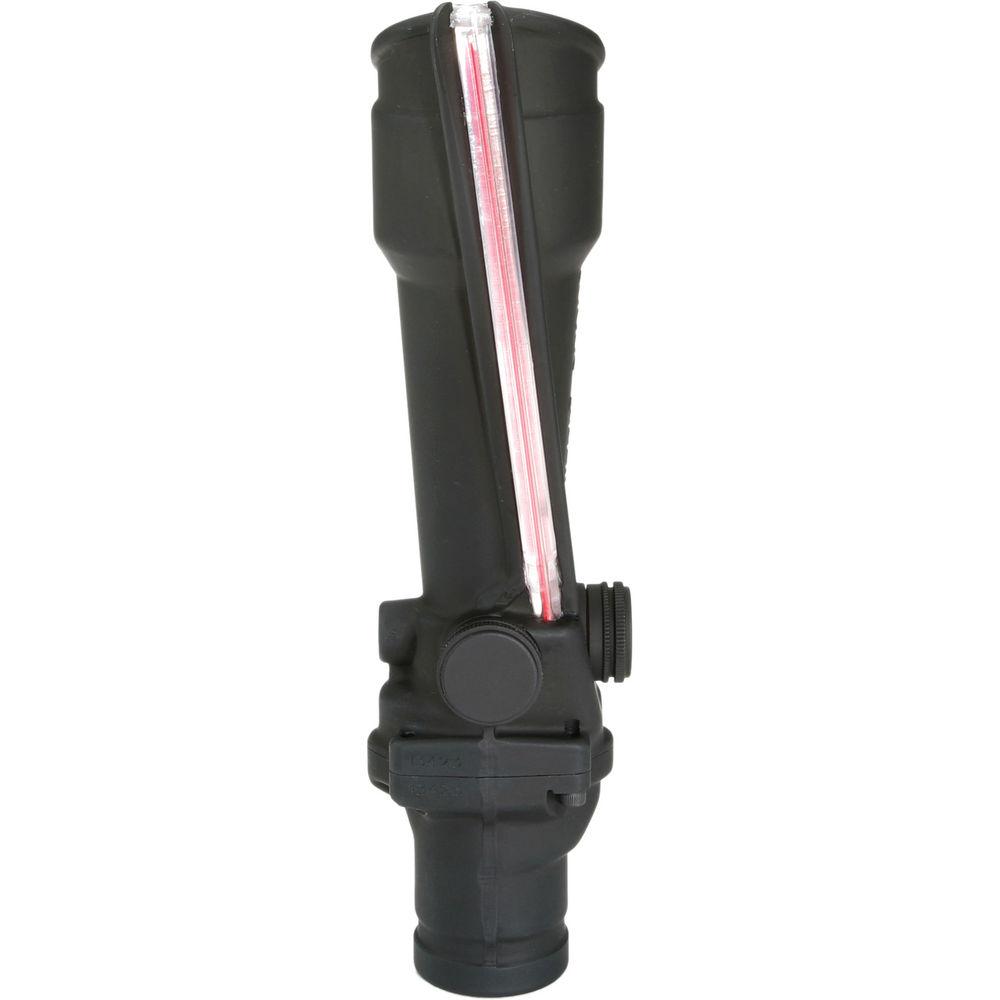

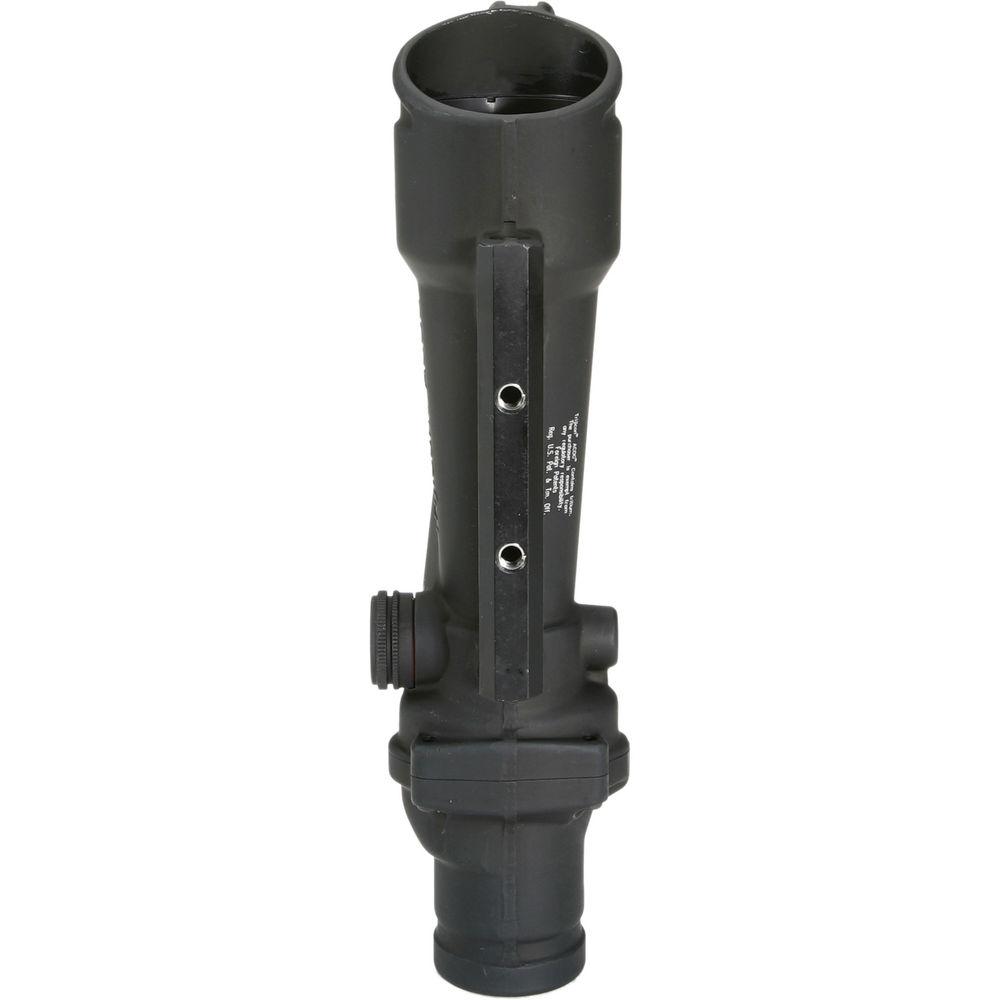

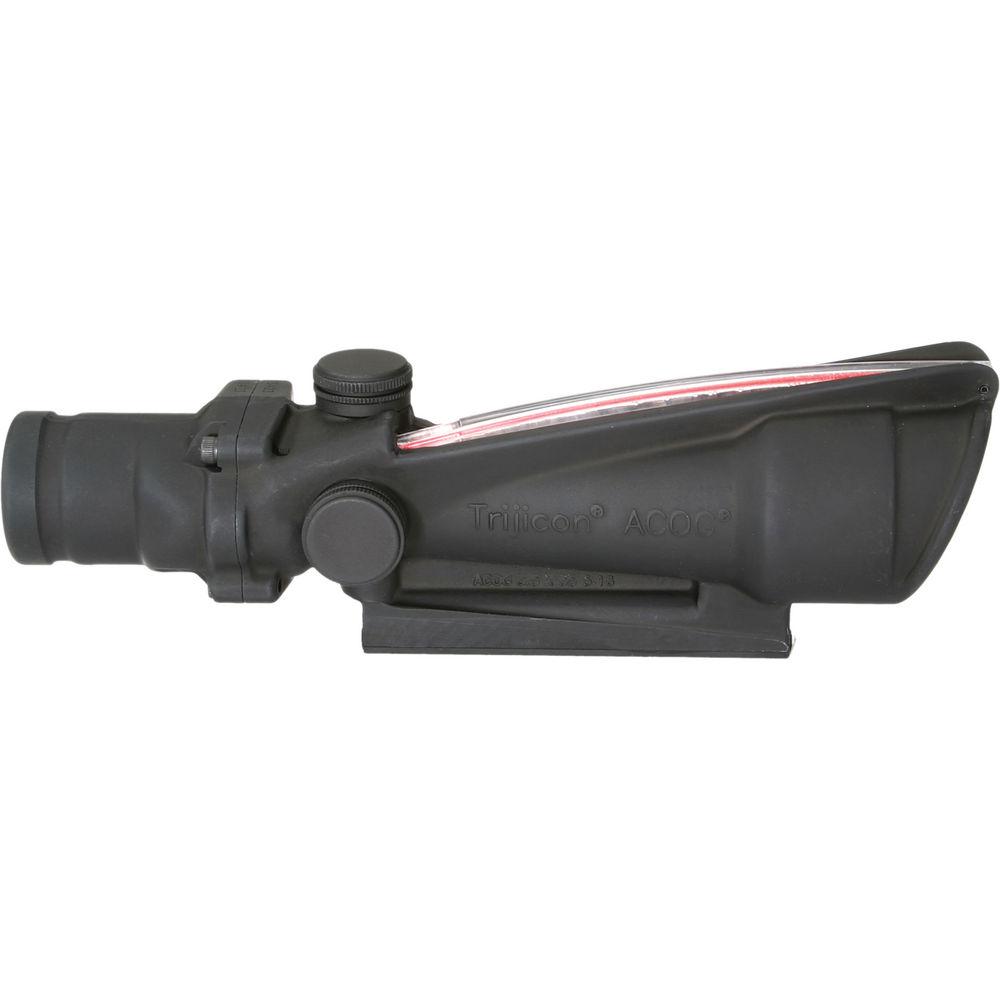

Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. Although ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light scenarios. The 3.5x35 ACOG sits at a moderate height on top of the receiver While delivering a pronounced 3.5x magnification, the efficient 35mm objective produces a bright, crisp, and clear sight picture. Trijicon's proprietary tritium/fiber optic technology ensures that the reticle remains highly-visible 24/7/365. Combining the obvious assets of a generous FOV, bright reticle, and moderate magnification ensures the operator's ability to engage targets with confidence and outstanding fire-control capability. Any target - moving or otherwise - will be easier to acquire, lock on to, and hit successfully with the first shot. This ACOG is configured with a carry handle mount and a dual illuminated Red Chevron w/Circle reticle calibrated for 5.56/.223 caliber firearms.
    Rugged Construction
  • Forged 7075-T6 aircraft aluminum alloy housing
    Broad Band Anti-Reflective Coated Lenses
  • Multicoated lenses provide enhance clarity by minimizing flare and glare
    Waterproof and Fogproof
  • Nitrogen purged and waterproof seals ensure clarity and reliability under any conditions
    Bindon Aiming Concept
  • The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.
    Carry Handle Mount
  • Configured for use with M16/AR15 firearms with a carry-handle
    Fiber Optics and Tritium Illumination
  • Proprietary battery-free technology provides a vivid aiming point without the need for failure-prone batteries

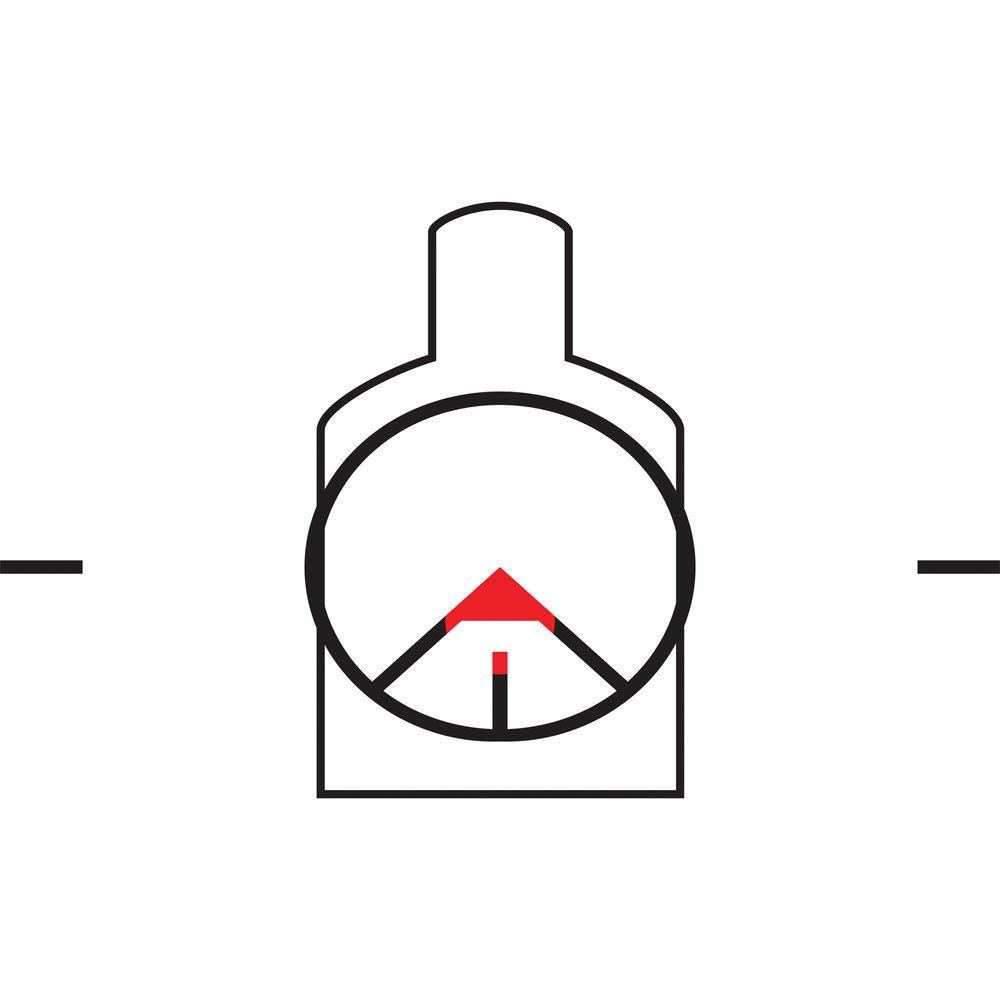

    Dual Illumination Red Chevron w/Circle Reticle - 5.56 / .223
  • This reticle delivers rapid and definite target acquisition. The circle orients your eye to the center of the scene while the pie-wedge outline pulls your sight to your exact point of aim. The illuminated chevron leaves no doubt about your shot-placement. A short unobtrusive post sits at the 6 o'clock position, enhancing your ability to remain focused upon your target. Floating posts outside the circle train the eye to the center of the sight picture
    Trijicon's proprietary tritium/fiber-optic illumination technology provides the tip of the chevron with a brilliant red glow.
UPC: 719307301221 In the Box Trijicon 3.5x35 ACOG Riflescope (Matte Black)
  • Screw & Washer Set for ACOG (Matte Black)
  • ACOG Scopecoat
  • Large Sized Pelican Case (Black)
  • LensPen - TA56
  • Weatherproof Logo Sticker zscuudetdxzvyxfcwuxyu
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Trijicon TA11B Specs

    Magnification 3.5x
    Objective Lens Diameter 35 mm
    Field of View 28.9' @ 100 yd / 9.6 m @ 100 m
    Exit Pupil Diameter 10 mm
    Eye Relief 2.4" / 61 mm
    Reticle Type 5.56 / .223 Circle Chevron Reticle
    Illumination Illuminated
    Illumination Type Fiber Optic, Tritium
    Illuminated Color Red
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 40 MOA
    Elevation Adjustment 40 MOA
    Water Resistance Waterproof
    Fogproof Yes
    Battery None
    Dimensions Length: 8" / 20.3 cm
    Weight 14 oz / 396 g
    Package Weight 2.4 lb
    Box Dimensions (LxWxH) 10.5 x 7.8 x 4.9"
