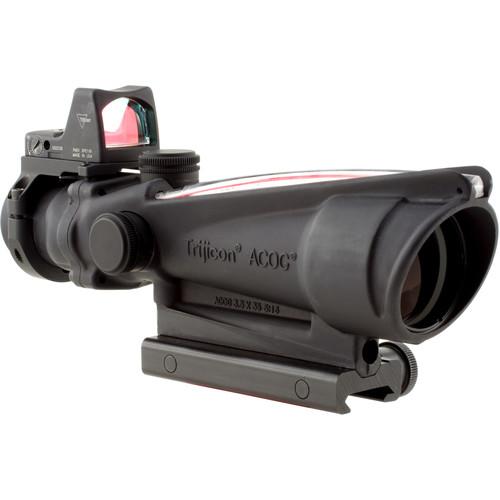

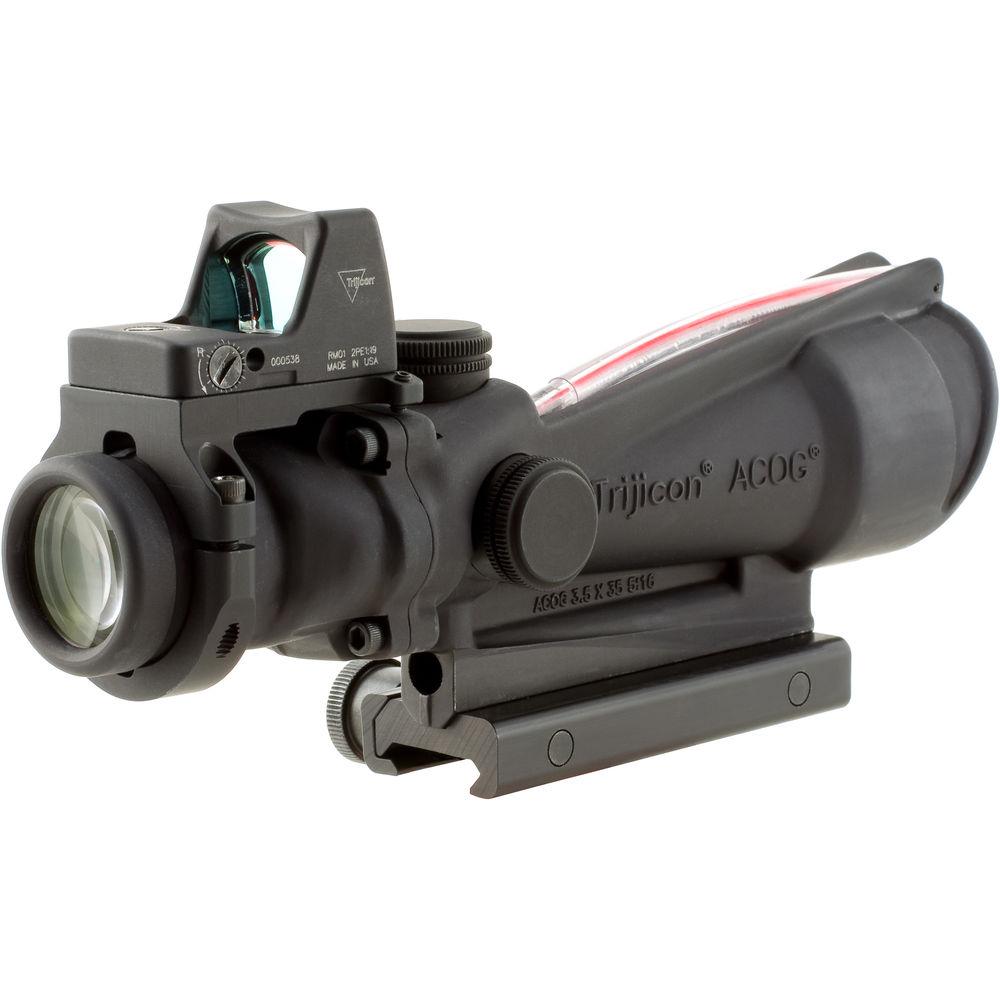

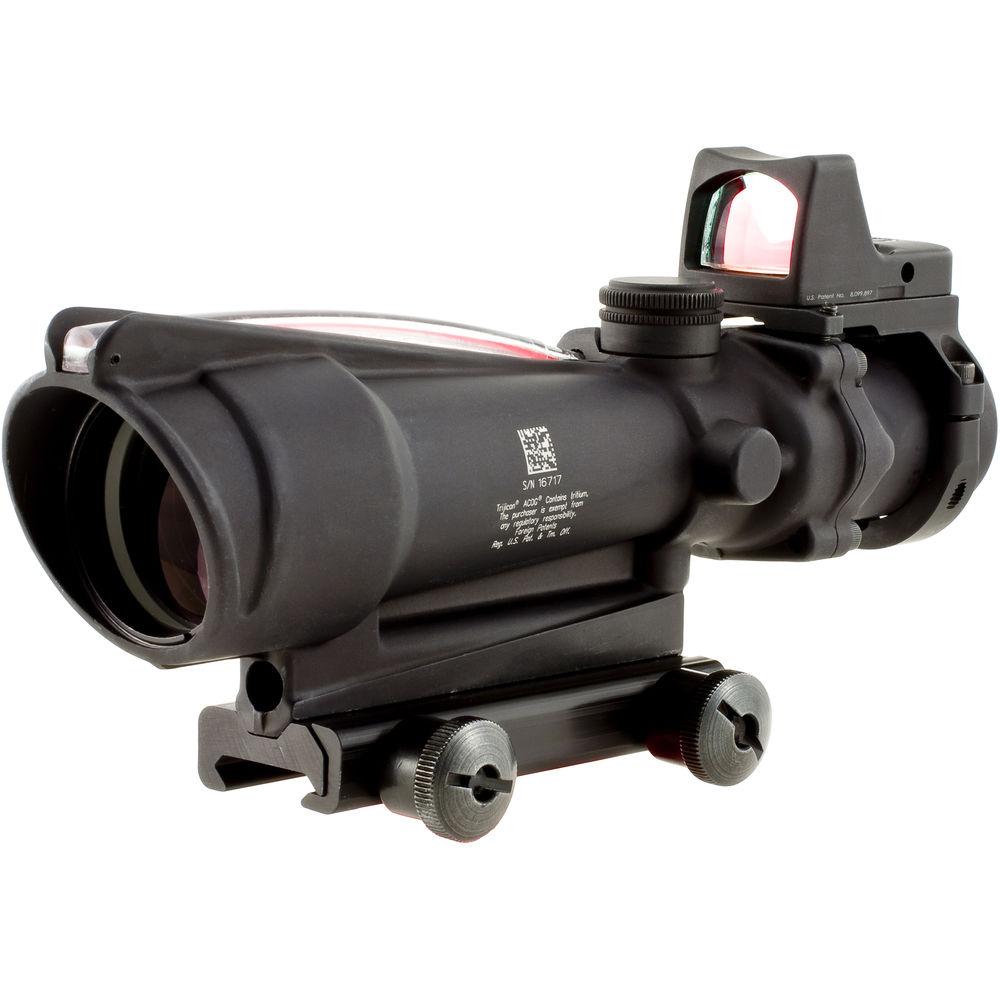

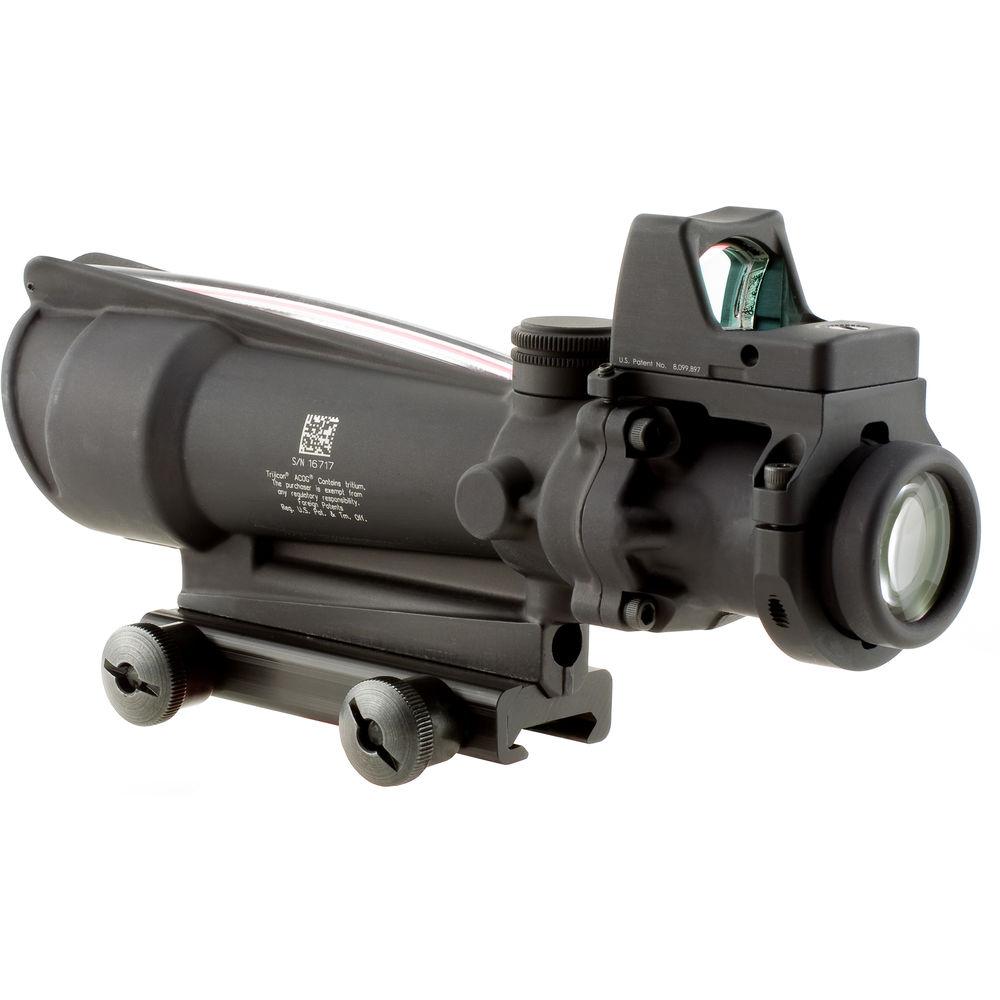

Product description Gain a tactical advantage with Trijicon's 3.5x35 ACOG Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit. The kit includes a battle-ready Advanced Combat Optical Gunsight (ACOG) and a secondary Ruggedized Miniature Reflex Sight (RMR). The ACOG features a waterproof and shock-resistant construction with a battery-free, dual-illuminated Red Crosshair .223 Ballistic Reticle. The sight's rugged optical system exhibits zero distortion, offers multiple anti-reflection coatings, and provides a 35mm objective aperture. To compensate for wind and ballistic bullet drop, the scope offers windage and elevation adjustments with 1/3 MOA impact point correction. The housing offers extreme durability and is submersible to 328'. It is forged from a single piece of 7075-T6 aluminum alloy and coated with black matte finish. It also features an angled sunshade and mounts on a Picatinny-style rail via the included TA51 Flattop Mount.

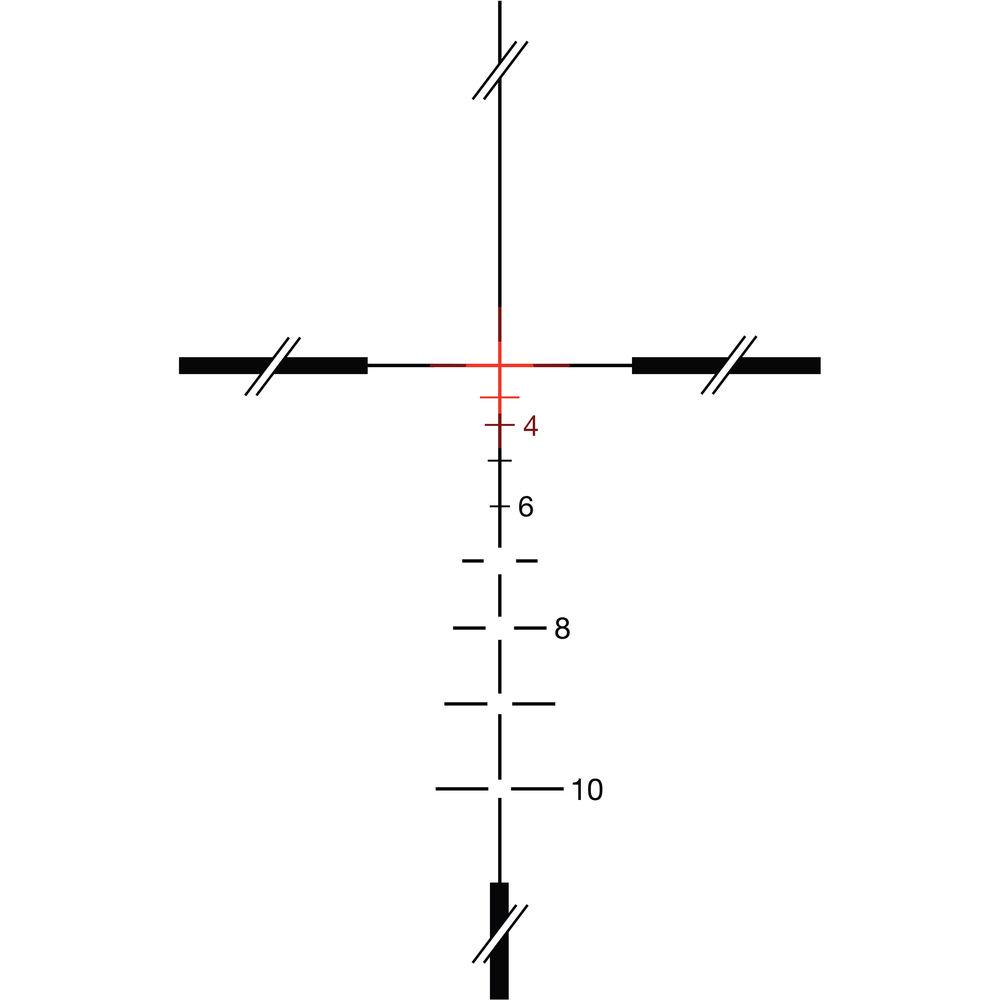

Also noteworthy is the red Crosshair .223 Ballistic Reticle featuring two horizontal posts and a thin crosshair with markings for ballistic and wind compensation. Its battery-free dual illumination system utilizes fiber optics for balanced day illumination and a tritium lamp for low-light and night illumination.
To empower you with rapid target acquisition in close quarter combat, the kit also includes a secondary RM01 LED RMR Sight. This Type 2 iteration of the RMR design has ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. The sight can be mounted on top of the ACOG's eyepiece and features a 3.25 MOA Red Dot reticle with brilliant automatic brightness LED illumination, powered by one CR-2032 battery. To ensure precise shot placement, you are provided with windage and elevation adjustment ranges and 1 MOA click adjustments. For lasting durability, the sight is outfitted with tempered glass and a forged aluminum housing. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information, contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) Improving on previous iterations, the Trijicon RM01 RMR Type 2 LED Reflex Sight features ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. A defining feature of this optic is its 3.25 MOA brilliant Red Dot reticle with a parallax-free performance and LED illumination. With the proprietary True-Color multi-coatings, you will see your targets and backgrounds exactly as they appear, without any color distortion. For target acquisitions beyond CQC (Close Quarters Combat), the sight also offers a 150 MOA windage and elevation range with 1.0 MOA clicks.
Engineered for use with pistols, rifles, or shotguns, the sight combines extreme toughness and a compact construction. Both the 7075-T6 aluminum housing and the glass window are impact-resistant and waterproof (submersible to 66') and can easily withstand the rigors of combat or training for many years of service. - Optical Performance
-
- 1.0x magnification
- True-Color multi-coated 0.87 x 0.63" glass window
- Unlimited field of view
- Reticle
-
- 3.25 MOA Red Dot
- Automatic brightness control
- Parallax-free performance
- Use and Handling
-
- Improved electronics and battery contacts ensure high performance in harsh conditions
- 1.0 MOA impact point correction with audible clicks
- 150 MOA total windage and elevation adjustment ranges
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Forged body diverts impact from the lens
- Corrosion- and scratch-resistant finish
- Scratch- and impact-resistant tempered glass window
- Waterproof to 66'
UPC: 719307613522 - LensPen - TA56 The TA56 LensPen from Trijicon is an excellent device for cleaning the glass surfaces of any optical device. This clever brush features a retractable dust removal brush and a special non-liquid cleaning element. The LensPen is safe and easy to use, and its compact form factor makes it the perfect accessory to toss into your gear-bag. UPC: 719307304048
- ACOG Picatinny Rail Adapter The Trijicon ACOG Picatinny Rail Adapter is designed to fit flat top receivers with Picatinny rails. Two Colt-style thumbscrews provide a secure grip, ensuring repeatable performance. UPC: 719307300514
- Weatherproof Logo Sticker The Trijicon Weatherproof Logo Sticker looks sharp on your toolbox, range-case, or anywhere you apply it. This bold red and black sticker features a clear background and measures 3x5".
- ACOG External Adjuster Caps & Lanyard This ACOG External Adjuster Caps & Lanyard set from Trijicon is designed to fit ACOGs that are configured with external adjusters. These are the caps that cover the W&E dials - they are connected by a short cord to keep them from getting lost when making adjustments. External adjusters are black, they do not have a coin/tool slot, and they have a higher profile. UPC: 719307303416
In the Box Bundle Items RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) wexxqdbqzbcvwretxdfeuv - Limited Lifetime Warranty
LensPen - TA56 ACOG Picatinny Rail Adapter Weatherproof Logo Sticker ACOG External Adjuster Caps & Lanyard
Also Includes - Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope & 3.25 MOA Red Dot Type 2 RMR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black)
| Magnification | 1.0x | | Reticle | 3.25 MOA Red Dot reticle | | Field of View | Unlimited | | Impact Point Correction | 1.0 MOA | | Windage/Elevation Adjustment | Yes | | Battery | 1 x CR2032 lithium battery / 2 years of use | | Weatherproofing | Waterproof and submersible to 66' (20 m) | | Dimensions | 1.8 x 1.1 x 1.0" / 46.0 x 28.0 x 25.0 mm | | Weight | Sight: 1.2 oz / 34.0 g | | | | Box Dimensions (LxWxH) | 5.4 x 4.8 x 3.4" | - LensPen - TA56
| | | Box Dimensions (LxWxH) | 5.95 x 3.85 x 2.05" | - ACOG Picatinny Rail Adapter
| | | Box Dimensions (LxWxH) | 6.7 x 4.0 x 2.0" | - Weatherproof Logo Sticker
| | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 0.1" | - ACOG External Adjuster Caps & Lanyard
| | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 3.0" |
