User Manual for Trijicon 3.5x35 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3.5x35 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3.5x35 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

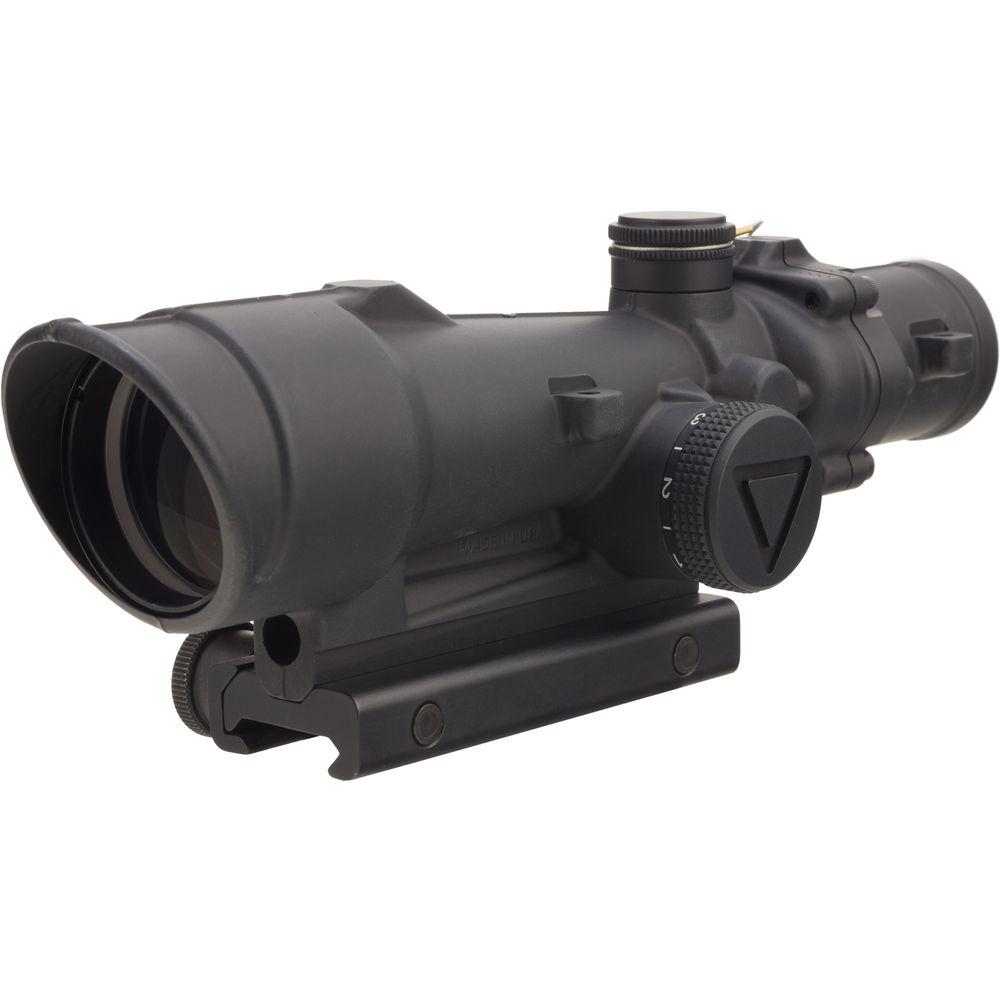

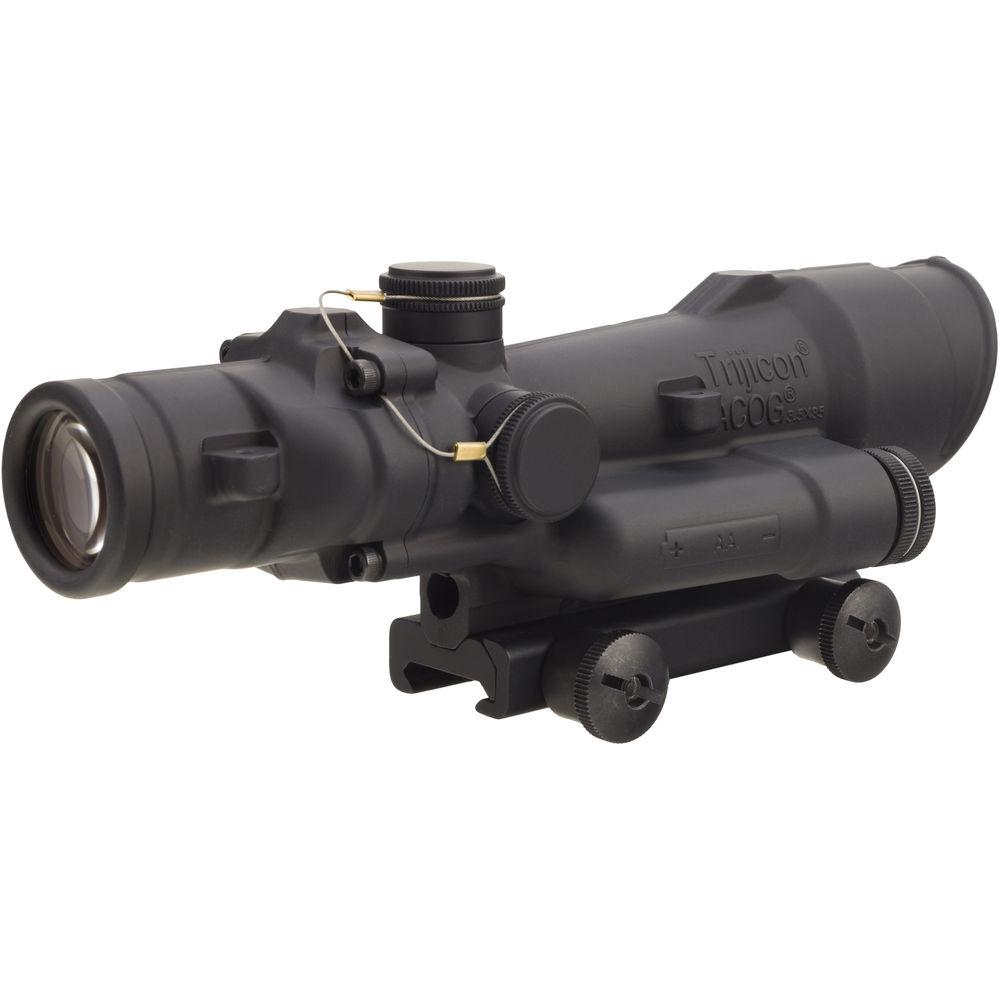

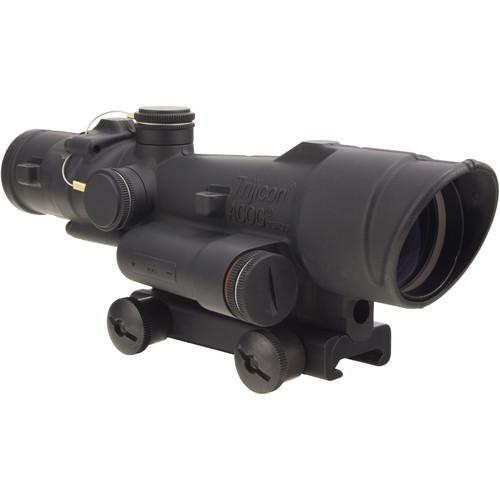

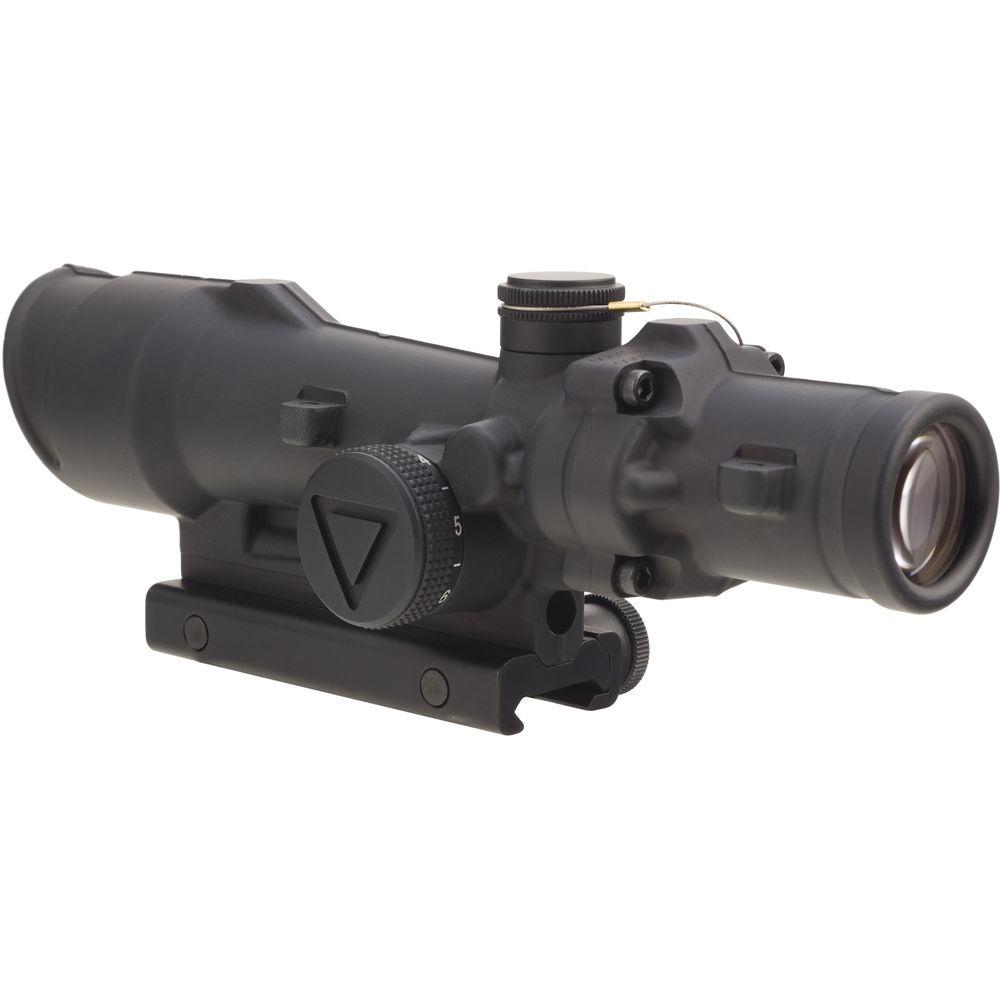

Product description Dominate the battlefield with Trijicon's 3.5x35 Advanced Combat Optical Gunsight (ACOG). This battle-ready optic will help increase the success rate of your mission while withstanding the most hostile environments and adverse weather conditions. It is built as a ruggedized riflescope for close quarters combat (CQC). Its optical system is optimized for the cause by giving you a notable 3.5x magnification with a 35mm objective lens. The fully multi-coated optics, manufactured from high-quality optical glass, are designed to improve light transmission, reduce image distortion, and deliver the best possible visibility in most situations. For engaging targets quickly and accurately, this gun sight is equipped with a brilliant green .308 Chevron reticle that offers an LED-based illumination system and brightness control. To help you manage wind drifts and ballistics, the scope has 40 MOA windage and elevation adjustments with a 1/2 MOA impact point correction.
Forged from a single piece of 7075-T6 aluminum alloy, the maintube is exceptionally durable, fogproof, and waterproof (submersible to 66'). It features a hard anodizing finish, tethered adjustment and battery caps, and an eyepiece with a zoom lever to provide a slip-free operation. The Picatinny flattop thumbscrew mount provides unparalleled strength and durability to the overall construction. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Optical Performance
-
- Fully multi-coated optics
- Low-distortion and high-transmission glass
- 3.5x zoom magnification
- 35mm objective lens diameter
- Angular field of view range is 5.5°
- Reticle
-

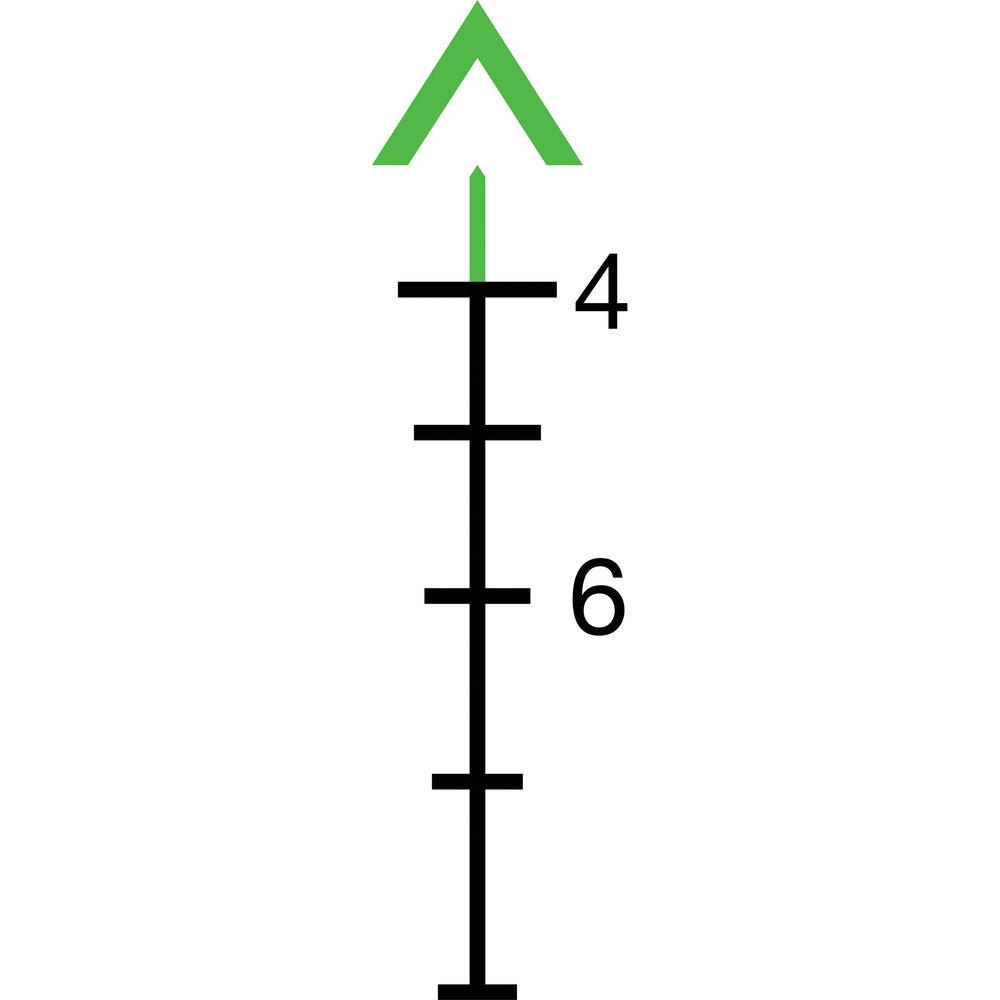

- Green LED Illuminated .308 Chevron Reticle
- Optimized for .308 caliber
- LED illumination system
- Six brightness levels
- Powered by one standard AA battery
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 40 MOA windage and elevation adjustment
- 2.4" fixed eye relief
- Exit Pupil: 10.0mm
- Construction Details
-
- 7075-T6 aluminum alloy
- Hard anodizing finish
- Forged, single-piece maintube
- Capped tethered finger-operated windage and elevation adjustments
- Fogproof, shock-resistant, waterproof, and submersible to 66'
- Flattop thumbscrew mount is compatible with Picatinny rails
UPC: 719307321021 In the Box Trijicon 3.5x35 ACOG Riflescope (Green LED Illuminated .308 Chevron Reticle, With Thumbscrew Mount) - ACOG Picatinny Rail Adapter vwsyudvfwyrwecfzvdvtsdsfttyxffruaet
- LensPen - TA56
- ACOG External Adjuster Caps & Lanyard
- Tethered Battery Cap
- AA Battery
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA110-C-100498 Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | .308 Chevron Reticle | | Illumination | Illuminated | | Illumination Type | LED | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof to 66' / 20 m | | | | Battery | 1 x AA | | Battery Runtime | 12,000 Hours (Maximum) | | Dimensions | Length: 8" / 20.3 cm
Height: 3" / 7.6 cm
Width: 2.6" / 6.6 cm | | Weight | 16.8 oz / 476.3 g (without Mount) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 10.6 x 8.1 x 5.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
