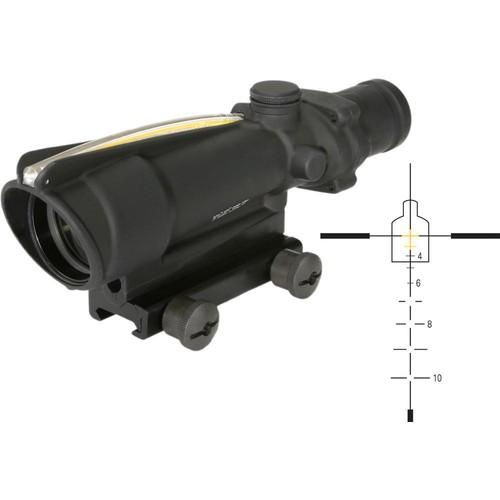

User Manual for Trijicon 3.5x35 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3.5x35 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3.5x35 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. Although ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light scenarios. The 3.5x35 ACOG sits at a moderate height on top of the receiver While delivering a pronounced 3.5x magnification, the efficient 35mm objective produces a bright, crisp, and clear sight picture. Trijicon's proprietary tritium/fiber optic technology ensures that the reticle remains highly-visible 24/7/365. Combining the obvious assets of a generous FOV, bright reticle, and moderate magnification ensures the operator's ability to engage targets with confidence and outstanding fire-control capability. Any target - moving or otherwise - will be easier to acquire, lock on to, and hit successfully with the first shot. This ACOG is configured with a Picatinny rail mount and a dual illuminated Amber Crosshair reticle calibrated for 5.56/.223 caliber firearms. - Rugged Construction
- Forged 7075-T6 aircraft aluminum alloy housing
- Broad Band Anti-Reflective Coated Lenses
- Multicoated lenses provide enhance clarity by minimizing flare and glare
- Waterproof and Fogproof
- Nitrogen purged and waterproof seals ensure clarity and reliability under any conditions
- ACOG Picatinny Rail Adapter
- Configured for use with firearms that are fitted with a Picatinny/Weaver rail or mount
- Fiber Optics and Tritium Illumination
- Proprietary battery-free technology provides a vivid aiming point without the need for failure-prone batteries

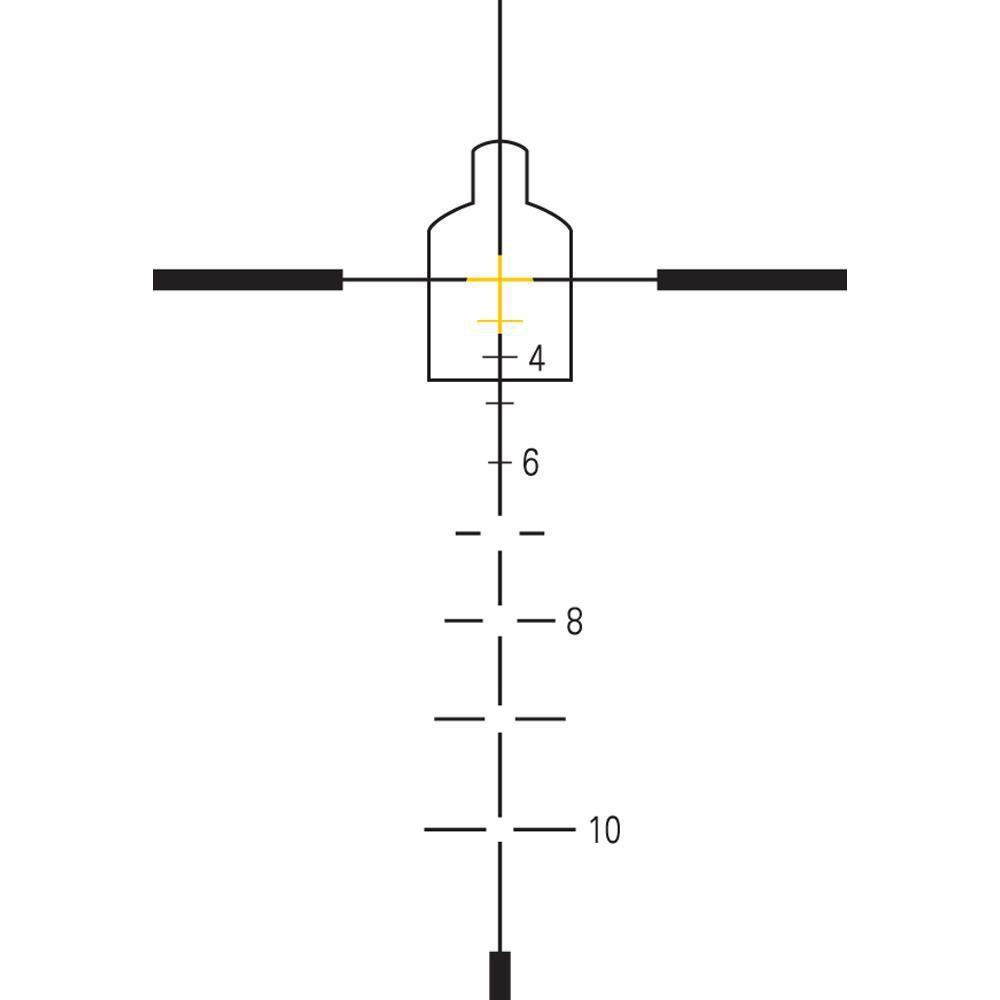

- Dual Illumination Amber Crosshair Reticle - 5.56 / .223
- Day or night - this reticle delivers a brilliant amber glow at the intersection of the cross hairs for a positive lock on your target. Heavy posts at 3 and 9 o'clock draw your sight to the center of the sight-picture. Hash-marks upon the 6 o'clock stadia provide hold-over points for long-range (1000 m) target acquisition. A single stadia at 12 o'clock ensures a rapid and effortless centering of your point of aim.
In the Box Trijicon 3.5x35 ACOG Riflescope (Matte Black) ACOG Picatinny Rail Adapter bzauebtqsv ACOG Scopecoat Large Sized Pelican Case (Black) LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11J-A Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | 5.56 / .223 Crosshair Reticle | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Amber | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 8" / 20.3 cm | | Weight | 14 oz / 396 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
