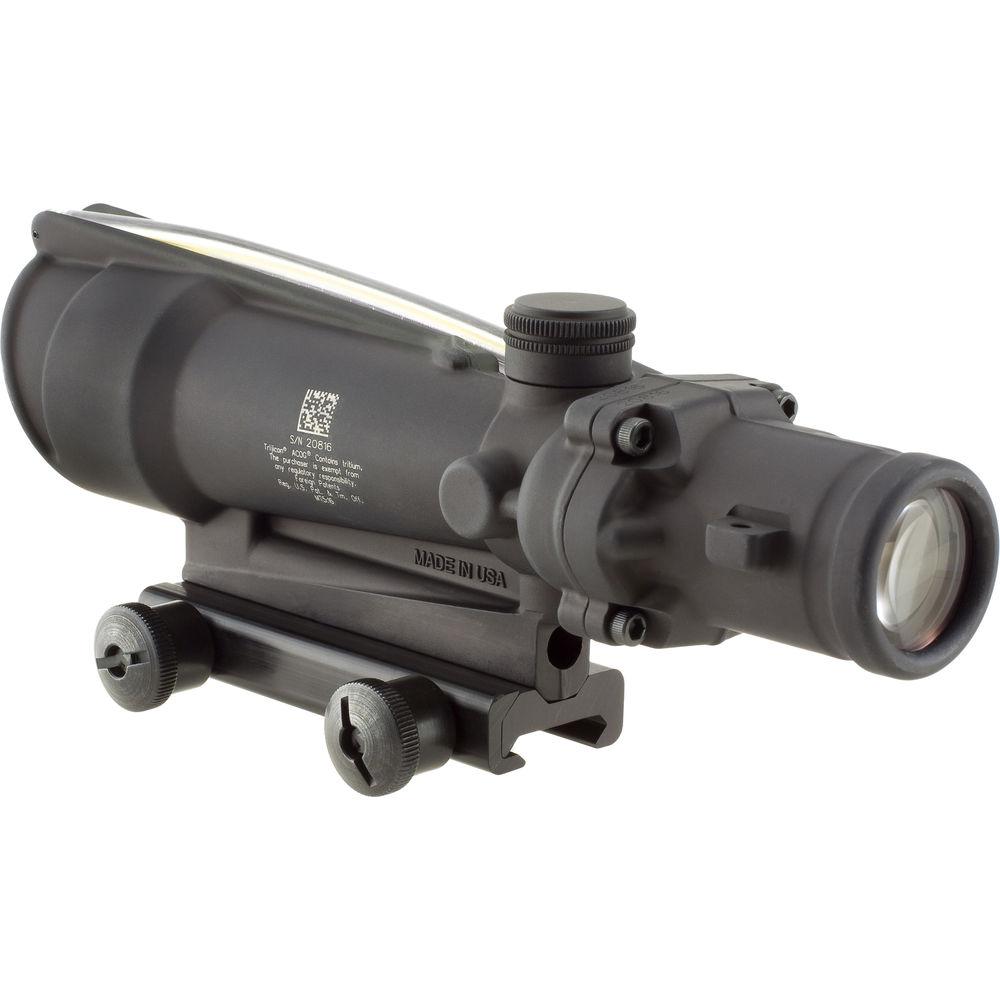

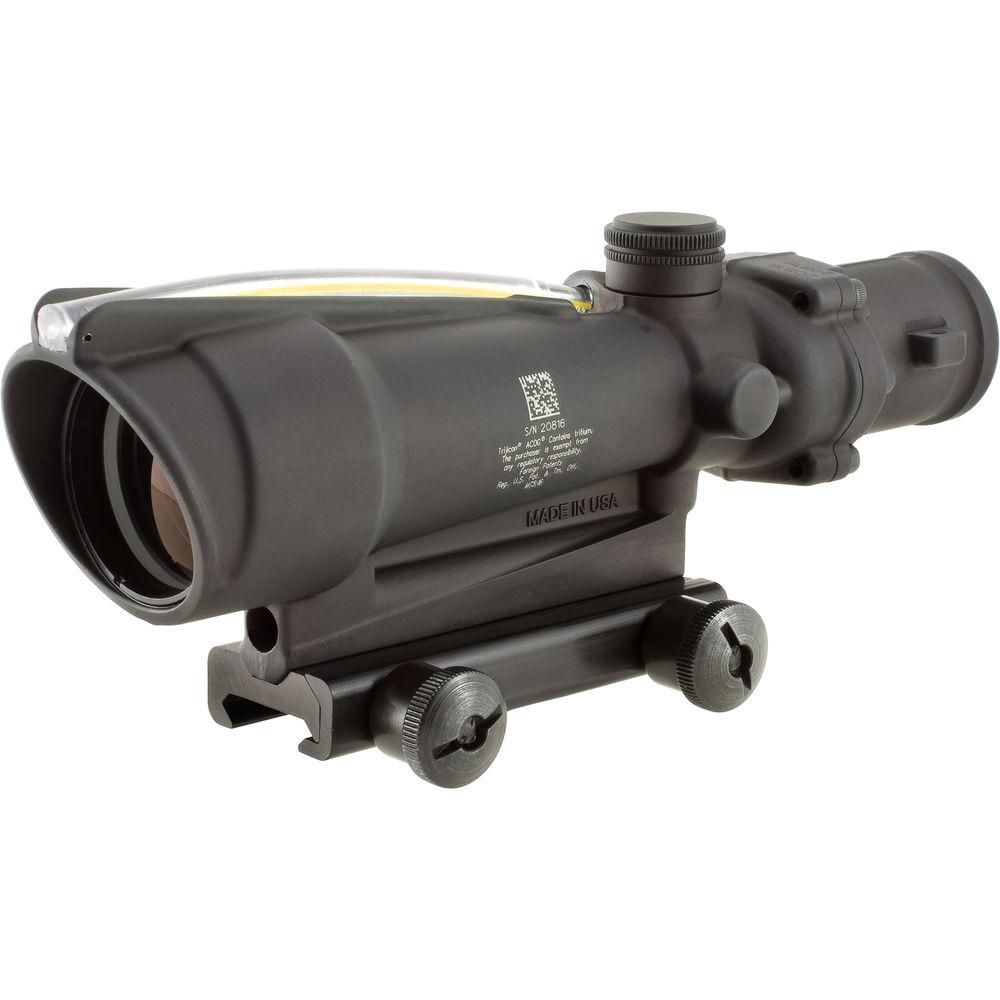

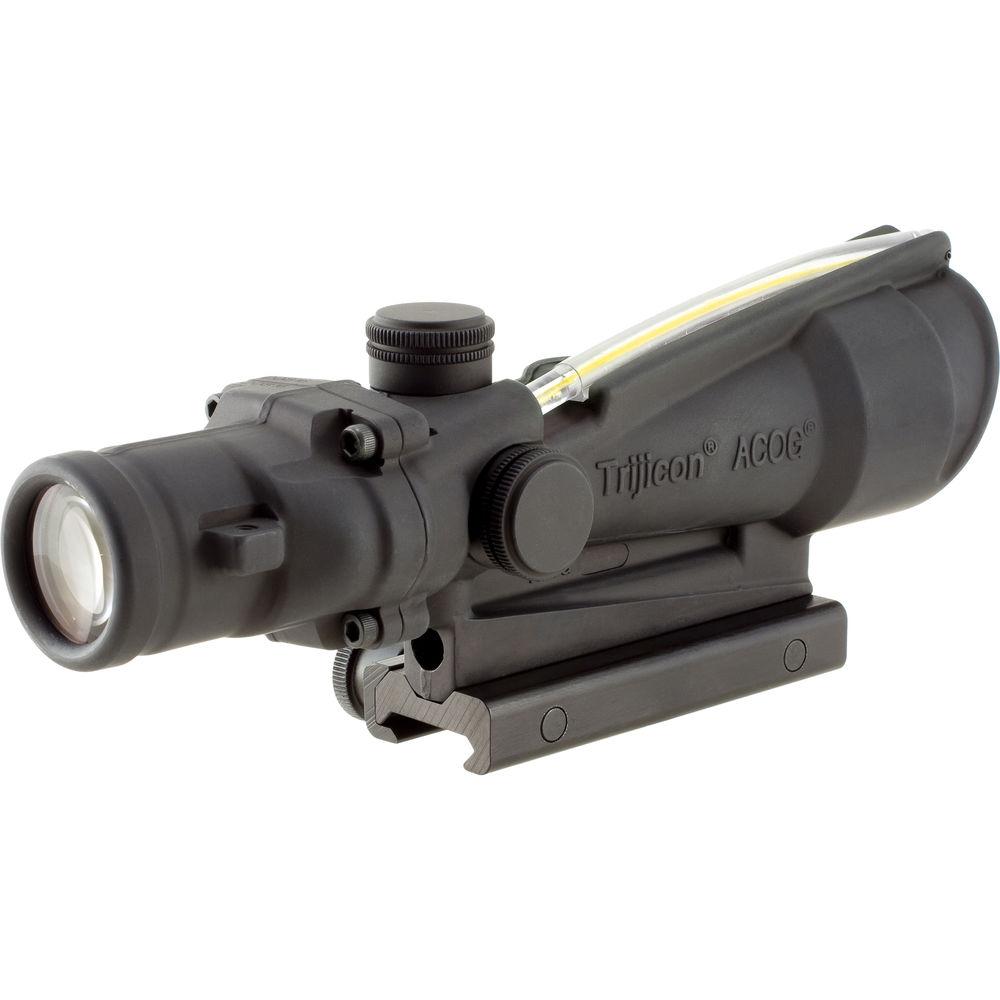

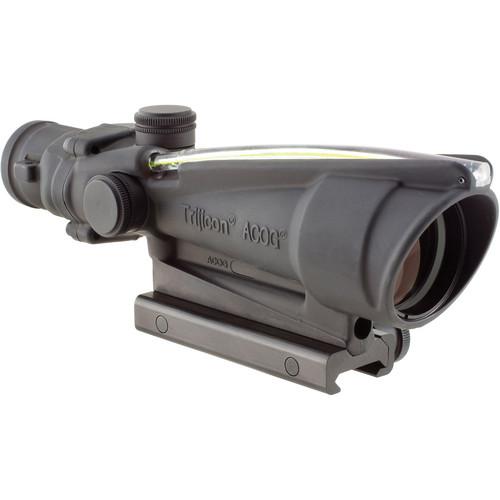

Product description The 3.5x35 ACOG from Trijicon sits at a moderate height on top of the receiver. While delivering a mid-range 3.5x magnification, the efficient 35 mm objective produces a bright, crisp, and clear sight picture. Trijicon's proprietary tritium/fiber optic technology ensures that the reticle remains highly-visible 24/7/365. Combining the obvious assets of a generous FOV, bright reticle, and moderate magnification ensures the operator's ability to engage targets with confidence and outstanding fire-control capability. Any target - moving or otherwise - will be easier to acquire, lock on to, and hit successfully with the first shot. This ACOG is configured with a Picatinny flat-top mount, and a dual illuminated amber chevron reticle that's calibrated for 7.62x51/.308. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy
- Waterproof: nitrogen purged and fully sealed for all-weather reliability
- Use and Handling
-
- Picatinny flat-top mount: compatible with Mil-Std 1913 Picatinny rails, features two Colt-style thumbscrews
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.

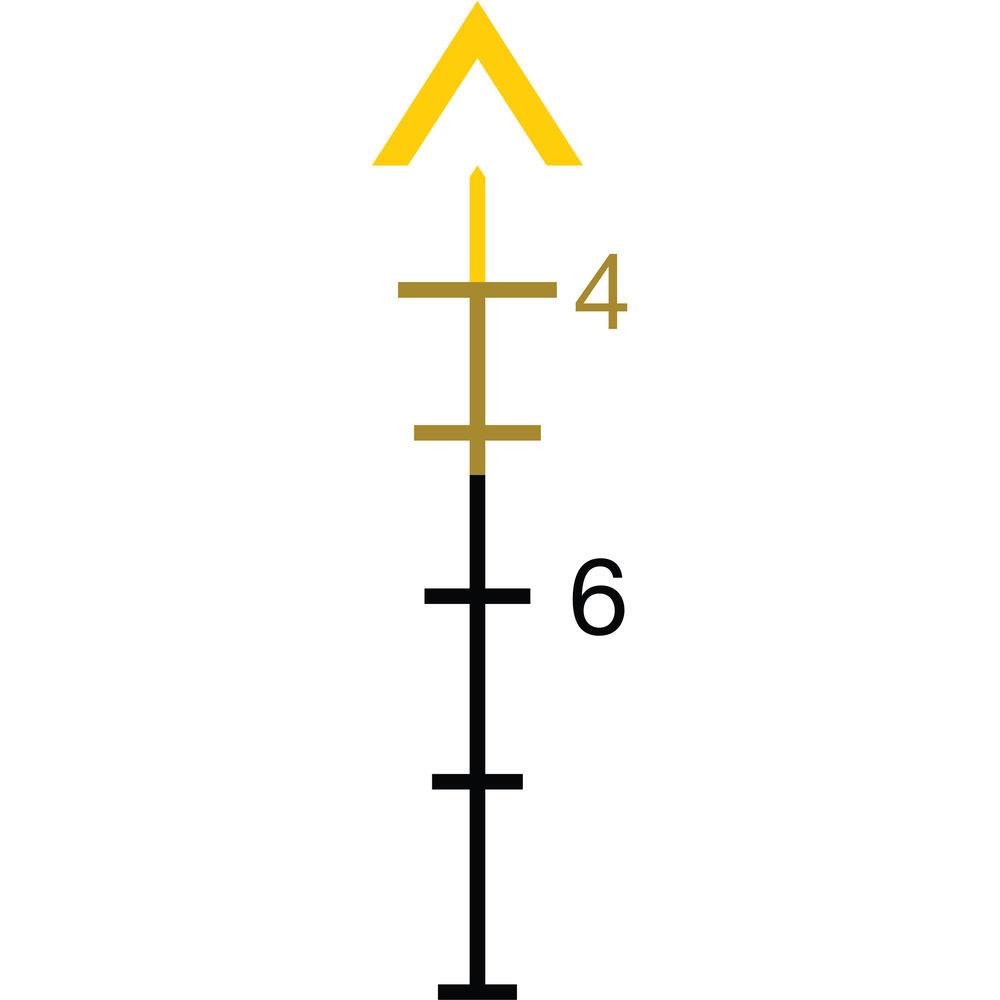

- Amber chevron reticle: calibrated for 7.62x51/.308. An illuminated chevron floats above a single post. The post is configured with BDC hash-marks for distances up to 800 m. The width of the chevron's base subtends 5.53 MOA - this translates to 19.0" at 300 m.
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the chevron with a highly-visible amber glow
In the Box Trijicon 3.5x35 ACOG Riflescope (Matte Black) ACOG Picatinny Rail Adapter ACOG Scopecoat LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11E-A Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | 7.62x51 / .308 Chevron Reticle | | Illuminated Color | Amber | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 8.7" / 22.1 cm | | Weight | 14 oz / 397 g (without Mount) |
