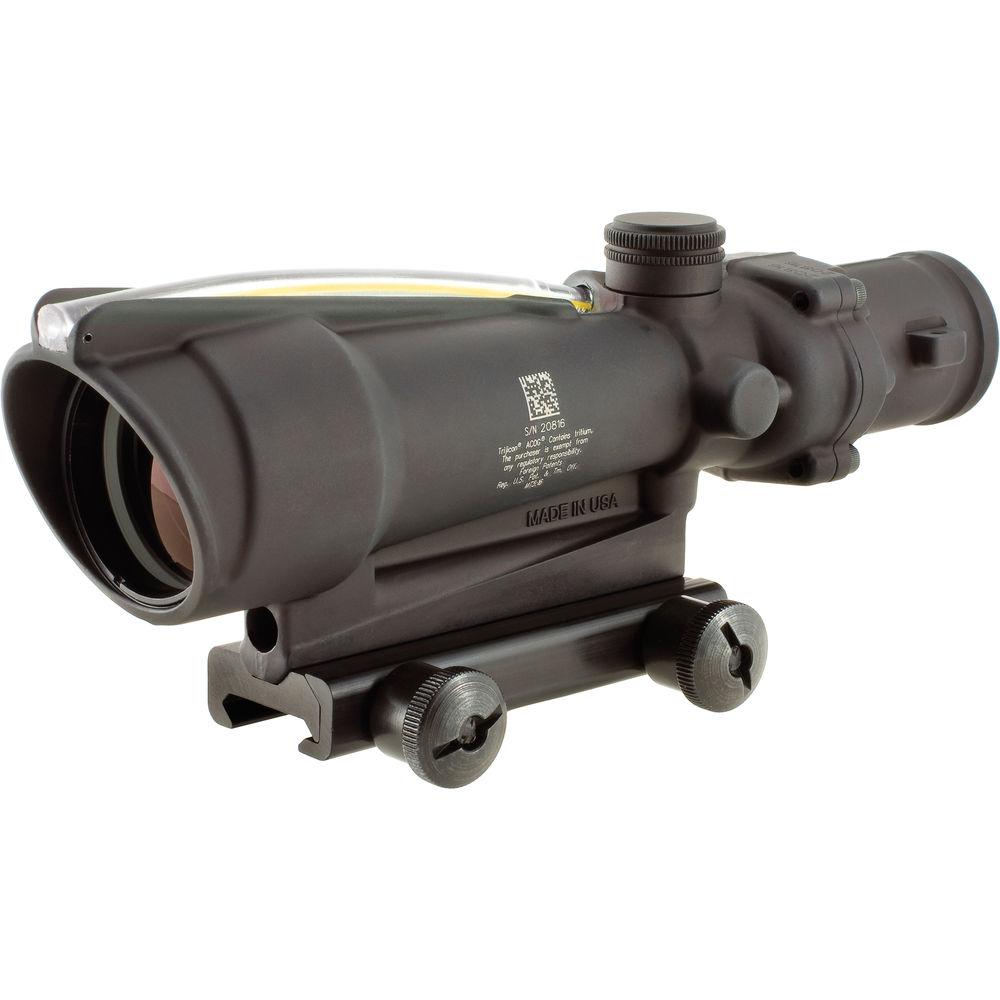

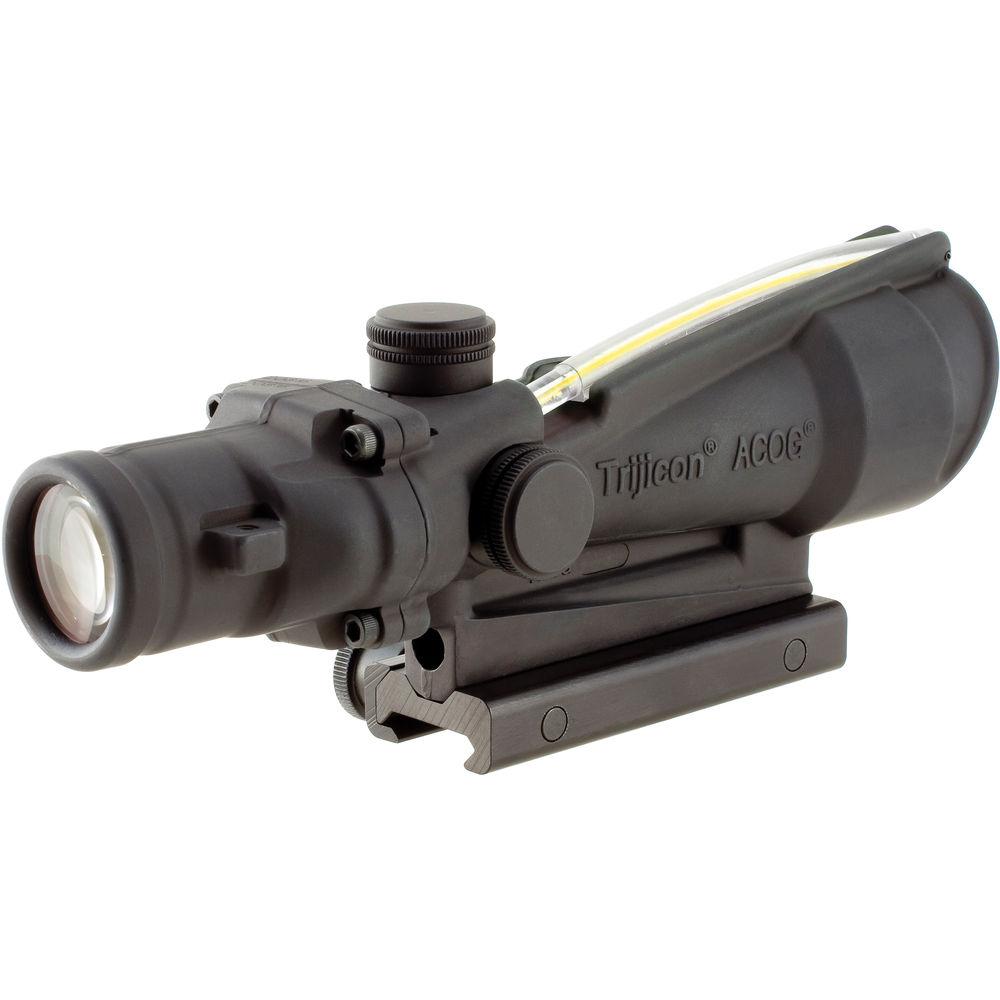

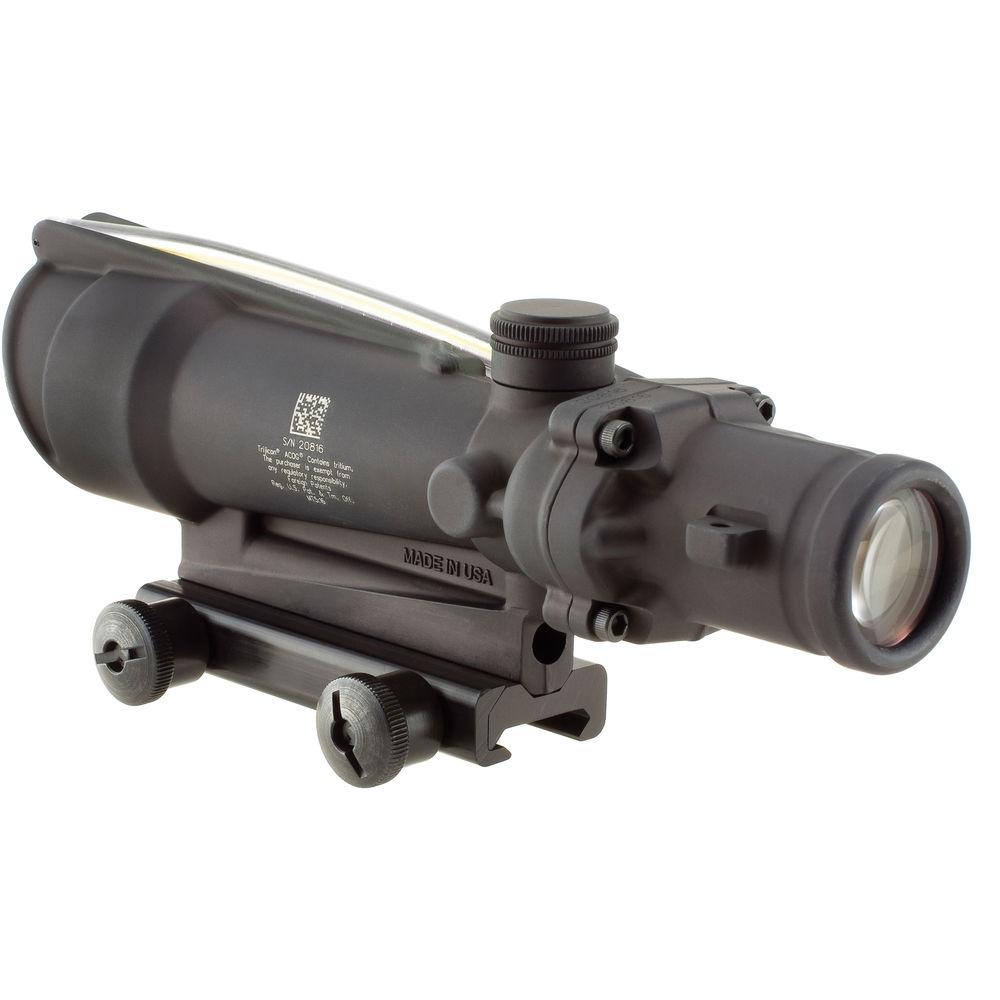

User Manual for Trijicon 3.5x35 ACOG Riflescope with TA51 Mount Click to enlarge the picture
Contents of the user manual for the Trijicon 3.5x35 ACOG Riflescope with TA51
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3.5x35 ACOG Riflescope with TA51 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

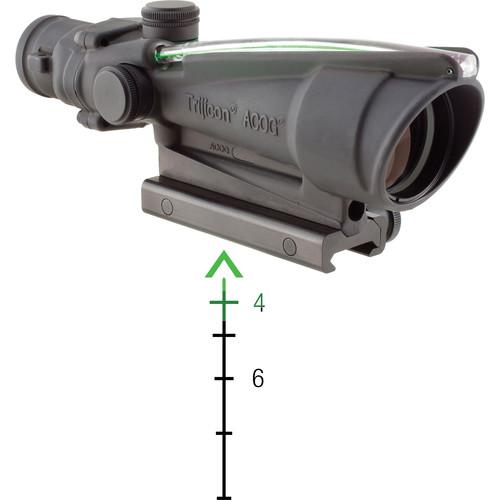

Product description The 3.5x35 ACOG Dual-Illuminated Riflescope from Trijicon is a battle-tested optic that combines battery-free reticle illumination and air tight construction with a ballistic reticle to create a versatile weapon sight that is well-suited for targeting in a wide range of weather and lighting conditions. This 3.5x35 configuration of the Advanced Combat Optical Gunsight (ACOG) features a red chevron reticle that has bullet drop compensation marks calibrated specifically for M193 ammunition.
Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor for low-light and night targeting, as well as a fiber optic illuminator that automatically adjusts reticle brightness when operating in daylight. The impact point correction is 1/2 MOA per clic. Additionally, this ACOG is outfitted with a TA51 mount that has two thumbscrews for clamp-on attachment to a Picatinny rail.
A folded light path and broadband multicoated optics allow the ACOG to transmit a bright and wide field of view using a relatively compact form factor. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- Fully multicoated optics with zero distortion and high transmission glass
- Magnification of 3.5x allows for a short-to-medium range target acquisition
- Objective lens diameter of 35mm
- Angular field of view range is 5.5°
- Eye relief: 61 mm
- Reticle
-

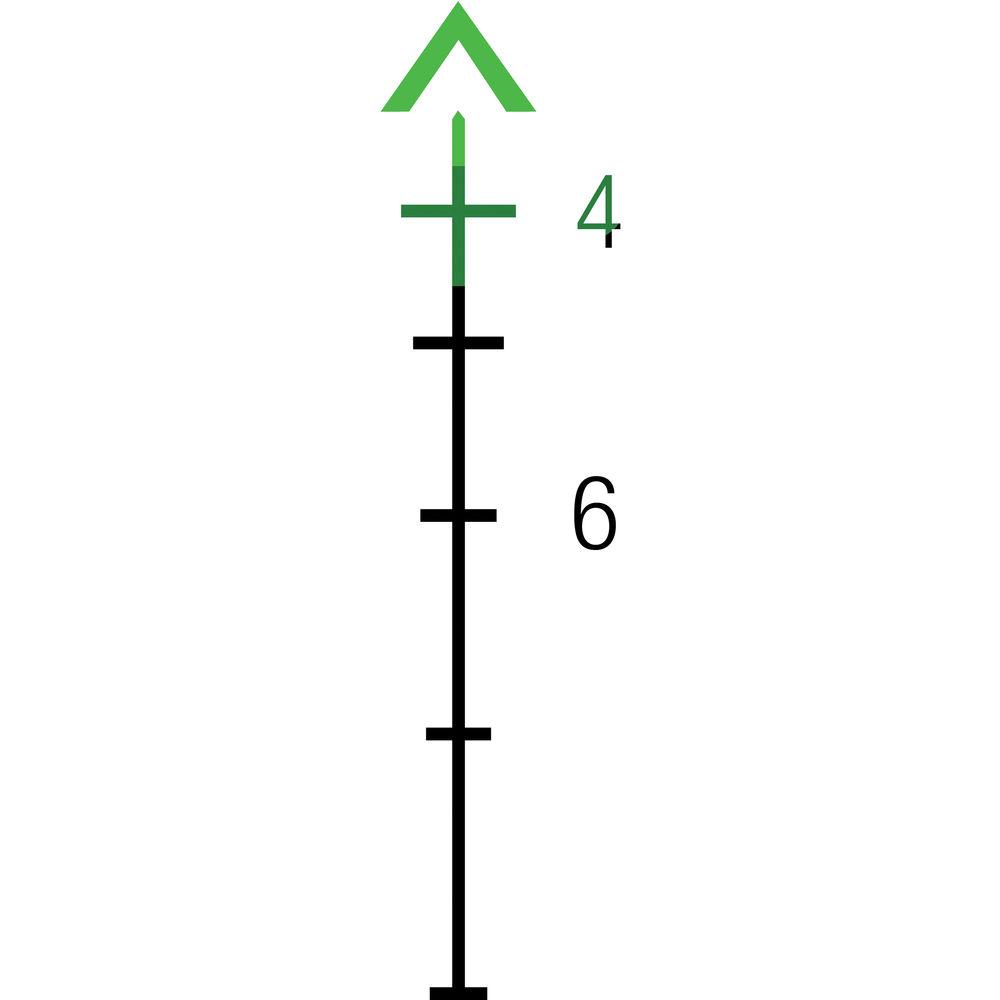

- Dual Green Chevron M193 reticle
- Tritium phosphor fiber optic illumination
- Can be zeroed using the tip at 100 m
- BDC goes out to 800 m
- Use and Handling
-
- 3 MOA impact point adjustments
- Includes one TA51 mount
- Construction Details
-
- Forged from a single piece of 7075-T6 aluminum for increased durability
- Type III hard anodizing black matte finish
- Fogproof, shockproof, waterproof submersible to 328'
- Laser etched serial number on housing for identification
UPC: 719307306837 In the Box Trijicon 3.5x35 ACOG Riflescope with TA51 Mount (Dual Green Chevron M193 Reticle) - ACOG Picatinny Rail Adapter
- ACOG Scopecoat
- LensPen - TA56
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope with TA51 Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11-D-100293 Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 29' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | M193 Chevron Reticle | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Impact Point Correction | 3.0 MOA per Click | | | | Water Resistance | Waterproof to 328' / 100 m | | | | Battery | None | | Dimensions | Length: 8" / 203 mm | | Weight | 14 oz / 397 g (without Mount) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.4 x 7.9 x 5.1" |
