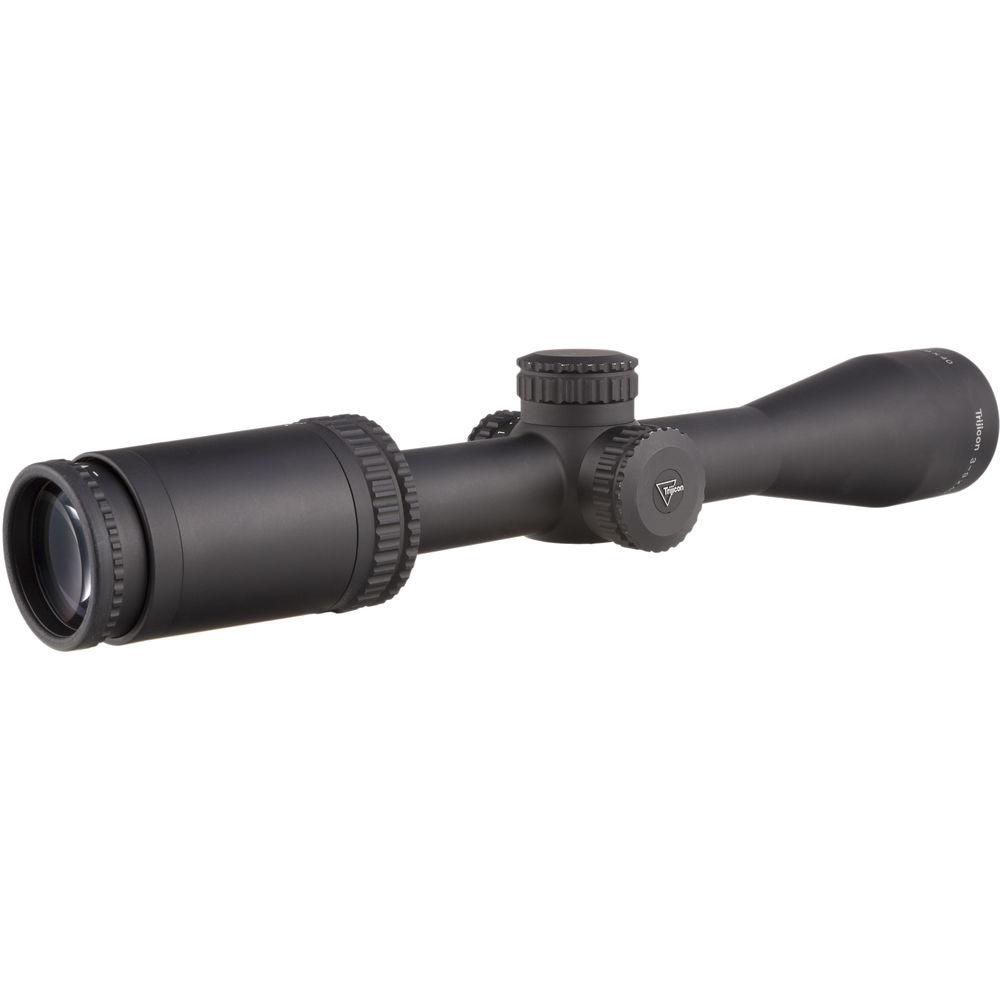

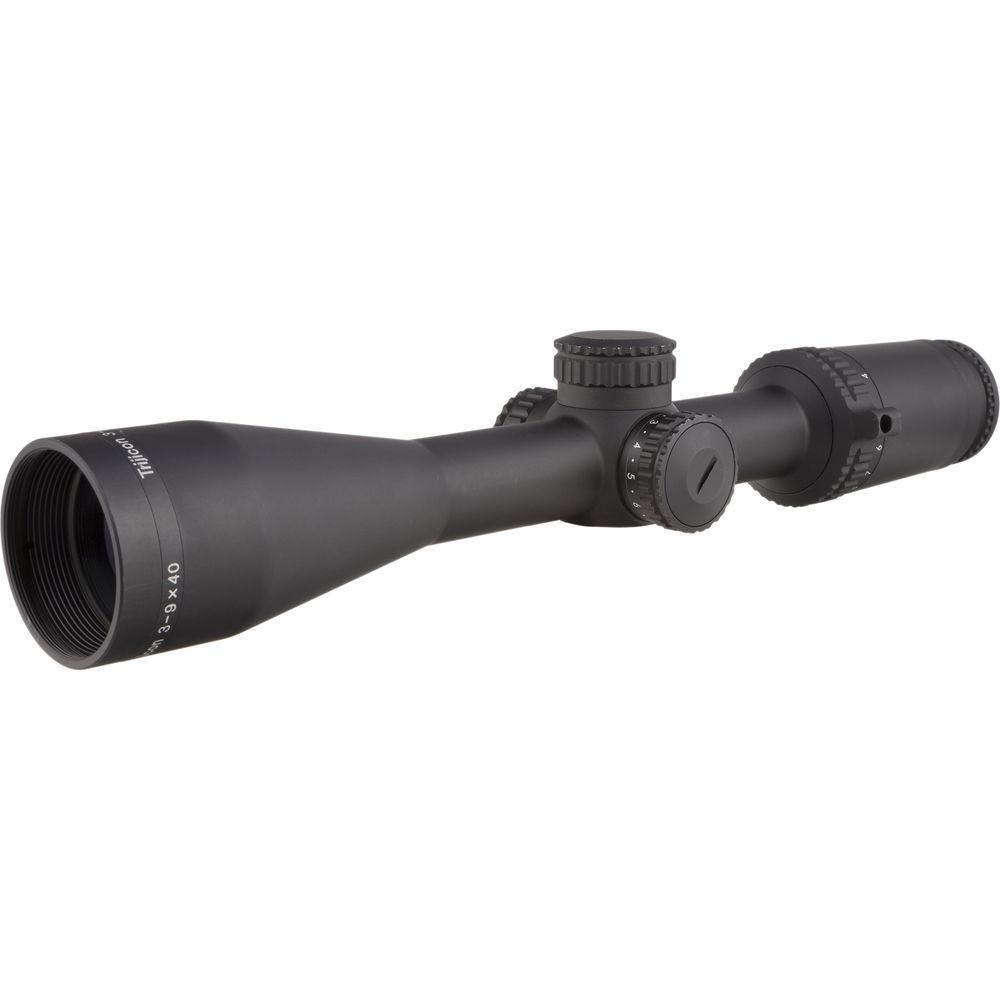

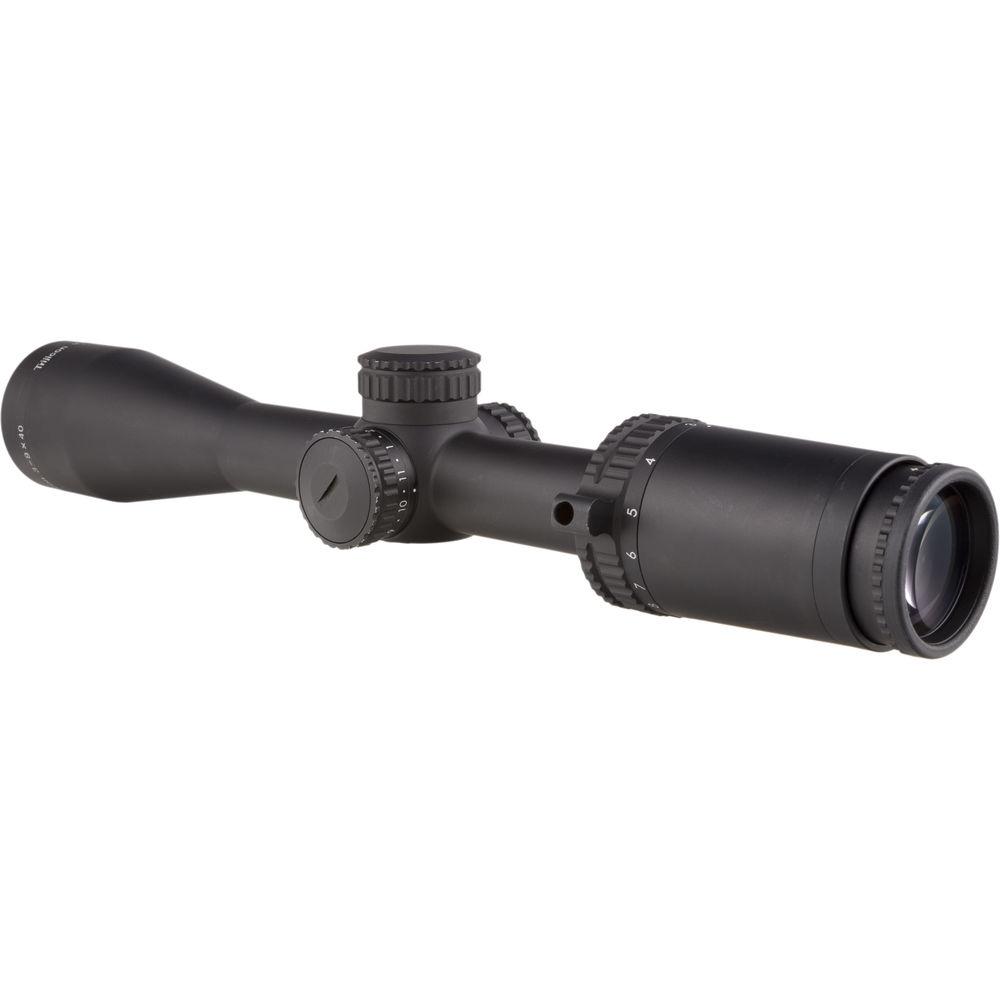

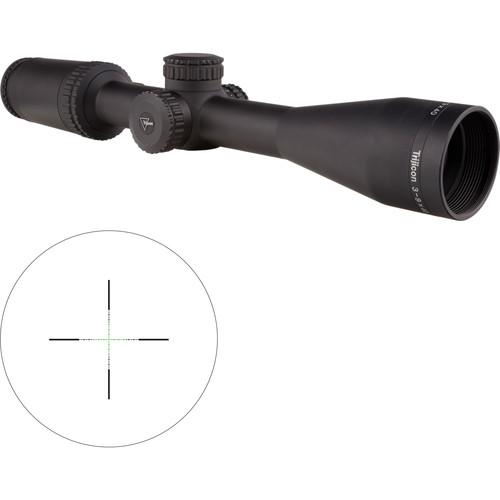

Product description Trijicon engineered the 3-9x40 AccuPower Riflescope as a battle-ready riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high-quality optical glass and polished for low-distortion performance. To deliver bright images in most lighting conditions, even at dusk or dawn, the riflescope also features a 40mm objective lens. To empower you with laser precision when making your shots, the optic is enhanced with the Green Mil-Dot Reticle Illuminated Reticle. It offers four posts, fine illuminated center dot, and 10 x 10 mil crosshair with 0.2 mil tick round tick marks. The center dot features fiber optic day illumination with variable brightness and a tritium lamp for illumination at night. The reticle is specifically designed for using the Trijicon's Bindon Aiming Concept (BAC). The technique allows you to engage fast moving targets with both eyes open and to make accurate target acquisitions. Its LED-based illumination system has a brightness control with an "off" mode between each brightness level setting.
The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 1" maintube, lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled, easy-focus eyepiece features a long 3.7-3.5" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. Red MOA-Dot Crosshair Illuminated Reticle -
- 2nd focal plane
- LED illumination
- Variable brightness
- LED is off between brightness settings
- Trijicon's Bindon Aiming Concept (BAC)
- Allows aiming with both eyes open
- For fast moving targets

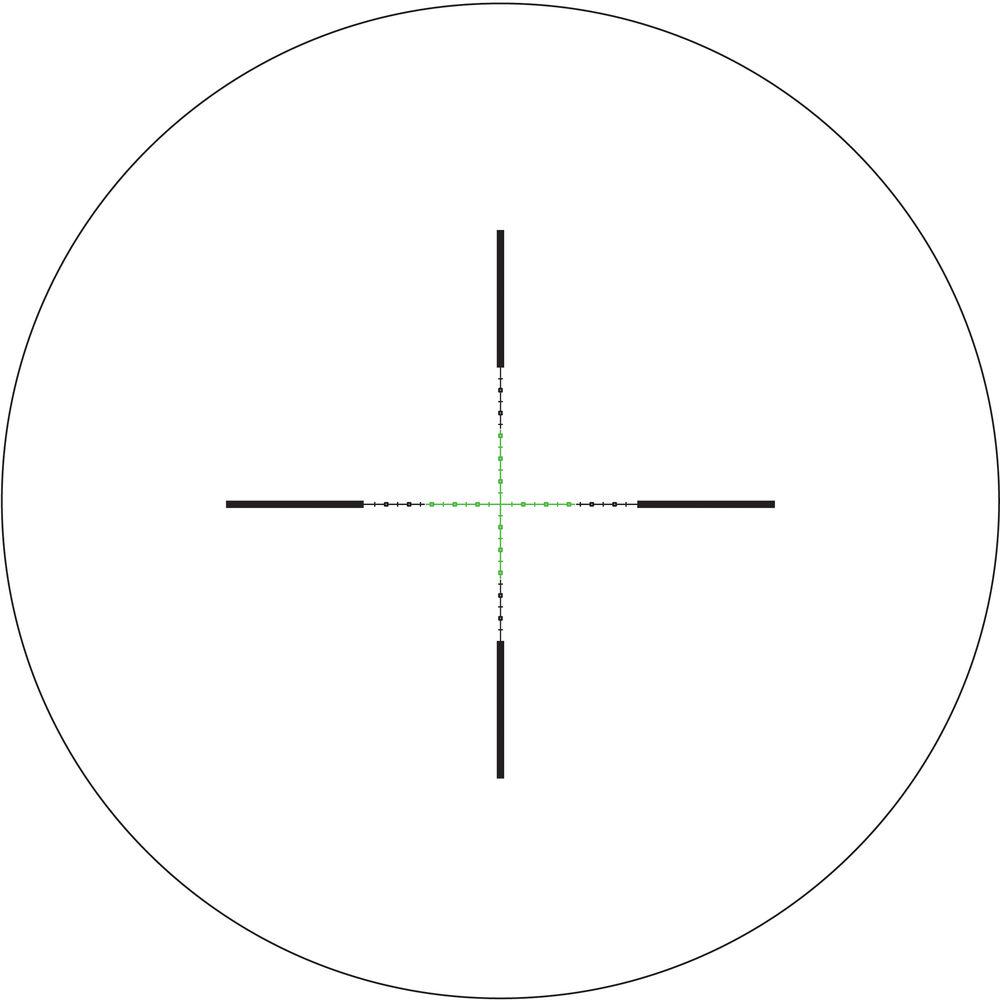

- Four thin posts
- Thin crosshair
- Alternating dash and square tick marks
- At maximum magnification:
- Crosshair line spans 12 mil horizontally and vertically
- Squares are 0.2 mil wide with 0.035 mil center point
- Tick marks are spaced at 0.5 mil intervals
- Thickness of crosshair line is 0.05 mil
Optical Performance -
- Multi-coated optics
- Low-distortion lenses
- Magnification: 3-9x
- 40mm objective lens delivers bright images even in low light
- Linear field of view: 35.5-11.8' at 100 yards
- Long eye relief of 3.7-3.5"
Use and Handling -
- 0.1 mil impact point correction
- 17.8 mil windage and elevation range
Construction Details -
- 1" single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped finger-operated turrets
- Push-pull lockable turret caps
- Turrets have numerical reference scales
- Easy-focus eyepiece with zoom lever
- Fogproof, nitrogen-filled
- Waterproof to 10'
- Shock-resistant
UPC: 719307402034 In the Box Trijicon 3-9x40 AccuPower Riflescope (Geen MIL-Square Crosshair Illuminated Reticle) - Trijicon Logo Sticker (PR15)
- 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3-9x40 AccuPower Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS20-C-1900011 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 35.5' @ 100 yd / 11.8 m @ 100 m
9x: 11.8' @ 100 yd / 3.9 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.5 to 3.7" / 90 to 93 mm | | | | Reticle Type | MIL Square Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 17.8 MIL | | Elevation Adjustment | 17.8 MIL | | Parallax Correction | No | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Battery Runtime | 31 Hours | | Dimensions | Length: 12.3" / 312 mm | | Weight | 17 oz / 483 g |
