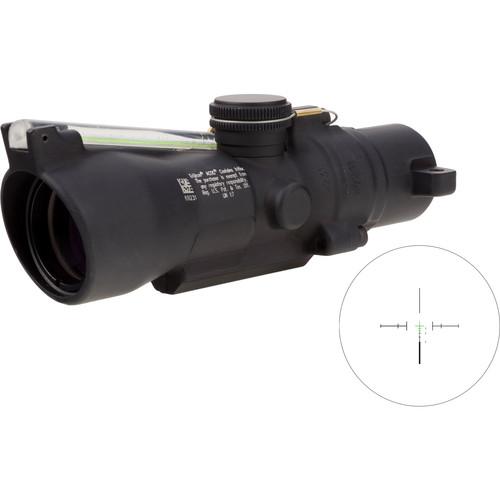

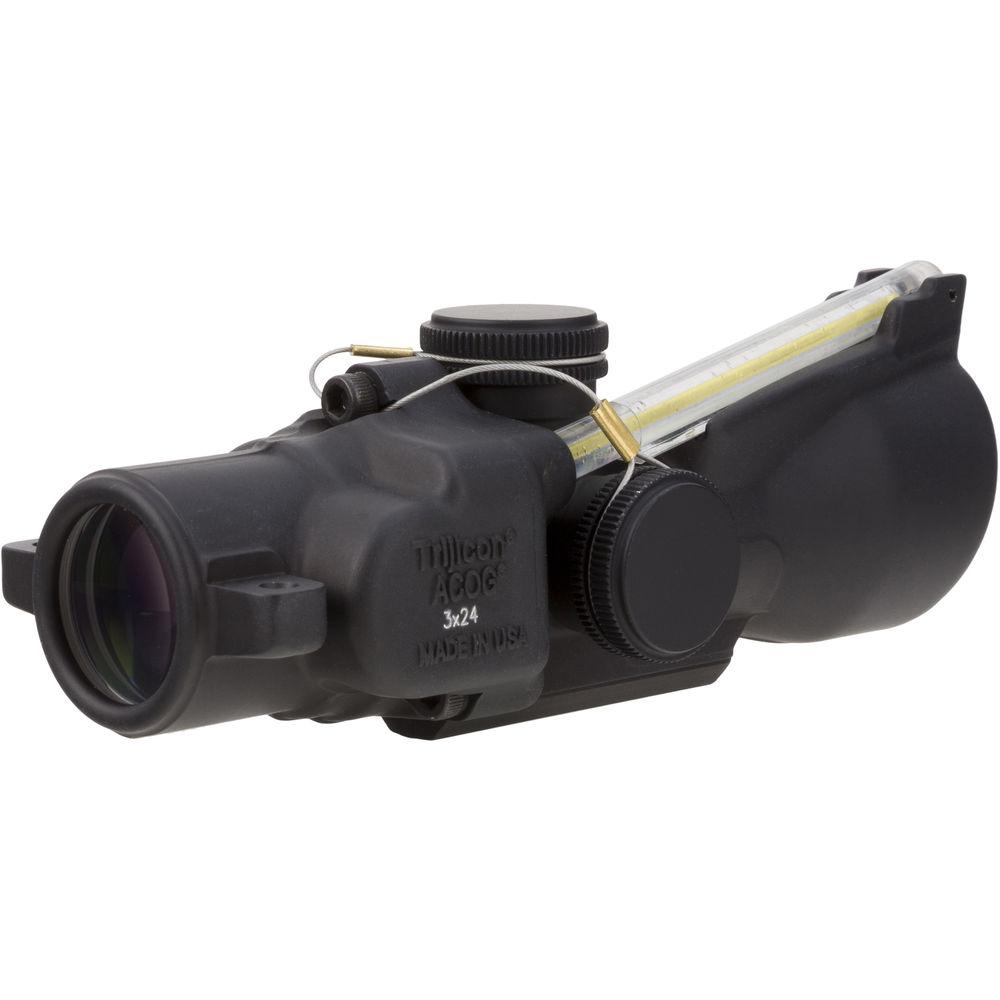

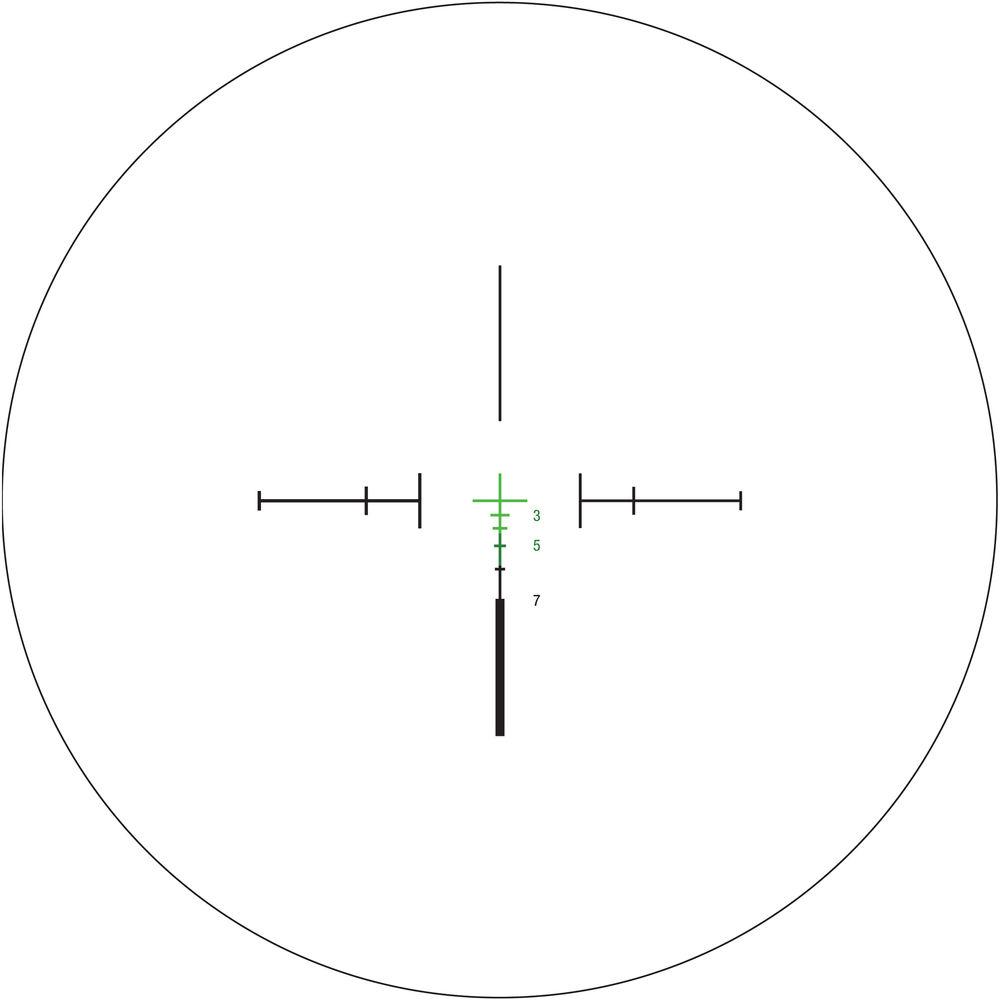

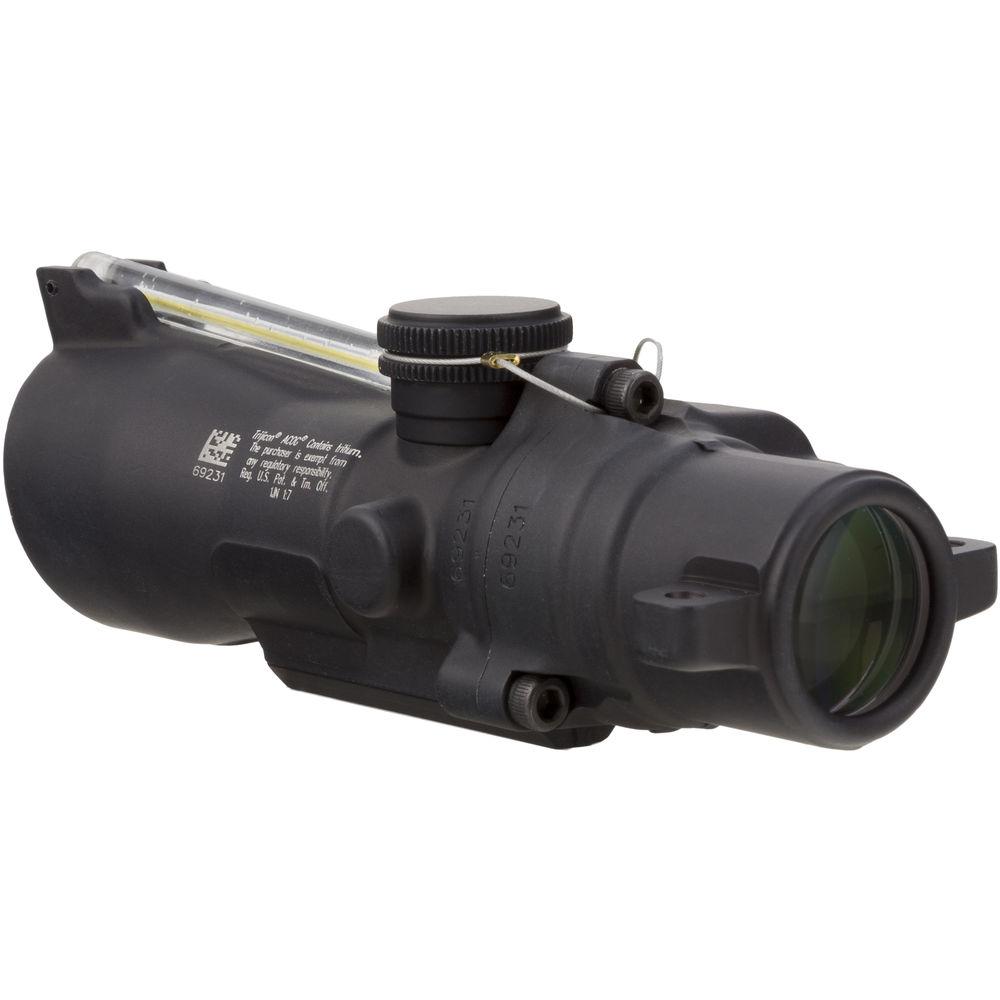

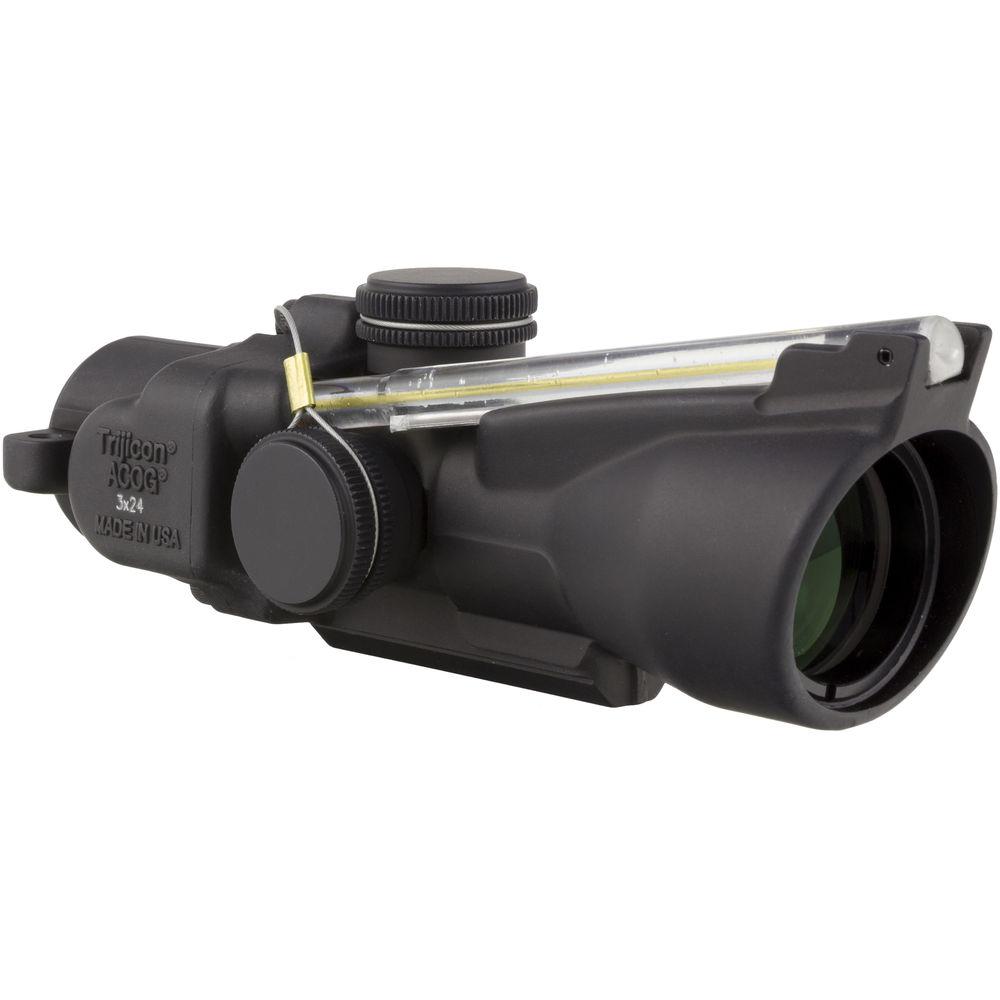

Product description The 3x24 Compact ACOG Riflescope from Trijicon features a battery-free illuminated ballistic reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a green crosshair reticle that has bullet drop compensation stadia on the lower vertical hair that are specifically calibrated for 55 grain .223 caliber ballistics. Anti-reflection broadband fully multi-coated optics maximizes light transmission to provide bright and clear views with limited distortion.
Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that automatically adjusts reticle brightness when operating in daylight. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing with a scratch and corrosion-resistant hard-anodized matte-black finish that provides the durability needed for reliable performance in a wide range of shooting conditions. This ACOG is outfitted with the low base only; a mounting adapter must be purchased for your specific rifle. Mounting bosses are integrated into the housing near the eyepiece to allow the easy addition of a Trijicon RMR, available separately, with the RM54 mount, which also must be purchased separately. - Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multi-coated optics
- Broadband lens coating
- 4.9° angle of view
- 1.4" eye relief
- Reticle
-
- Green dual-illuminated crosshair reticle
- Ballistic drop compensation (BDC) reticle for 55 grain .223 rounds
- Battery-free illumination uses fiber optics or tritium
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Tritium isotope: Interacts with a phosphors membrane in the system to create illumination for the reticle
- Use and Handling
-
- 1/2 MOA impact point adjustments
- Low height body design allows for the lowest possible mounting configuration
- Requires the purchase of a rifle-specific adapter for use
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- Made in the USA
UPC: 719307310537 In the Box Trijicon 3x24 Compact ACOG Riflescope (Green Crosshair .223 / 55gr. Ballistic Reticle, Low Height) ACOG Scopecoat LensPen - TA56 Replacement Cap & Lanyard Assembly for Compact ACOG Riflescope Logo Sticker Limited Lifetime Warranty Table of Contents
|
