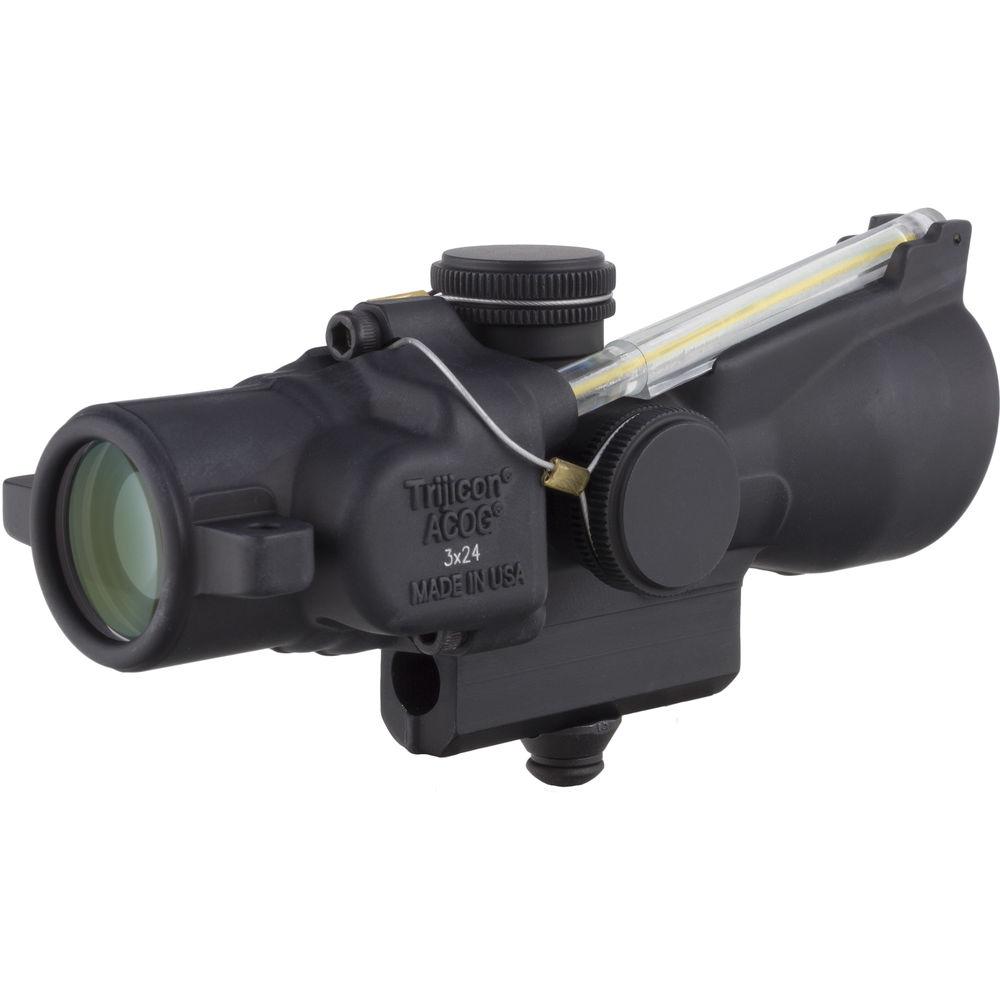

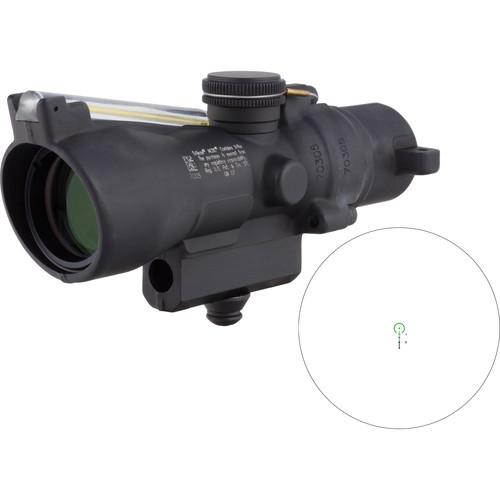

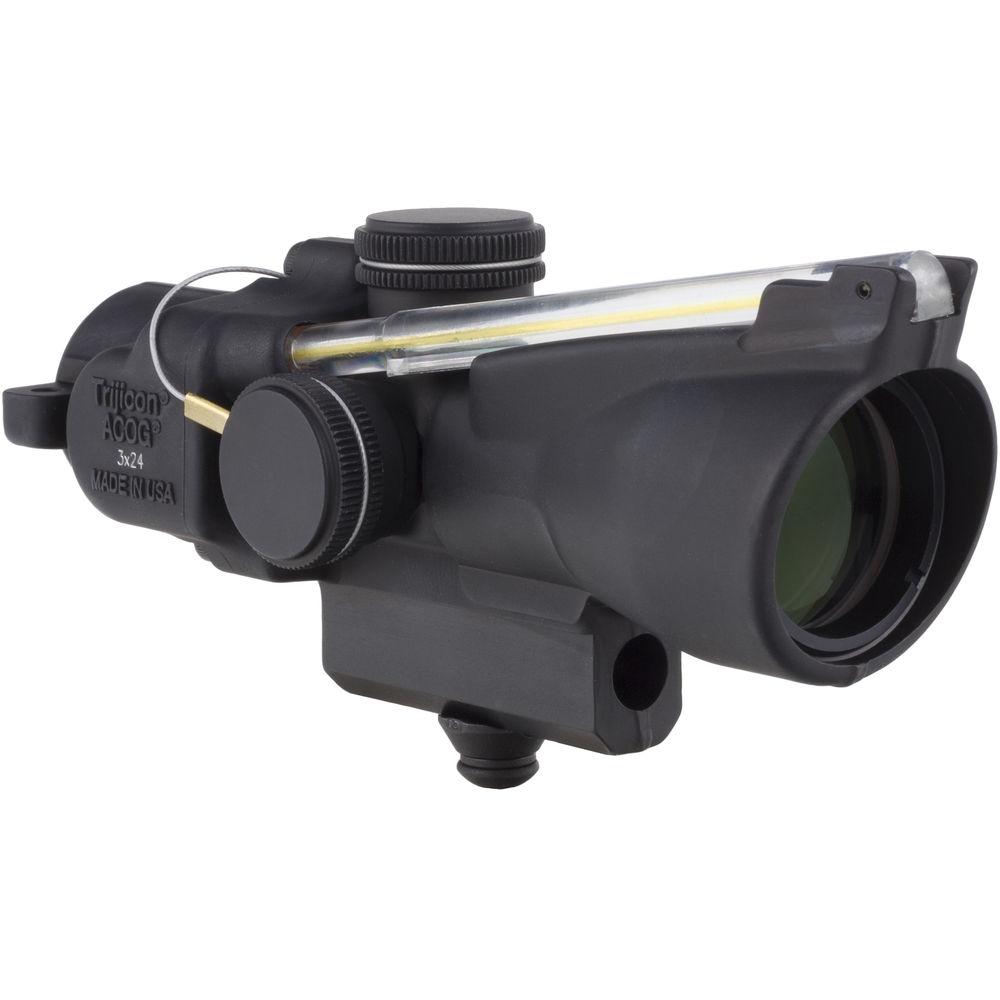

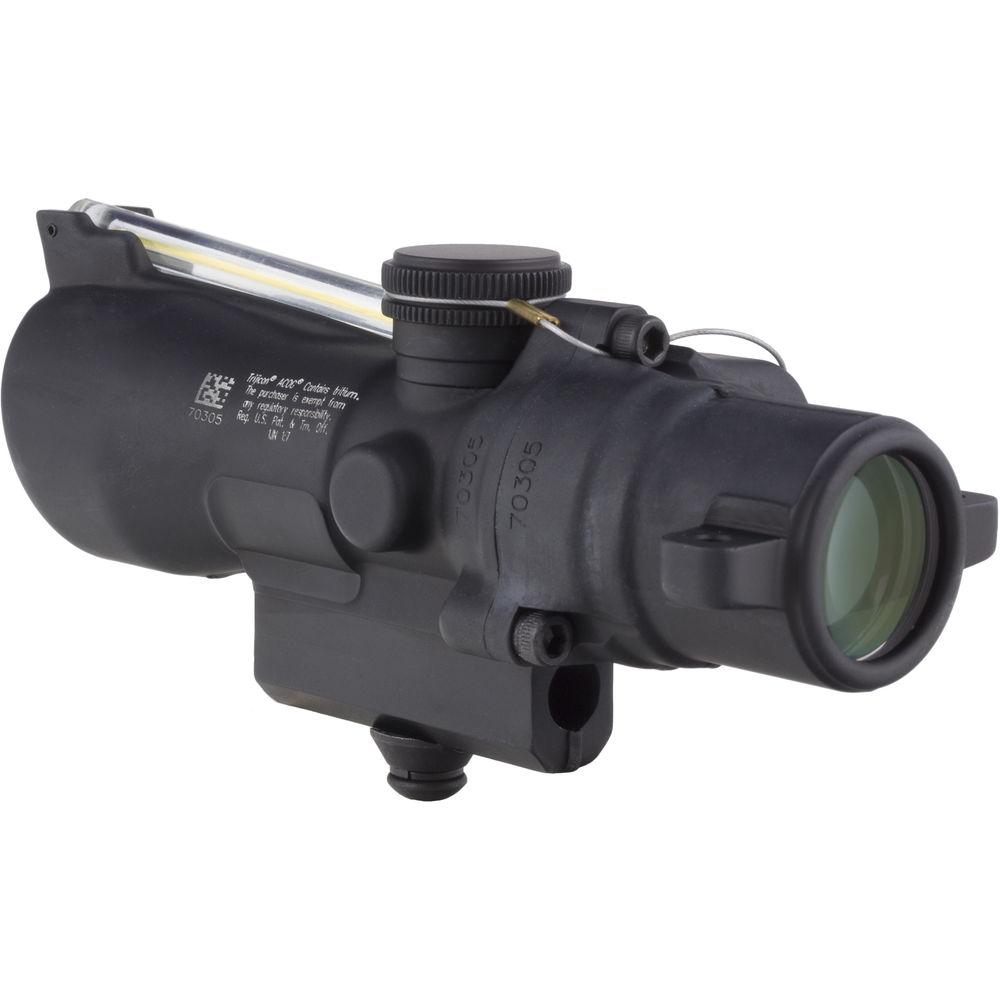

Product description The 3x24 Compact ACOG Riflescope from Trijicon features a battery-free illuminated ballistic reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a green horseshoe reticle that has bullet drop compensation stadia on the lower vertical hair that are specifically calibrated for 55 grain .223 caliber ballistics. Anti-reflection broadband fully multi-coated optics maximizes light transmission to provide bright and clear views with limited distortion.
Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that automatically adjusts reticle brightness when operating in daylight. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. This ACOG is outfitted with the M16 carry handle adapter and mounting screw for easy installation. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing with a scratch and corrosion-resistant hard-anodized matte-black finish that provides the durability needed for reliable performance in a wide range of shooting conditions. Mounting bosses are integrated into the housing near the eyepiece to allow the easy addition of a Trijicon RMR, available separately, with the RM54 mount, which also must be purchased separately. - Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multi-coated optics
- Broadband lens coating
- 4.9° angle of view
- 1.4" eye relief
- Reticle
-

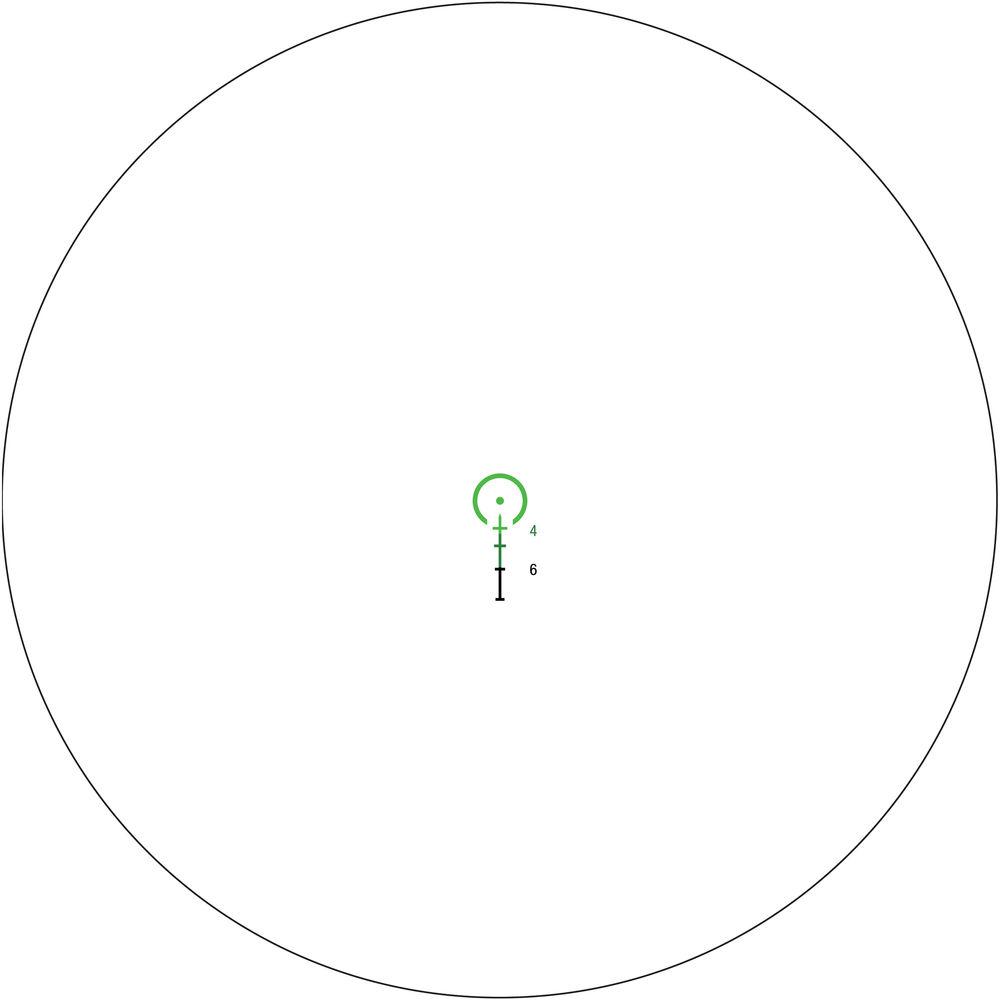

- Green dual-illuminated crosshair horseshoe and dot reticle
- Ballistic drop compensation (BDC) reticle for 55 grain .223 rounds
- Battery-free illumination uses fiber optics or tritium
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Tritium isotope: Interacts with a phosphors membrane in the system to create illumination for the reticle
- Use and Handling
-
- 1/2 MOA impact point adjustments
- Includes M16 carry handle base and mounting screw
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- Made in the USA
UPC: 719307310506 In the Box Trijicon 3x24 Compact ACOG Riflescope (Green Horseshoe/Dot .223 / 55gr. Ballistic Reticle, M16 Carry Handle Base) ACOG Scopecoat LensPen - TA56 Replacement Cap & Lanyard Assembly for Compact ACOG Riflescope Mounting Screw for M16 Carry Handle Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3x24 Compact ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA50-C-400228 Specs | | | Magnification | 4 x | | Objective Lens Diameter | 24 mm | | Field of View | 25.6 @ 100 yd8.6 @ m | | Exit Pupil Diameter | 8 mm | | | | Impact Point Correction | 1/2 MOA | | | | Water Resistance | Waterproof | | Dimensions | L: 5.0 x W: 2.1 x H: 1.8" / L: 12.7 x W: 5.3 x H: 4.6 cm | | Weight | 6.1 oz / 172.9 g |
