User Manual for Trijicon 3x24 Compact ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3x24 Compact ACOG Riflescope
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon 3x24 Compact ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

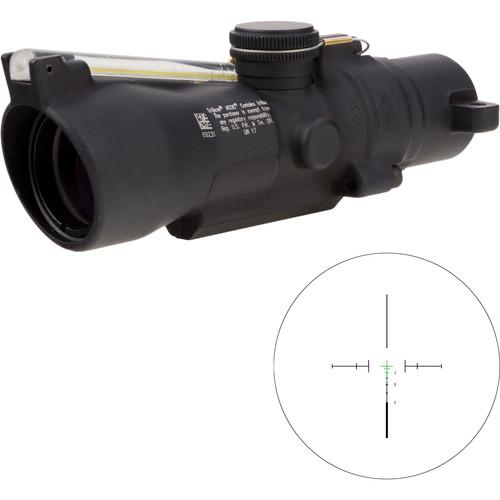

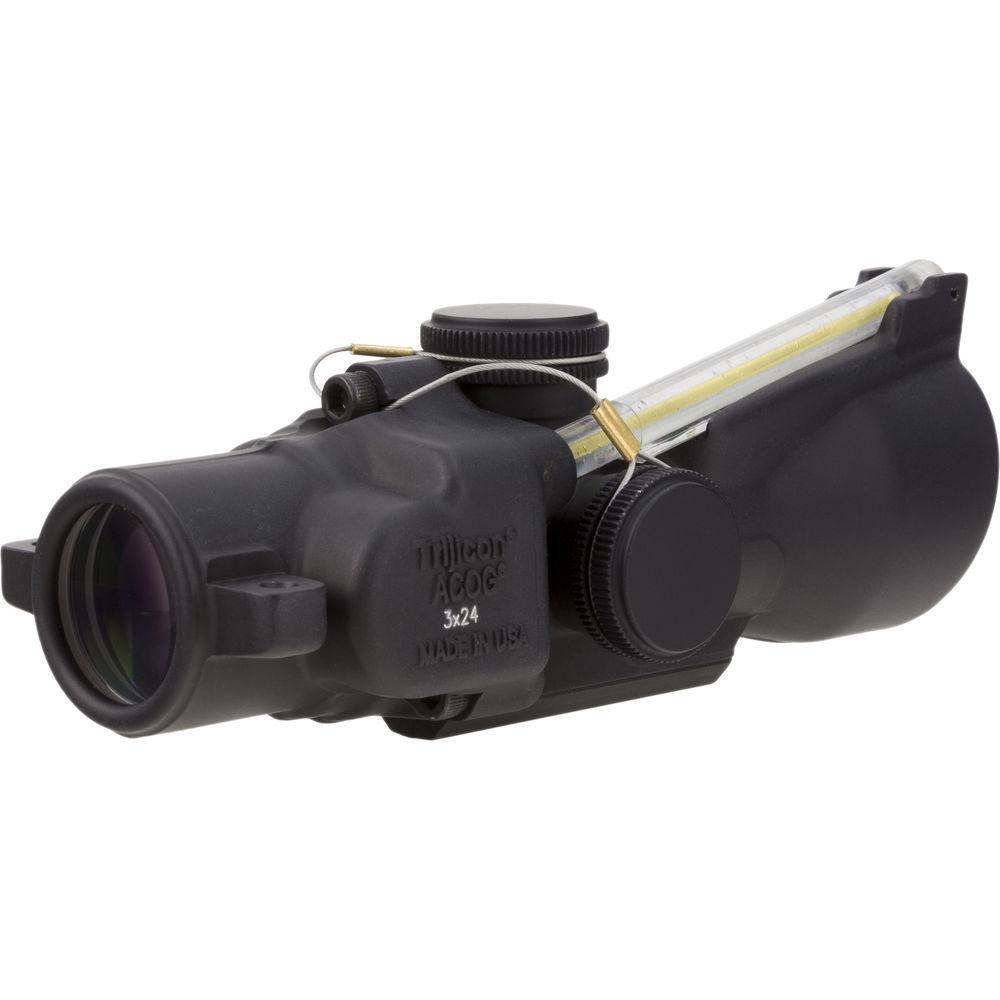

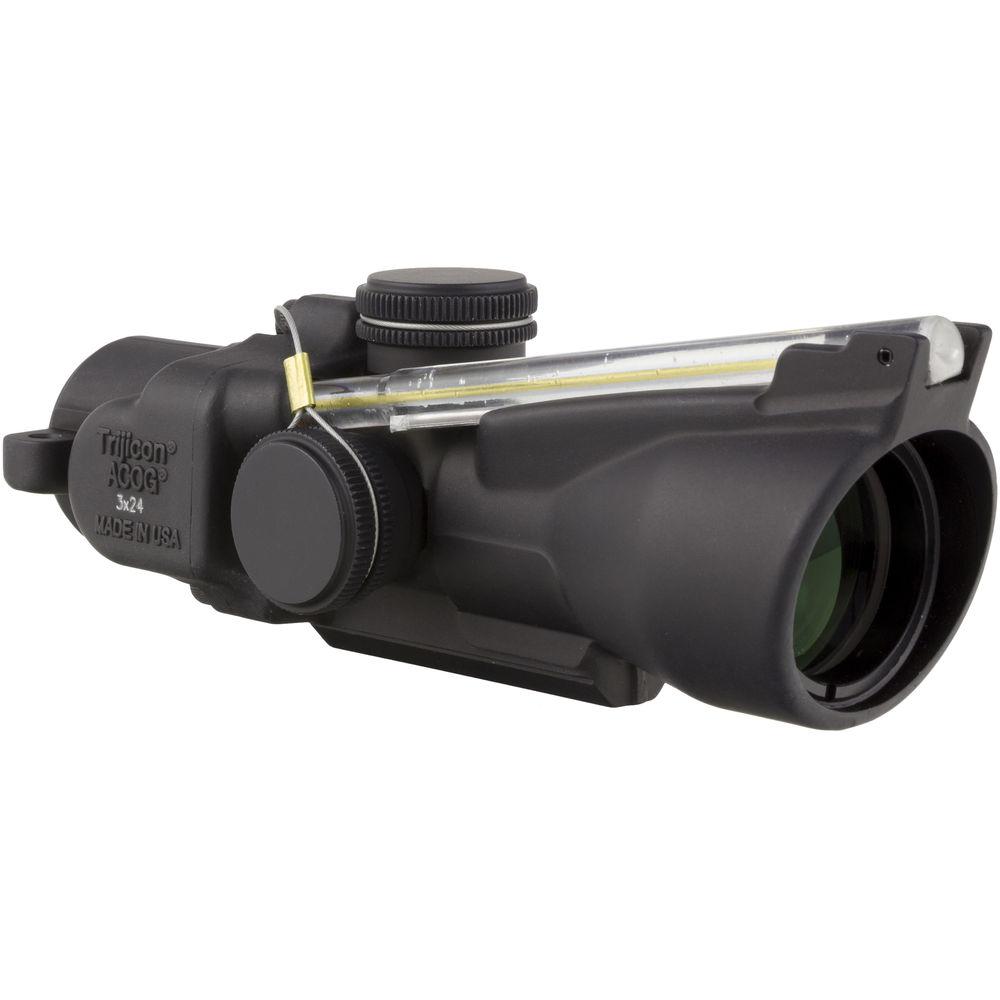

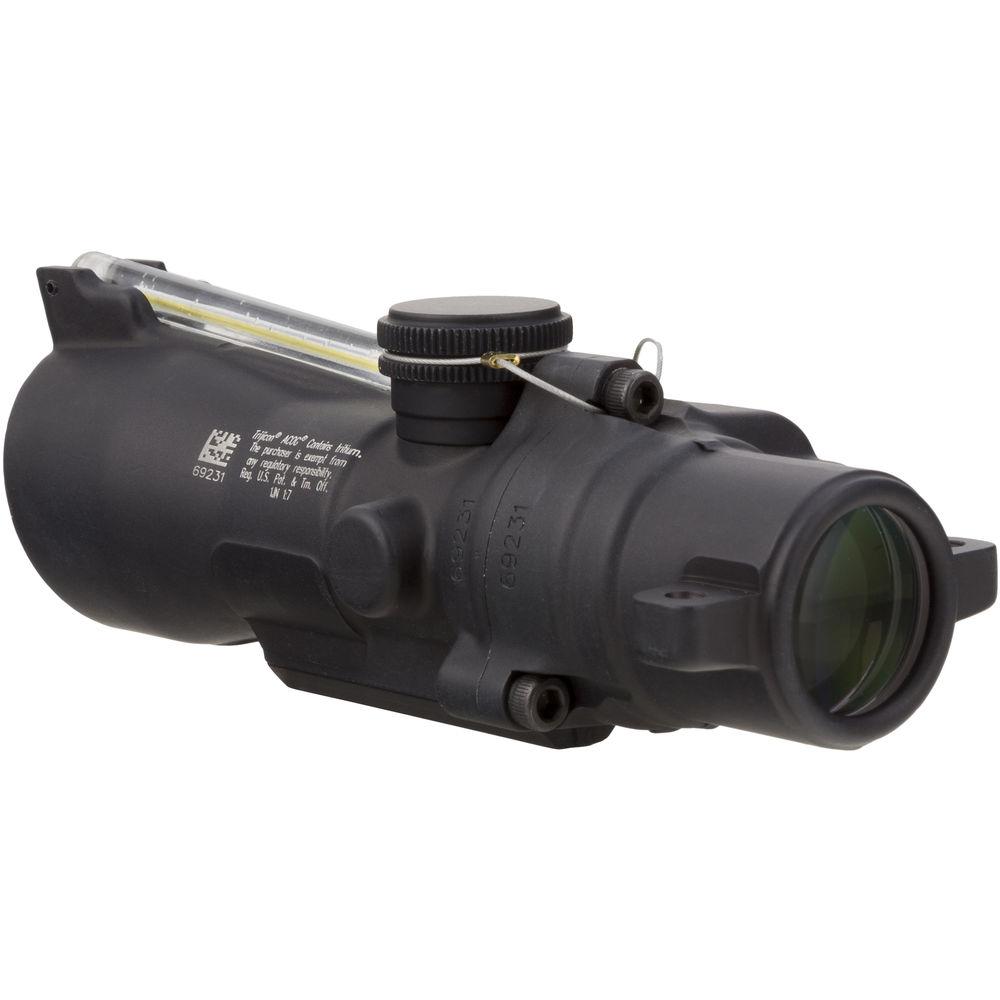

Product description The 3x24 Compact ACOG Riflescope from Trijicon features a battery-free illuminated ballistic reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a green crosshair reticle that has bullet drop compensation stadia on the lower vertical hair that are specifically calibrated for 123 grain 7.62x39 caliber ballistics. Anti-reflection broadband fully multi-coated optics maximizes light transmission to provide bright and clear views with limited distortion.
Trijicon's battery-free, dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that automatically adjusts reticle brightness when operating in daylight. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing with a scratch and corrosion-resistant hard-anodized matte-black finish that provides the durability needed for reliable performance in a wide range of shooting conditions. This ACOG is outfitted with a base that allows for the lowest possible mounting configuration. This achieves the desirable height above bore for the AK and other select firearm models with lower cheek welds, but a rifle-specific adapter must be purchased for installation. Mounting bosses are integrated into the housing near the eyepiece to allow the easy addition of a Trijicon RMR, available separately, with the RM54 mount, which also must be purchased separately. - Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multi-coated optics
- Broadband lens coating
- 4.9° angle of view
- 1.4" eye relief
- Reticle
-

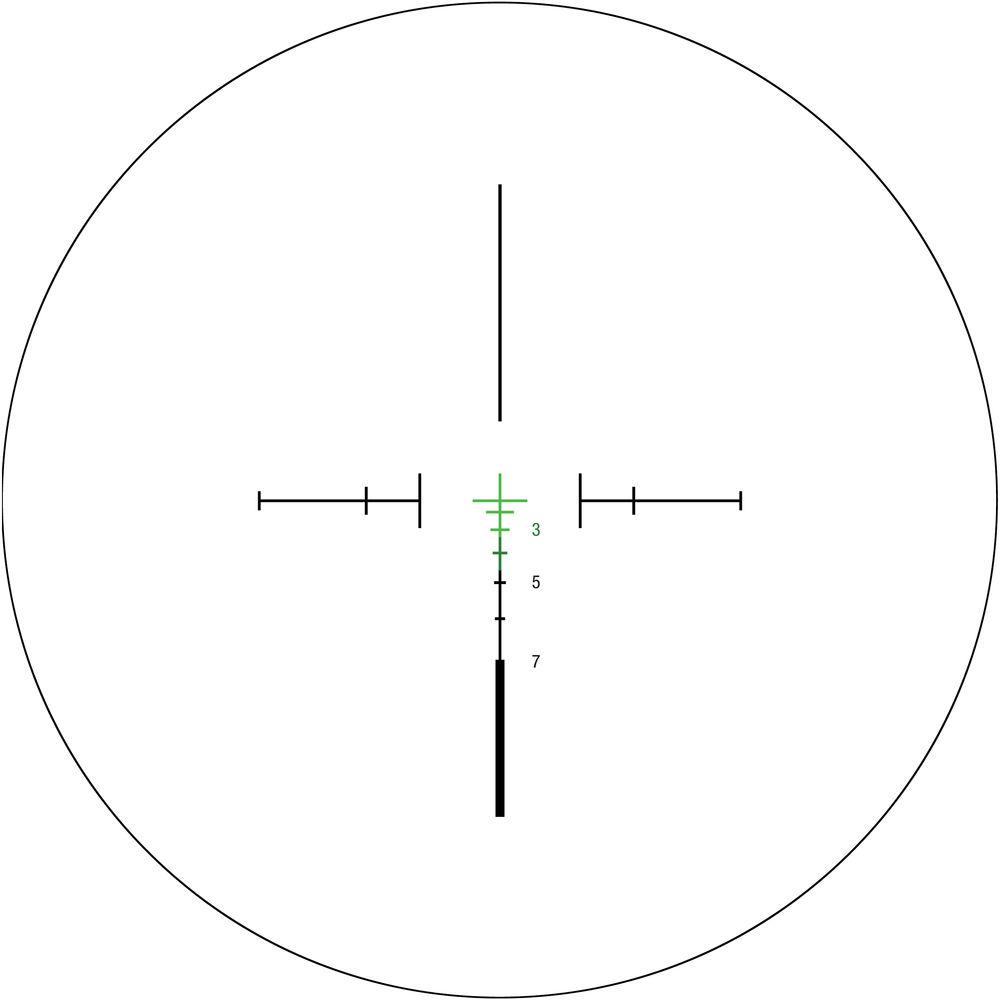

- Green dual-illuminated crosshair
- Ballistic drop compensation (BDC) reticle for 123gr. 7.62x39 rounds
- Battery-free illumination uses fiber optics or tritium
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Tritium isotope: Interacts with a phosphors membrane in the system to create illumination for the reticle
- Use and Handling
-
- 1/2 MOA impact point adjustments
- Low height body design allows for the lowest possible mounting configuration
- Requires an the purchase of a rifle-specific adapter for use
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- Made in the USA
UPC: 719307310599 In the Box Trijicon 3x24 Compact ACOG Riflescope (Green Crosshair 7.62x39 / 123gr. Ballistic Reticle, Low Height) ACOG Scopecoat LensPen - TA56 Replacement Cap & Lanyard Assembly for Compact ACOG Riflescope Logo Sticker Limited Lifetime Warranty Table of Contents
|
