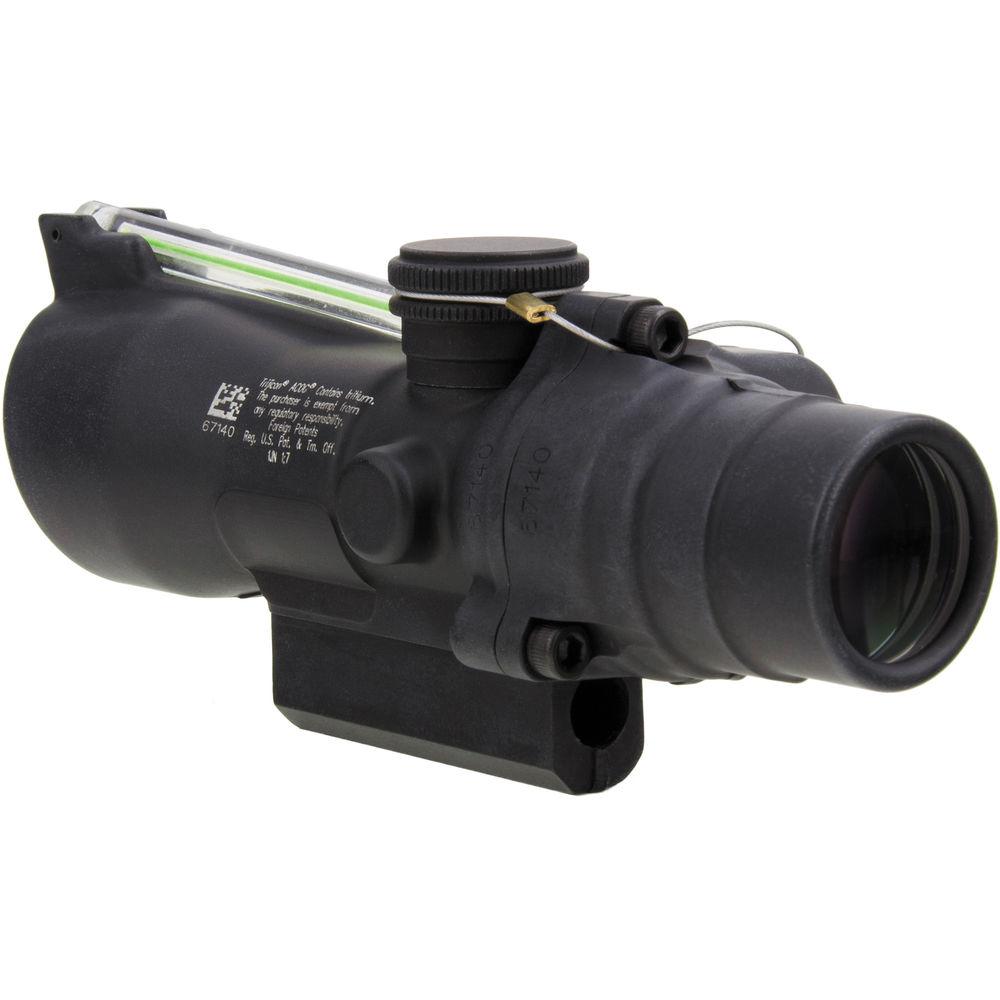

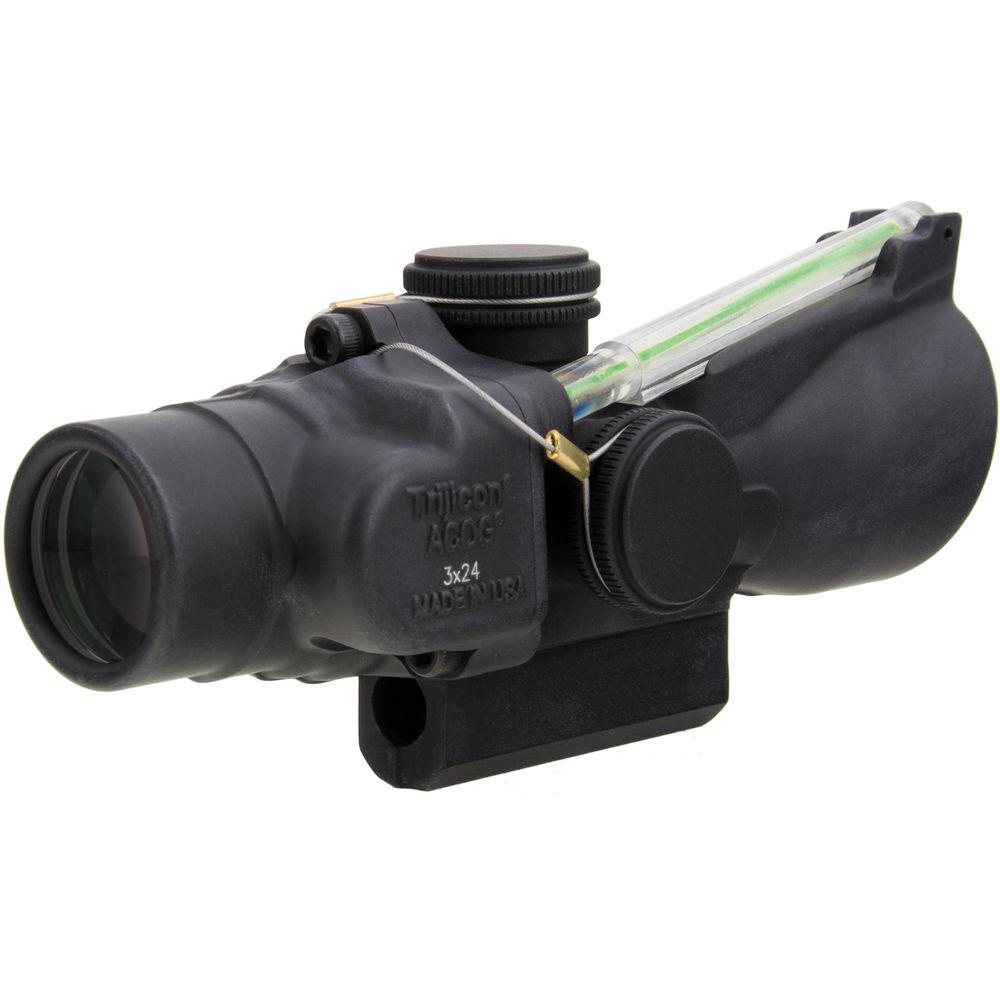

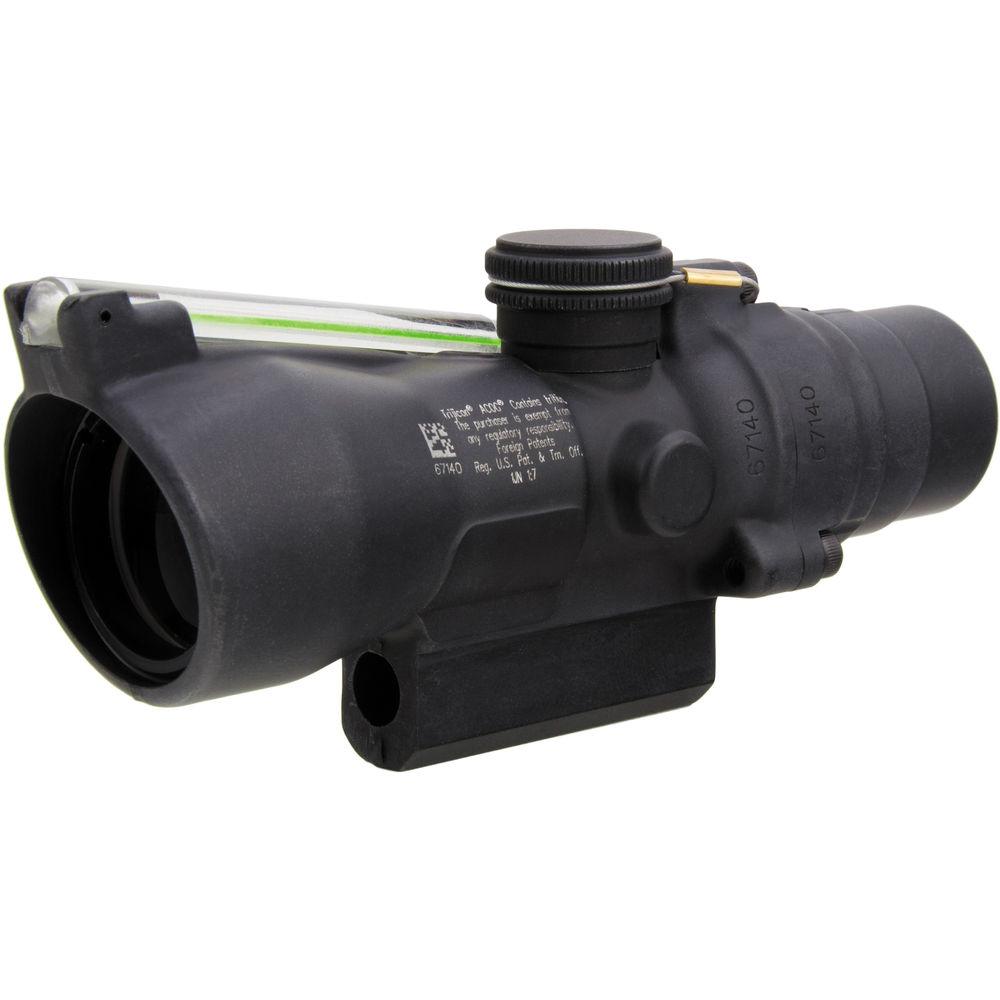

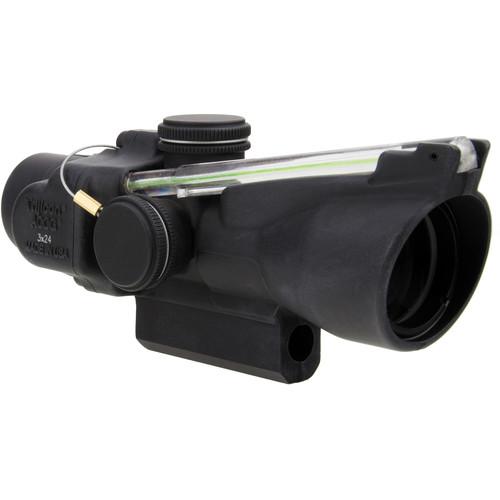

Product description Trijicon designed the 3x24 TA50 XB ACOG Crossbow Scope to be an invaluable optic for precision crossbow hunting. The green chevron reticle integrates Bad River Outdoors' patented deer/elk ranging system. This system features markers on the upper half of the reticle that enables the user to quickly estimate the range to the elk or deer, then move the aiming point on the lower axis based on the matching hold-over stadia. The reticle is designed for use out to 80yd and calibrated for the specific ballistic drop of 340-400 fps bolts to further ensure accurate ranging and hold-over. Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light use, as well as a fiber optic illumination that focuses, channels, and filters available light to illuminate the reticle. Using ambient light ensures that the reticle brightness will be appropriate for the conditions without any adjustment by the user.The TA50 offers a 3x magnification to bring subjects in-close for ranging, while maintaining a field of view that doesn't restrict situational awareness. As with most of the sights in the ACOG line, it was designed for use with the both-eyes-open Bindon Aiming Concept for use at closer ranges or when fast shots are required. The smaller 24mm objective helps to reduce overall weight and provides a lower-profile over larger objectives, and to help boost image brightness Trijicon employs anti-reflection broadband fully multicoated optics that maximize light transmission with limited distortion. The reticle's aiming point can be adjusted at a rate of 9 clicks per inch at 30 yd with the tactical turrets enabling shot corrections without the need for tools. Complementing the ACOG's optical and illumination systems is a nitrogen-filled, 7075-T6 aluminum housing with a corrosion and scratch-resistant matte black anodized finish that provides the durability needed for reliable performance in a wide range of conditions. - Optical Performance
-
- 3x fixed magnification
- 24mm objective lens
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections, and distortion
- 25.5' field of view at 100 yd
- 4.9° actual angle of view
- Reticle Details
-

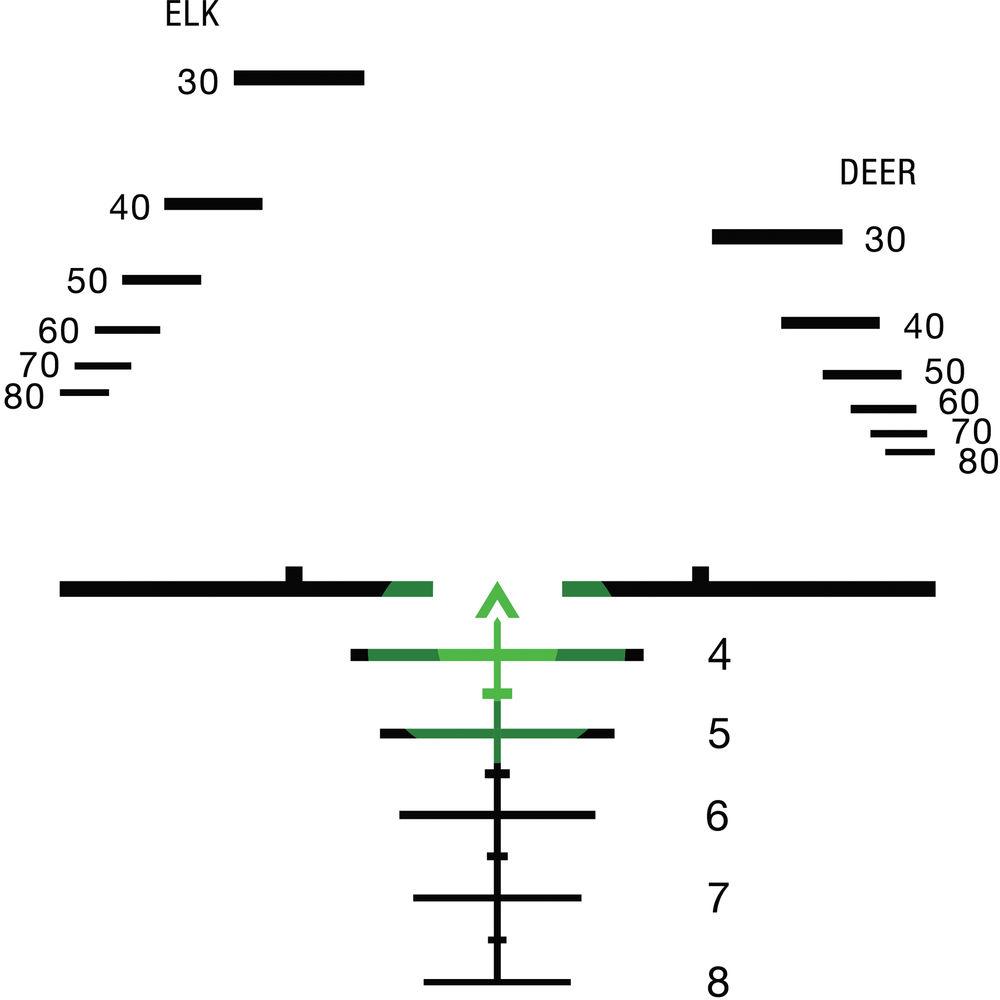

- Green chevron ballistic crossbow reticle
- Chevron aiming, horizontal posts, and BDC hashmarks out to 80yd in 5-yard increments
- BDC specifically calibrated for 340-400 fps bolts
- Chevron and BDC indicators to 50yd illuminated
- Bad River Outdoor elk and whitetail ranging system
- Dual illumination system: Battery-free tritium and fiber-optics
- Tritium isotope: Interacts with a phosphors membrane to create illumination for the reticle in low or no light
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Bad River Outdoor's Ranging System
-
- Patented ranging system for elk and whitetail
- Simple three-step process enables user to estimate range to target and adjust aim based on the BDC of a 340-400 fps crossbow bolt
- Designed for use to distances of up to 80yd
- Use and Handling
-
- 9 clicks per inch at 30 yd impact point correction
- Tactical tool-free adjustment turrets
- Designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view
- 1.4" eye relief
- 8.1mm exit pupil
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- M16/AR-15 carry handle mount included
- Lightweight: Weighs just 5.9 oz
- Made in the USA
UPC: 719307309487 In the Box Trijicon 3x24 TA50 XB ACOG Crossbow Scope (Green Chevron 340-400 fps BDC Reticle) LensPen - TA56 ewqqaswqxbrbsudzcqevauzcywwsxcx Trijicon Sticker TA62 ACOG ScopeCoat Neoprene Cover Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3x24 TA50 XB ACOG Crossbow Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA50-C-400144 Specs | | | Magnification | 3x | | Objective Lens Diameter | 24 mm | | Field of View | 25.6' @ 100 yd / 8.5 m @ 100 m | | Exit Pupil Diameter | 8.1 mm | | Eye Relief | 1.4" / 36 mm | | | | Reticle Type | Ballistic Chevron Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Water Resistance | Waterproof to 328' / 100 m | | Fogproof | Yes, Nitrogen Filled | | | | Battery | None | | Dimensions | Length: 5" / 12.7 cm
Height: 2.1" / 5.3 cm
Width: 1.5" / 3.8 cm | | Weight | 5.9 oz / 167 g |
