User Manual for Trijicon 3x30 TA33 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3x30 TA33 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3x30 TA33 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

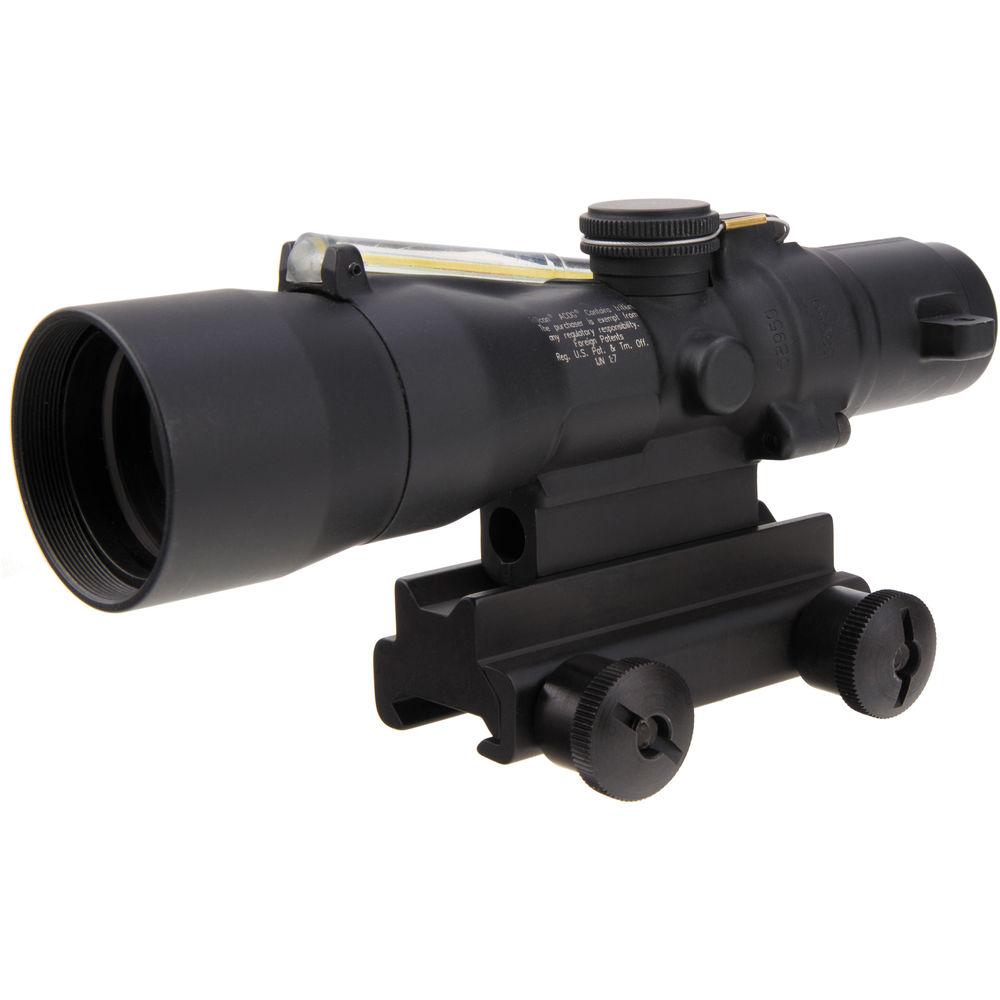

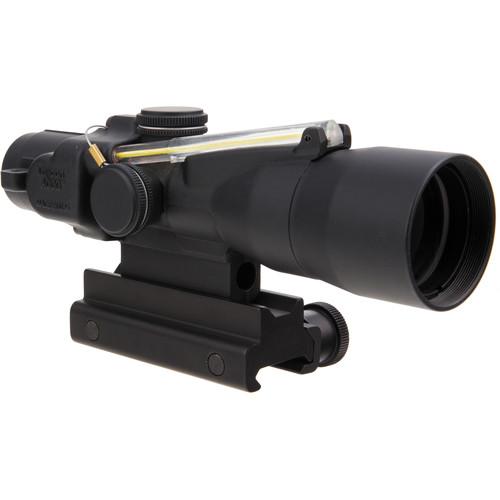

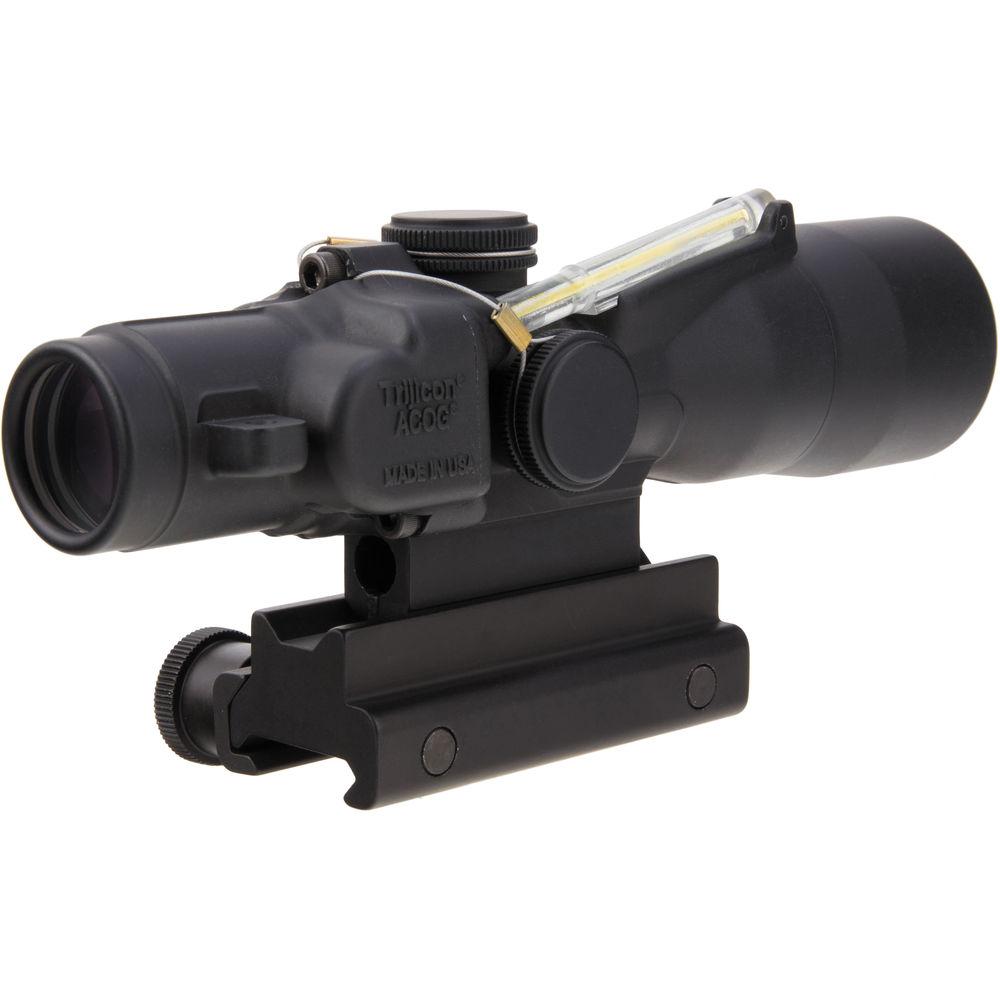

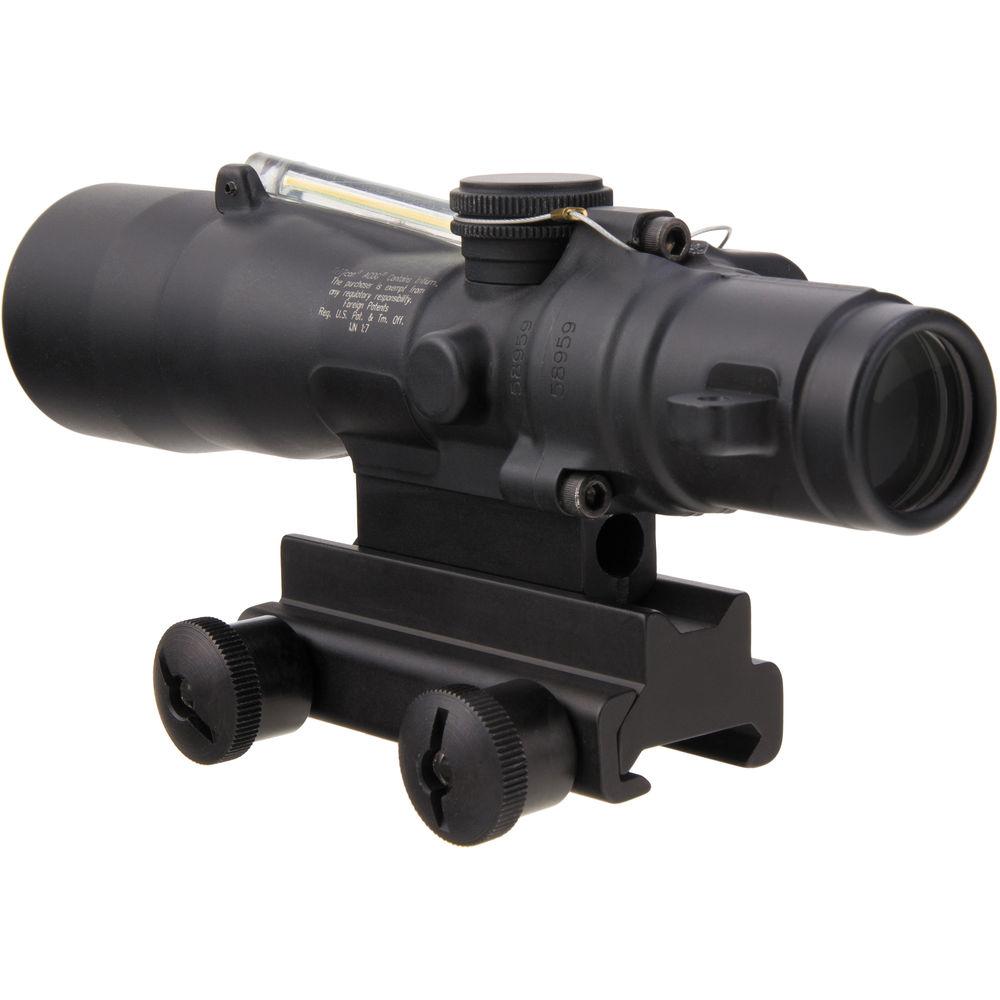

Product description Trijicon purpose-built the 3x30 TA33 ACOG Riflescope for law enforcement and military professionals who require a versatile optic that combines higher magnification for longer distance use, while maintaining the ability to use the same optic for both-eyes-open CQB operations. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a amber chevron ballistic reticle that enables fast sighting and tracking at close range, and precise shot placement at distance with its partially-illuminated BDC hashmarks.Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that focuses, channels, and filters available light to illuminate the reticle. Using ambient light ensures that the reticle brightness will be appropriate for the conditions without any adjustment by the user. Anti-reflection broadband fully multicoated optics maximizes light transmission to provide bright and clear views with limited distortionThe TA33 features tactical hand-adjustable windage and elevation turrets. The reticle's aiming point can be adjusted in 1/4 MOA increments, with a total of ±20 MOA, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Complementing the ACOG's optical and illumination systems is a nitrogen-filled, 7075-T6 aluminum housing with a corrosion and scratch-resistant matte black anodized finish that provides the durability needed for reliable performance in a wide range of conditions. - Optical Performance
-
- 3x magnification
- 30mm objective lens
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections, and distortion
- 19' field of view at 100 yd
- 3.7° actual angle of view
- Reticle Details
-

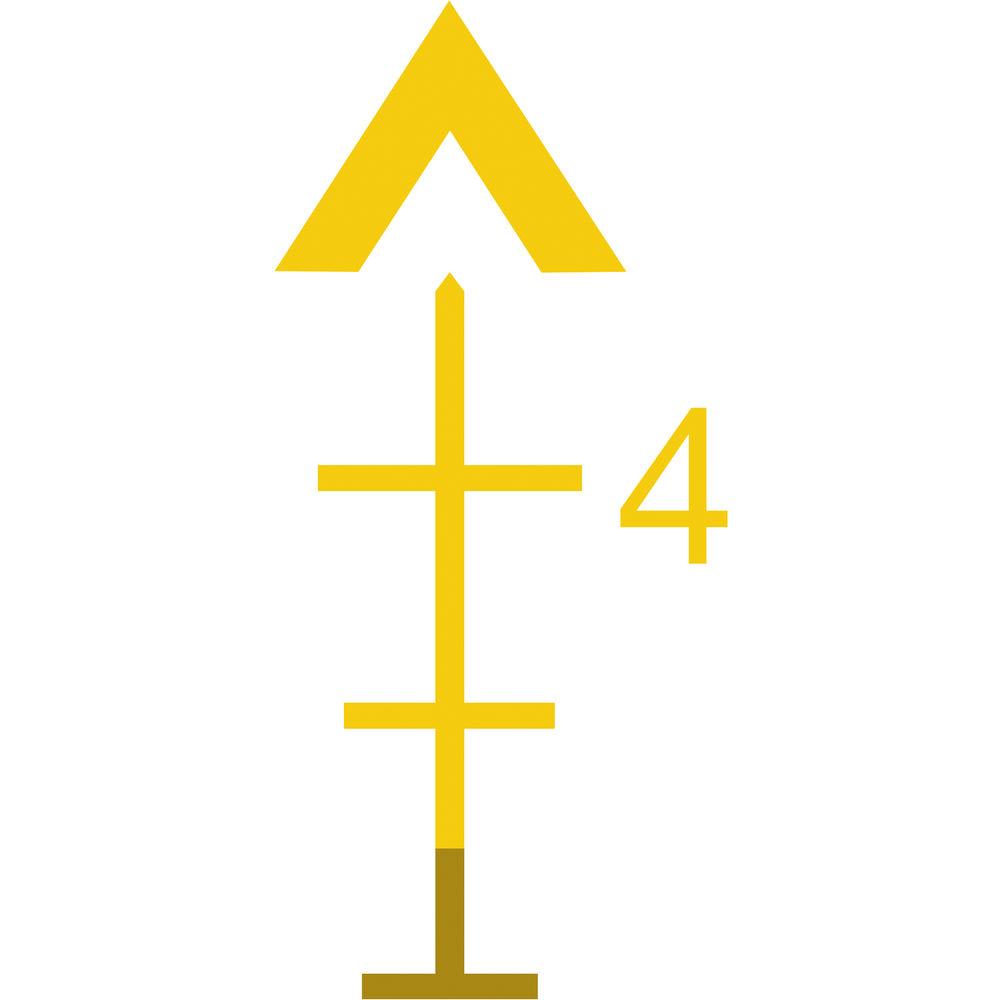

- Dual-illuminated amber chevron ballistic reticle
- Chevron shaped center aiming point
- Designed specifically for .308 rounds
- Ballistic drop compensation markers out to 600 yd
- Markers illuminated for BDC to 600 yd
- Dual illumination system: Battery-free tritium and fiber-optics
- Tritium isotope: Interacts with a phosphors membrane to create illumination for the reticle in low or no light
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Use and Handling
-
- 1/4 MOA per click impact point correction
- ±20 MOA windage/elevation adjustment range
- Tactical tool-free adjustment turrets
- Designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view
- 1.9" eye relief
- 8.4mm exit pupil
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- TA60 flattop Picatinny rail included
- Shock-resistant: Tested to withstand recoils on weapons from .22 LRs up to .50 BMGs
- Weighs 7.7 oz
- Made in the USA
UPC: 719307309265 In the Box Trijicon 3x30 TA33 ACOG Riflescope (Amber Chevron .308 Ballistic Reticle) Compact ACOG Flattop Adapter ACOG Scopecoat LensPen - TA56 Trijicon Sticker Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3x30 TA33 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA33-C-400120 Specs | | | Magnification | 3x | | Objective Lens Diameter | 30 mm | | Field of View | 19.3' @ 100 yd / 6.4 m @ 100 m | | Exit Pupil Diameter | 8.4 mm | | Eye Relief | 1.9" / 48 mm | | | | Reticle Type | .308 Chevron Reticle | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Amber | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
