User Manual for Trijicon 3x30 TA33 ACOG Riflescope and 3.25 MOA Red Dot Type 2 RMR Kit Click to enlarge the picture
Contents of the user manual for the Trijicon 3x30 TA33 ACOG Riflescope and
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3x30 TA33 ACOG Riflescope and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

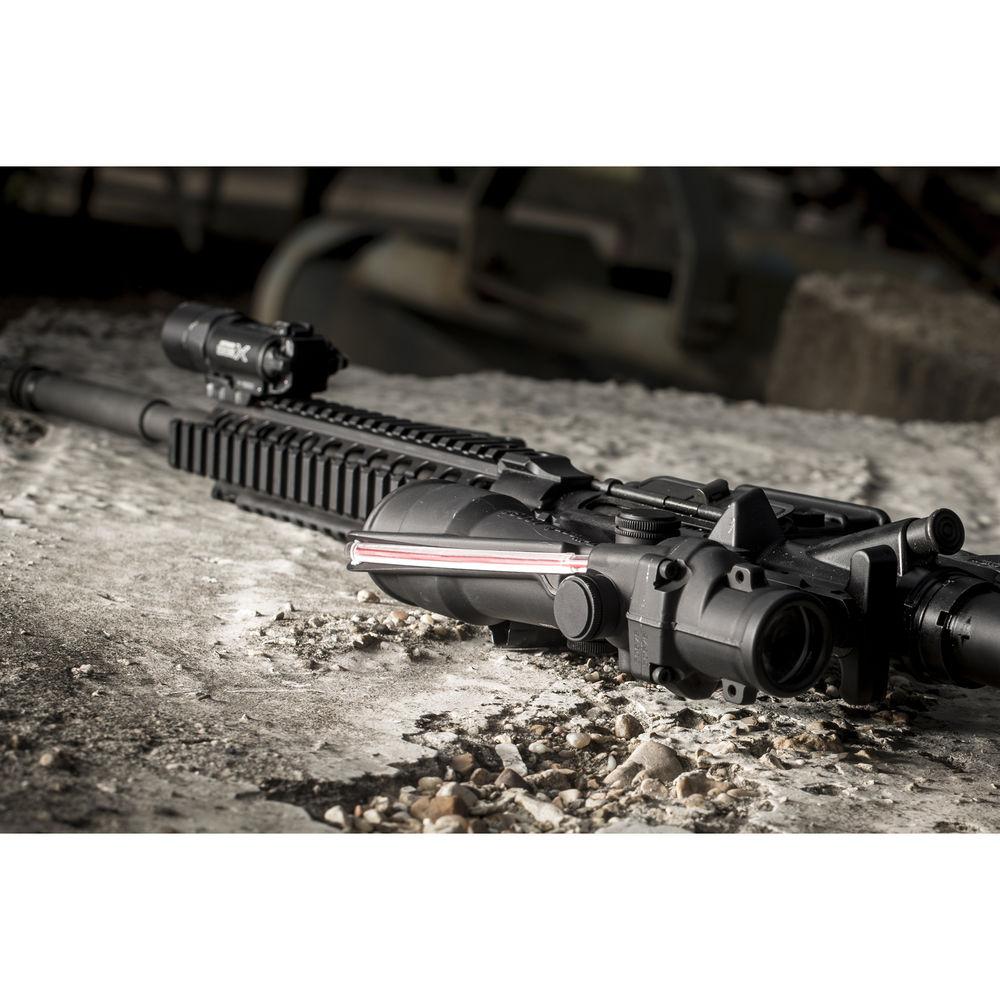

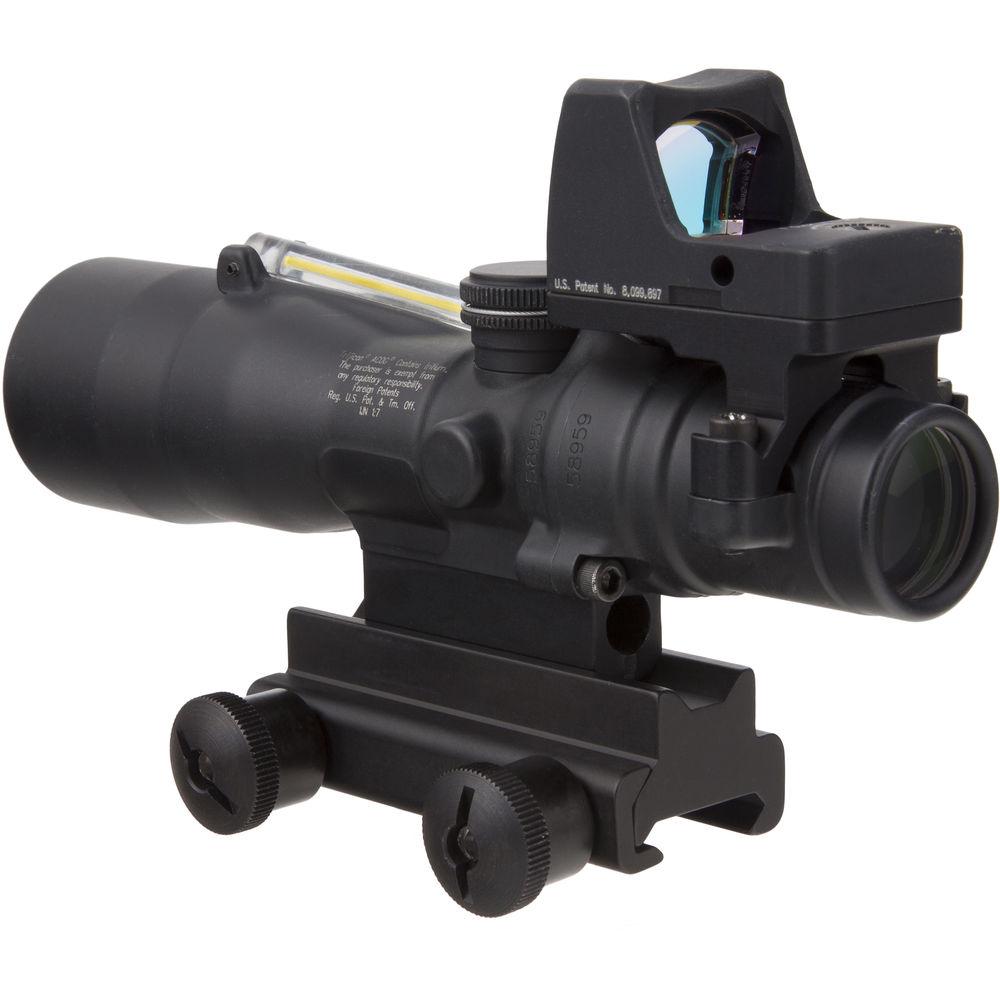

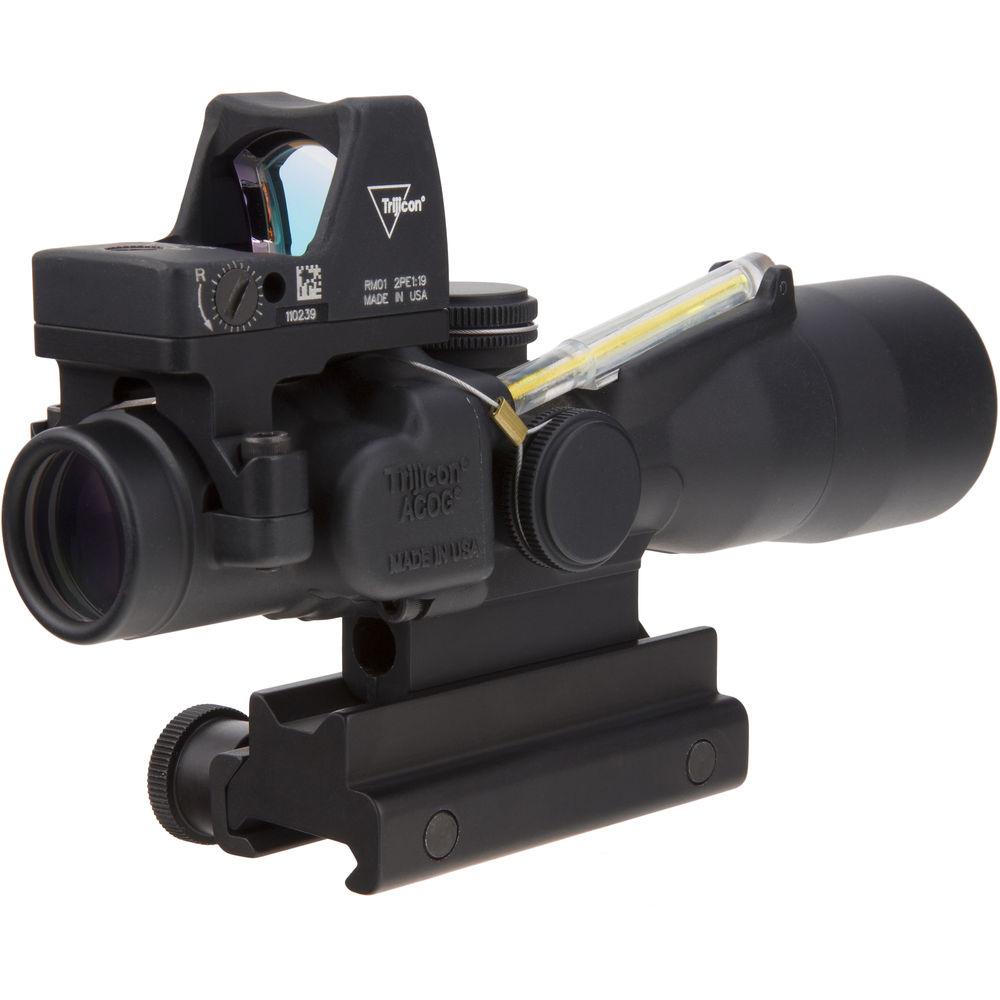

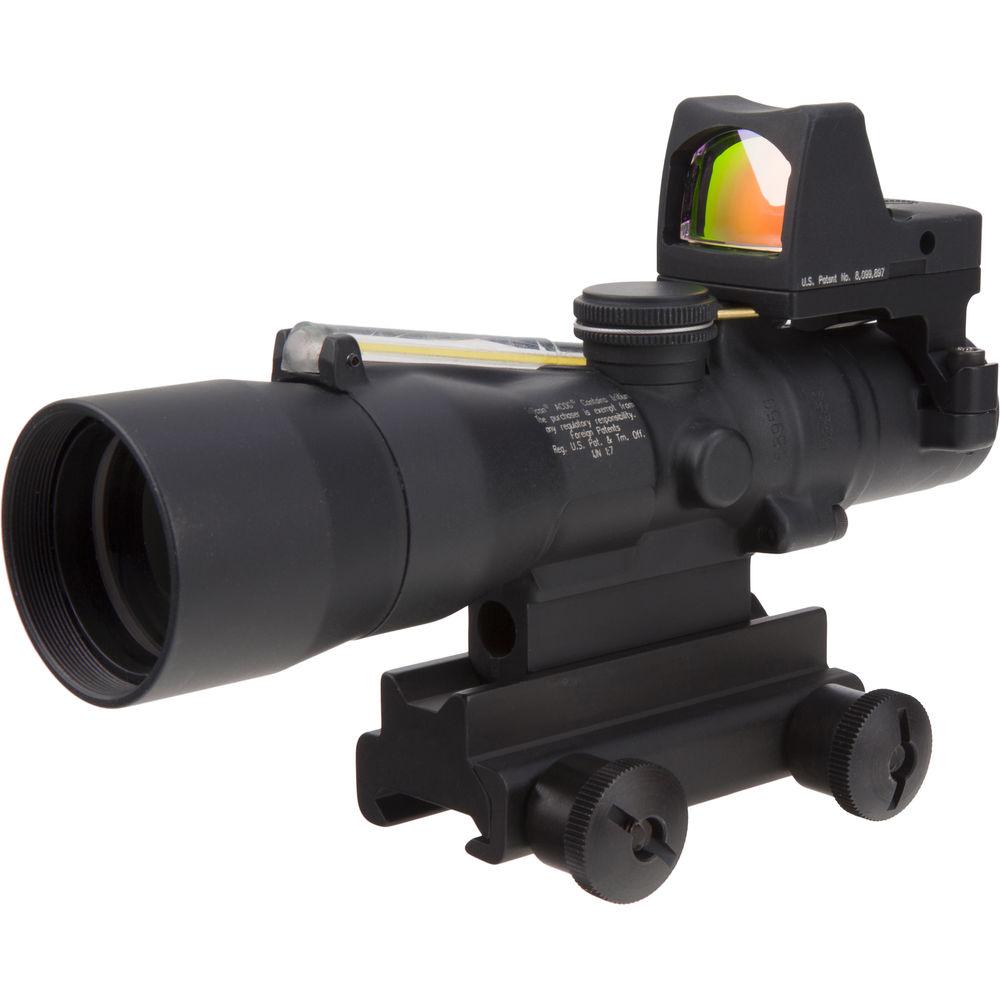

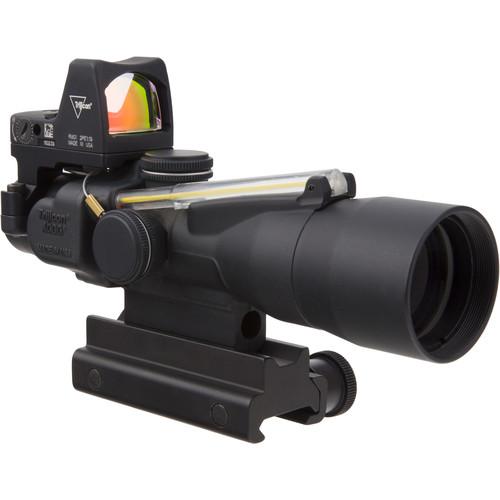

Product description Subdue your adversaries using Trijicon's 3x30 TA33 ACOG Riflescope and 3.25 MOA Red Dot Type 2 RMR Kit. The kit includes a battle-ready Advanced Combat Optical Gunsight (ACOG) and a secondary Ruggedized Miniature Reflex Sight (RMR). The ACOG features a waterproof and shock-resistant construction with a battery-free, dual-illuminated 5.56 Amber Horseshoe Dot Reticle. The sight's premium optical system offers zero distortion, has multiple anti-reflection coatings, and provides a 30mm objective aperture. To compensate for wind and ballistic bullet drop, the scope offers windage and elevation adjustments with 1/4 MOA impact point correction. Its extremely durable housing is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. It also features a built-in sunshade and mounts on a Picatinny-style rail via the included TA60 Flattop Mount.

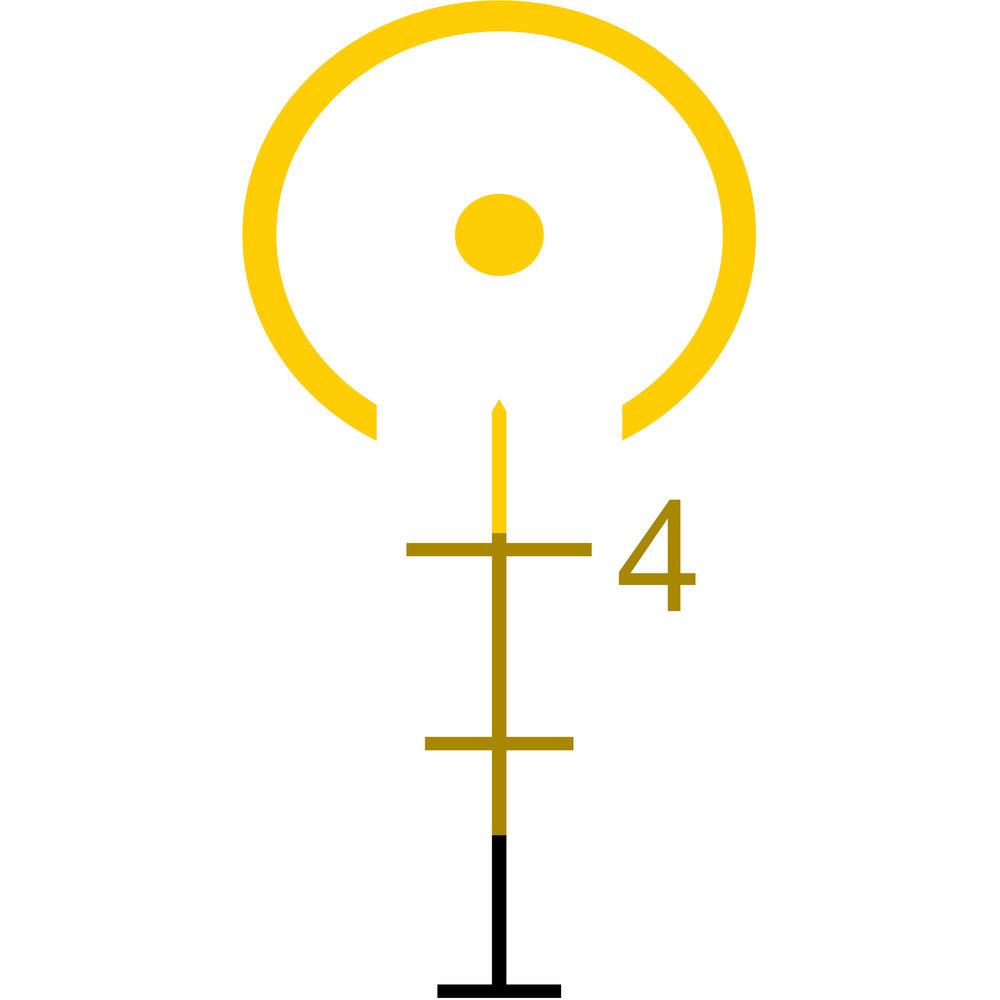

Also noteworthy is the 5.56 amber Horseshoe Dot Reticle featuring an illuminated horseshoe dot pattern with an internal ballistic crosshair. Its battery-free dual illumination system utilizes fiber optics for balanced day illumination and a tritium lamp for low-light and night illumination.

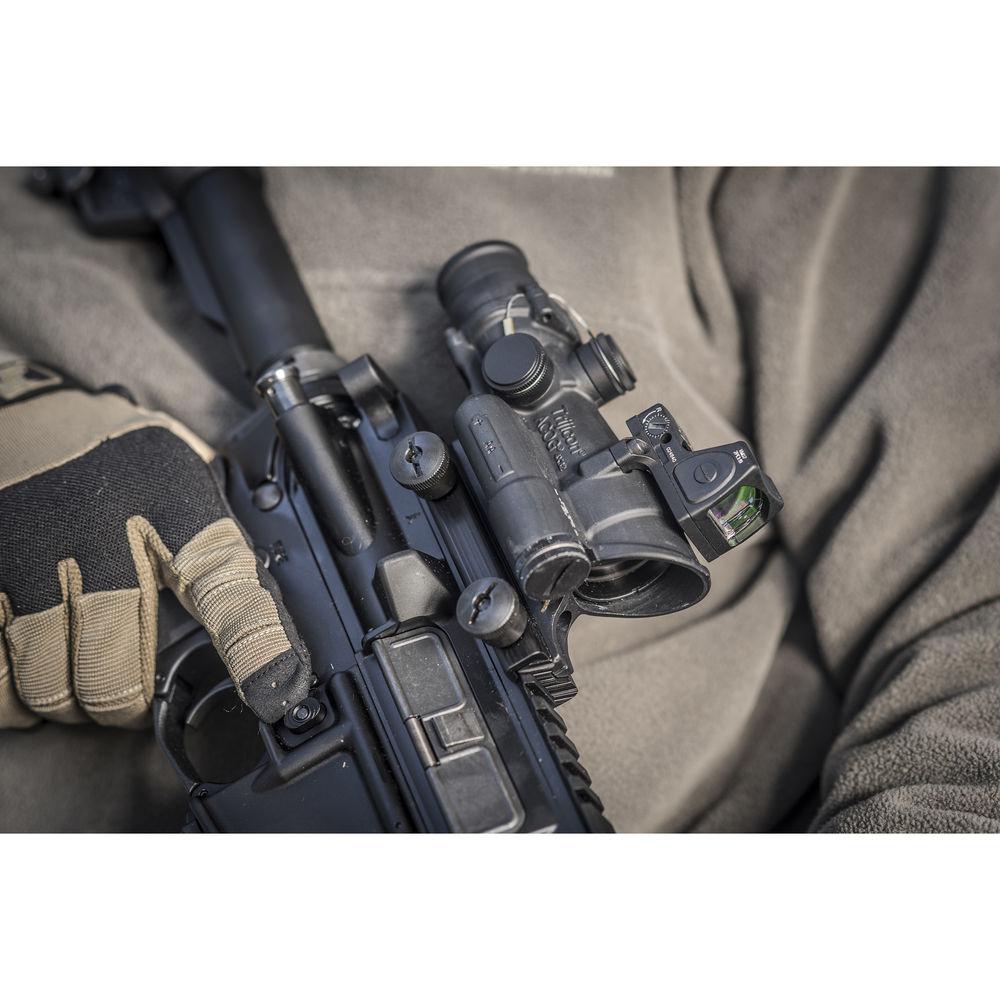

To empower you with rapid target acquisition in close quarter combat, the kit also includes a secondary RM01 RMR Type 2 LED Reflex Sight. The sight can be mounted on top of the ACOG's eyepiece and features a 3.25 MOA Red Dot reticle with brilliant LED illumination, powered by one CR2032 battery. To ensure precise shot placement, you are provided with windage and elevation adjustment ranges and 1 MOA click adjustments. For lasting durability, the sight is outfitted with tempered glass and a forged aluminum housing. - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) Improving on previous iterations, the Trijicon RM01 RMR Type 2 LED Reflex Sight features ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. A defining feature of this optic is its 3.25 MOA brilliant Red Dot reticle with a parallax-free performance and LED illumination. With the proprietary True-Color multi-coatings, you will see your targets and backgrounds exactly as they appear, without any color distortion. For target acquisitions beyond CQC (Close Quarters Combat), the sight also offers a 150 MOA windage and elevation range with 1.0 MOA clicks.
Engineered for use with pistols, rifles, or shotguns, the sight combines extreme toughness and a compact construction. Both the 7075-T6 aluminum housing and the glass window are impact-resistant and waterproof (submersible to 66') and can easily withstand the rigors of combat or training for many years of service. - Optical Performance
-
- 1.0x magnification
- True-Color multi-coated 0.87 x 0.63" glass window
- Unlimited field of view
- Reticle
-
- 3.25 MOA Red Dot
- Automatic brightness control
- Parallax-free performance
- Use and Handling
-
- Improved electronics and battery contacts ensure high performance in harsh conditions
- 1.0 MOA impact point correction with audible clicks
- 150 MOA total windage and elevation adjustment ranges
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Forged body diverts impact from the lens
- Corrosion- and scratch-resistant finish
- Scratch- and impact-resistant tempered glass window
- Waterproof to 66'
UPC: 719307613522 - Compact ACOG Flattop Adapter The Trijicon Compact ACOG Flattop Adapter features two large thumbscrews to securely attach your ACOG scope to the rail on a flattop M16/AR15 firearm. UPC: 719307301290
- LensPen - TA56 The TA56 LensPen from Trijicon is an excellent device for cleaning the glass surfaces of any optical device. This clever brush features a retractable dust removal brush and a special non-liquid cleaning element. The LensPen is safe and easy to use, and its compact form factor makes it the perfect accessory to toss into your gear-bag. UPC: 719307304048
In the Box Bundle Items RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) wexxqdbqzbcvwretxdfeuv - Limited Lifetime Warranty
Compact ACOG Flattop Adapter wexxqdbqzbcvwretxdfeuv - Limited Lifetime Warranty
LensPen - TA56
Also Includes - Trijicon Sticker
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3x30 TA33 ACOG Riflescope and 3.25 MOA Red Dot Type 2 RMR Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black)
| Magnification | 1.0x | | Reticle | 3.25 MOA Red Dot reticle | | Field of View | Unlimited | | Impact Point Correction | 1.0 MOA | | Windage/Elevation Adjustment | Yes | | Battery | 1 x CR2032 lithium battery / 2 years of use | | Weatherproofing | Waterproof and submersible to 66' (20 m) | | Dimensions | 1.8 x 1.1 x 1.0" / 46.0 x 28.0 x 25.0 mm | | Weight | Sight: 1.2 oz / 34.0 g | | | | Box Dimensions (LxWxH) | 5.4 x 4.8 x 3.4" | - Compact ACOG Flattop Adapter
| | | Box Dimensions (LxWxH) | 6.5 x 4.0 x 2.1" | - LensPen - TA56
| | | Box Dimensions (LxWxH) | 5.95 x 3.85 x 2.05" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
