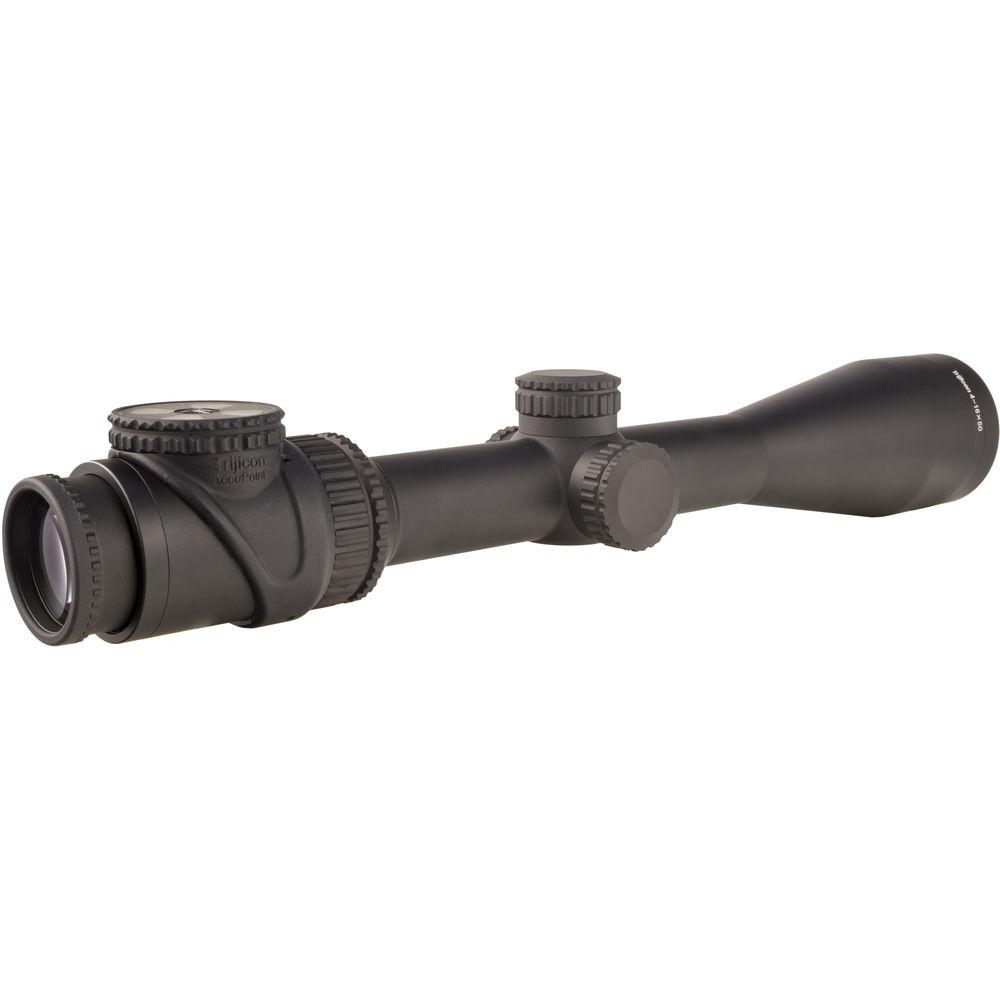

User Manual for Trijicon 4-16x50 AccuPoint Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4-16x50 AccuPoint Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4-16x50 AccuPoint Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

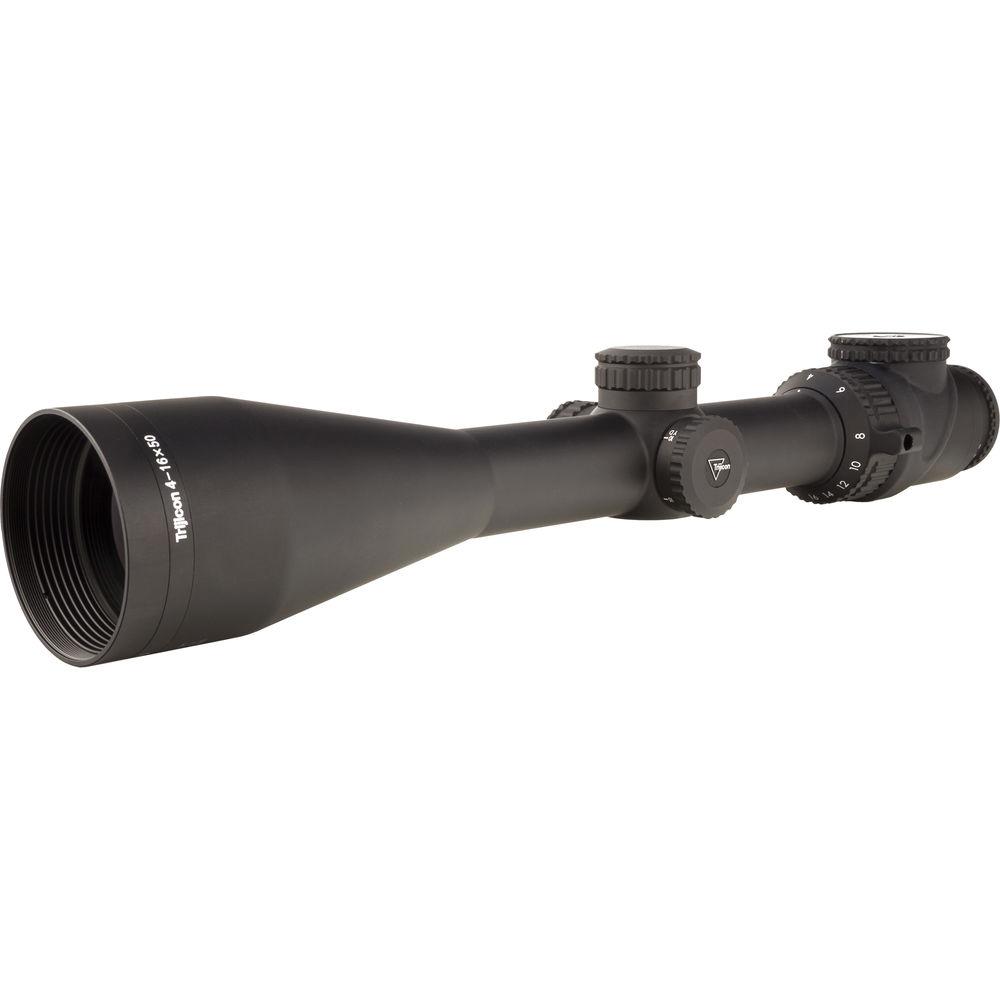

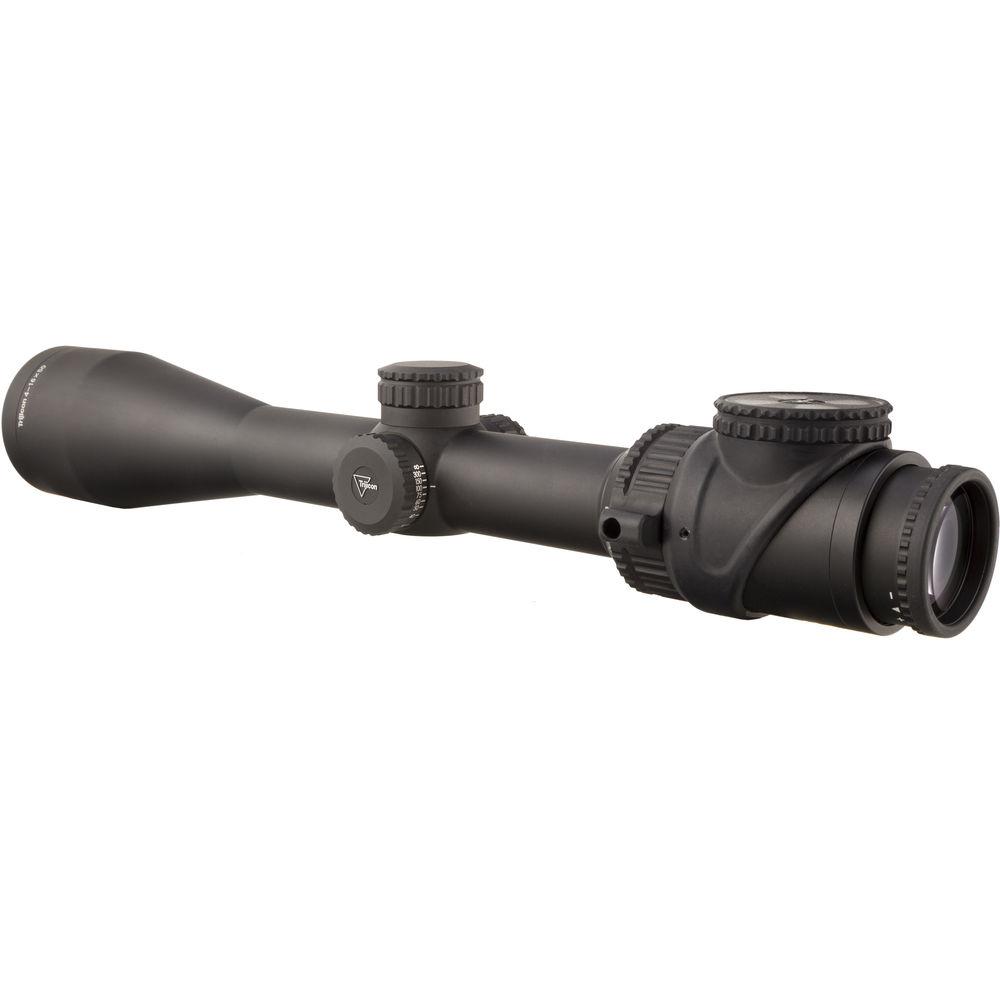

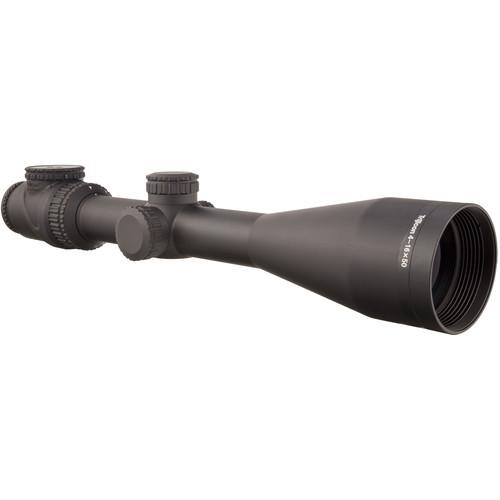

Product description Continuing its legacy of building almost-indestructible (6061-T6 aluminum alloy) low-distortion scopes, Trijicon introduces its fans and novices to a new iteration in the series—the 4-16x50 AccuPoint Riflescope. This version keeps the familiar, proven features like a strong and durable water and fogproof body with a 30mm maintube and a Green-Amber Duplex Crosshair reticle with dual fiber optic and tritium adjustable (battery-free) illumination. The upgrades come in the form of the optical system with a 4-16x zoom range for filling a new niche and a wide 50mm objective for superior performance in low light. Operators will also find beneficial the scope's capped finger-operated windage and elevation knobs (with 80 MOA total travel and 0.25 MOA clicks), a side focus parallax corrector, a fast-focus eyepiece with a knurled lever, and robust fog and waterproof (submersible to 10') construction. - Optical Performance
-
- 4-16x magnification
- Multi-coated optics
- Low-distortion optical system
- Wide 50mm objective diameter delivers bright images in low light
- 25.8-6.4' at 100 yards linear field of view
- 3.6-3.7" long eye relief
- Use and Handling
-
- 0.25 MOA impact point correction
- 80 MOA windage and elevation ranges
- 10 yard to infinity parallax correction
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm single-piece maintube
- Black anti-glare finish
- Capped finger-operated turrets allow tool-free adjustments
- Easy-focus eyepiece with zoom lever
- Side focus parallax knob
- Fogproof, nitrogen-filled
- Waterproof to 10'
- Impact resistant

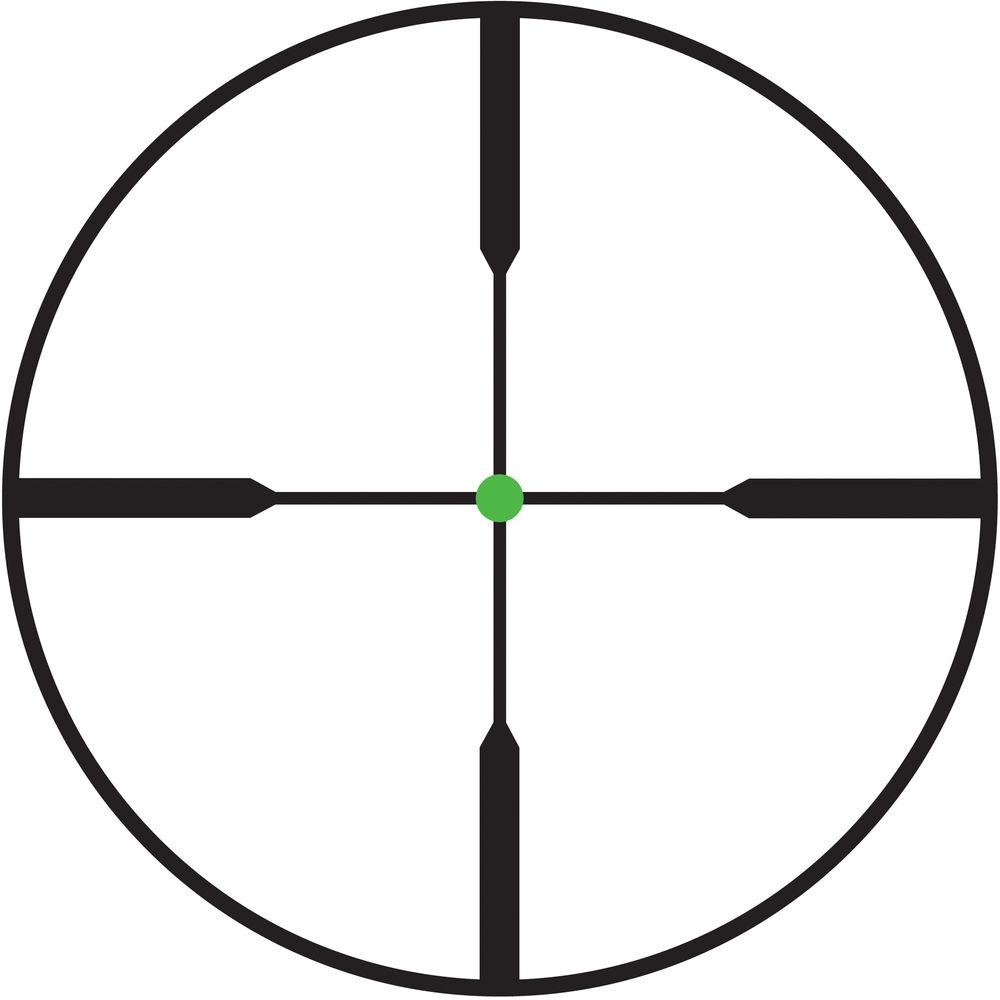

- Green-Amber Duplex Crosshair Reticle
-
- Second focal plane
- Dual tritium and fiber optic illumination
- Does not require an external electrical power source or batteries
- Automatic or manual illumination brightness control
- Reticle pattern is highly visible in most lighting conditions
- Four tapered posts
- Thin crosshair with a brilliant illuminated dot
- Green day illumination color
- Amber night illumination color
- Zero forward glint
UPC: 719307402485 In the Box Trijicon 4-16x50 AccuPoint Riflescope (Green-Amber Duplex Crosshair Reticle, Matte Black) 2 x Lens Caps LensPen - TA56 Trijicon Logo Sticker (PR15) Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4-16x50 AccuPoint Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR29-C-200131 Specs | | | Magnification | 4 to 16x | | Objective Lens Diameter | 50 mm | | Field of View | 4x: 25.8' @ 100 yd / 8.6 m @ 100 m
16x: 6.4' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 4x: 9.3 mm
16x: 3.1 mm | | Eye Relief | 3.6 to 3.7" / 91 to 94 mm | | | | Reticle Type | Duplex Crosshair Reticle (Second Focal Plane) | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Amber, Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 13.9" / 35.3 cm | | Weight | 24.2 oz / 686 g | | | | Package Weight | 2.965 lb | | Box Dimensions (LxWxH) | 19.4 x 19.3 x 5.5" |
