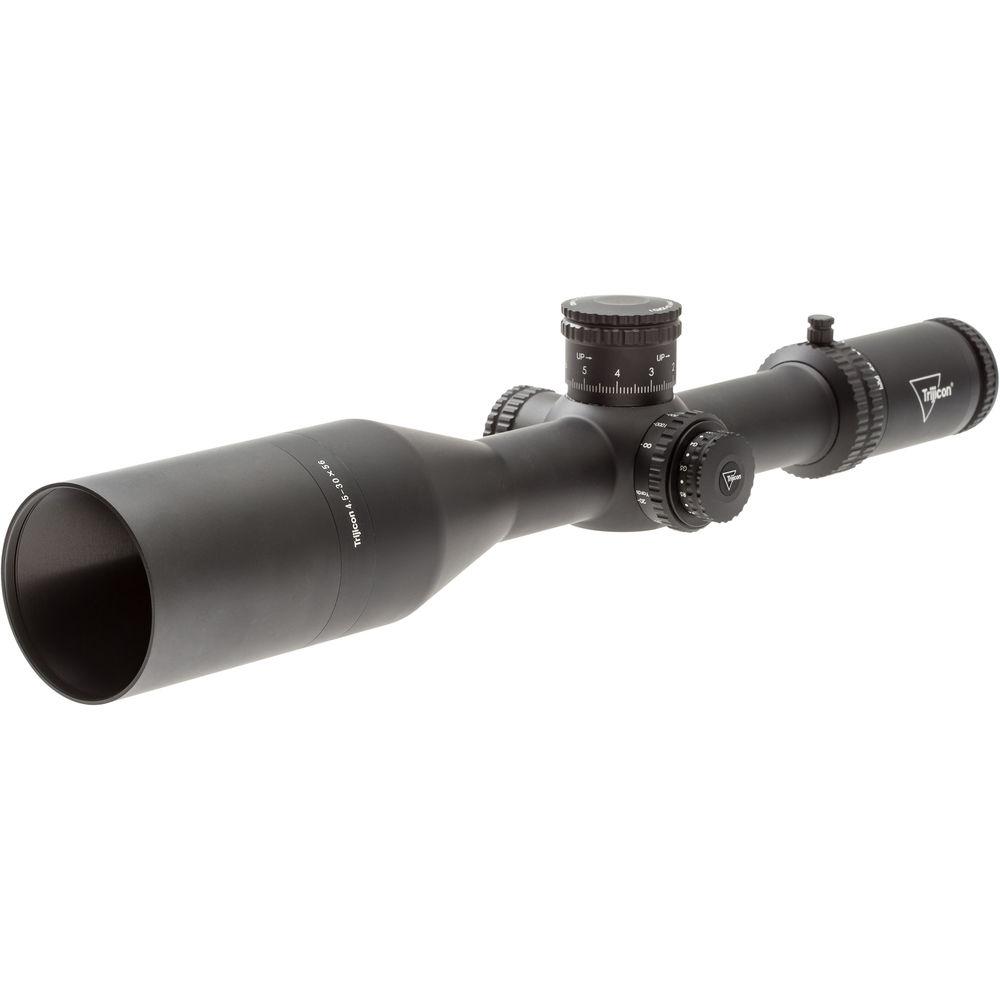

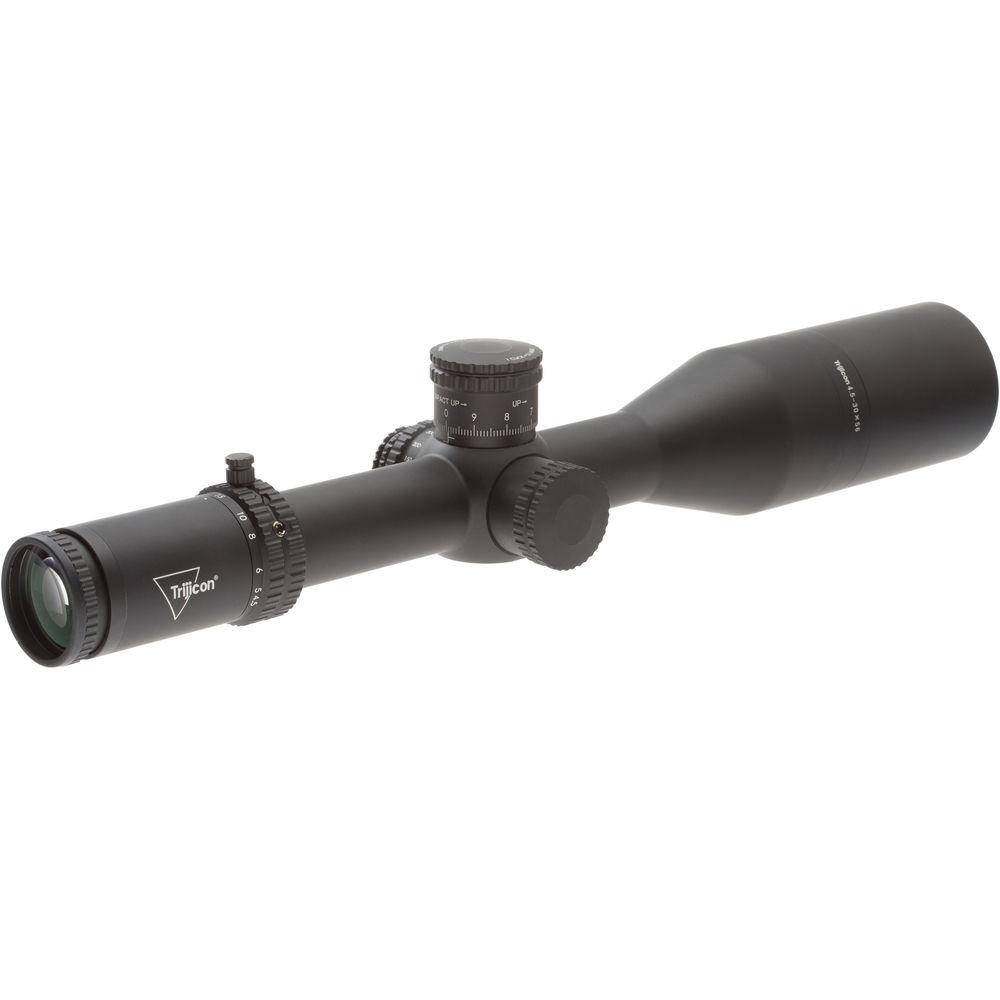

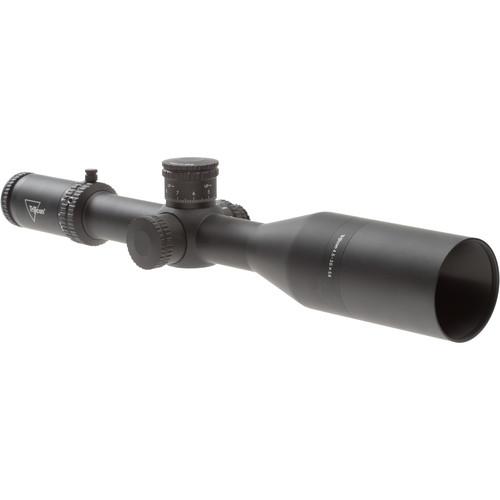

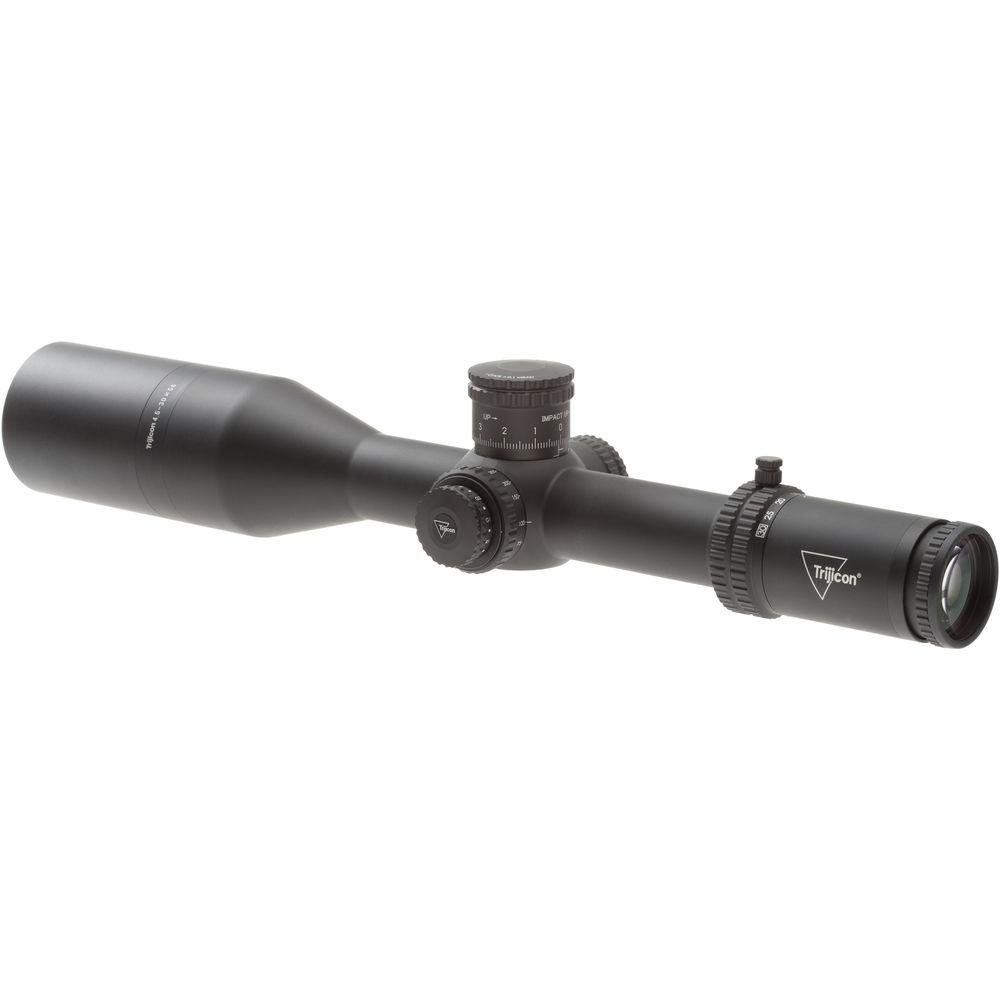

Product description Trijicon engineered the 4.5-30x56 AccuPower Long-Range Riflescope to serve as a standard of durability and long-range performance for riflescopes of its class. Its fully multi-coated lenses are carefully designed, cut from high-quality optical glass, and polished for low-distortion performance. To expand the range of its effectiveness to low-light conditions like dusk or dawn, the riflescope also features an extra-wide 56mm objective lens. For shooting precision, the scope has a 2nd focal plane Red/Green Crosshair Illuminated Reticle with five daytime and five nighttime brightness settings. It features a fully illuminated milling crosshair with a short top hair and MRAD-based stadia.
The housing is engineered from durable 6061-T6 aluminum with a hard-anodized finish and a strong 34mm maintube. The knurled knobs allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. - Optical Performance
-
- Fully multi-coated optics
- Low-distortion lenses
- Magnification: 4.5-30x
- 56mm objective lens delivers bright images even in low light
- Maximum eye relief of 3.8"
- Use and Handling
-
- 1/10 MIL impact point correction
- 14.5 MIL windage and 29.1 MIL elevation adjustments
- Construction Details
-
- 34mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Exposed elevation, capped windage turrets
- Turrets have numerical reference scales
- Easy-focus eyepiece with zoom lever
- Fogproof, waterproof, impact resistant

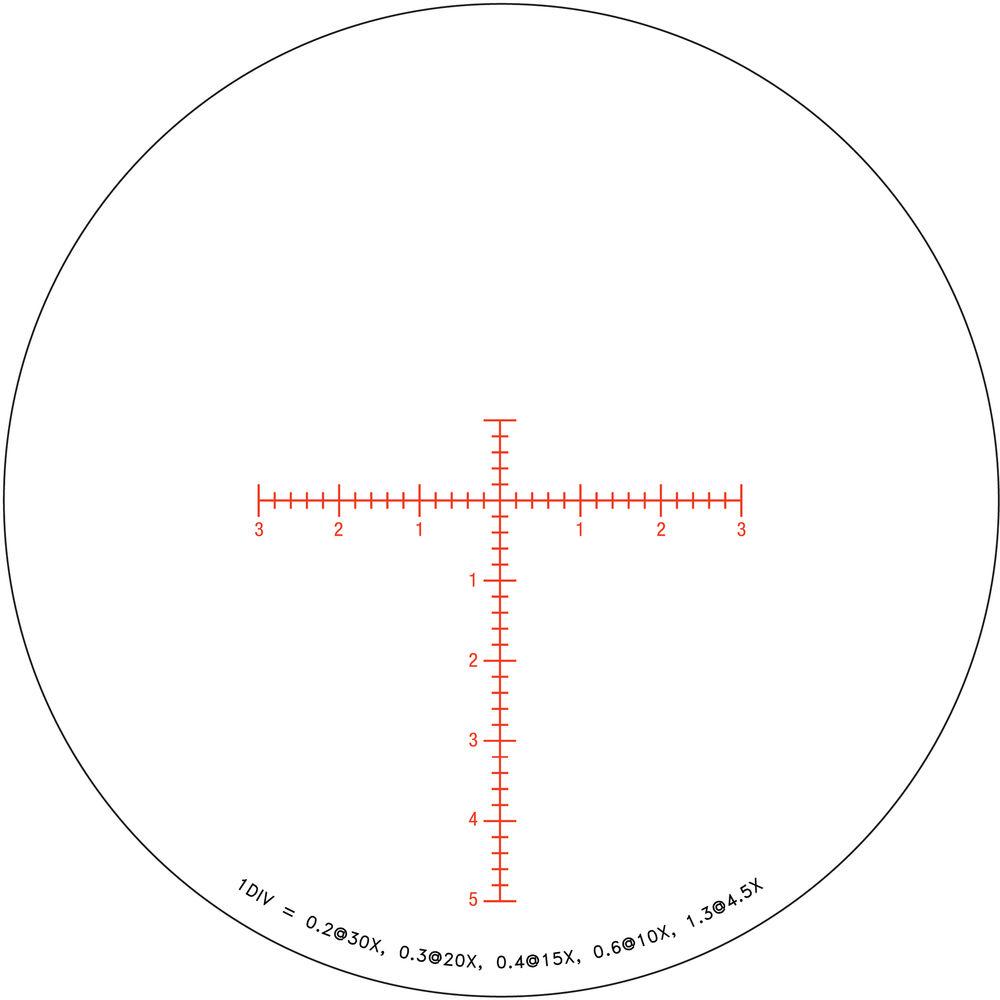

- Red/Green MRAD Crosshair Reticle
-
- 2nd focal plane
- Fully illuminated milling crosshair with a short top
- Five daytime and five nighttime illumination settings
- MRAD-based stadia
In the Box Trijicon 4.5-30x56 AccuPower Long-Range Riflescope (Red/Green MRAD Crosshair Reticle, Matte Black) - 2 x Flip-up Lens Caps
- 3" Sunshade
- Scopecoat
- LensPen - TA56 exxtfcqexwzvtxzbvzwb
- Trijicon Logo Sticker (PR15)
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4.5-30x56 AccuPower Long-Range Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS30-C-1900035 Specs | | | Magnification | 4.5 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 4.5x: 24.7' @ 100 yd / 8.2 m @ 100 m
30x: 3.7' @ 100 yd / 1.2 m @ 100 m | | Exit Pupil Diameter | 4.5x: 8.8 mm
30x: 1.9 mm | | Eye Relief | 3.2 to 3.8" / 79 to 97 mm | | | | Reticle Type | MRAD Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 14.5 MIL | | Elevation Adjustment | 29.1 MIL | | Parallax Correction | Yes, 20 yd / 18.3 m to Infinity | | | | Water Resistance | Waterproof to 10' / 3 m | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 14.3" / 36.4 cm
Height: 3.6" / 9.2 cm
Width: 2.9" / 7.4 cm | | Weight | 36 oz / 1 kg (without Sunshade) |
