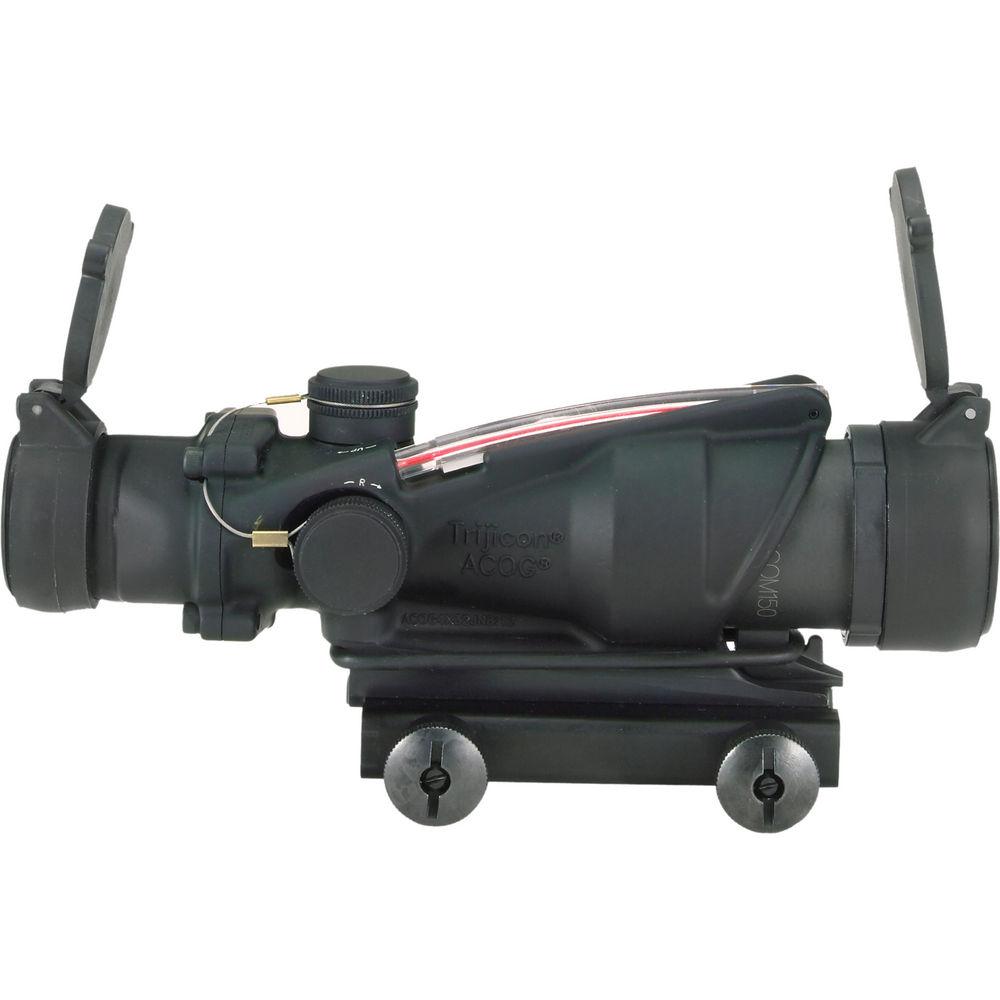

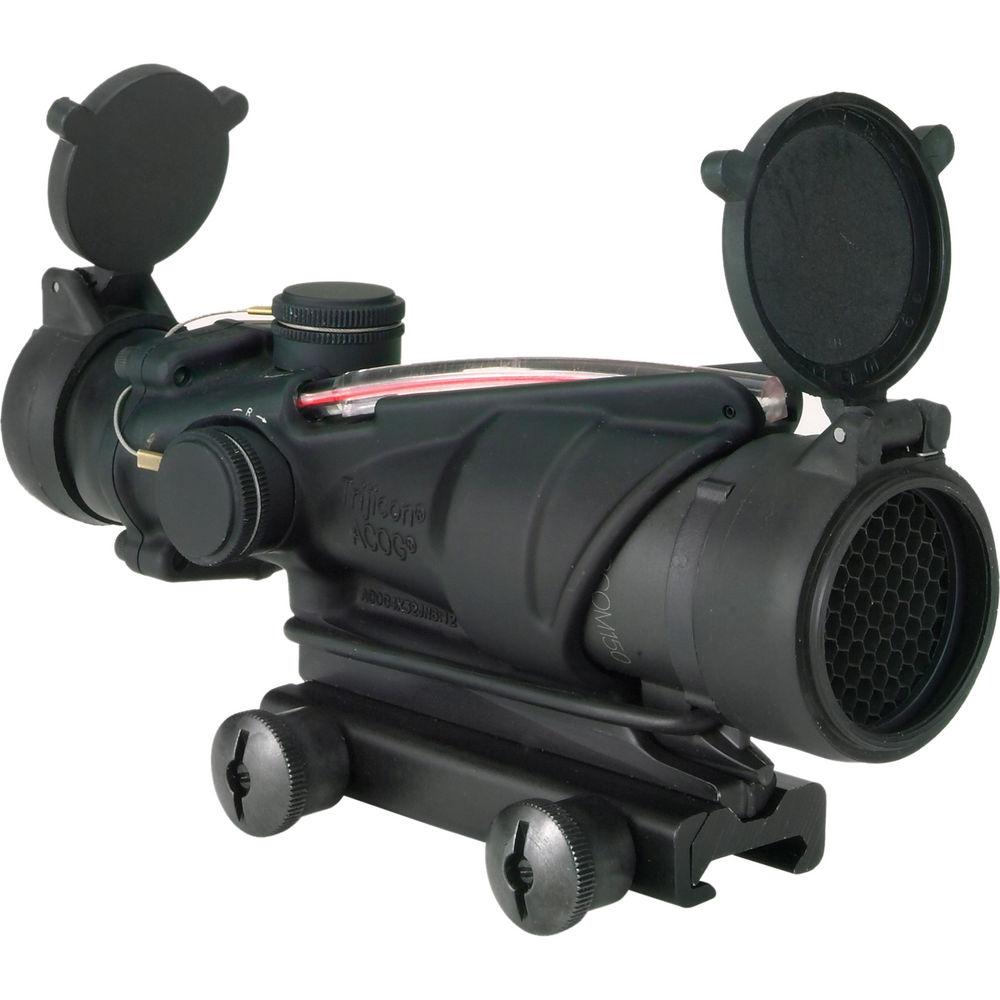

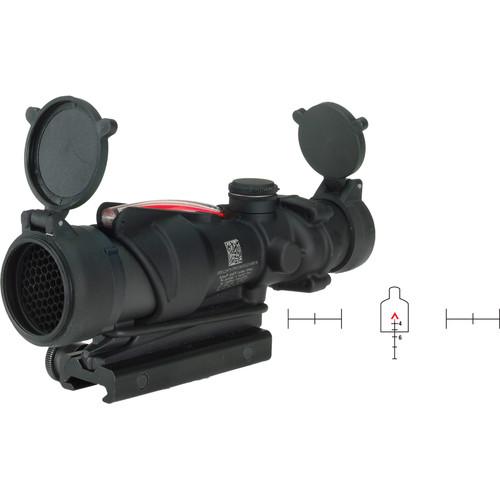

User Manual for Trijicon 4x32 ACOG Army Rifle Combat Optic Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Army Rifle Combat
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Army Rifle Combat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all.Every feature of the ACOG's (Advanced Combat Optical Gunsight) mechanical and optical design was designed for use with the M16 family of firearms. This sighting system was engineered for a single purpose; to provide increased hit potential in all lighting conditions - without relying upon failure-prone batteries.The ACOG is engineered upon a roof prism design for maximum optical precision and enhanced reliability. These sights combine traditional, precise long-range accuracy with rapid close-quarters target acquisition.Although ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light scenarios.The 4x32 ACOG Army Rifle Combat Optic Riflescope is a comfortable and engaging optic to sight through in day or nighttime. The generous field of view provides the ability to see your target and what's going on around the target. This is a rugged optic for the discerning professional who understands that success is the only acceptable outcome.This highly-specialized edition of the venerable ACOG is designed for the U.S. Army and designated as the M150 scope. The bullet drop hash-marks on the reticle are gauged specifically for 5.56 NATO ammunition. This package also includes a Tenebraex ARD. - Rugged Construction
- Forged 7075-T6 aircraft aluminum alloy housing
- Flat-Top Mount
- Mounting system is dedicated to Mil-Std 1913 Picatinny rails
- USMC Rifle Combat Optic (RCO)
- The RCO (Rifle Combat Optic) is designed for the M16M4 with a 14.5" barrel. Included in the package are a specialized thumb-screw and a Tenebraex killFlash ARD (Anti Reflective Device)

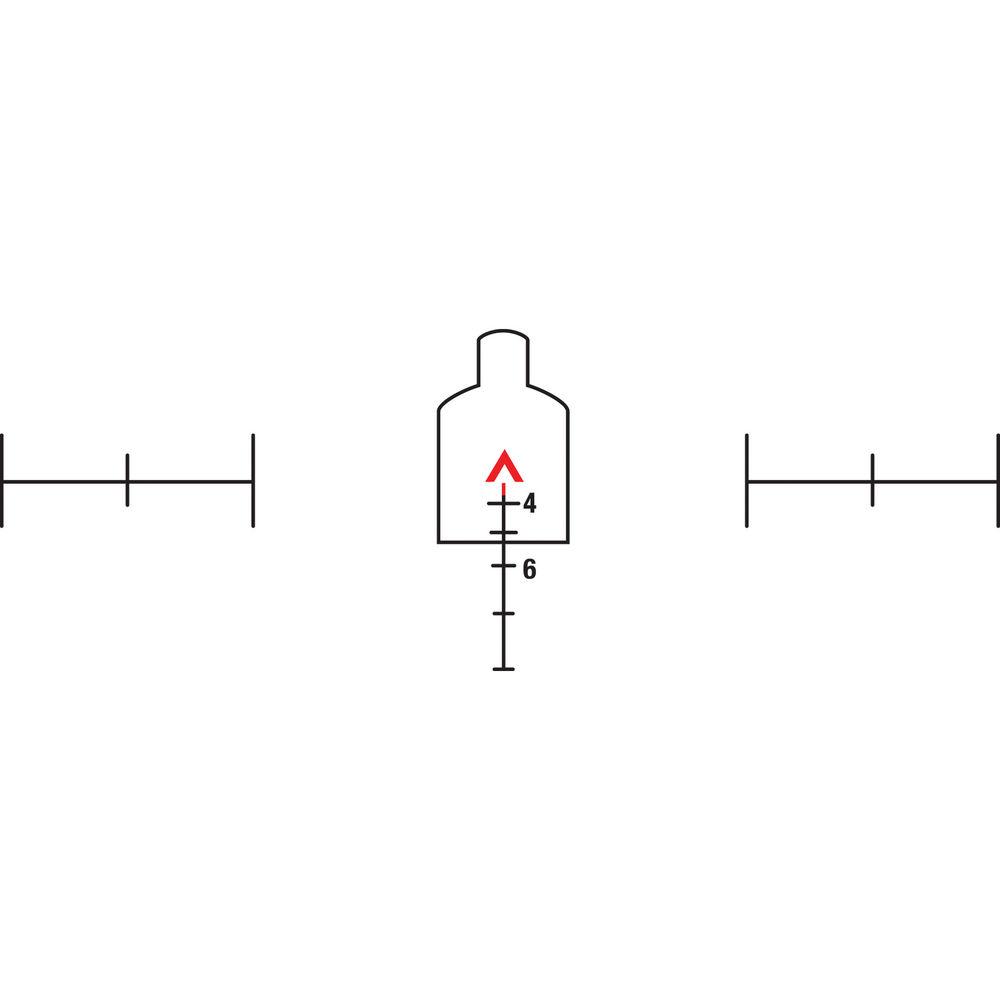

- Dual Illumination Red Chevron - 5.56 NATO
- This dual-illuminated reticle features fine stadia at 3, 6, and 9 o'clock. An illuminated chevron indicates your point of aim. Hash-marks on the 6 o'clock stadia provide hold-over points for long-range target acquisition. Hash-marks on the horizontal stadia provide hold-off points for windage correction. Trijicon's proprietary tritium/fiber-optics based illumination technology provides the chevron with a brilliant red glow at all times.
UPC: 719307302242 In the Box Trijicon 4x32 ACOG Army Rifle Combat Optic Riflescope ACOG Picatinny Rail Adapter Tenebraex killFLASH Anti-Reflection Device LensPen - TA56 Objective/Eyepiece Flip-Cap Set ACOG External Adjuster Caps & Lanyard Trijicon Logo Sticker Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Army Rifle Combat Optic Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31RCO-M150CP Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.2 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | Diopter Correction | None | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Water Resistant | | | | Battery | None | | Dimensions | Length: 7.3" / 18.5 cm | | Weight | 16.2 oz / 460 g (without Mount) | | | | Package Weight | 2.29 lb | | Box Dimensions (LxWxH) | 8.65 x 8.3 x 5.1" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
