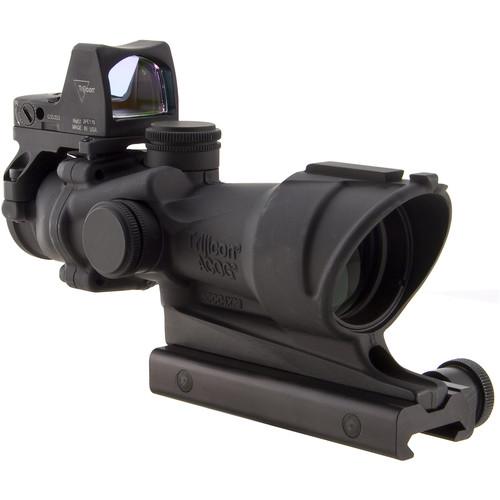

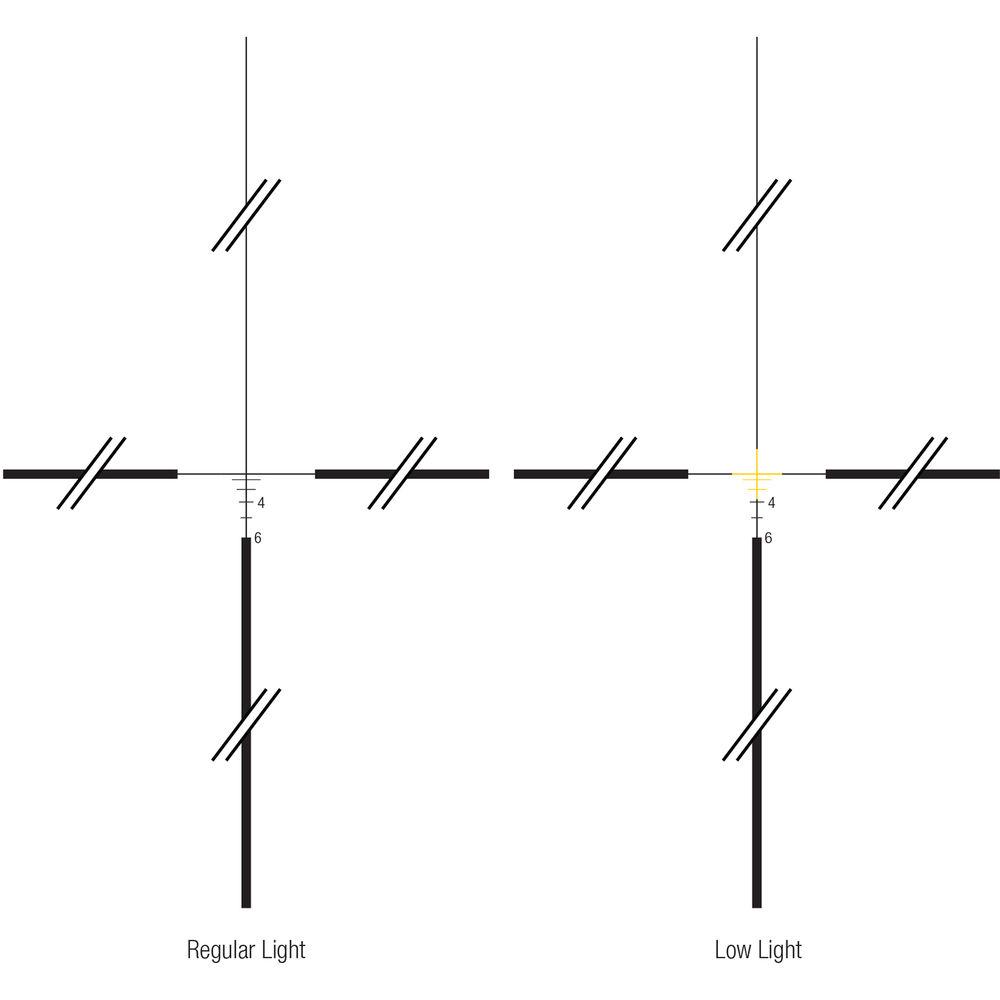

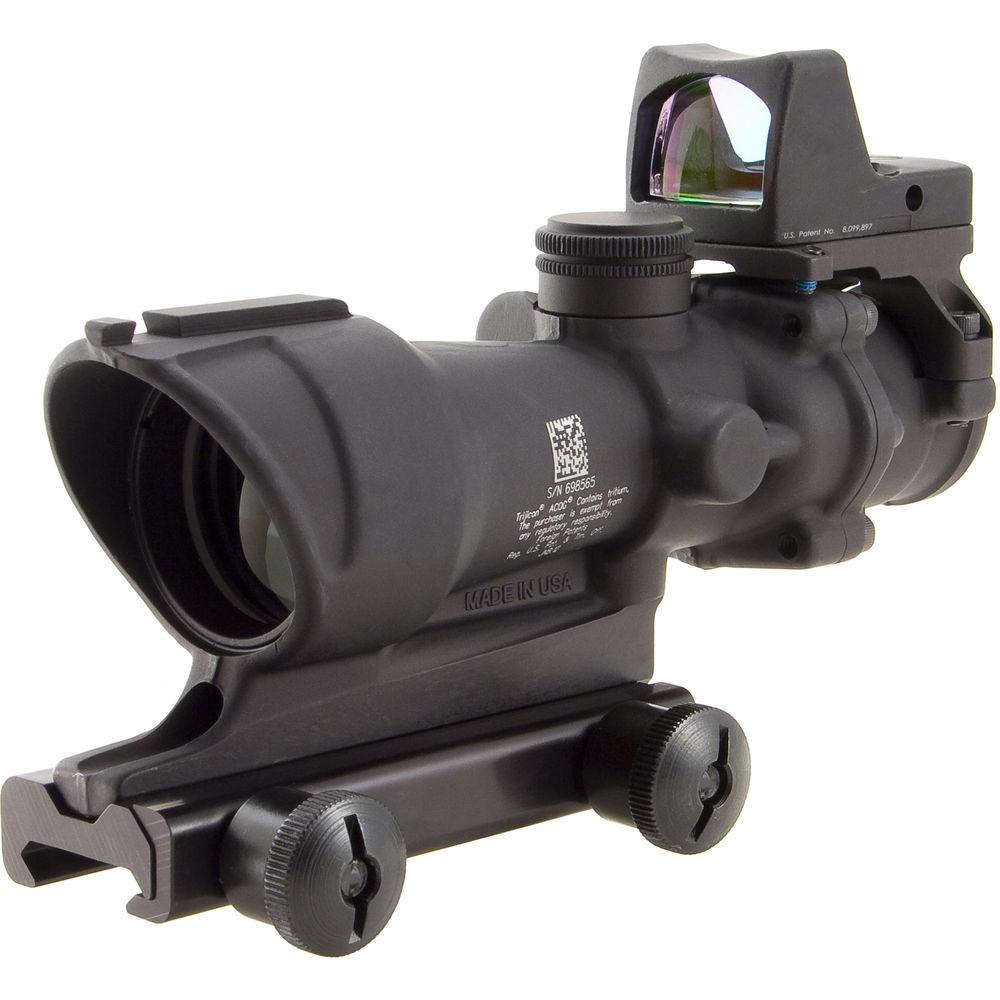

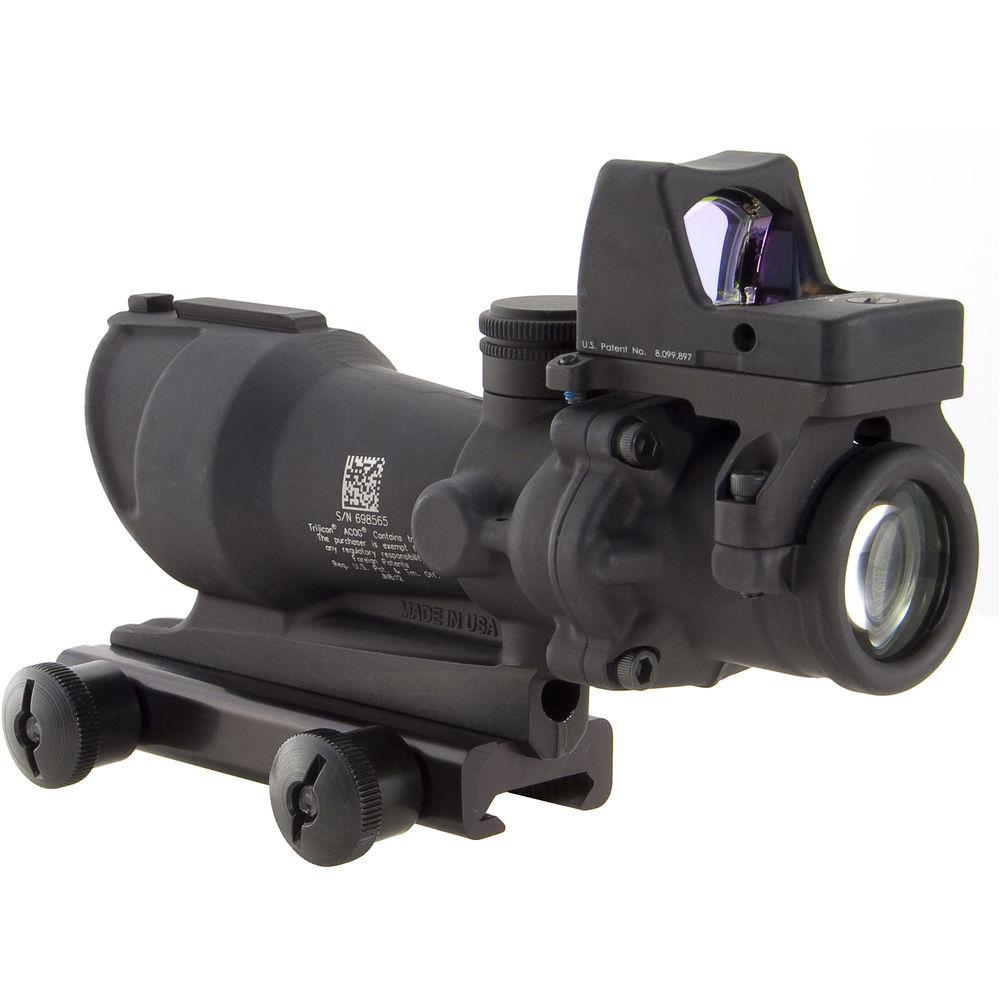

Product description Subdue your enemy with the help of Trijicon's 4x32 ACOG Center Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit. The kit includes a battle-ready Advanced Combat Optical Gunsight (ACOG) and a secondary Ruggedized Miniature Reflex Sight (RMR). Designed to withstand a heavy beating, the ACOG features a waterproof and shock-resistant construction with a housing that is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. The optics perform with zero distortions and have multiple anti-reflection coatings to remove glare and to improve transmission. To compensate for wind and ballistic bullet drop, you have windage and elevation adjustments with 1/2 MOA clicks. Also noteworthy is the CI tritium illuminated .223 Amber Crosshair Reticle defined by two horizontal posts and a thin crosshair with markings for ballistic and wind compensation.

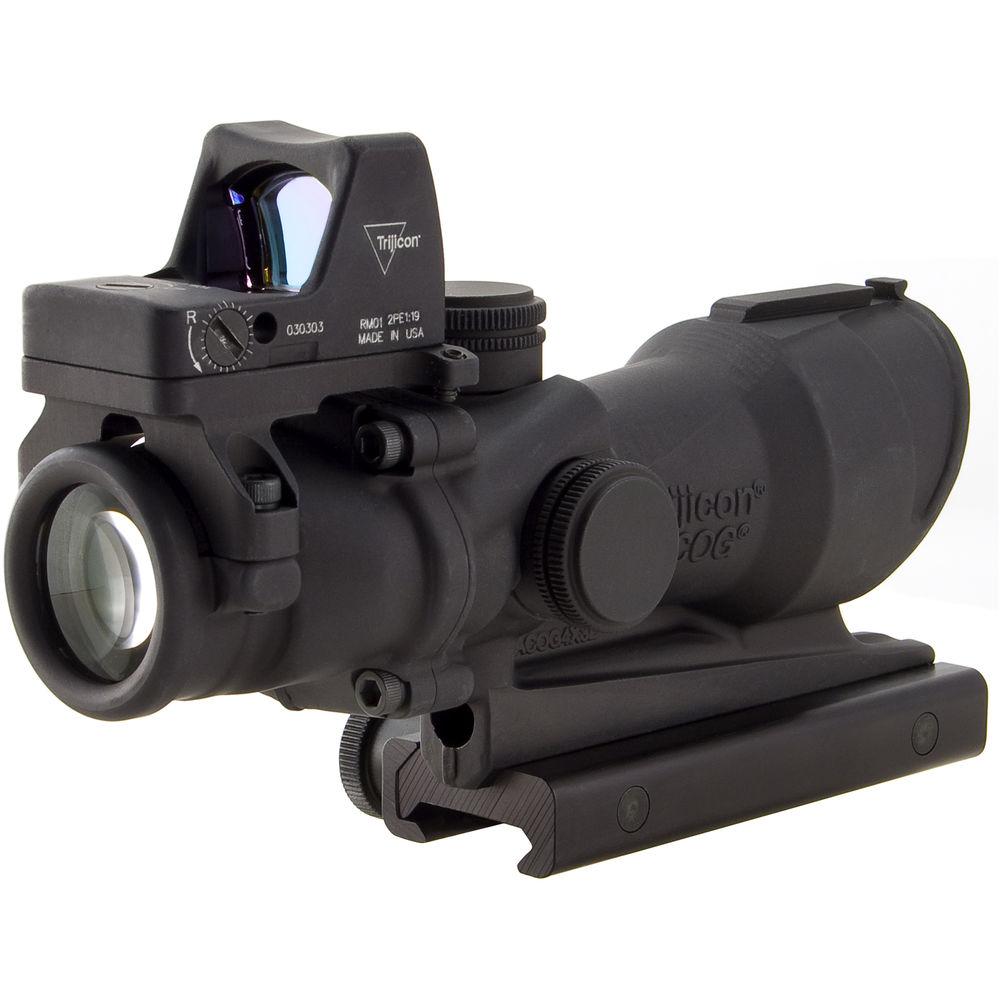

To empower you with rapid target acquisition in close quarter combat, the kit also includes a secondary RMR Sight. This new Type 2 iteration of the RMR design has ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. The sight can be mounted on top of the ACOG's eyepiece and features a 3.25 MOA Red Dot reticle with brilliant LED illumination, powered by one CR-2032 battery. To ensure precise shot placement, you are provided with windage and elevation adjustment ranges and 1 MOA click adjustments. For lasting durability, the sight is outfitted with tempered glass and a forged aluminum housing. - ACOG Riflescope
-
Optical Performance - Multi-coated optics
- 4x magnification for short-to-medium range
- 32mm objective lens diameter
- 7° angular field of view range
- Eye relief: 1.5"
CI .223 Amber Crosshair Reticle - Center tritium illumination
Use and Handling - Windage and elevation adjustments
- 1/2 MOA impact point adjustments
Construction Details - Single-piece 7075-T6 aluminum alloy housing
- Type III hard anodizing black matte finish
- Waterproof and submersible
- Shock-resistant
- RMR Sight
-
Use and Handling - Improved electronics and battery contacts ensure high performance in harsh conditions
- Adjustable windage and elevation
- 1 MOA impact point correction
Optical Performance & Reticle - 1x magnification
- Tempered glass window
- Unlimited field of view
- 3.25 MOA Red Dot reticle
- Brilliant LED illumination
- Powered by one CR-2032 battery
Construction Details - Forged aluminum construction
- Mounts on ACOG
- Shock-resistant
- Waterproof
UPC: 719307311848 In the Box Trijicon 4x32 ACOG Center Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit (CI .223 Amber Crosshair Reticle, Matte Black) - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) ruquysqctfbrzxzc
- ACOG Picatinny Rail Adapter
- Rubber Caps for 4x32 ACOG Riflescope
- LensPen - TA56
- Weatherproof Logo Sticker
- ACOG External Adjuster Caps & Lanyard
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Center Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA01-D-100556 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38.1 mm | | | | Reticle Type | CI .223 Crosshair Reticle | | Illuminated Color | Amber | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR2032 | | Dimensions | Length: 5.8" / 147.3 mm | | Weight | 15 oz / 424.1 g | | | | Package Weight | 2.36 lb | | Box Dimensions (LxWxH) | 8.4 x 8.2 x 5.1" |
