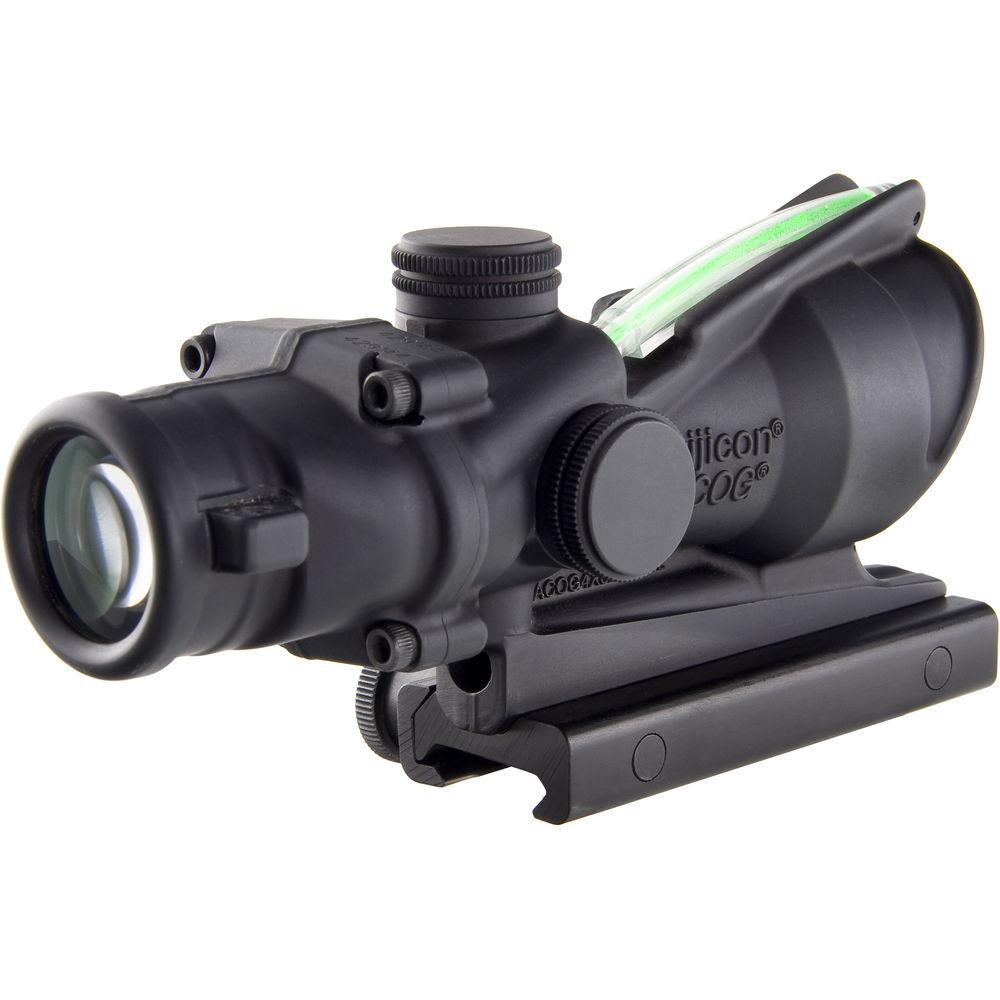

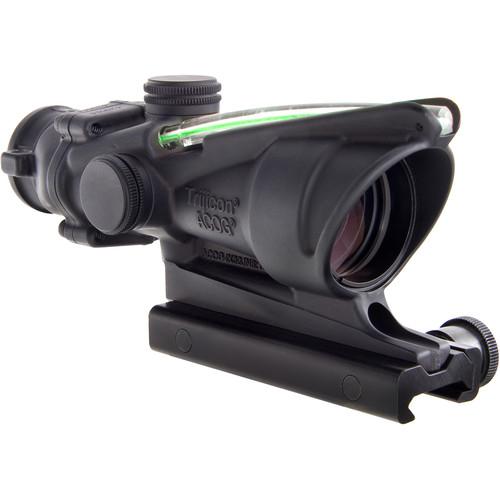

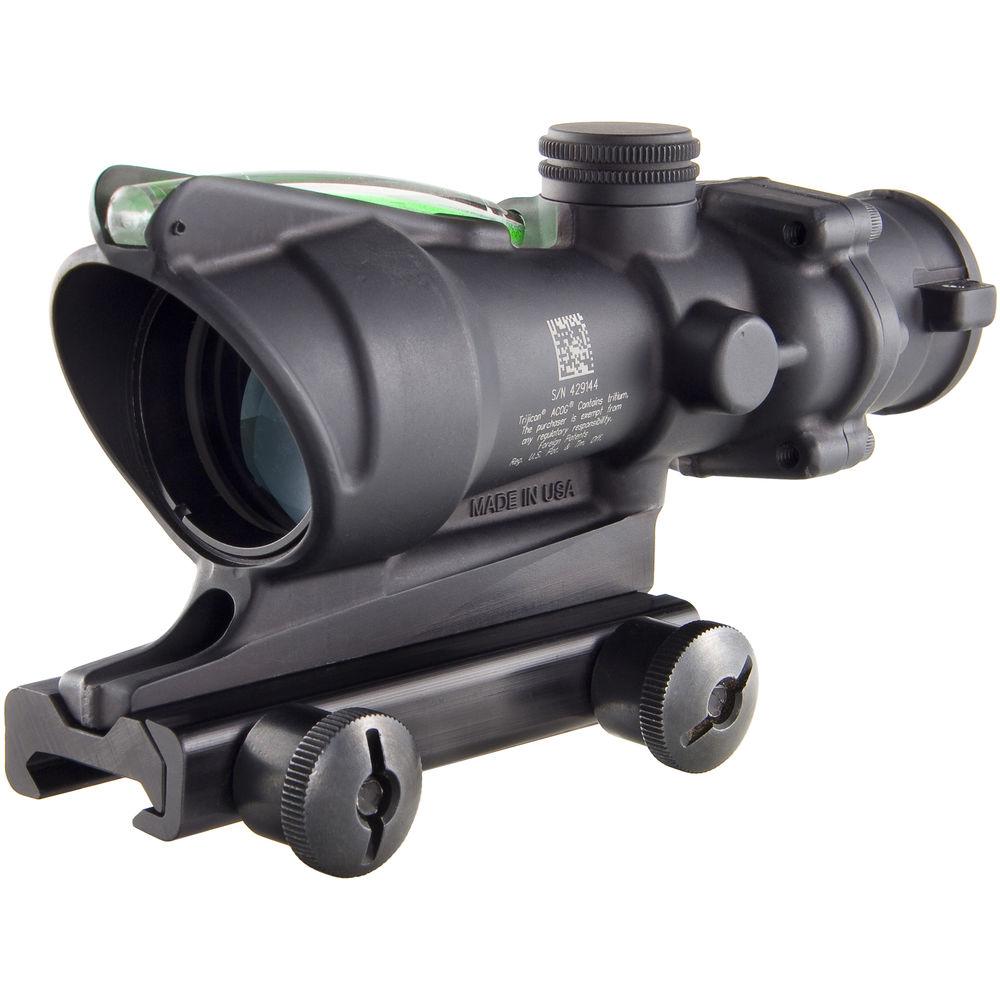

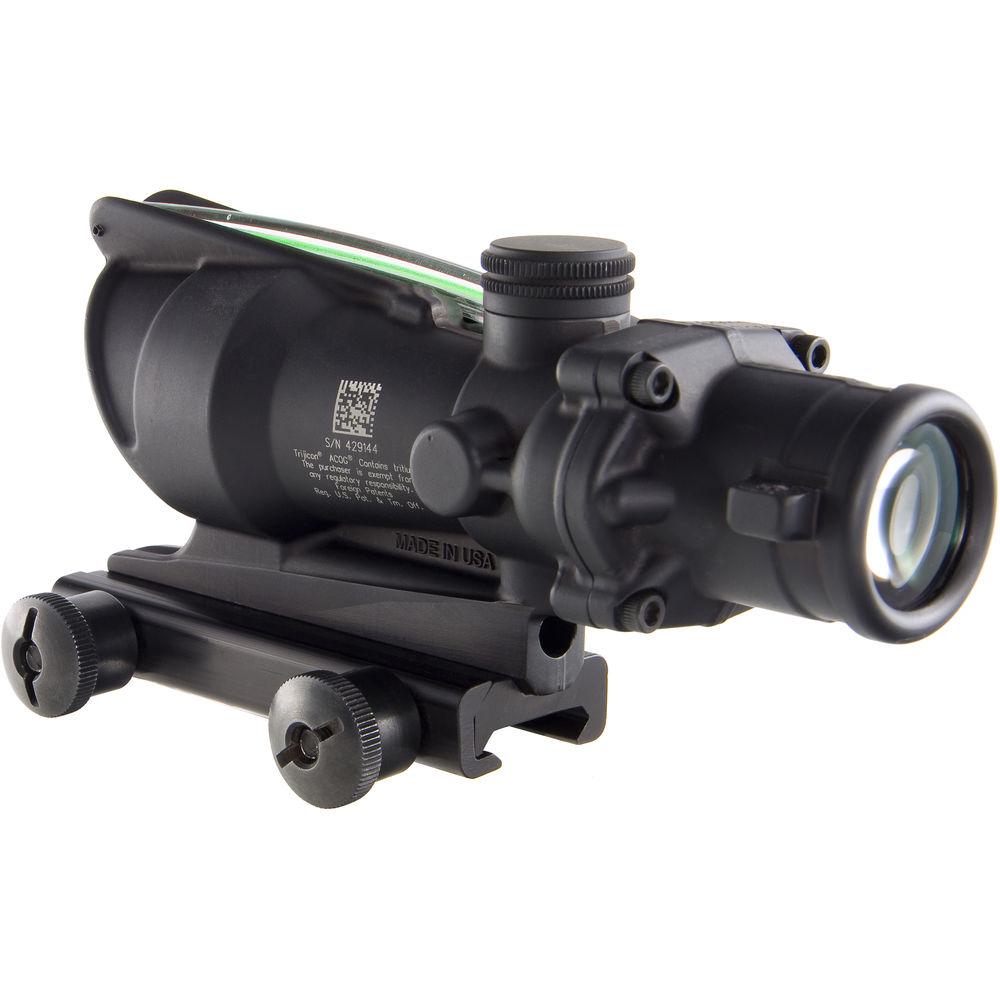

Product description The 4x32 ACOG Dual-Illuminated Riflescope from Trijicon features a battery-free illuminated ballistic reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a green duplex crosshair reticle that has bullet drop compensation stadia on the lower vertical hair that are specifically calibrated for .223 caliber ballistics. Anti-reflection broadband fully multicoated optics maximizes light transmission to provide bright and clear views with limited distortion.Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that automatically adjusts reticle brightness when operating in daylight. The reticle’s aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. The ACOG is outfitted with a TA51 mount that has two thumbscrews for clamp-on attachment to a Picatinny rail. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, scratch and corrosion-resistant hard anodized aluminum housing that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multicoated optics
- Broadband lens coating
- 7° angle of view
- 1.5" eye relief

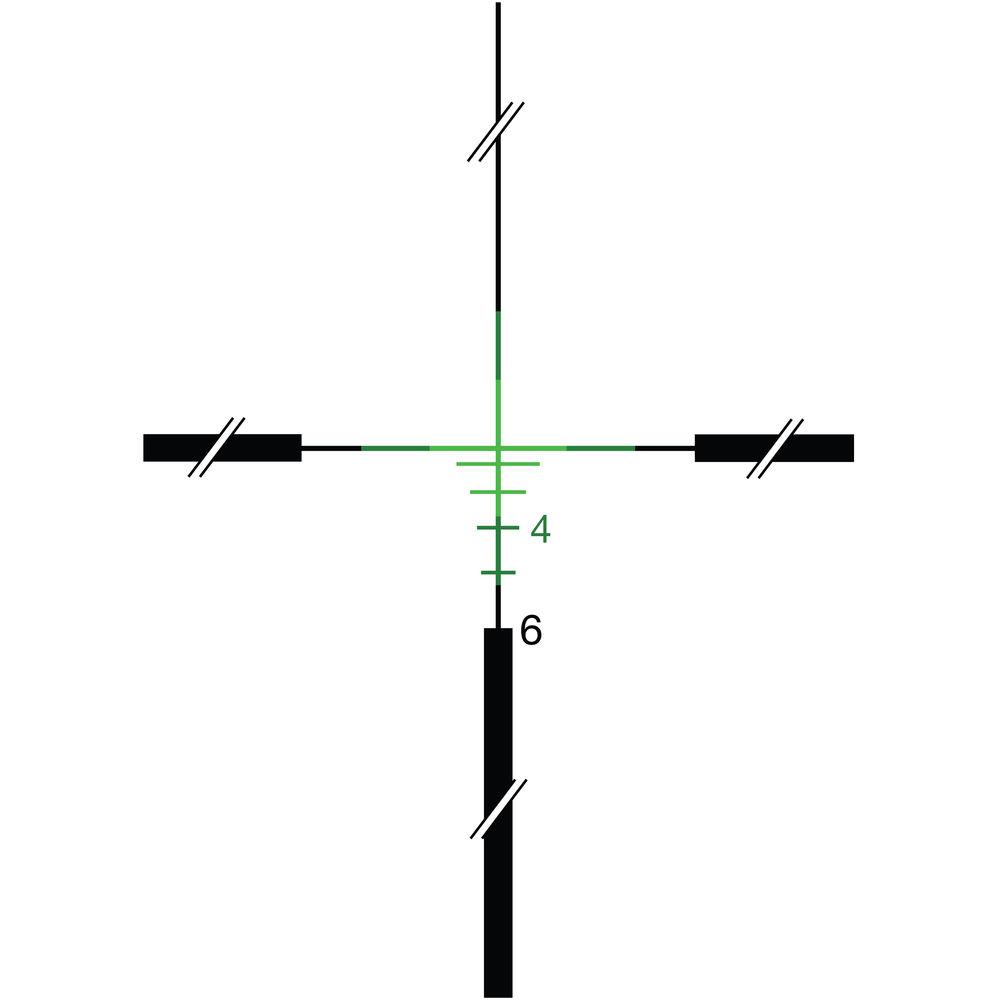

- Reticle
-
- Green dual-illuminated duplex-style crosshair reticle
- Ballistic drop compensation (BDC) reticle for .223 caliber
- Lower vertical hair features stadia for calculating BDC out to 600 m
- Battery-free illumination uses fiber optics or tritium
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Tritium isotope: Interacts with a phosphors membrane in the system to create illumination for the reticle
- Use and Handling
-
- 1/2 MOA impact point adjustments
- Includes TA51 mount for AR-style flattop rail
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- 9.9 oz weight
- Made in the USA
UPC: 719307304352 In the Box Trijicon 4x32 ACOG Dual-Illuminated Riflescope (Matte Black, Green Crosshair) ACOG Picatinny Rail Adapter ACOG Scopecoat LensPen - TA56 Logo Sticker Dust Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Dual-Illuminated Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-CH-G Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.2 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | .223 BDC Crosshair Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof to 328' / 100 m | | | | Battery | None | | Dimensions | Length: 5.8" / 15 cm
Height: 2.3" / 6 cm (with Mount)
Width: 2" / 5 cm | | Weight | 9.9 oz / 280.7 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.3 x 8.0 x 5.1" |
