User Manual for Trijicon 4x32 ACOG Dual Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Dual Illuminated Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Dual Illuminated Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

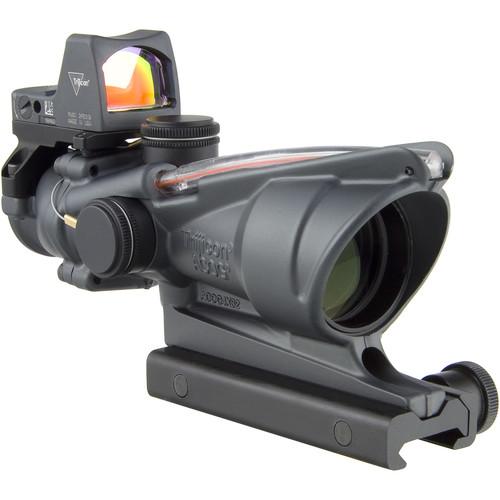

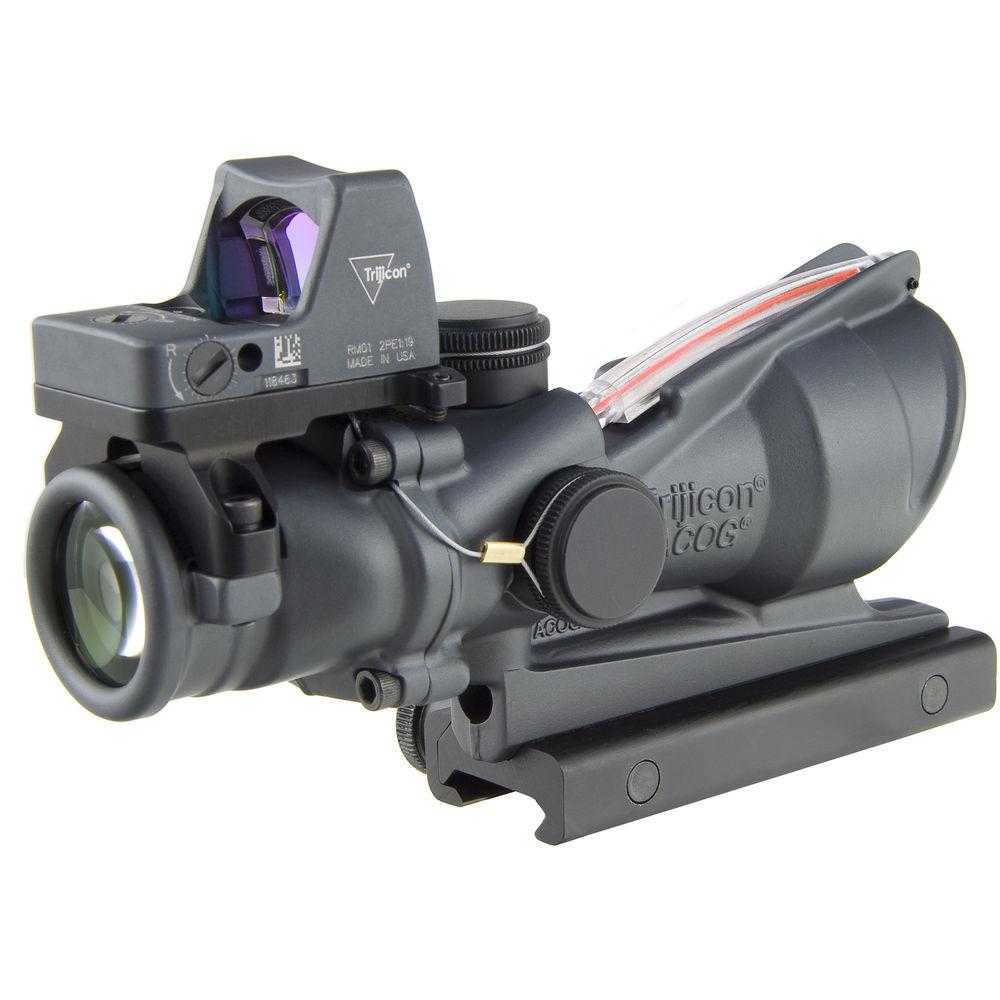

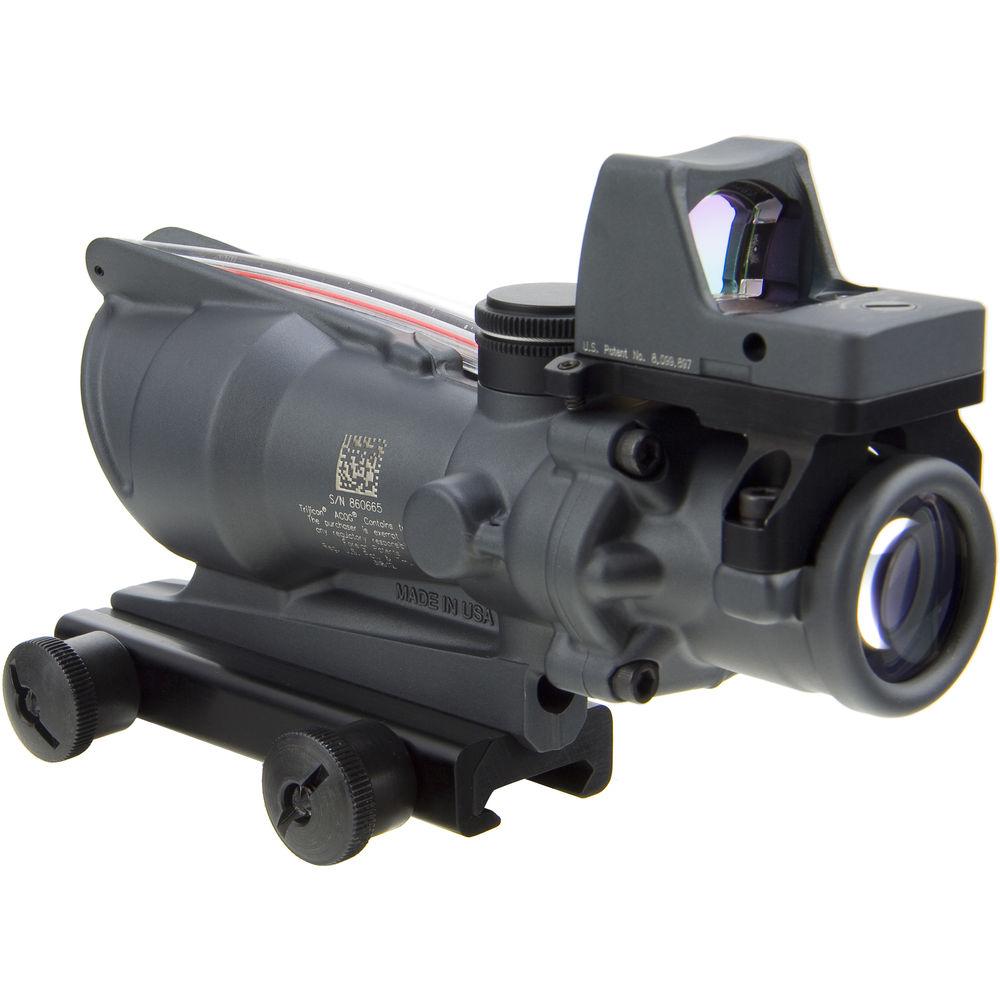

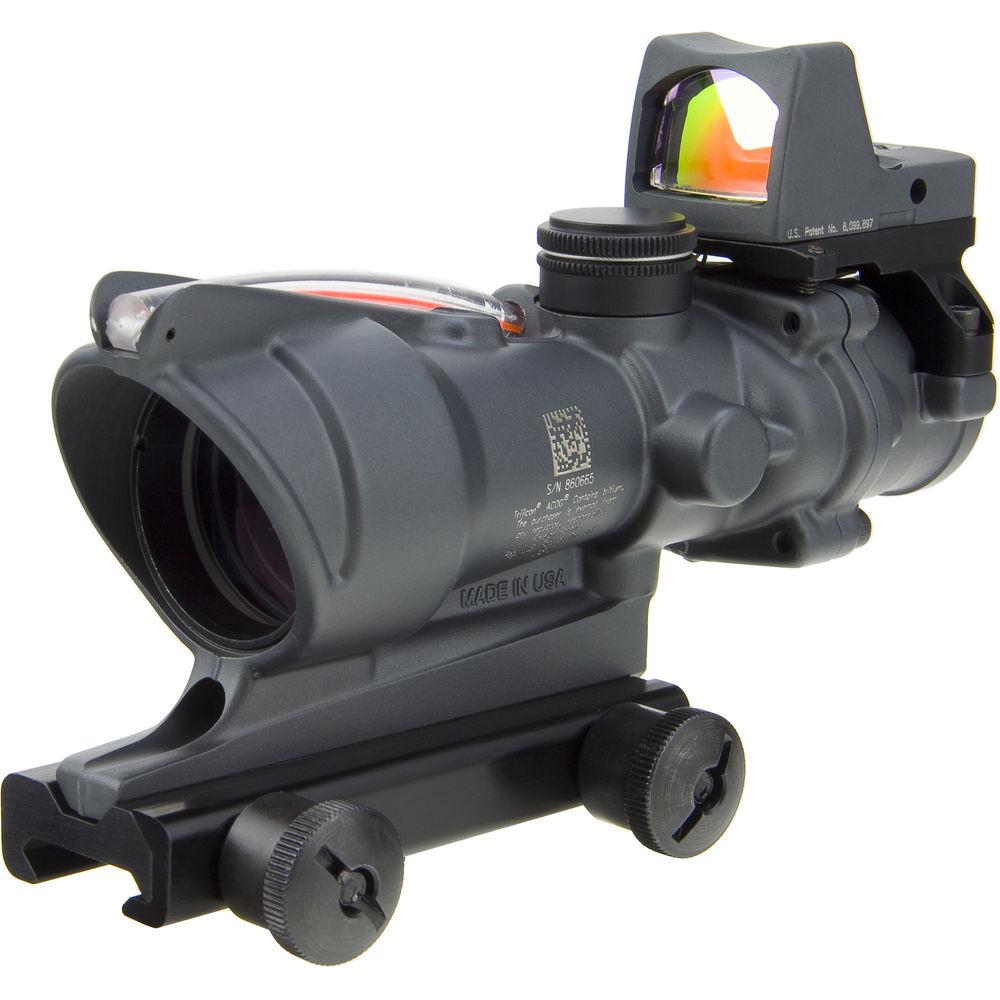

Product description Subdue your enemy with the help of Trijicon's 4x32 ACOG Dual Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit. The kit includes a battle-ready Advanced Combat Optical Gunsight (ACOG) and a secondary Ruggedized Miniature Reflex Sight (RMR). Designed to withstand a heavy beating, the ACOG features a waterproof and shock-resistant construction with a housing that is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. The optics perform with zero distortions and have multiple anti-reflection coatings to remove glare and to improve transmission. To compensate for wind and ballistic bullet drop, you have windage and elevation adjustments with 1/2 MOA clicks. Also noteworthy is the DI tritium and fiber optics illuminated .223 Red Chevron Reticle defined by a vertical post with an arrowhead and markings for ballistic compensation. Its battery-free dual illumination system utilizes fiber optics for balanced day illumination and a tritium lamp for low-light and night illumination.
To empower you with rapid target acquisition in close quarter combat, the kit also includes a secondary RMR Sight. This new Type 2 iteration of the RMR design has ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. The sight can be mounted on top of the ACOG's eyepiece and features a 3.25 MOA Red Dot reticle with brilliant LED illumination, powered by one CR-2032 battery. To ensure precise shot placement, you are provided with windage and elevation adjustment ranges and 1 MOA click adjustments. For lasting durability, the sight is outfitted with tempered glass and a forged aluminum housing. - ACOG Riflescope
-
Optical Performance - Multi-coated optics
- 4x magnification for short-to-medium range
- 32mm objective lens diameter
- 7° angular field of view range
- Eye relief: 1.5"

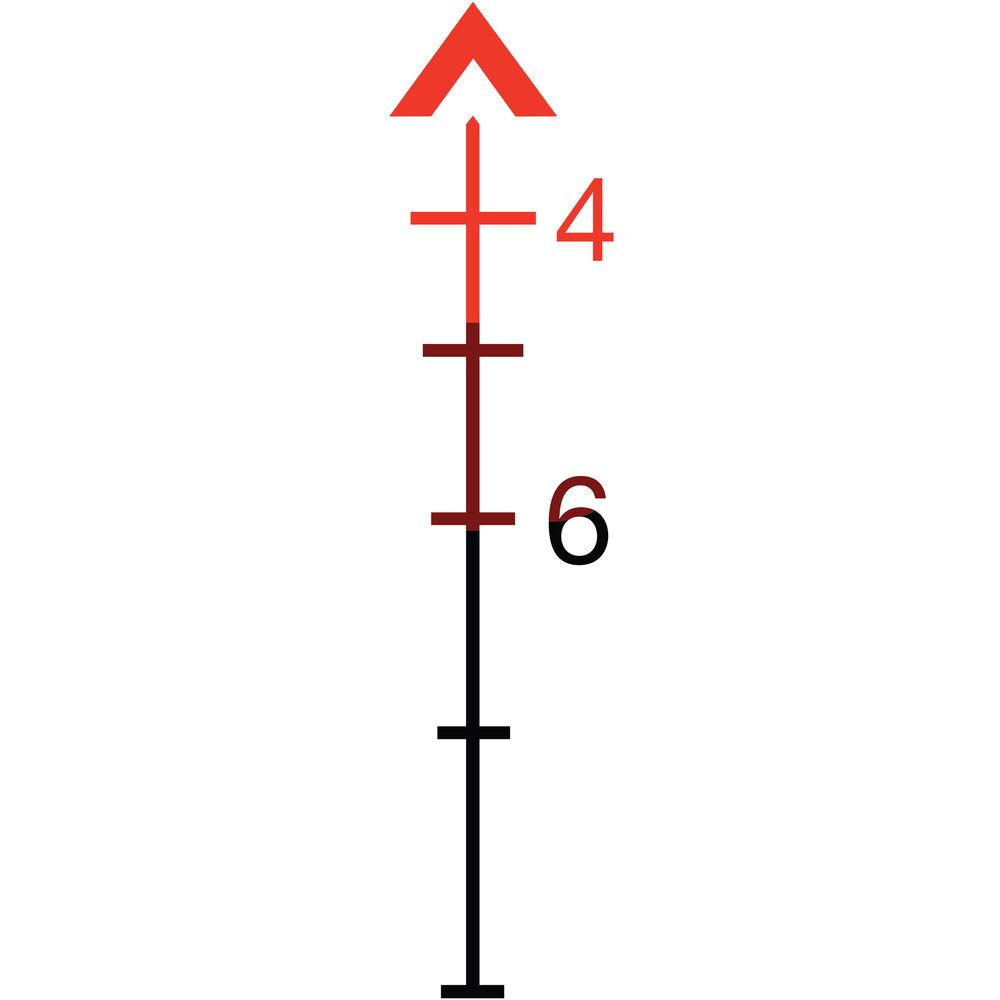

DI .223 Red Chevron Reticle - Dual tritium and fiber optics illumination
Use and Handling - Windage and elevation adjustments
- 1/2 MOA impact point adjustments
Construction Details - Single-piece 7075-T6 aluminum alloy housing
- Type III hard anodizing black matte finish
- Waterproof and submersible
- Shock-resistant
- RMR Sight
-
Use and Handling - Improved electronics and battery contacts ensure high performance in harsh conditions
- Adjustable windage and elevation
- 1 MOA impact point correction
Optical Performance & Reticle - 1x magnification
- Tempered glass window
- Unlimited field of view
- 3.25 MOA Red Dot reticle
- Brilliant LED illumination
- Powered by one CR-2032 battery
Construction Details - Forged aluminum construction
- Mounts on ACOG
- Shock-resistant
- Waterproof
UPC: 719307311985 In the Box Trijicon 4x32 ACOG Dual Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit (DI .223 Red Chevron Reticle, Cerakote Sniper Gray) - RM01 RMR Type 2 LED Reflex Sight (3.25 MOA Red Dot, Matte Black) swfuasqwbfywsbdrccuvtsbvvt
- ACOG Picatinny Rail Adapter
- LensPen - TA56
- Weatherproof Logo Sticker
- ACOG External Adjuster Caps & Lanyard
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Dual Illuminated Riflescope and 3.25 MOA Red Dot Type 2 RMR Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-D-100568 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38.1 mm | | | | Reticle Type | DI .223 Chevron Reticle | | Illuminated Color | Red | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x CR2032 | | Dimensions | Length: 5.8" / 147.3 mm | | Weight | 15.1 oz / 428.1 g | | | | Package Weight | 2.38 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 5.6" |
