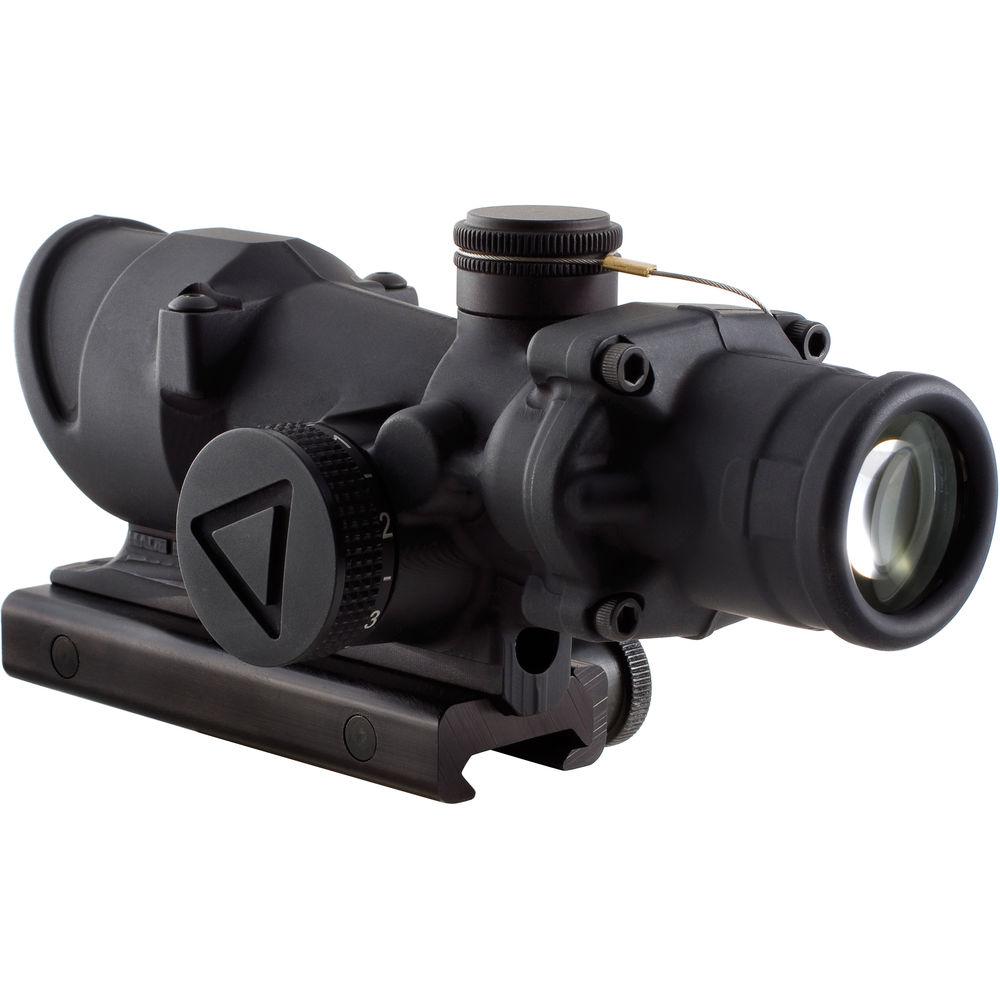

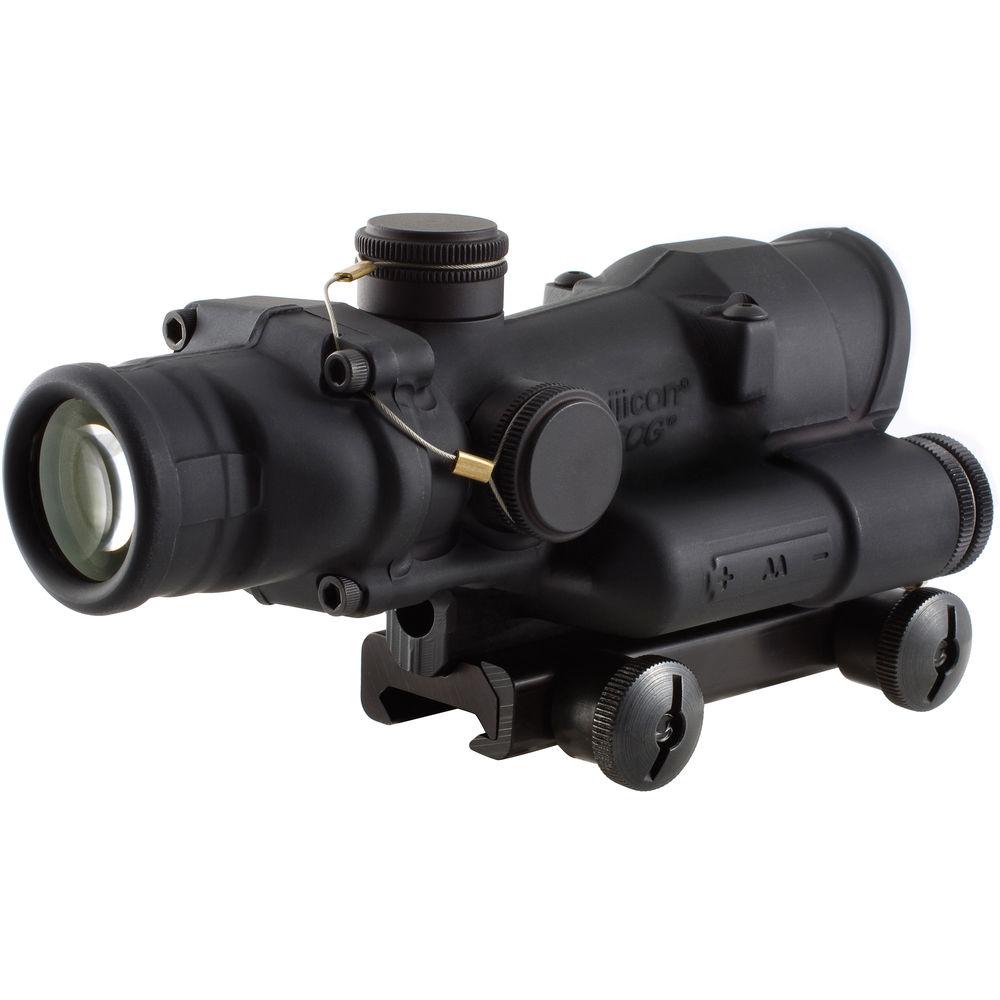

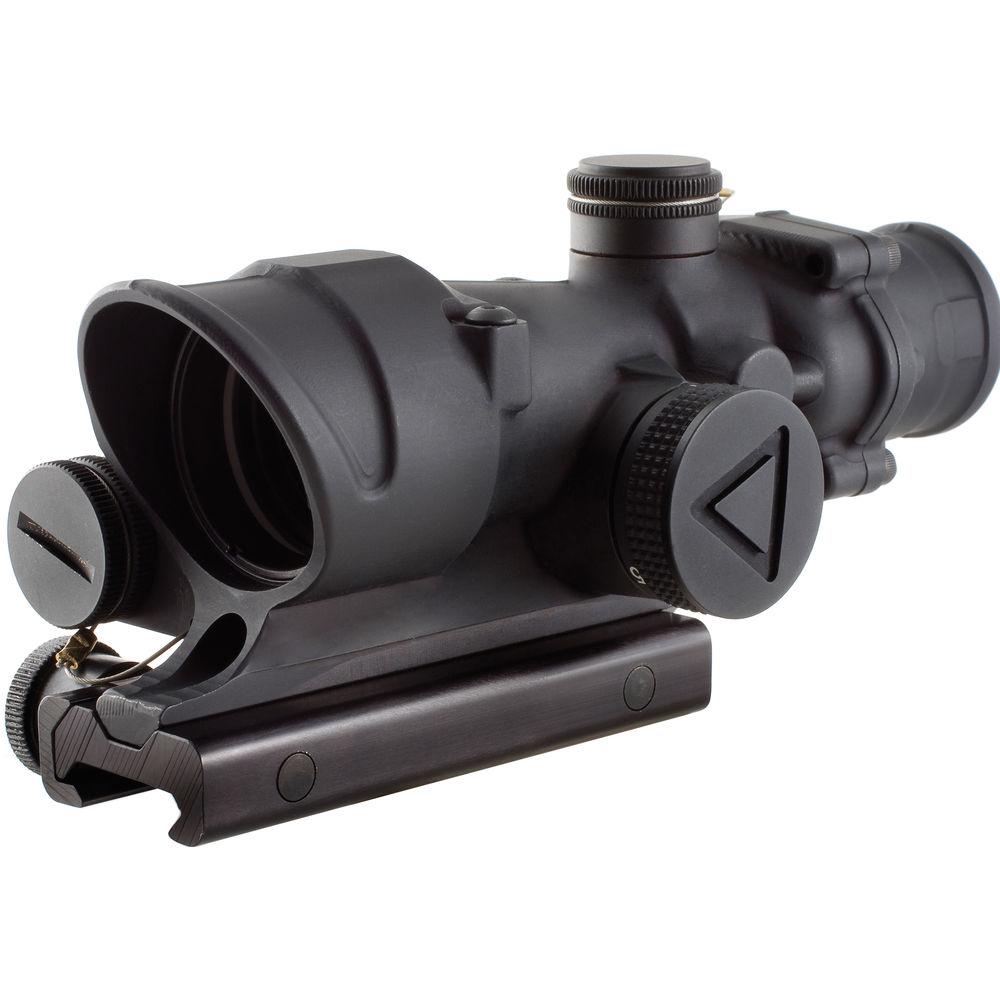

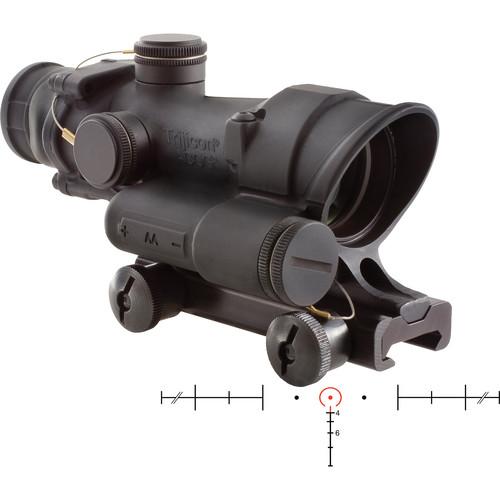

Product description The 4x32 ACOG LED-Illuminated Riflescope from Trijicon features a battery-powered LED illuminated ballistic drop compensation (BDC) reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with an illuminated red horseshoe airming point with a center dot BDC reticle that has bullet drop compensation stadia on the lower post that are specifically calibrated for .223 caliber ballistics and enable the user to adjust their aim without making mechanical changes to the sight past 600yd (550m). Anti-reflection broadband fully multicoated optics maximize light transmission to provide bright and clear views with limited distortion.The reticle is illuminated by a red LED, powered by a readily-available AA battery with a runtime of over 12,000 hours on a medium brightness setting. Six intensity levels enable the user to tailor the brightness to the lighting conditions. Intermediate "off" positions between each intensity allows the scope to be quickly turned off and to return to the preferred intensity without having to cycle to it. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. The ACOG is outfitted with a TA51 mount that has two thumbscrews for attachment to a Picatinny rail. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing with a scratch and corrosion-resistant hard-anodized matte-black finish that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multicoated optics
- Broadband lens coating
- 7° angle of view
- 1.5" eye relief
- Horseshoe Reticle
-

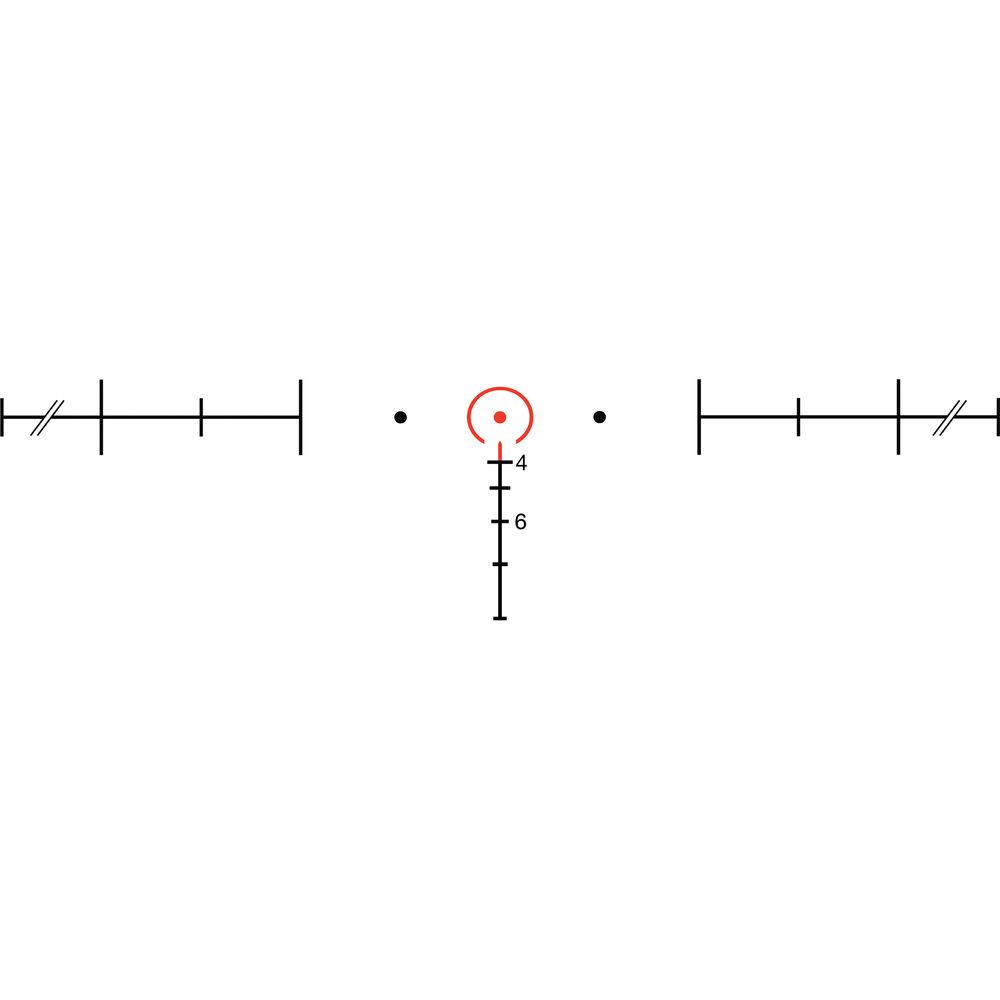

- Red illuminated horseshoe airming point with a center dot BDC reticle
- Ballistic drop compensation stadia based on .223 caliber
- Lower post features stadia for calculating BDC past
- Non-illuminated dots and hashmarks on the horizontal axis for windage and lead compensation
- Six reticle intensity levels with 'off' positions between each intensity setting
- Bindon Aiming Concept allows both eyes open targeting
- Use and Handling
-
- 1/2 MOA impact point adjustments
Knurled adjustment dials- Includes TA51 mount for AR-style flattop rail
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- 9.9 oz weight
- Made in the USA
UPC: 719307308220 In the Box Trijicon 4x32 ACOG LED-Illuminated Riflescope (Matte Black, Red Horseshoe) ACOG Picatinny Rail Adapter LensPen - TA56 ACOG External Adjuster Caps & Lanyard vzyywtzftvrzza Weatherproof Logo Sticker AA Battery Battery Cap Lanyard Assembly Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG LED-Illuminated Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA02-D-100394 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.2 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | .223 BDC Horseshoe Reticle | | Illumination | Illuminated | | Illuminated Color | Red | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof to 328' / 100 m | | | | Battery | 1 x AA | | Battery Runtime | 12,000 Hours (Maximum) | | Dimensions | Length: 6" / 15 cm
Height: 3" / 8 cm (with Mount)
Width: 2.9" / 7 cm | | Weight | 18.1 oz / 513 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.3 x 7.9 x 5.1" |
