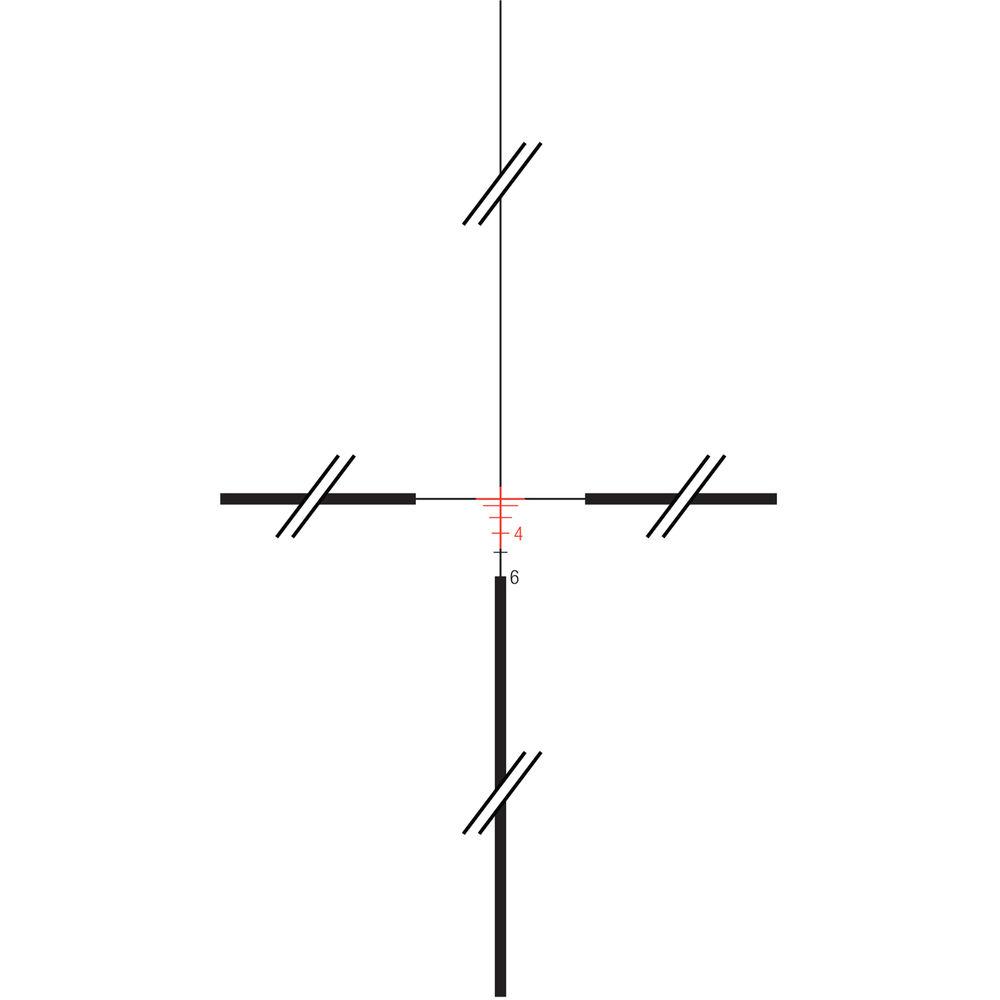

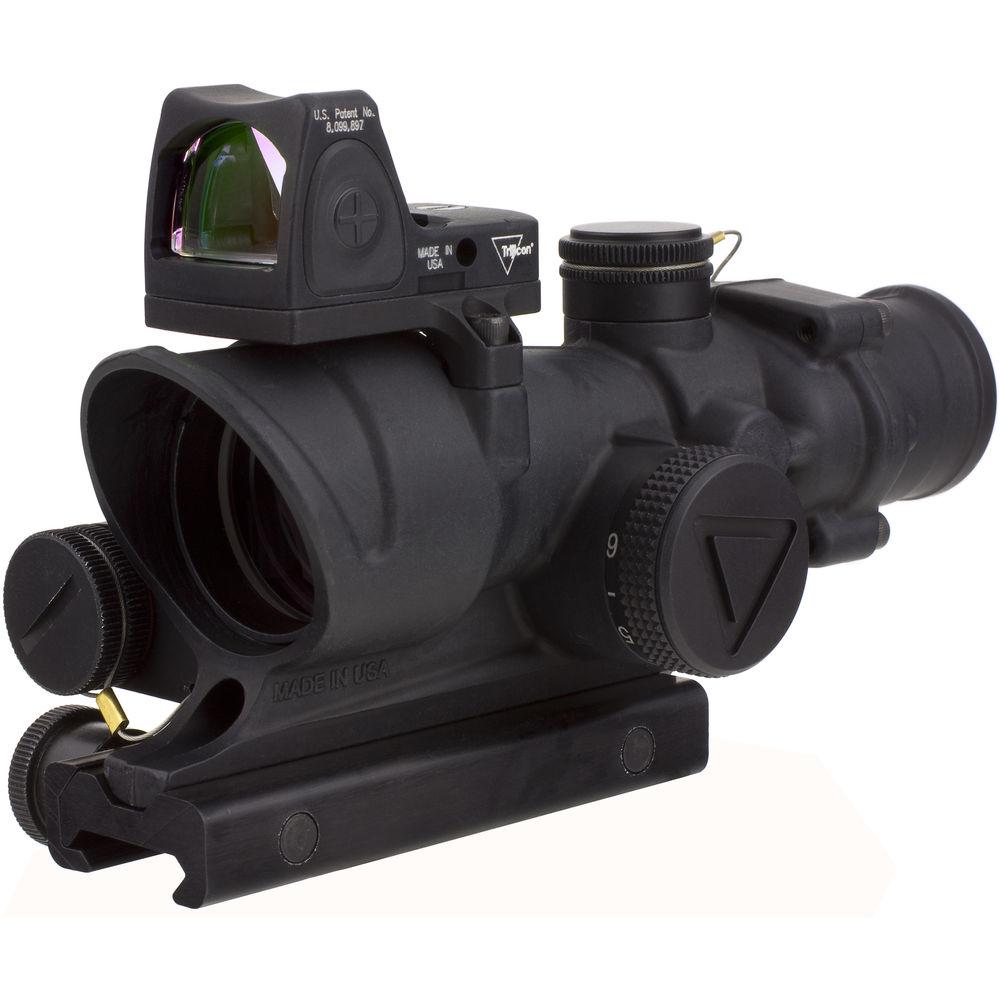

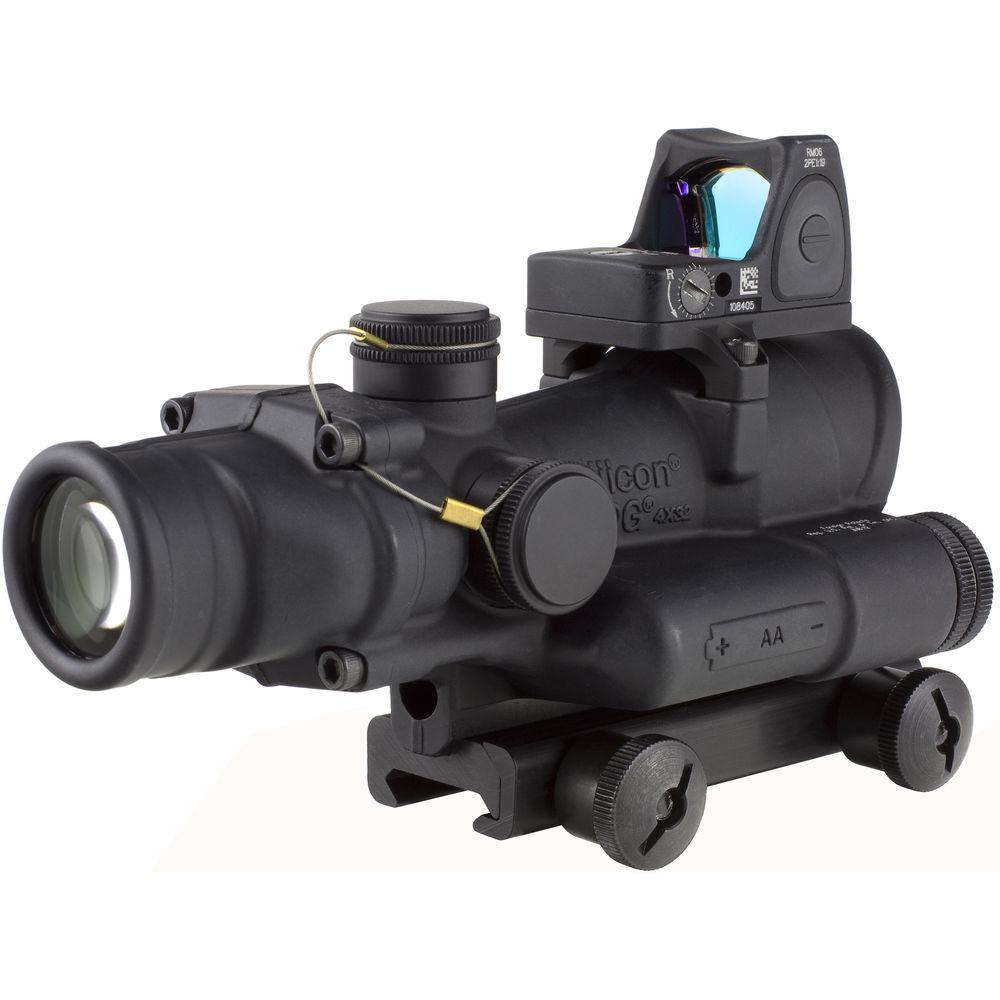

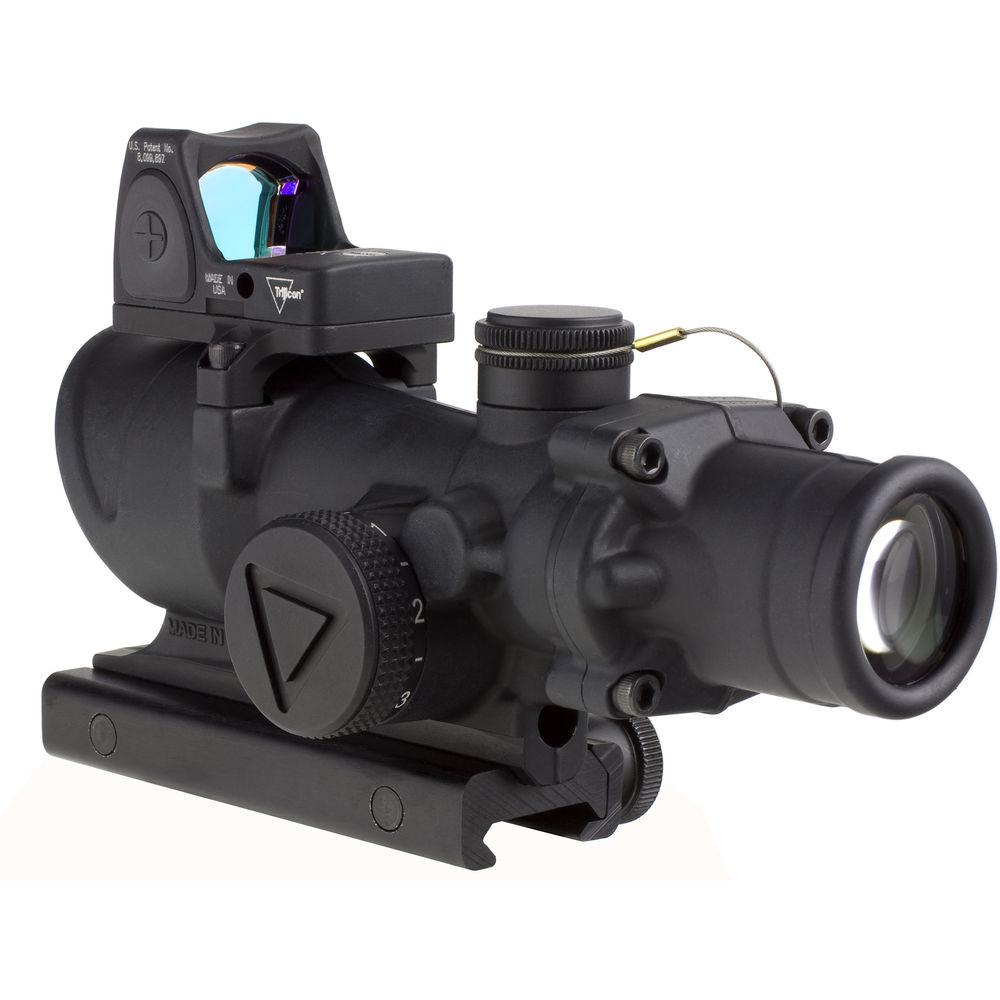

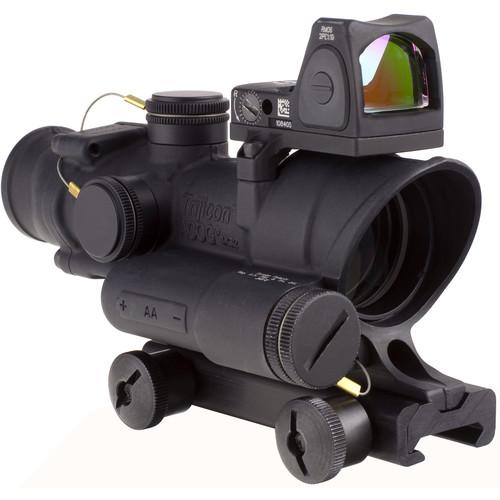

Product description Subdue your enemy with the help of Trijicon's 4x32 ACOG LED Illuminated Scope and 3.25 MOA Red Dot Type 2 LED RM06 Sight Kit. The kit includes a battle-ready Advanced Combat Optical Gunsight (ACOG) and a secondary RM06 Ruggedized Miniature Reflex Sight. The ACOG features a waterproof and shock-resistant construction with AA battery-powered adjustable LED illumination, and a .223 Red Crosshair Illuminated Reticle. The sight's rugged optical system exhibits zero distortion, offers multiple anti-reflection coatings, and provides a 32mm objective aperture. To compensate for wind and ballistic bullet drop, the scope offers windage and elevation adjustments with 1/2 MOA impact point correction. The housing offers extreme durability and is submersible. It is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. It also features an angled sunshade and mounts on a Picatinny-style rail via the included TA51 Flattop Mount. The built-in .223 Red Crosshair Reticle features three posts and a thin crosshair with vertically cascading ballistic compensation markings.
To empower you with rapid target acquisition in close quarter combat, the kit also includes a secondary RM06 RMR Sight. This Type 2 iteration of the RMR design has ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. The sight can be mounted on top of the ACOG and features a 3.25 MOA Red Dot reticle with brilliant adjustable LED illumination, powered by a single CR2032 battery. To ensure precise shot placement, you are provided with windage and elevation adjustment ranges and 1 MOA click adjustments. For lasting durability, the sight is outfitted with tempered glass and a forged aluminum housing. - ACOG Riflescope
-
Optical Performance - Multi-coated optics
- Optical system is optimized for generating zero distortions
- 4x magnification for a short-to-medium range
- 32mm objective lens diameter
- Angular field of view range is 7°
- Eye relief: 1.5"
.223 Red Crosshair Reticle - Adjustable LED illumination provides up to 12,000 hours of continuous runtime on setting #4
Use and Handling - Windage and elevation adjustments
- 1/2 MOA impact point adjustments
Construction Details - Built-in angled sunshade
- Single-piece 7075-T6 aluminum alloy housing
- Type III hard anodizing black matte finish
- TA51 Flattop Mount is compatible with Picatinny rails
- Waterproof and submersible
- Shock-resistant
- RMR Sight
-
Use and Handling - Improved electronics and battery contacts ensure high performance in harsh conditions
- Adjustable windage and elevation
- 1 MOA impact point correction
Optical Performance & Reticle - 1x magnification
- Tempered glass window
- Unlimited field of view
- 3.25 MOA Red Dot reticle
- Adjustable LED illumination
- Powered by one CR2032 battery
Construction Details - Forged aluminum construction
- Mounts on ACOG
- Shock-resistant
- Waterproof
UPC: 719307311947 In the Box Trijicon 4x32 ACOG LED Illuminated Scope and 3.25 MOA Red Dot Type 2 LED RM06 Sight Kit (.223 Red Crosshair Illuminated Reticle, Matte Black) - RM06 RMR Type 2 Adjustable LED Reflex Sight (3.25 MOA Red Dot, Matte Black)
- ACOG Picatinny Rail Adapter
- LensPen - TA56
- Weatherproof Logo Sticker
- ACOG External Adjuster Caps & Lanyard
- AA Battery
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG LED Illuminated Scope and 3.25 MOA Red Dot Type 2 LED RM06 Sight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA02-C-100564 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38.1 mm | | | | Reticle Type | .223 Crosshair Reticle | | Illuminated Color | Red | | | | Impact Point Correction | 1/2 MOA per Click | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | 1 x AA | | Battery Runtime | 12,000 Hours (Maximum) | | Dimensions | Length: 6" / 152.4 mm | | Weight | 19.3 oz / 547.1 g | | | | Package Weight | 2.47 lb | | Box Dimensions (LxWxH) | 9.9 x 7.8 x 6.6" |
