User Manual for Trijicon 4x32 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

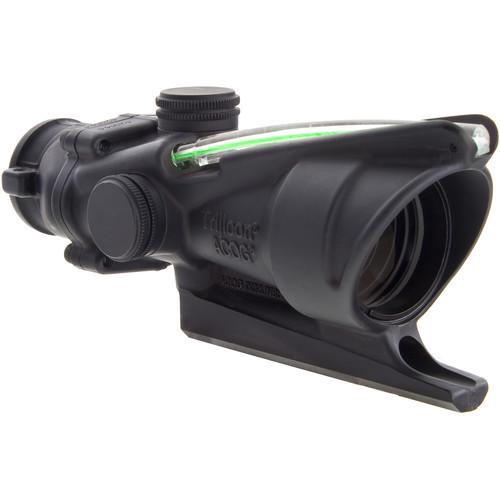

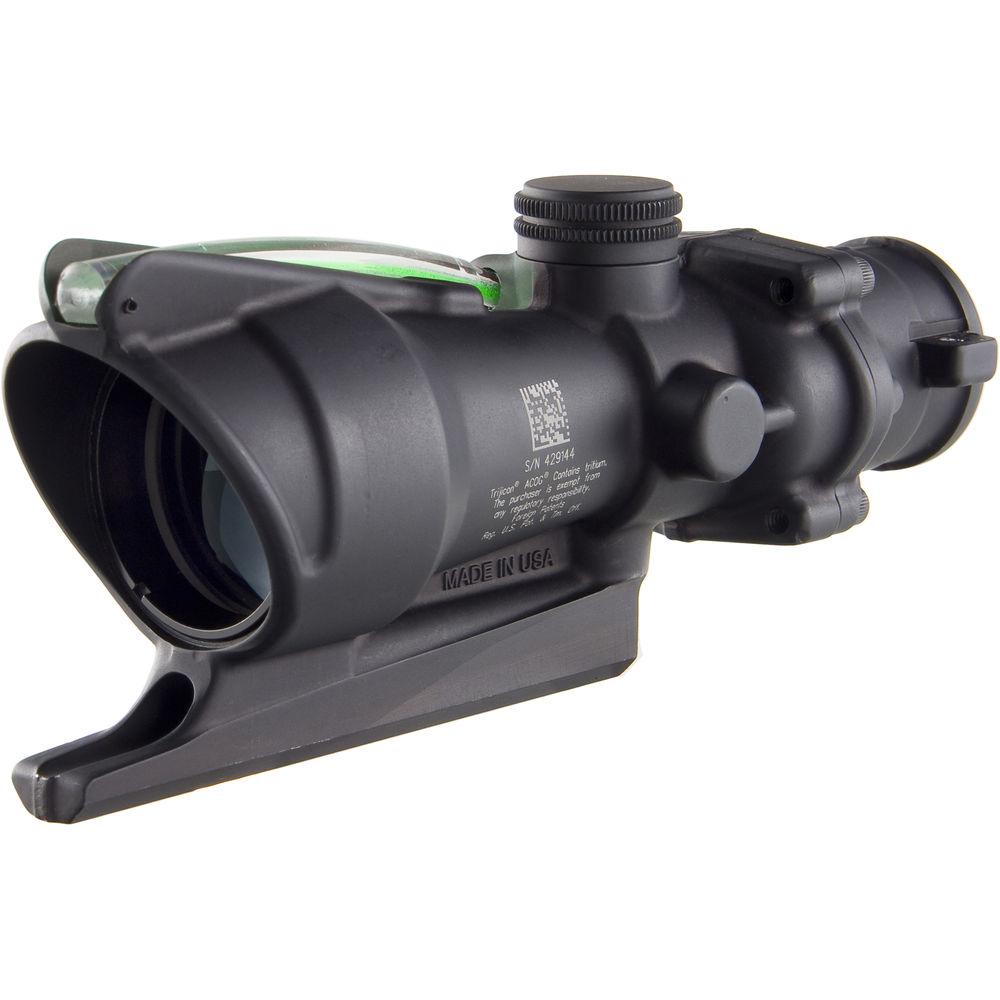

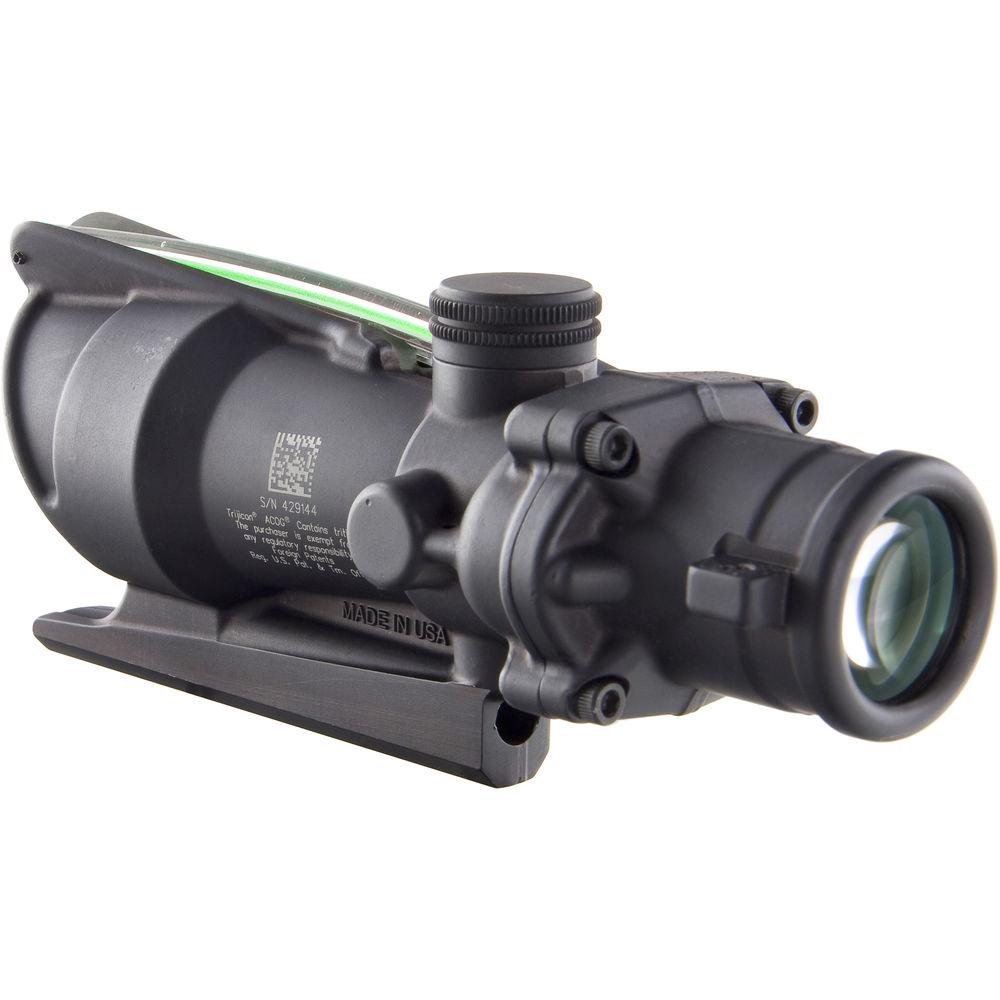

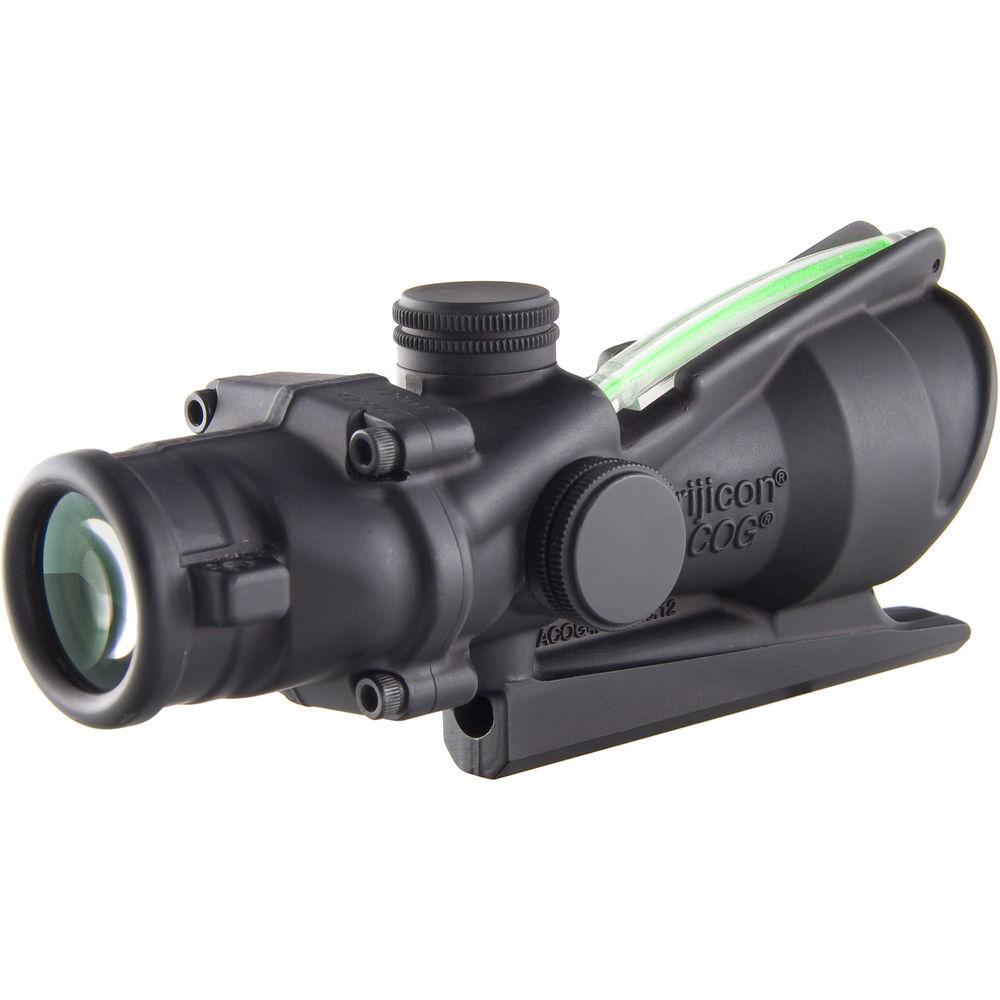

Product description The 4x32 ACOG from Trijicon brings adaptability and flexibility to the table - a necessary edge when the stakes are high, and the terms of engagement are uncertain. Whether the day's work involves precise long-range shot-placement, room-clearing, close-quarters MOUT engagements or high-stress fast-breaking action - sighting through the 4x32 ACOG is comfortable and intuitive. The 4.0x magnification offers a respectable FOV and the ability to employ the Bindon Aiming Concept for a heads-up-and- both -eyes-open technique that greatly enhances the operator's situational awareness. This ACOG is configured with an M16 carry-handle mount, and a dual illuminated green doughnut reticle that's calibrated for 5.56x45/.223. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy
- Waterproof: nitrogen purged and fully sealed for all-weather reliability
- Use and Handling
-
- M16 Carry-Handle Mount: compatible with standard M16/AR15 platform firearms, screw and washer set included
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.

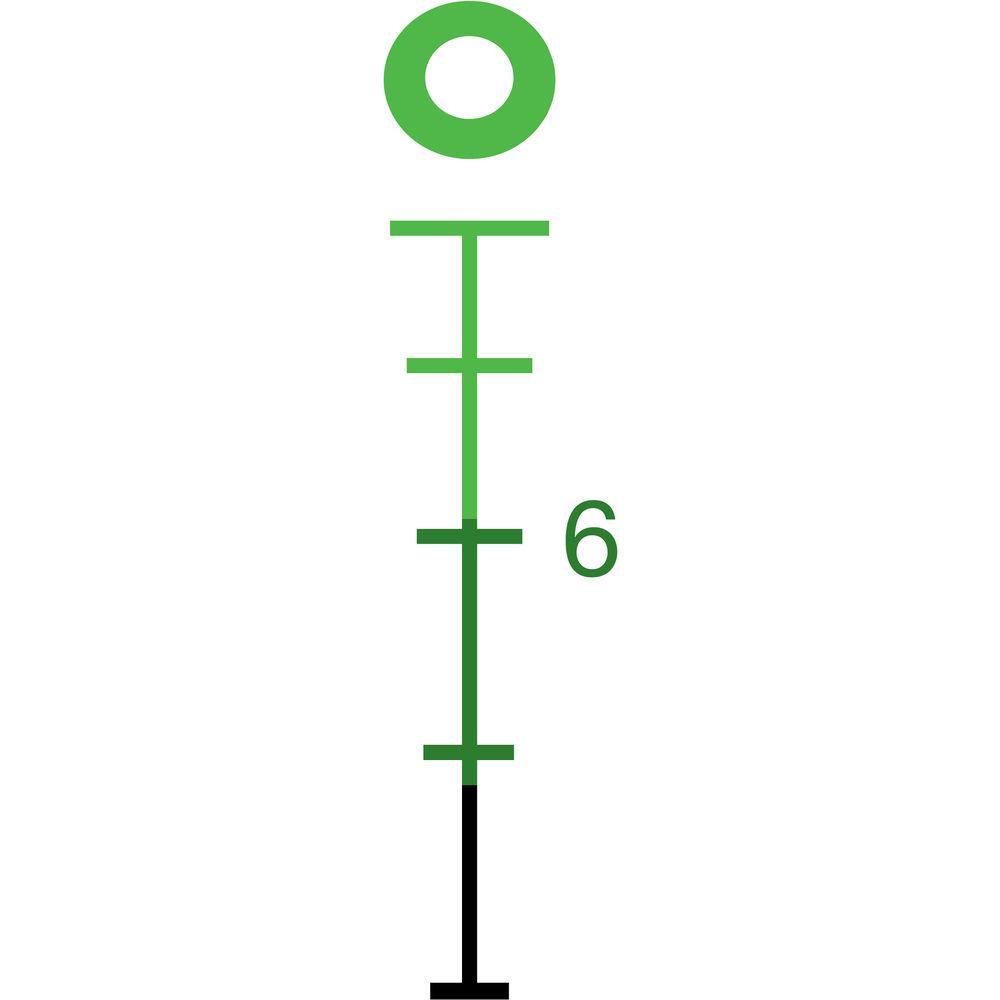

- Green doughnut ballistic reticle: calibrated for 5.56x45/.223 - an illuminated doughnut floats above a single stadia. The doughnut centers the eye on the point of aim without obscuring the target. The 6 o'clock stadia features hold-over hash-marks for distances up to 800 m
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the chevron with a highly-visible green glow
In the Box Trijicon 4x32 ACOG Riflescope (Matte Black) Screw & Washer Set for ACOG (Matte Black) ACOG Scopecoat LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-G Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 37' @ 100 yd / 12 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | 5.56x45/.223 Doughnut Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 5.8" / 14.7 cm | | Weight | 9.9 oz / 281 g |
