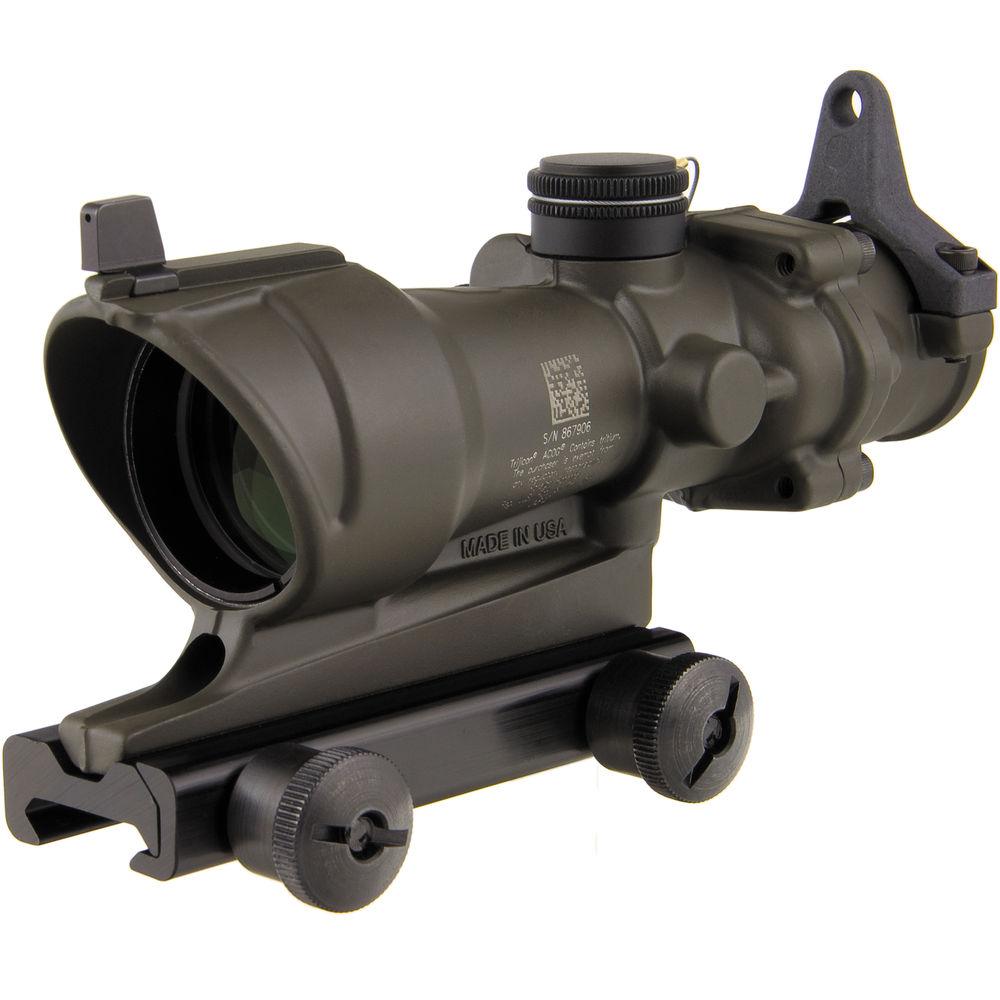

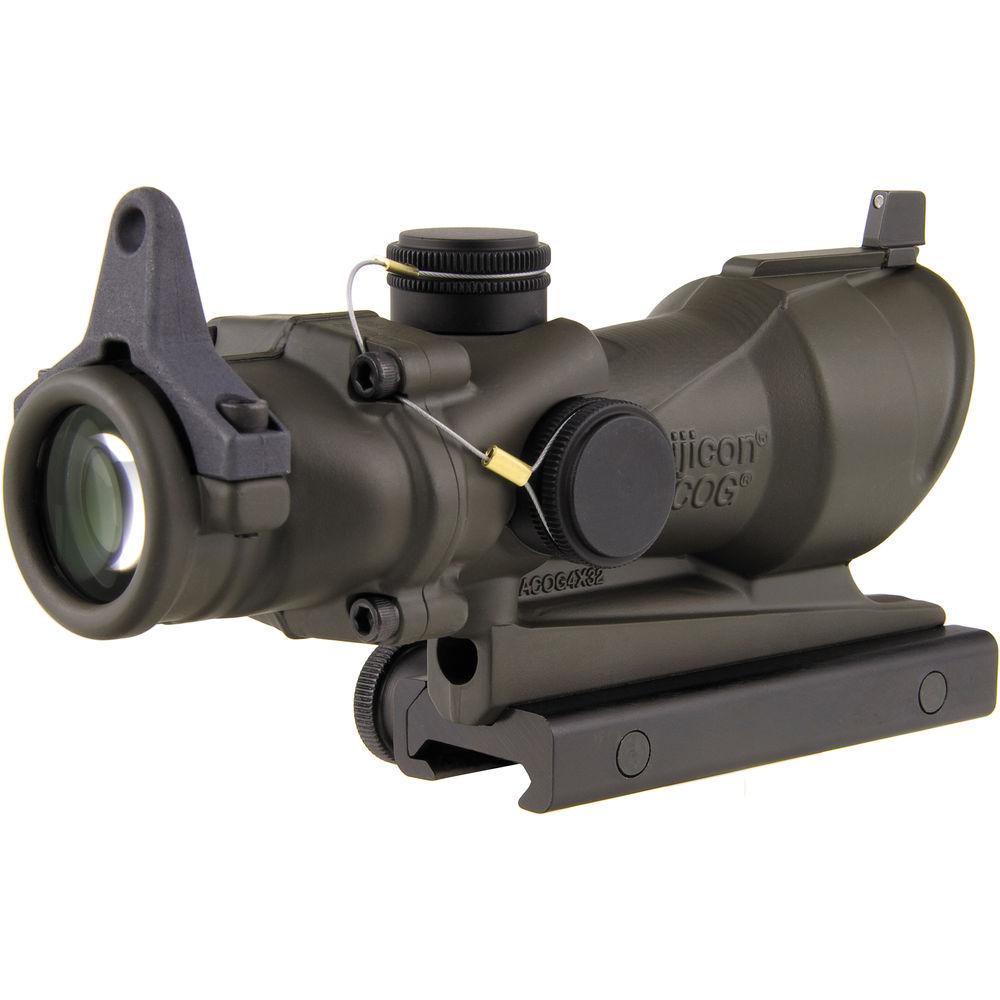

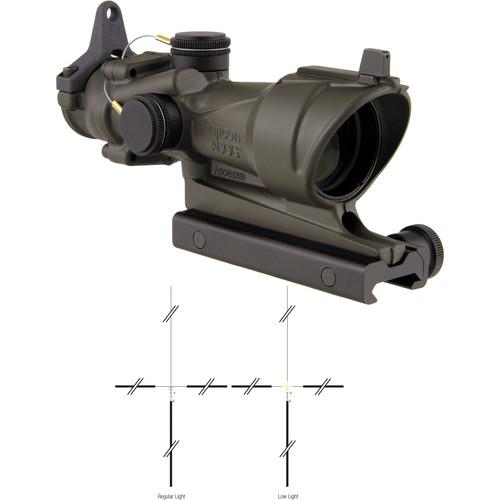

Product description Trijicon's 4x32 ACOG Riflescope is a battle-proven weapon sight that is well-suited for use in the most challenging of conditions. The optical system offers a special optical design with zero image distortion and anti-reflection fully multi-coatings to maximize transmission and enhance image brightness and clarity. Also noteworthy is the battery-free tritium-illumination reticle, which employs a tritium phosphor lamp for low-light and night targeting. The reticle features four fine posts and a fine crosshair with markings for ballistic compensation.
The housing is engineered for exceptional performance: it is impact-resistant, fogproof, and waterproof with a submersion rating of 328'. It is forged from a single piece of durable and lightweight 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. It also features an angled sunshade and mounts on a Picatinny-style rail via the included TA51 flattop mount. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Reticle
-
- Amber center crosshair reticle
- Battery-free tritium illuminated center
- Four thin posts and a fine crosshair
- Optical Performance
-
- 4x magnification
- 32mm diameter objective
- Fully multi-coated optics
- 7° angle of view
- 1.5" eye relief
- 8mm exit pupil
- Use and Handling
-
- 1/2 MOA impact point correction
- Windage and elevation adjustments
- Construction Details
-
- Forged 7075-T6 aluminum alloy housing
- Scratch and abrasion-resistant finish
- Tethered capped windage and elevation turrets
- Front and back irons sights
- Integrated angled sunshade
- Built-in TA51 Picatinny rail mount
- Fogproof and waterproof to 328'
- Impact-resistant
UPC: 719307307322 In the Box Trijicon 4x32 ACOG Riflescope (Amber Crosshair Illuminated Reticle, Cerakote OD Green) - ACOG Picatinny Rail Adapter ctrbeddvddruztassssruetdwxdyuyxarcebt
- Rubber Caps for 4x32 ACOG Riflescope
- Set of Backup Iron Sights
- LensPen - TA56
- ACOG External Adjuster Caps & Lanyard
- Weatherproof Logo Sticker
- Dust Cover
- Limited Lifetime Warranty
- Limited 10-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA01-D-100318 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | Center Crosshair Reticle | | Illumination | Illuminated | | Illumination Type | Tritium | | | | Impact Point Correction | 1/2 MOA per Click | | | | Battery | None | | Dimensions | Length: 5.8" / 147.3 mm | | Weight | 15 oz / 424.1 g |
