User Manual for Trijicon 4x32 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
|
User manual for the Trijicon 4x32 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

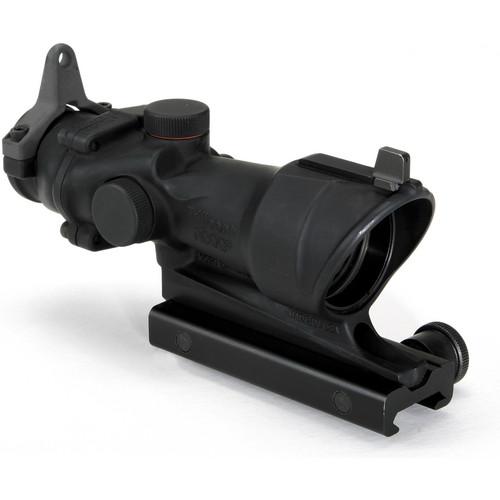

Product description The 4x32 ACOG Riflescope from Trijicon is a battle-tested optic that combines battery-free reticle illumination and weather-sealed construction with Trijicon’s unique Bindon Aiming Concept. This sighting technique allows a shooter to operate with both eyes open, simultaneously targeting through their magnified optic and maintaining situational awareness—a crucial advantage during close-quarter combat and engagements with targets at varying distances. Iron sights atop the ACOG housing provide a secondary aiming option for close-range targets.This 4x32 configuration of the Advanced Combat Optical Gunsight (ACOG) features an amber-illuminated bullet drop compensating reticle that has a fine crosshair and holdovers calibrated specifically for .308 caliber ballistics. A tritium phosphor lamp provides battery-free reticle illumination by automatically glowing as light diminishes. The reticle’s aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Additionally, this ACOG is outfitted with a TA51 flattop rifle mount that has two thumbscrews for clamp-on attachment to a Colt-style rail.A folded light path and broadband multicoated optics allow the ACOG to transmit a bright and wide field of view using a relatively compact form factor. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled anodized aluminum housing that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- 4x magnification, 32mm objective
- Fully multicoated optics
- Broadband lens coating
- Folded optical path
- 7° angle of view
- 1.5" eye relief
- Amber crosshair ballistic reticle for .308
- Tritium phosphor-illuminated crosshair
- Use and Handling
-
- 1/2 MOA impact point adjustments
- Built-in iron sights for close targeting
- Includes TA51 mount for Colt-style rail
- Bindon Aiming Concept allows both eyes open targeting
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- 7075-T6 aluminum alloy housing
- Anodized hard coat with black finish
- 10.9 oz weight
UPC: 719307303911 In the Box Trijicon 4x32 ACOG Riflescope (Amber .308 BDC Crosshair) ACOG Picatinny Rail Adapter Rubber Caps for 4x32 ACOG Riflescope LensPen - TA56 Logo Sticker Dust Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA01NSN-308 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.6' @ 100 yd / 12.2 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | BDC Crosshair / .308 Reticle | | Illuminated Color | Amber | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Battery | None | | Dimensions | Length: 5.8" / 15 cm
Height: 2.3" / 6 cm (with Mount)
Width: 2" / 5 cm | | Weight | 15 oz / 424 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 8.6 x 8.1 x 5.0" |
