User Manual for Trijicon 4x32 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

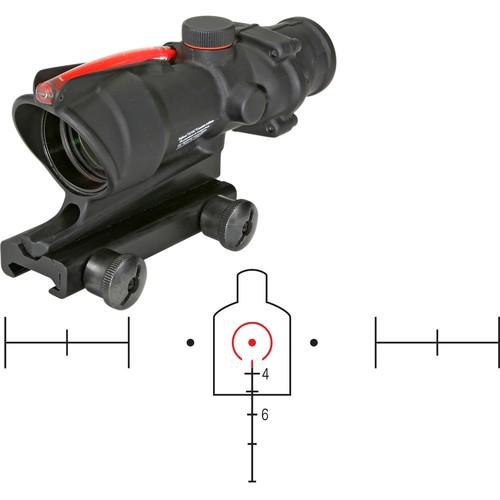

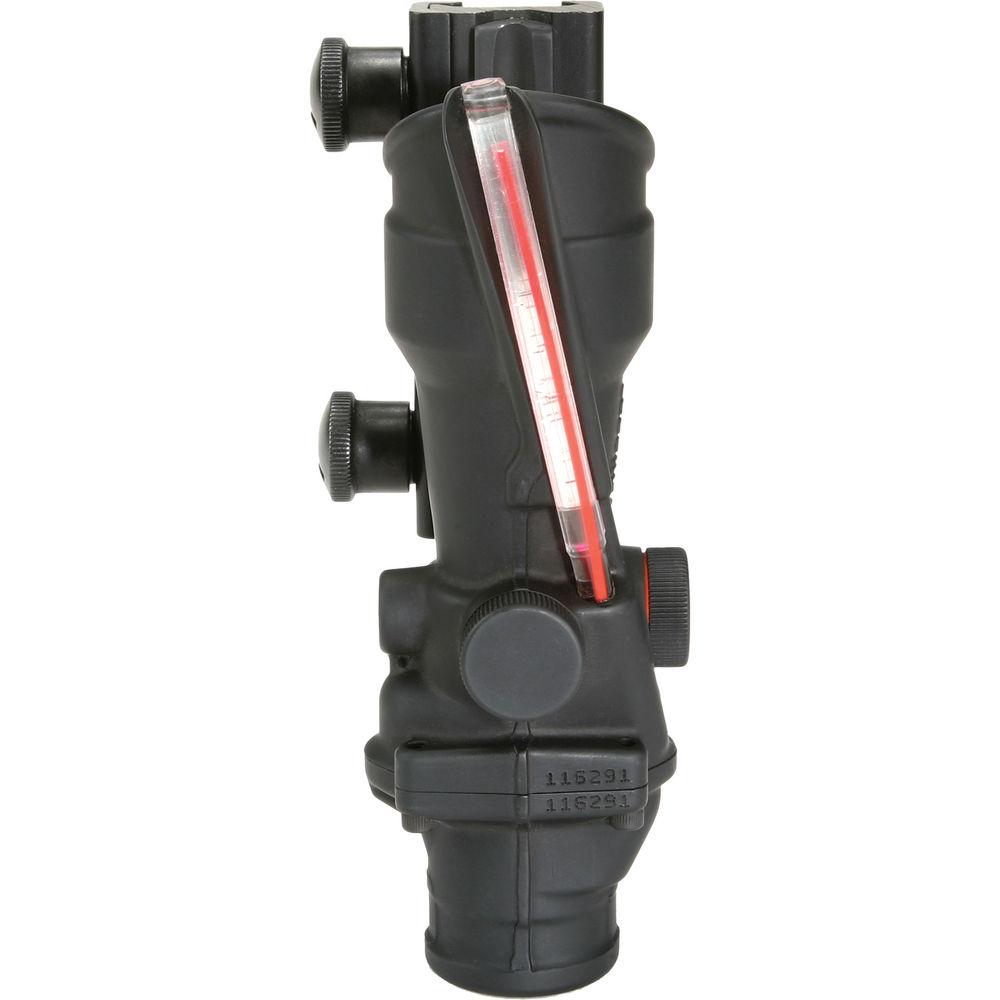

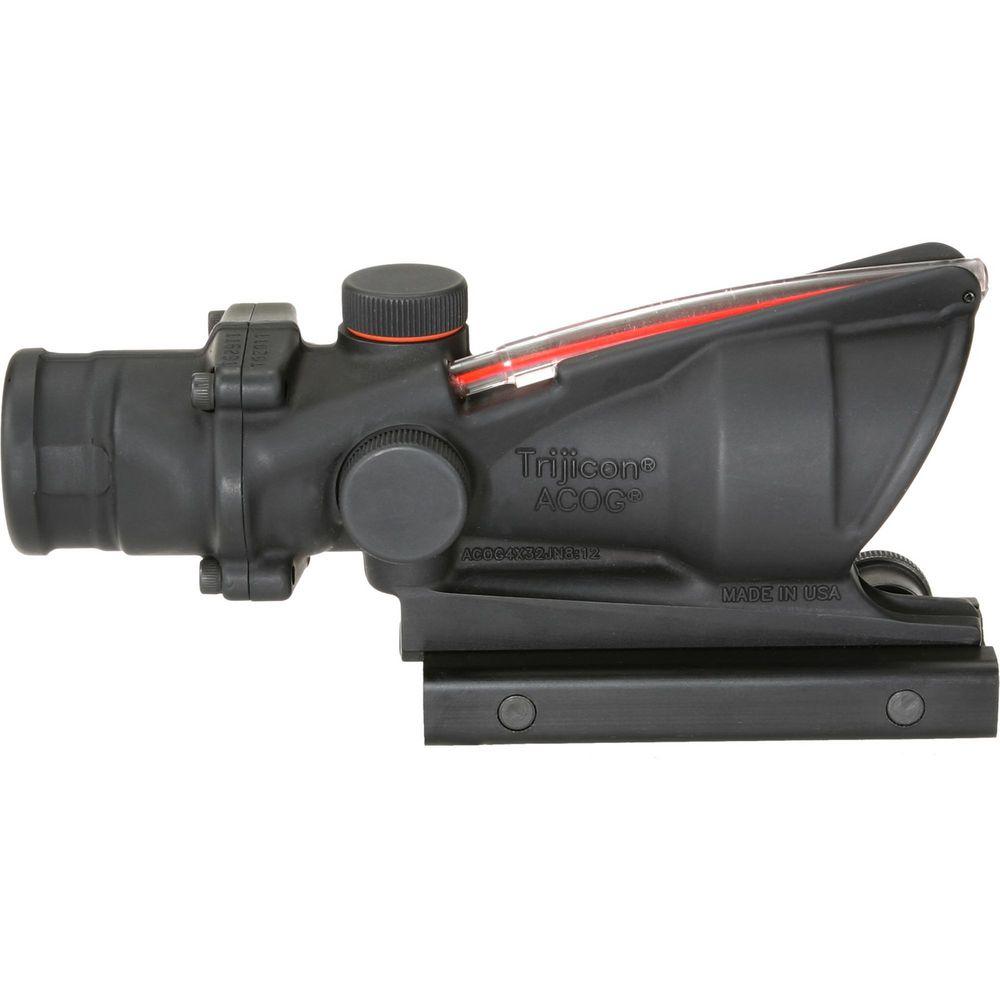

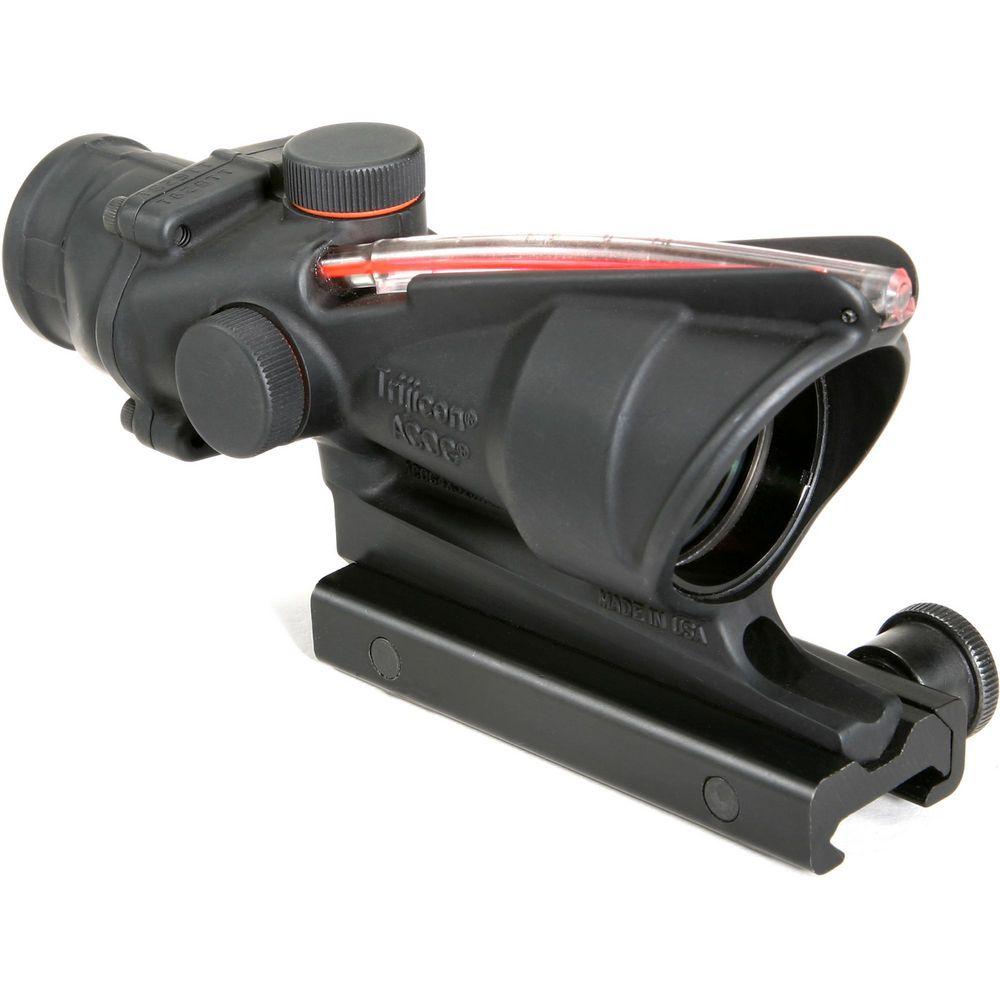

Product description Every feature of the ACOG's (Advanced Combat Optical Gunsight) mechanical and optical design was designed for use with the M16 family of firearms. This sighting system was engineered for a single purpose: to provide increased hit potential in all lighting conditions - without relying upon failure-prone batteries. Although the ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light conditions. This 4x32 ACOG puts adaptability and flexibility into the operator's hands - a necessary edge when the stakes are high, and the terms of engagement are uncertain. Whether the days work involves precise long-range shot-placement, room-clearing, close-quarters MOUT engagements or high-stress fast-breaking action - sighting through the 4x32 ACOG is comfortable and intuitive. This ACOG's reticle is calibrated for the M4 in 5.56/.223 - the unique horseshoe/dot target reference system offers bullet drop hash marks out to 800 meters, and the ability to gauge hold-offs in windy conditions or moving targets. The 4x magnification offers a respectable FOV and the ability to employ the Bindon Aiming Concept for a both -eyes-open technique that greatly enhances the operator's situational awareness. - Rugged Construction
- Forged 7075-T6 aircraft aluminum alloy housing
- Flat-Top Compatible
- Designed for use with standard M16/AR15 firearms with flat-top receivers
- Bindon Aiming Concept
- The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.
- Dual Illuminated Red Horseshoe w/ Red Dot Reticle - 5.56 / .223

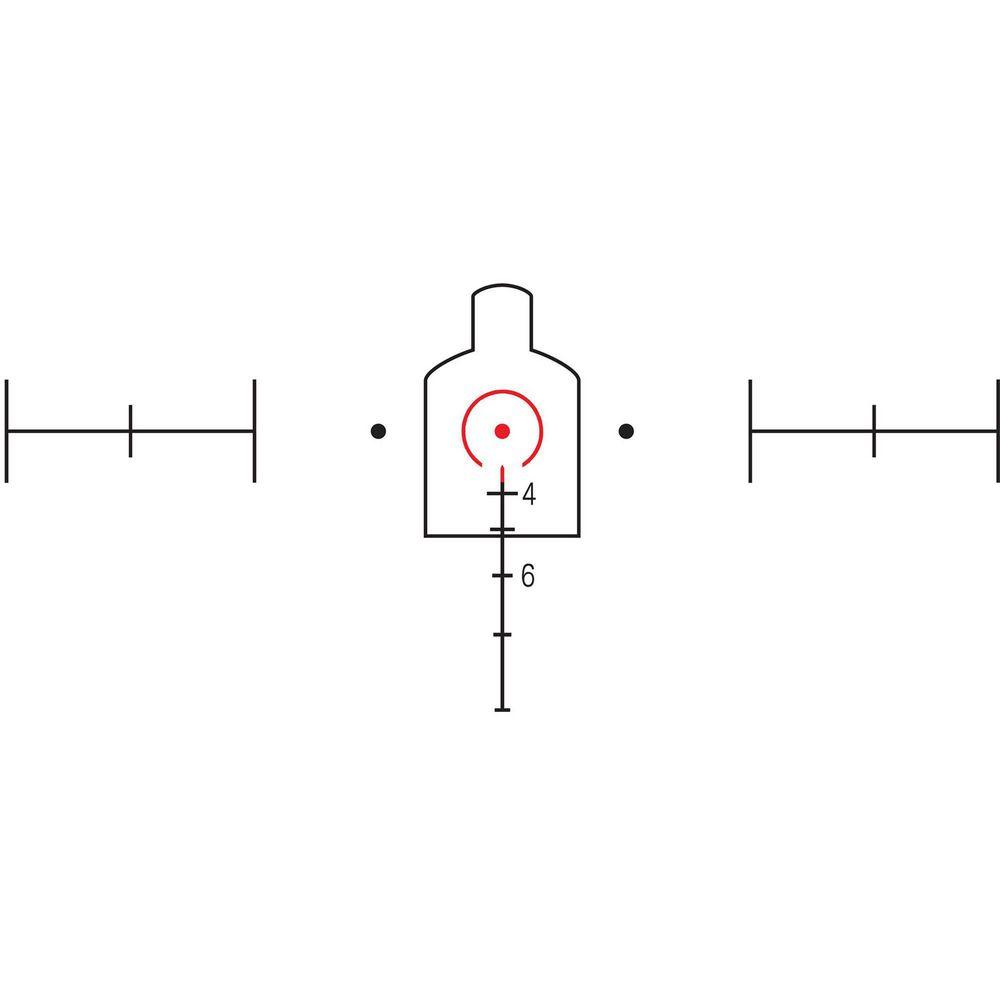

- The red horseshoe reticle features dual illumination from Trijicon's proprietary tritium/fiber-optic technology. During day or nighttime a red dot at the center of the sight picture indicates your point of aim. The dot is surrounded by an illuminated horseshoe that sits atop the 6 o'clock post. Thin posts at 3, 6, and 9 o'clock feature hash-marks for bullet-drop compensation for distances up to 800 m, and hold-off points for moving targets or windage compensation. Dual 2 MOA floating dots that sit 5 mils off-center enhance the reticle's flexibility when distance ranging or following moving targets.
UPC: 719307302525 In the Box Trijicon 4x32 ACOG Riflescope Weatherproof Logo Sticker baaywcqrrsbcwqxbxexwae LensPen - TA56 Medium Sized Pelican Case ACOG Scopecoat ACOG Picatinny Rail Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31H Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 37' @ 100 yd / 12 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | Horseshoe Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Red | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Water Resistant | | | | Battery | None | | Dimensions | Length: 5.8" / 14.7 cm | | Weight | 9.9 oz / 280 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.0 x 6.3 x 3.4" |
