User Manual for Trijicon 4x32 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

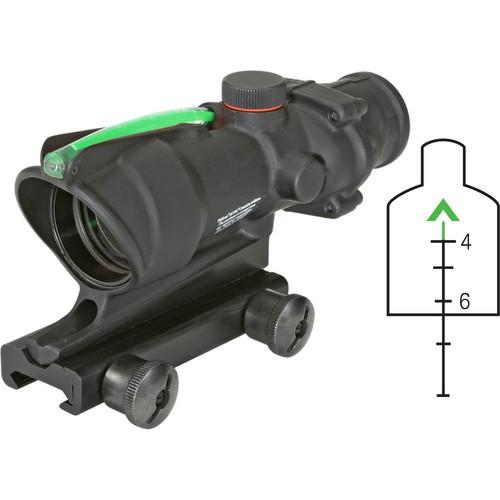

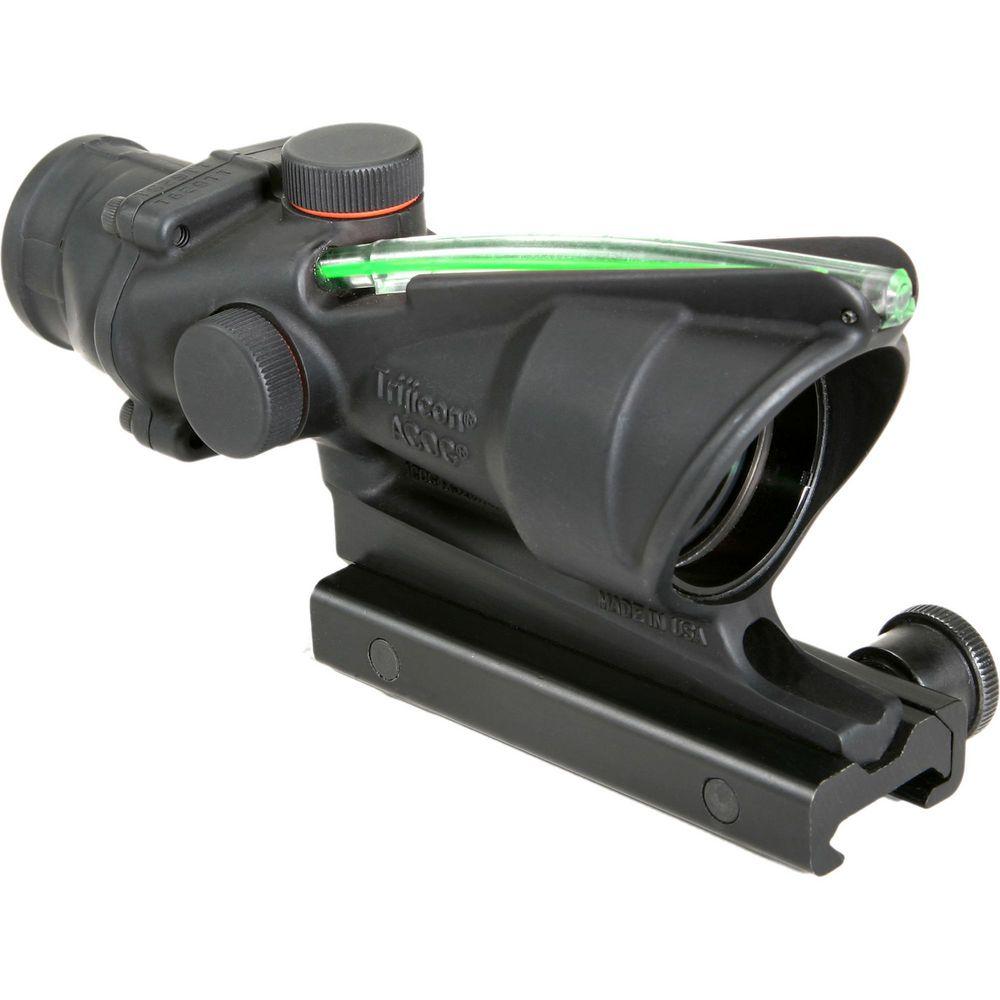

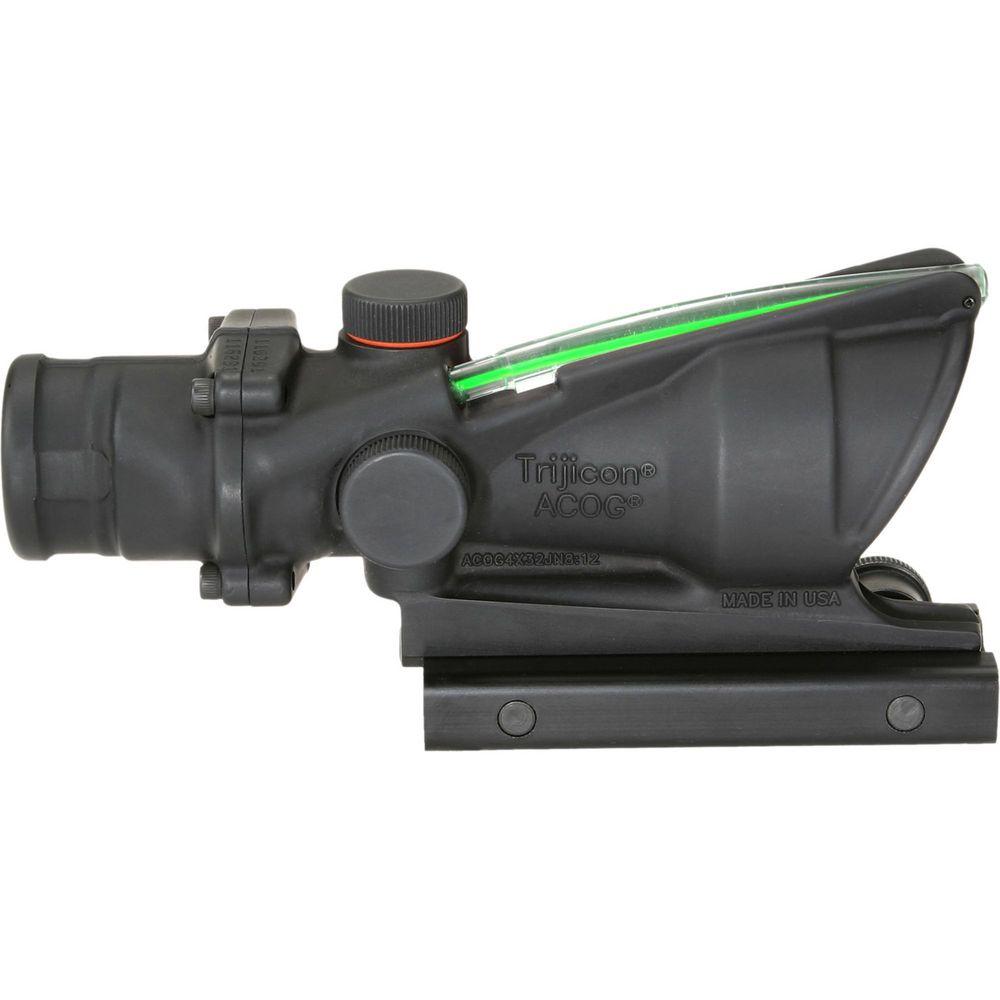

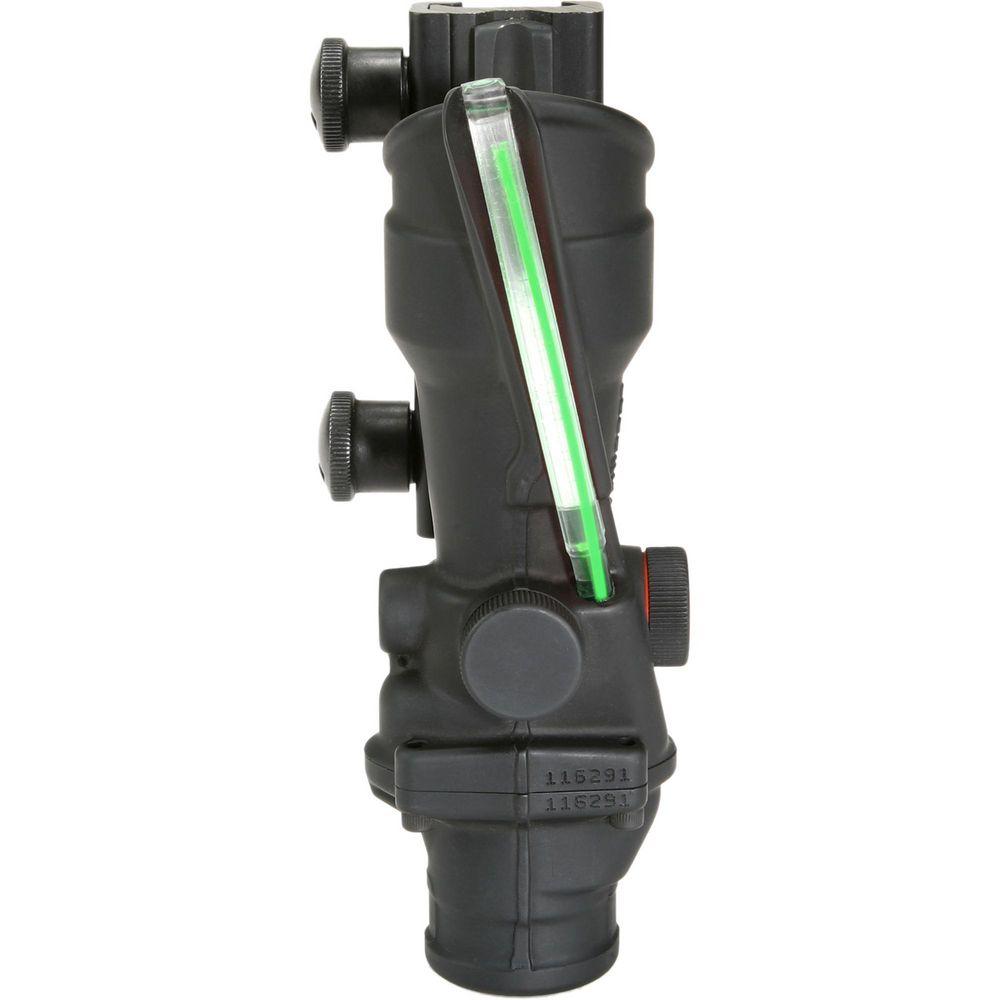

Product description Every feature of the ACOG's (Advanced Combat Optical Gunsight) mechanical and optical design was designed for use with the M16 family of firearms. This sighting system was engineered for a single purpose; to provide increased hit potential in all lighting conditions - without relying upon failure-prone batteries. Although the ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light conditions. This 4x32 ACOG puts adaptability and flexibility into the operator's hands - a necessary edge when the stakes are high, and the terms of engagement are uncertain. Whether the days work involves precise long-range shot-placement, room-clearing, close-quarters MOUT engagements or high-stress fast-breaking action - sighting through the 4x32 ACOG is comfortable and intuitive. This ACOG's green chevron reticle is calibrated for flat-top firearms in 5.56/.223 - the unique target reference system offers bullet drop hash marks out to 800 meters, and the ability to gauge hold-offs in windy conditions or moving targets. The 4x magnification offers a respectable FOV and the ability to employ the Bindon Aiming Concept for a both-eyes-open technique that greatly enhances the operator's situational awareness. - Rugged Construction
- Forged 7075-T6 aircraft aluminum alloy housing
- Flat-Top Compatible
- Designed for use with standard M16/AR15 firearms with flat-top receivers
- Bindon Aiming Concept
- The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.
- Dual Illuminated Green Chevron Reticle - 5.56 / .223

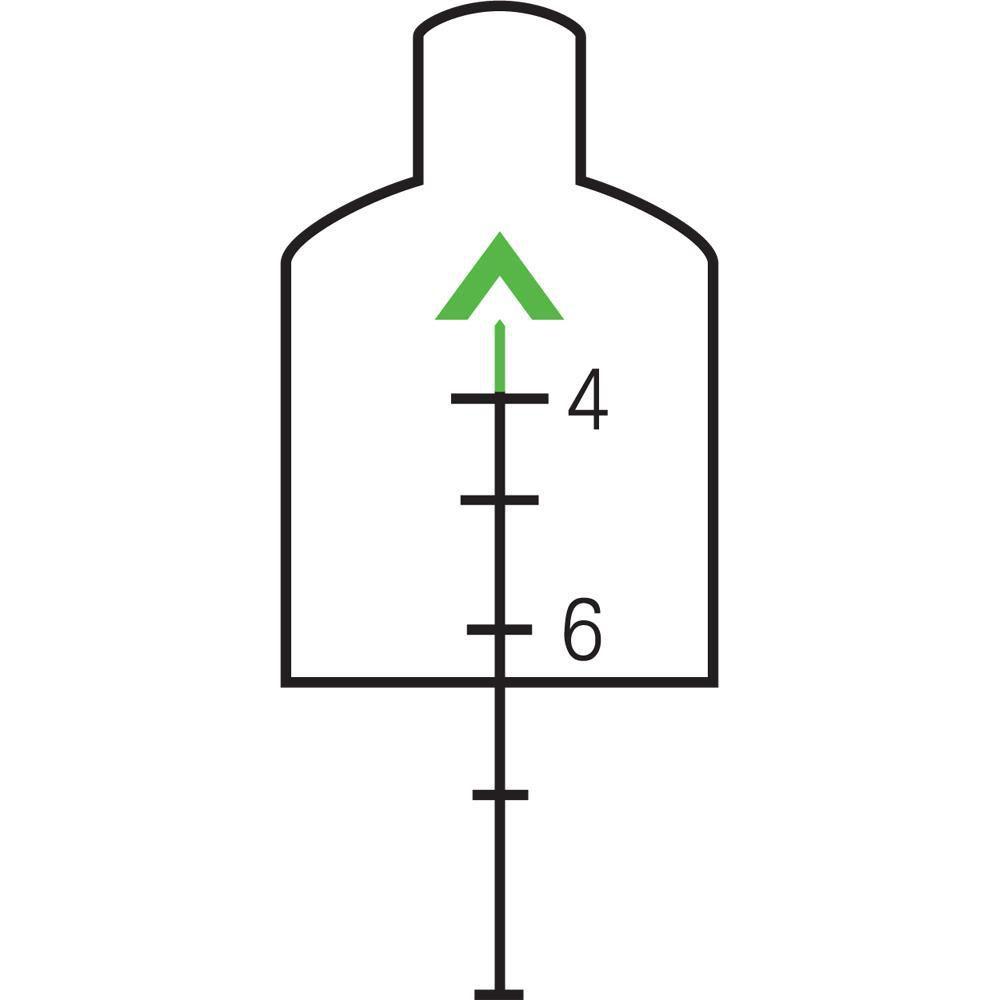

- The green chevron reticle is calibrated for flat-top firearms chambered for 5.56/.223 cartridges. The chevron sits atop a long medium-weight post that offers hash-marks for longer-range (800 m) shooting, while the tip of the chevron is designated for pin-point target acquisition at 100 meters. The base-width of the chevron subtends 5.53 MOA - 19.0" at 300 meters.
Trijicon's proprietary tritium/fiber-optic illumination technology provides the chevron with a brilliant green glow. Green illumination allows the human eye to adjust to it quickly and appears bright in low/no-light conditions. UPC: 719307302945 In the Box Trijicon 4x32 ACOG Riflescope Weatherproof Logo Sticker cuqutxqxecdyawysfsys LensPen - TA56 Medium Sized Pelican Case ACOG Scopecoat ACOG Picatinny Rail Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31F-G Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 37' @ 100 yd / 12 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | Horseshoe Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Red | | | | Impact Point Correction | 1/3 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Water Resistant | | | | Battery | None | | Dimensions | Length: 5.8" / 14.7 cm | | Weight | 9.9 oz / 280 g | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 4.0" |
