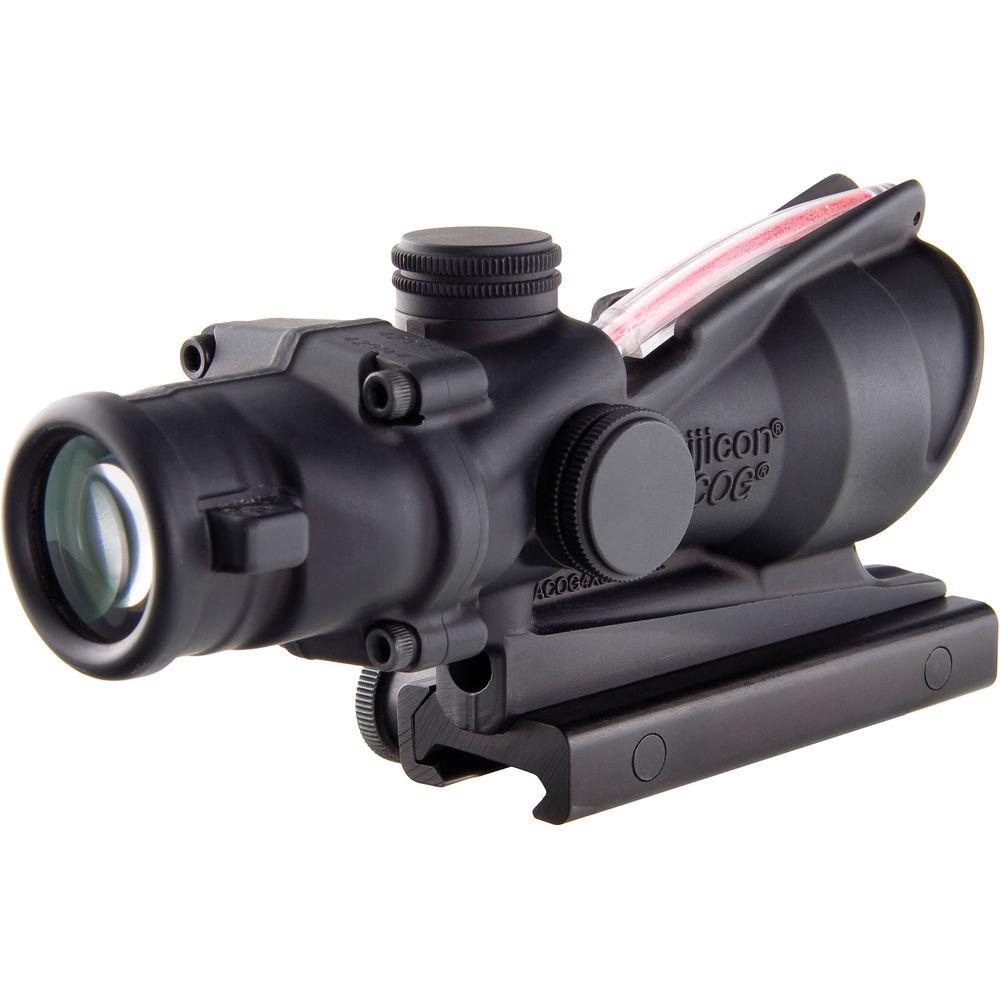

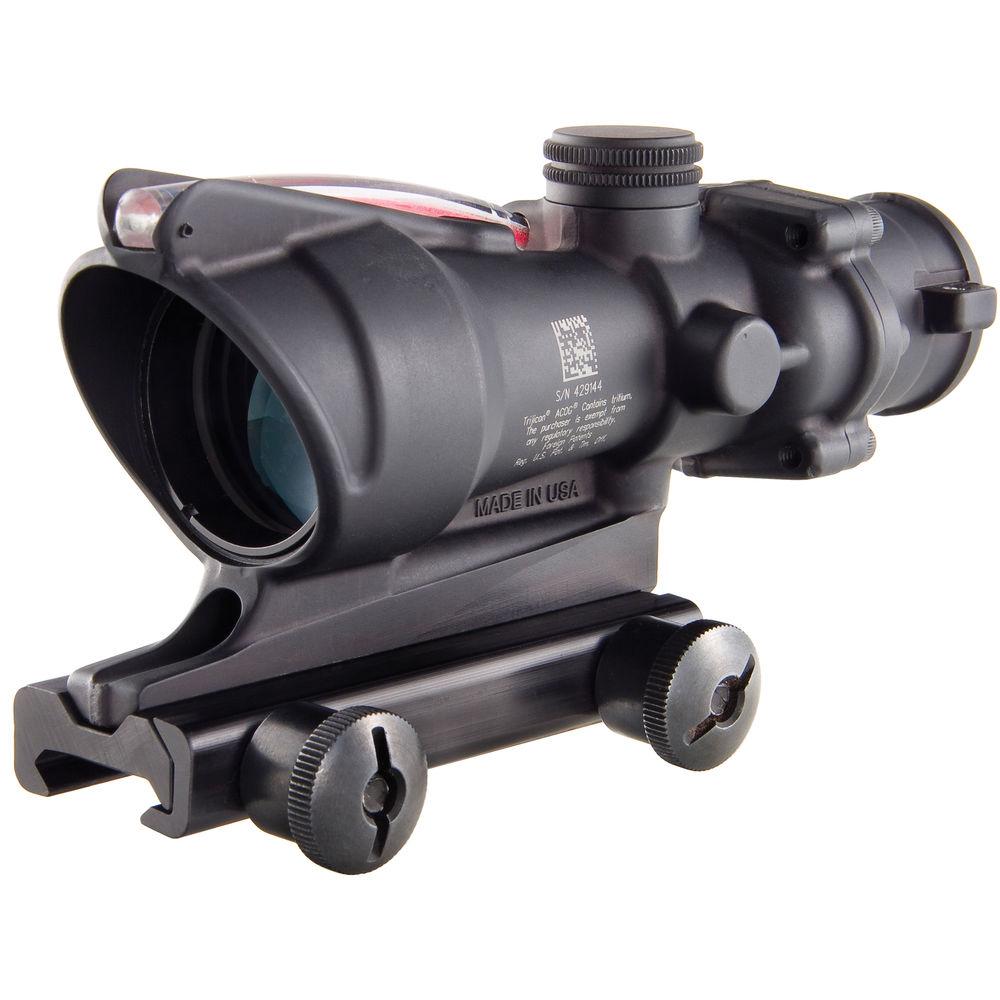

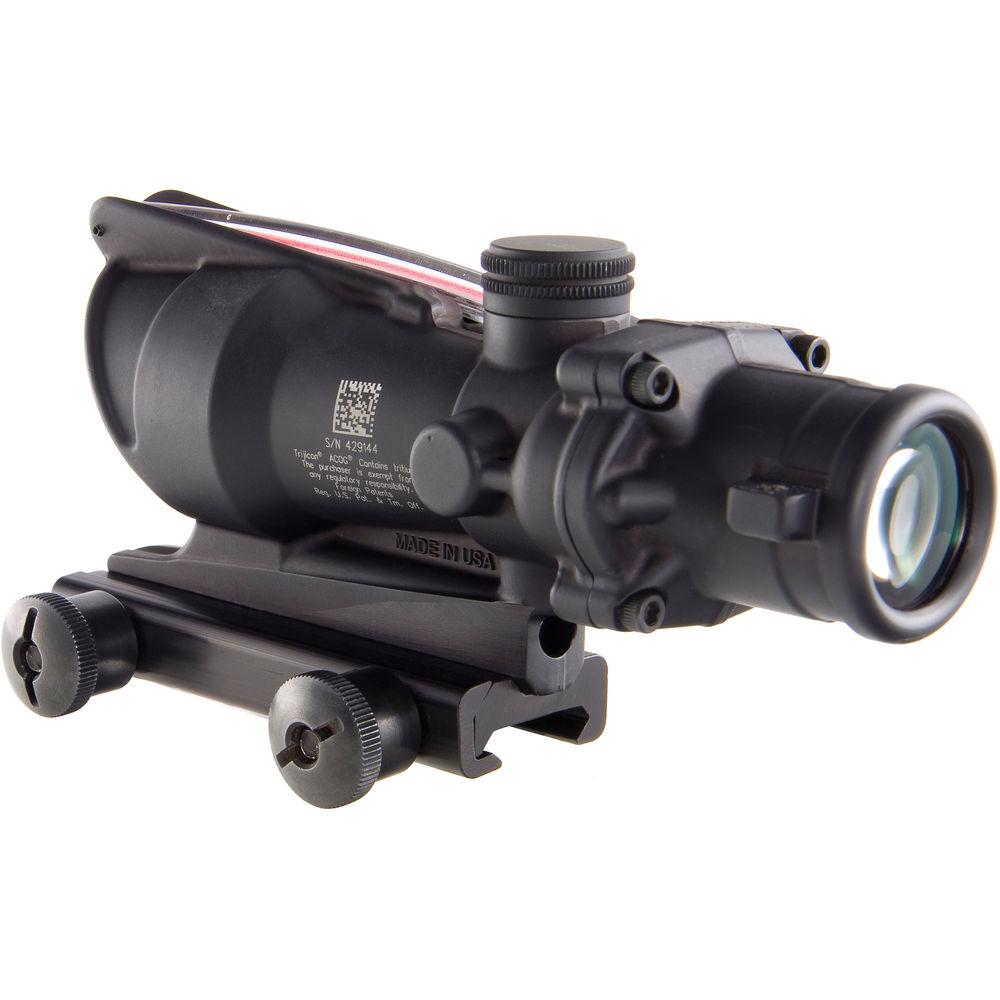

Product description The 4x32 ACOG Riflescope with Dual Illumination from Trijicon is an Advanced Combat Optical Gunsight that is well-suited for targeting in a wide range of weather and lighting conditions and features a ballistic red Chevron reticle with tritium and fiber optic illumination. This reticle has bullet drop compensation marks that are calibrated specifically for 5.56x45 M193 ammunition.
Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, and a fiber optic illumination which makes the reticle glow proportionally to the amount of daylight. Additionally, this ACOG provides a ½ MOA per click impact point correction, and has a TA51 mount with two thumbscrews for clamp-on attachment to a Picatinny rail.
A folded light path and multicoated optics allow the ACOG to transmit a bright and wide field of view using a relatively compact form factor. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- Fully multicoated optics with zero distortion and high transmission glass
- Magnification of 4x allows for a short-to-medium range target acquisition
- Objective lens diameter of 32mm
- Angular field of view is 7°
- Eye relief: 38 mm
- Reticle
-

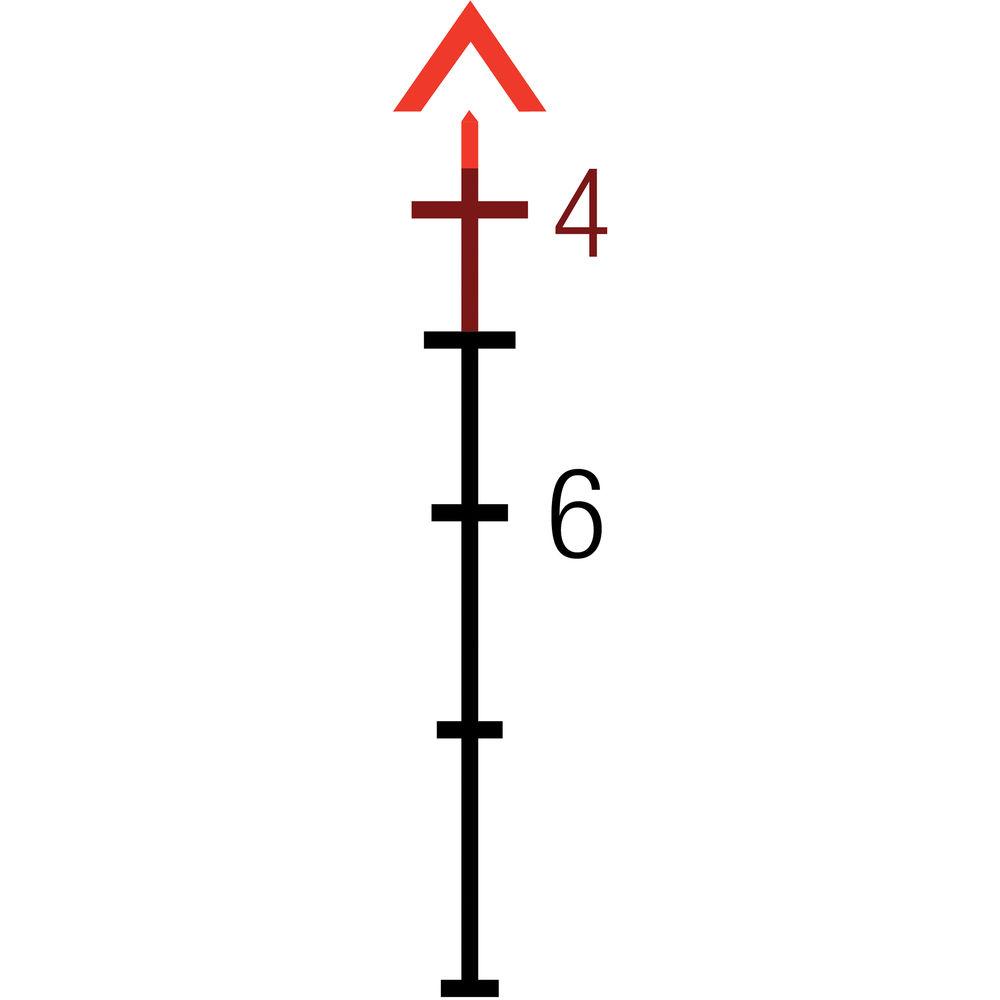

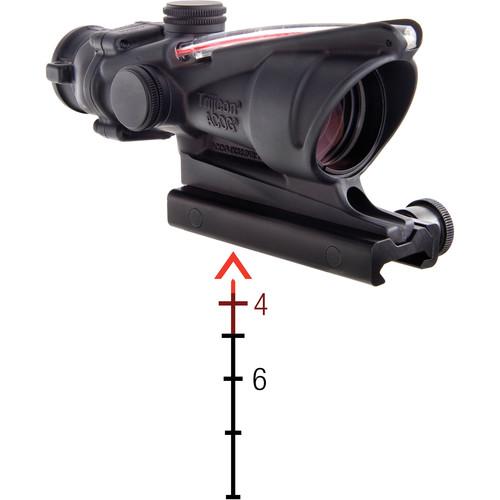

- Red Chevron reticle for 5.56x45 M193 ammunition
- Tritium phosphor and fiber optic illumination
- Reticle is designed to be zeroed using the chevron's tip at 109 yd
- BDC goes out to 875 yd
- Use and Handling
-
- 1/2 MOA impact point adjustment
- TA51 Picatinny adapter mount is included
- Construction Details
-
- Housing is forged from a single piece of 7075-T6 aluminum for increased durability
- Type III hard anodizing black matte finish
- Fogproof, shockproof, waterproof and submersible to 328'
- Laser etched serial number on housing for identification
UPC: 719307306882 In the Box Trijicon 4x32 ACOG Riflescope, Dual Illumination (Red Chevron M193) - ACOG Picatinny Rail Adapter wbarttfcyuttzzybxvxeqfsyvcf
- Rubber Caps for 4x32 ACOG Riflescope
- LensPen - TA56
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope, Dual Illumination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-D-100288 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 37' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | M193 Chevron Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Red | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Battery | None | | Dimensions | Length: 5.8" / 147 mm | | Weight | 10 oz / 284 g | | | | Package Weight | 2.195 lb | | Box Dimensions (LxWxH) | 8.65 x 8.3 x 5.1" |
