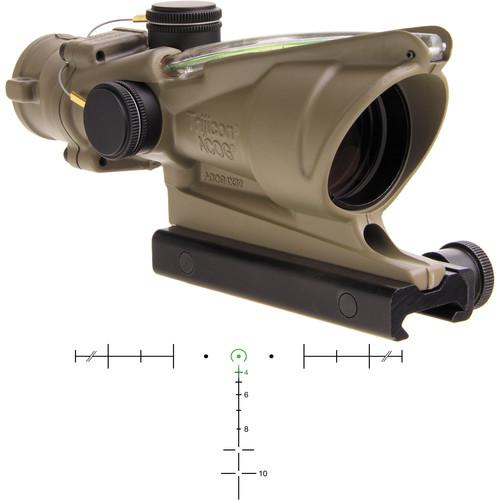

User Manual for Trijicon 4x32 ACOG Riflescope with TA51 Mount Click to enlarge the picture
Contents of the user manual for the Trijicon 4x32 ACOG Riflescope with TA51
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 4x32 ACOG Riflescope with TA51 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

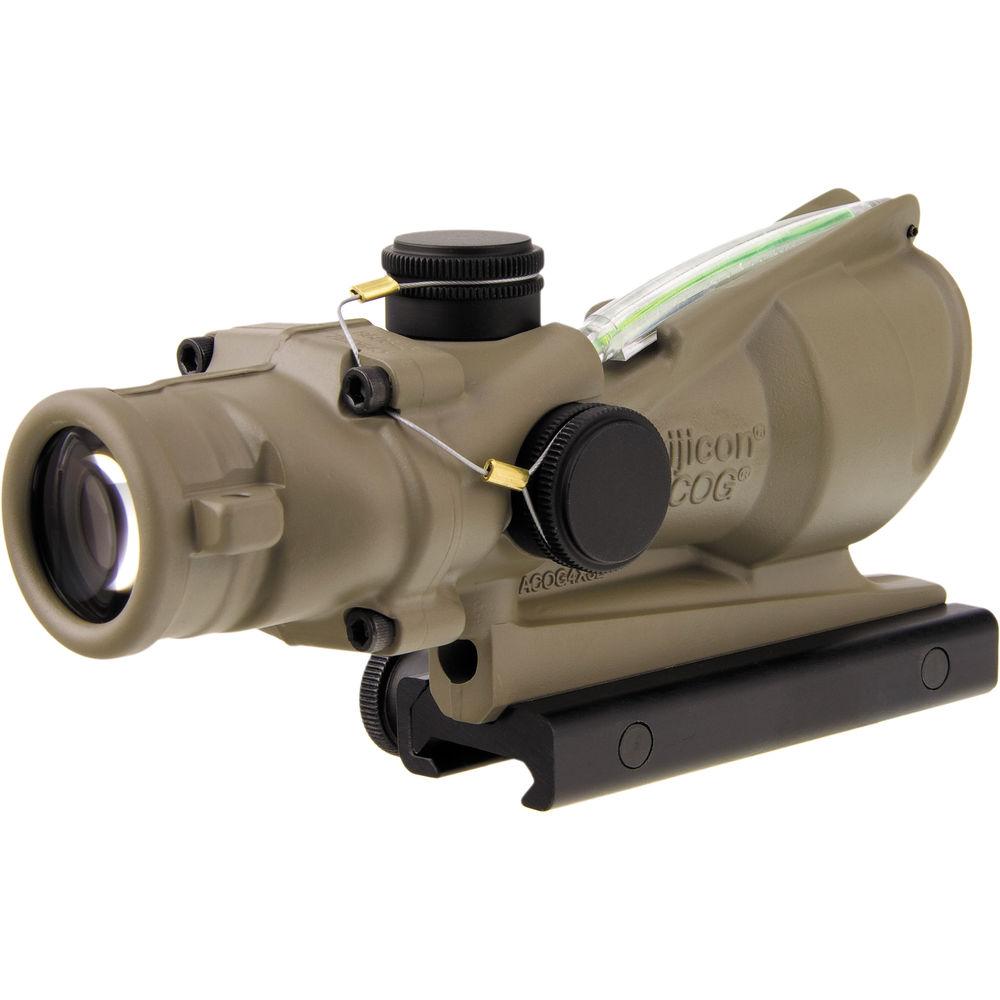

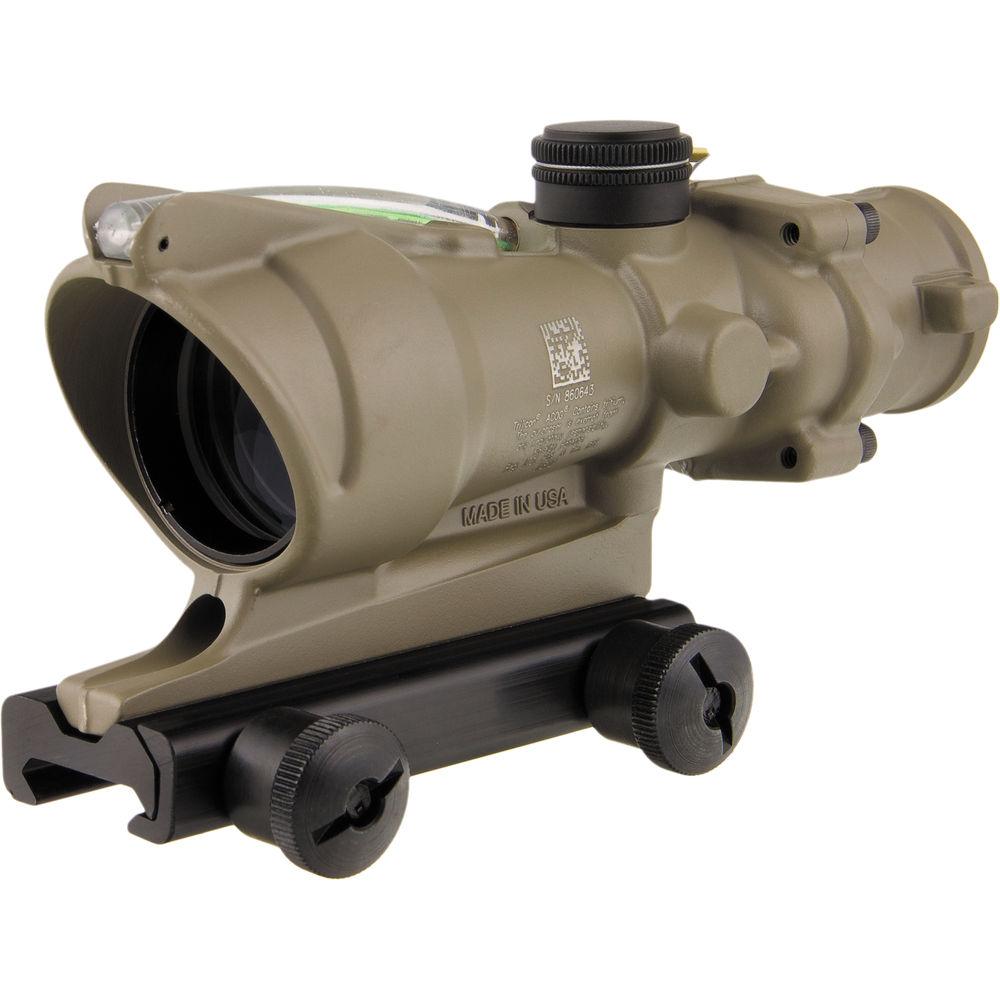

Product description Advanced Combat Optical Gunsight, the 4x32 ACOG Dual-Illuminated Riflescope from Trijicon, combines a waterproof and shock-resistant construction with a battery-free dual-illuminated Green Horseshoe reticle. The reticle employs tritium phosphor for illumination at night and fiber optic illumination for daytime. The sight's rugged optical system features zero distortion, multiple anti-reflection coatings, and a 32mm objective aperture. To compensate for wind and ballistic bullet drop, the scope offers windage and elevation adjustments with 1/2 MOA impact point correction.
The housing offers supreme ruggedness and durability: it withstands heavy recoil and deep-water submersion to 328'. To achieve this benchmark, the body is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. It also features an angled sunshade and mounts on a Picatinny style rail via the included TA51 Flattop Mount. - Optical Performance
-
- Multicoated optics
- 4x magnification for a short-to-medium range
- 32mm Objective lens diameter
- Angular field of view range is 7°
- Eye relief: 1.5"
- Reticle
-

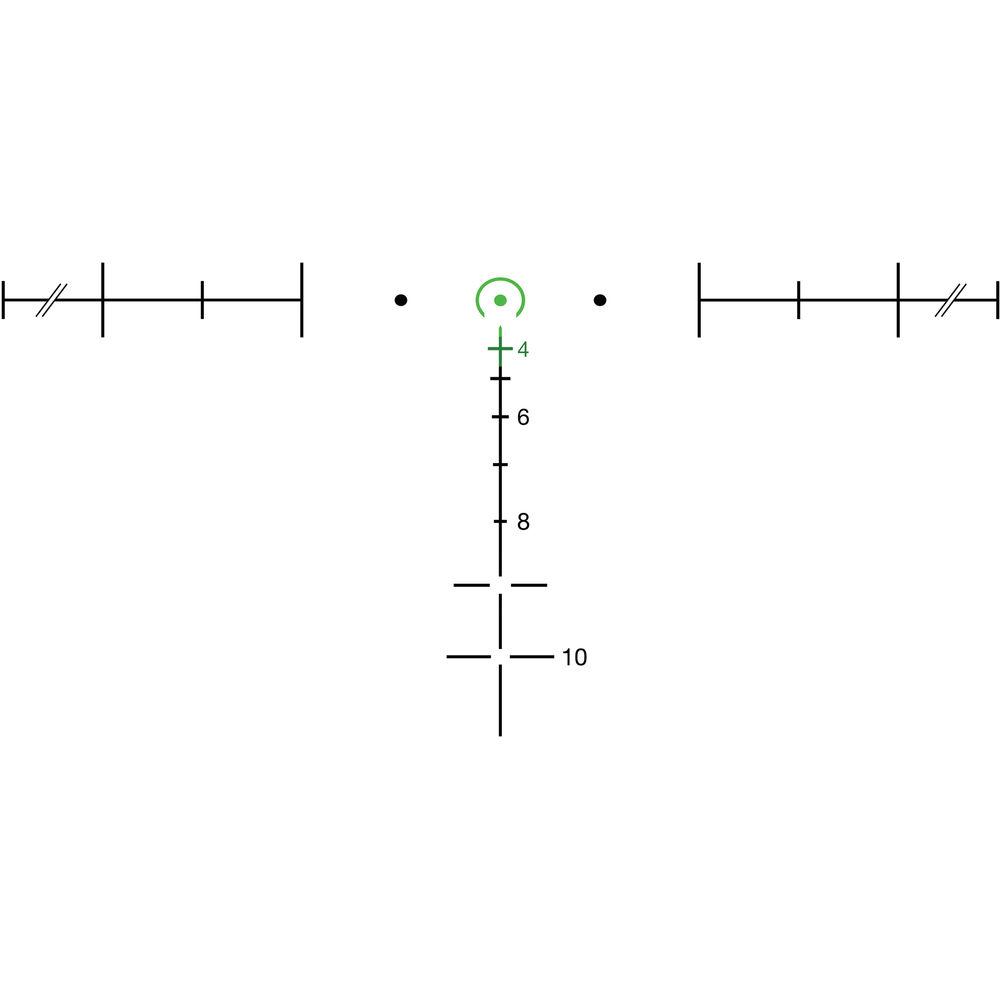

- Green Horseshoe/Dot reticle
- Tritium phosphor lamp for night illumination
- Fiber optic illumination for daylight
- BDC out to 800 m
- Use and Handling
-
- Windage and elevation adjustments
- 1/2 MOA impact point adjustments
- Construction Details
-
- Angled sunshade
- Single piece 7075-T6 aluminum alloy housing
- Type III hard anodizing black matte finish
- TA51 Flattop Mount is compatible with Picatinny rails
- Waterproof submersible to 328'
- Shock-resistant
UPC: 719307307780 In the Box Trijicon 4x32 ACOG Riflescope with TA51 Mount (Green Horseshoe/Dot Dual-Illuminated Reticle) - ACOG Picatinny Rail Adapter
- ACOG Scopecoat
- LensPen - TA56
- ACOG External Adjuster Caps & Lanyard
- Logo Sticker
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope with TA51 Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-D-100367 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | Horseshoe-Dot Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Battery | None | | Dimensions | Length: 5.9" / 15 cm
Height: 2.5" / 6.4 cm (with Mount)
Width: 2" / 5.1 cm | | Weight | 10.5 oz / 297.5 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 8.6 x 8.2 x 5.0" |
