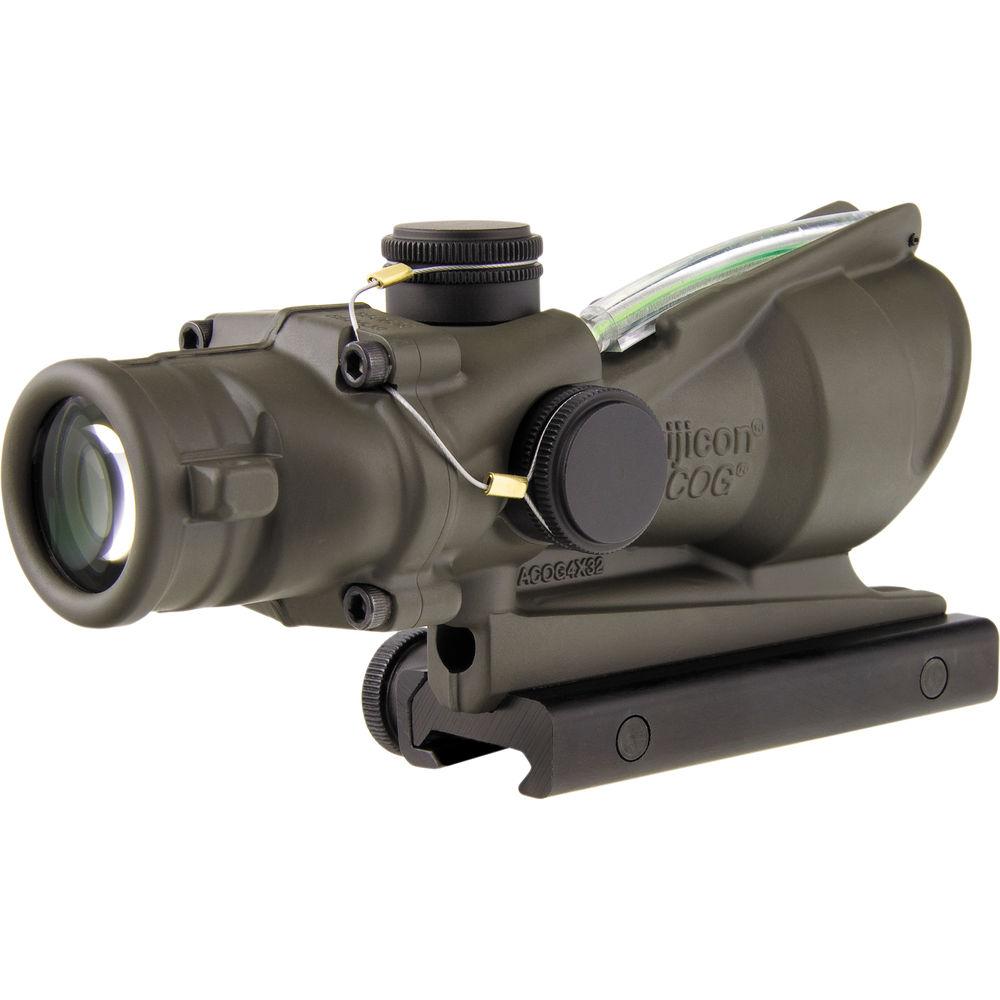

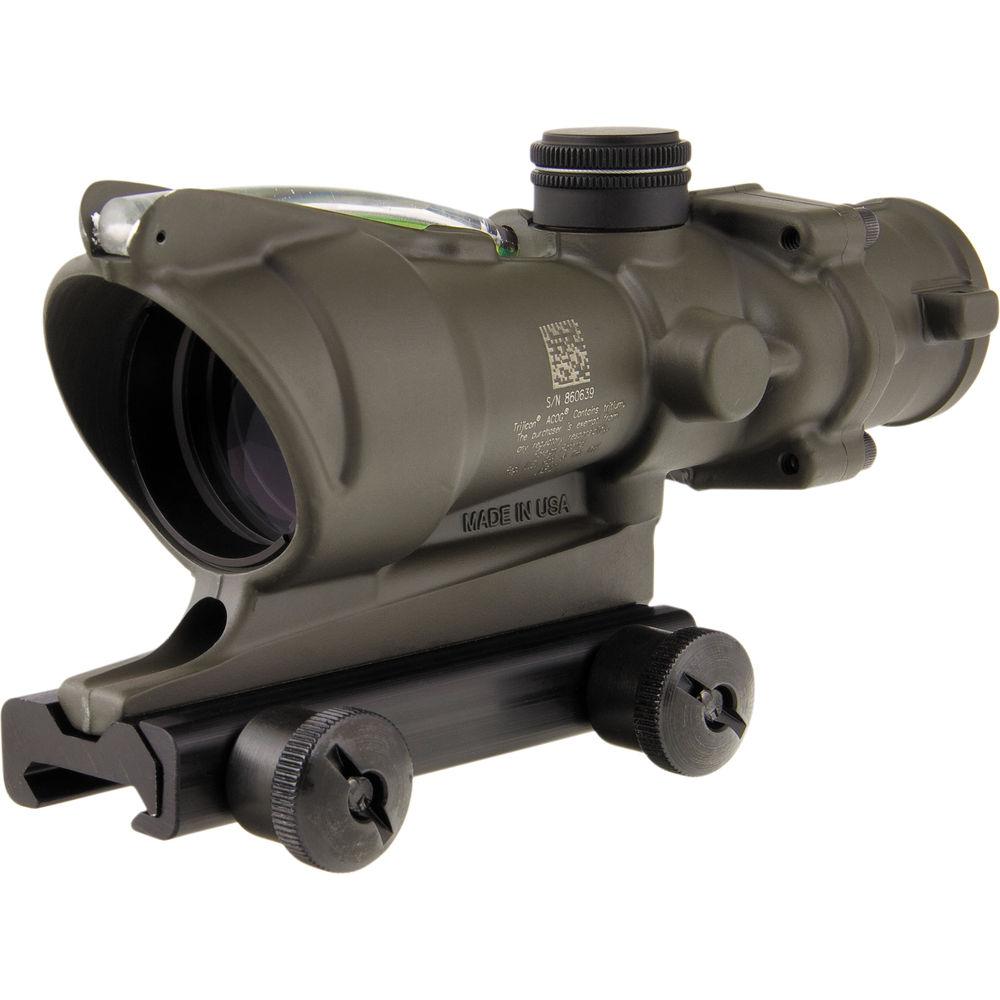

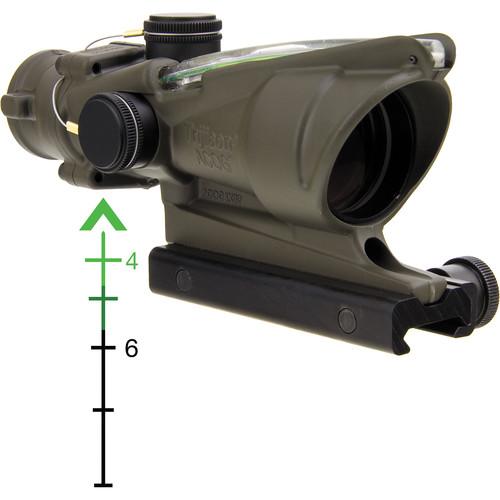

Product description Advanced Combat Optical Gunsight, the 4x32 ACOG Dual-Illuminated Riflescope from Trijicon, combines a waterproof and shock-resistant construction with a battery-free dual-illuminated Green Chevron reticle. The reticle employs tritium phosphor for illumination at night and fiber optic illumination for daytime. The sight's rugged optical system features zero distortion, multiple anti-reflection coatings, and a 32mm objective aperture. To compensate for wind and ballistic bullet drop, the scope offers windage and elevation adjustments with 1/2 MOA impact point correction.
The housing offers supreme ruggedness and durability: it withstands heavy recoil and deep-water submersion to 328'. To achieve this benchmark, the body is forged from a single piece of 7075-T6 aluminum alloy and coated with Type III hard anodizing finish. It also features an angled sunshade and mounts on a Picatinny style rail via the included TA51 Flattop Mount. - Optical Performance
-
- Multicoated optics
- 4x magnification for a short-to-medium range
- 32mm Objective lens diameter
- Angular field of view range is 7°
- Eye relief: 1.5"
- Reticle
-

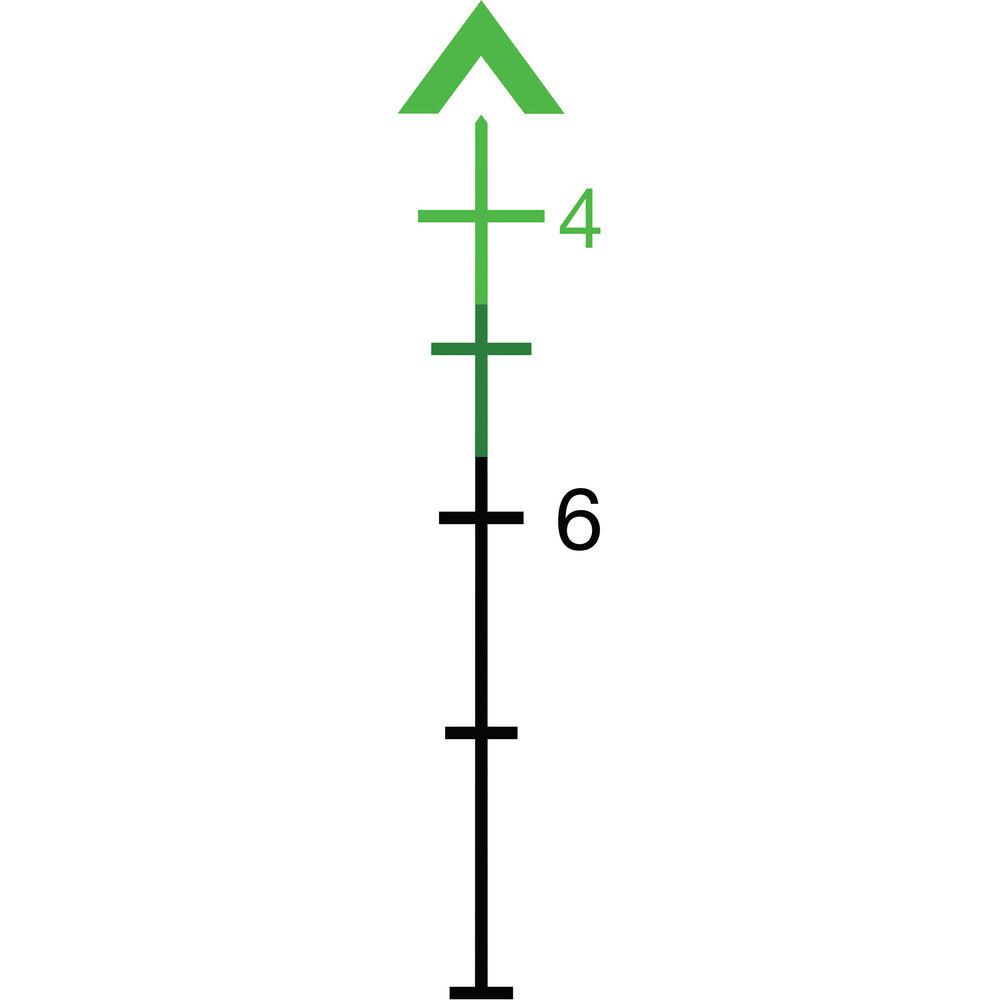

- Green Chevron reticle
- Tritium phosphor lamp for night illumination
- Fiber optic illumination for daylight
- BDC out to 800 m
- Use and Handling
-
- Windage and elevation adjustments
- 1/2 MOA impact point adjustments
- Construction Details
-
- Angled sunshade
- Single piece 7075-T6 aluminum alloy housing
- Type III hard anodizing black matte finish
- TA51 Flattop Mount is compatible with Picatinny rails
- Waterproof submersible to 328'
- Shock-resistant
UPC: 719307307261 In the Box Trijicon 4x32 ACOG Riflescope with TA51 Mount (Green Chevron Dual-Illuminated Reticle) - ACOG Picatinny Rail Adapter
- ACOG Scopecoat
- LensPen - TA56
- ACOG External Adjuster Caps & Lanyard
- Logo Sticker
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 4x32 ACOG Riflescope with TA51 Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA31-D-100312 Specs | | | Magnification | 4x | | Objective Lens Diameter | 32 mm | | Field of View | 36.8' @ 100 yd / 12.3 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 1.5" / 38 mm | | | | Reticle Type | Chevron Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/2 MOA per Click | | | | Battery | None | | Dimensions | Length: 5.9" / 15 cm
Height: 2.5" / 6.4 cm (with Mount)
Width: 2" / 5.1 cm | | Weight | 10.5 oz / 297.5 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 5.1" |
