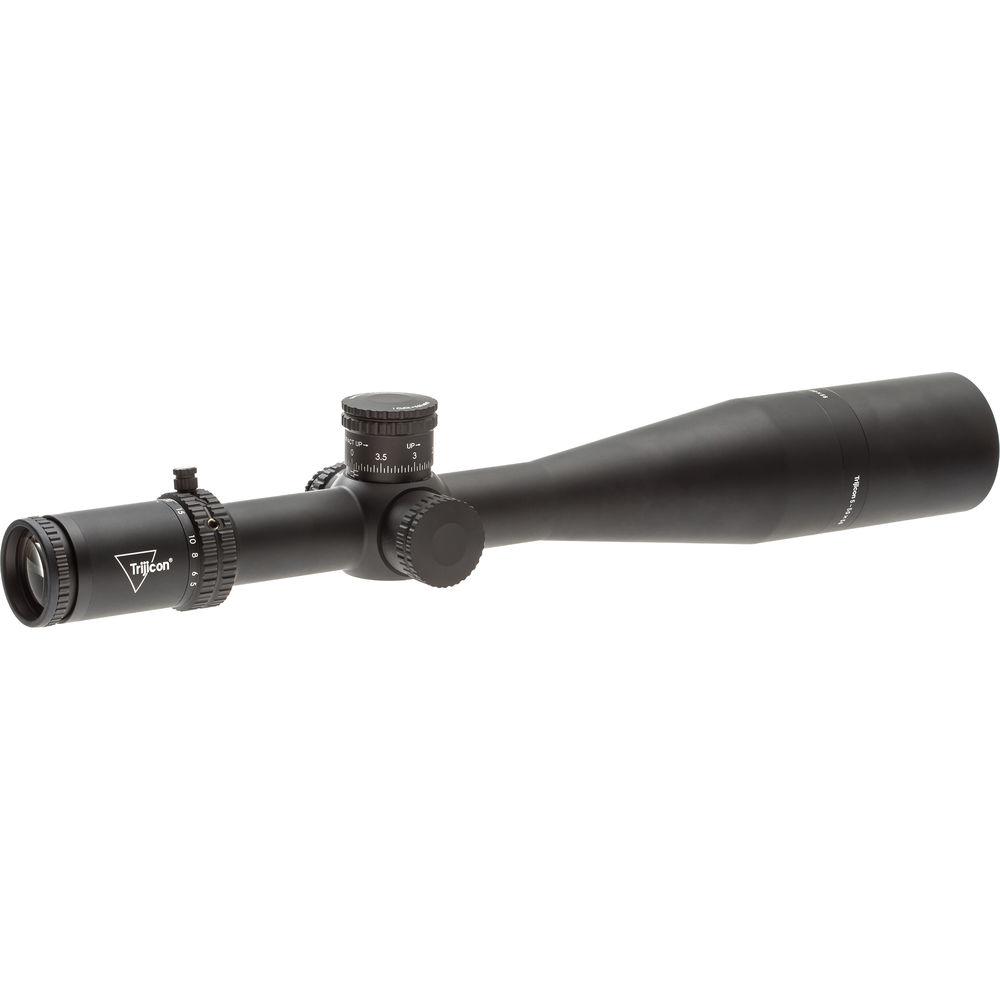

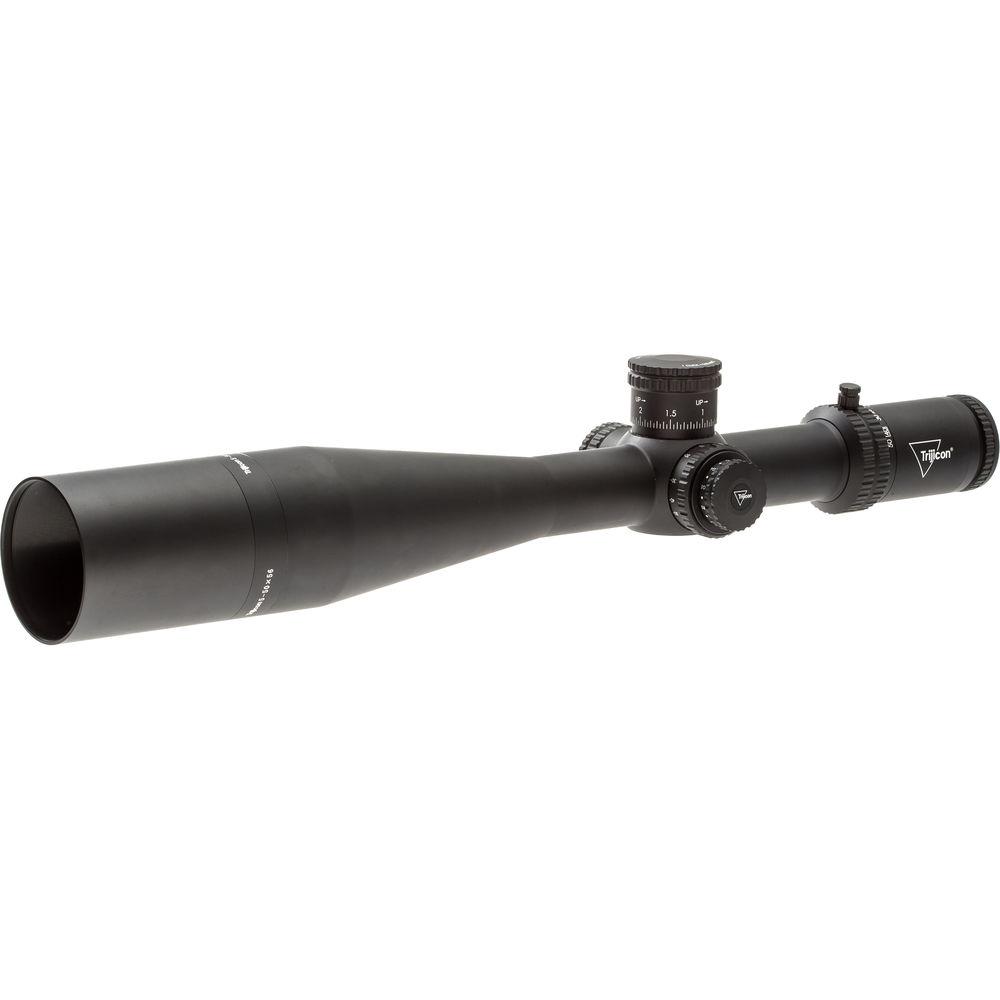

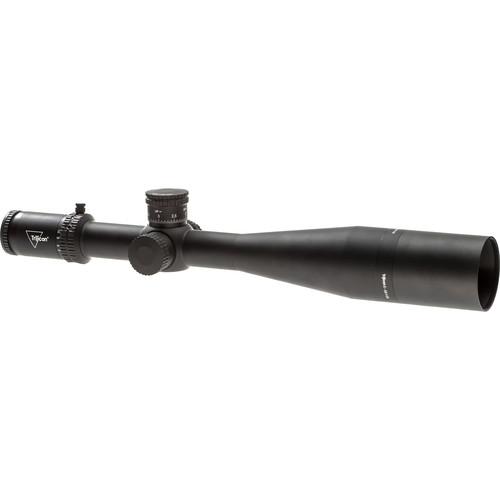

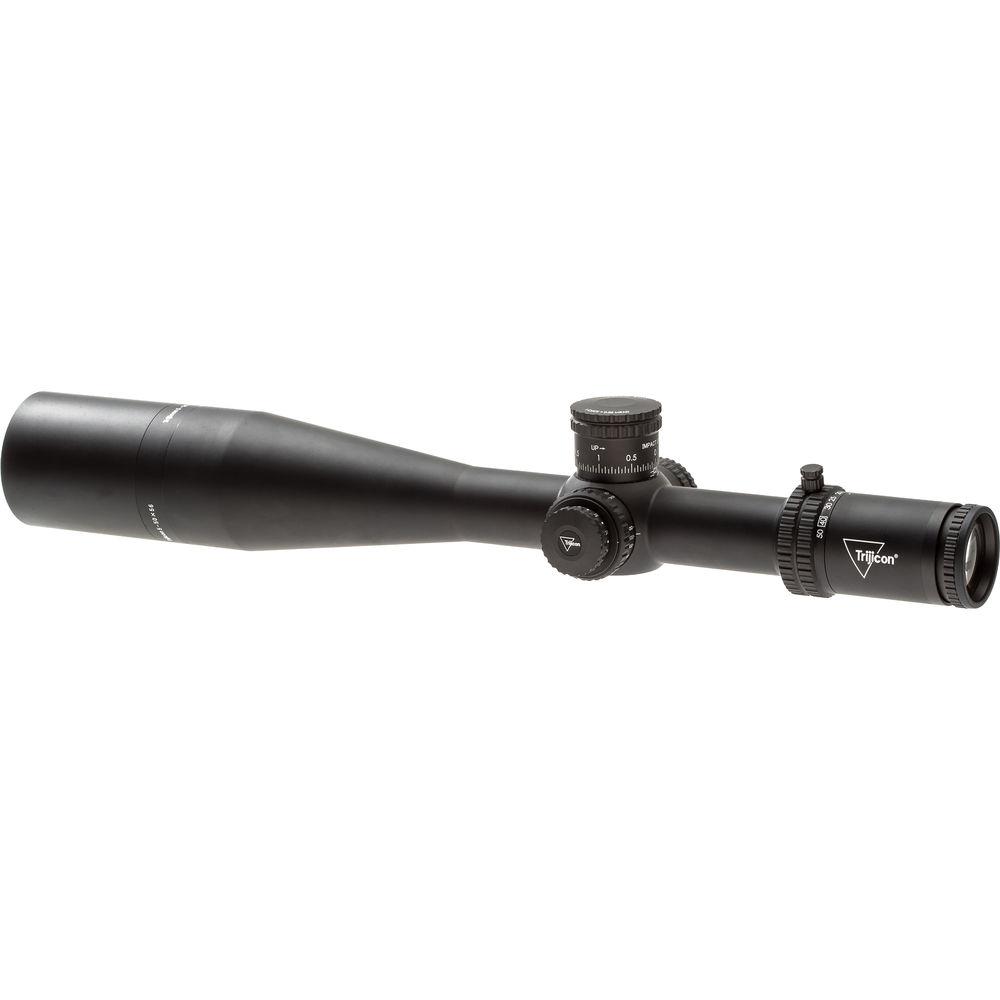

User Manual for Trijicon 5-50x56 AccuPower Extreme Long-Range Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 5-50x56 AccuPower Extreme Long-Range Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 5-50x56 AccuPower Extreme Long-Range Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description Trijicon engineered the 5-50x56 AccuPower Extreme Long-Range Riflescope to serve as a standard of durability and extreme long-range performance for riflescopes of its class. Its fully multi-coated lenses are carefully designed, cut from high-quality optical glass, and polished for low-distortion performance. To expand the range of its effectiveness to low-light conditions like dusk or dawn, the riflescope also features an extra-wide 56mm objective lens. For shooting precision, the scope has a second focal plane Red/Green Dot Crosshair Reticle with five daytime and five nighttime illumination settings. It features a fully illuminated milling crosshair with a short top hair and MRAD-based stadia.
The housing is engineered from durable 6061-T6 aluminum with a hard anodized finish and a strong 34mm maintube. The knurled knobs allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. - Optical Performance
-
- Fully multi-coated optics
- Low-distortion lenses
- Magnification: 5-50x
- 56mm objective lens delivers bright images even in low light
- Maximum eye relief of 3.9"
- Use and Handling
-
- 1/20 MIL impact point correction
- 14.5 MIL windage and 29.1 MIL elevation adjustments
- Construction Details
-
- 34mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Exposed elevation, capped windage turrets
- Easy-focus eyepiece with zoom lever
- Fogproof, waterproof, impact resistant

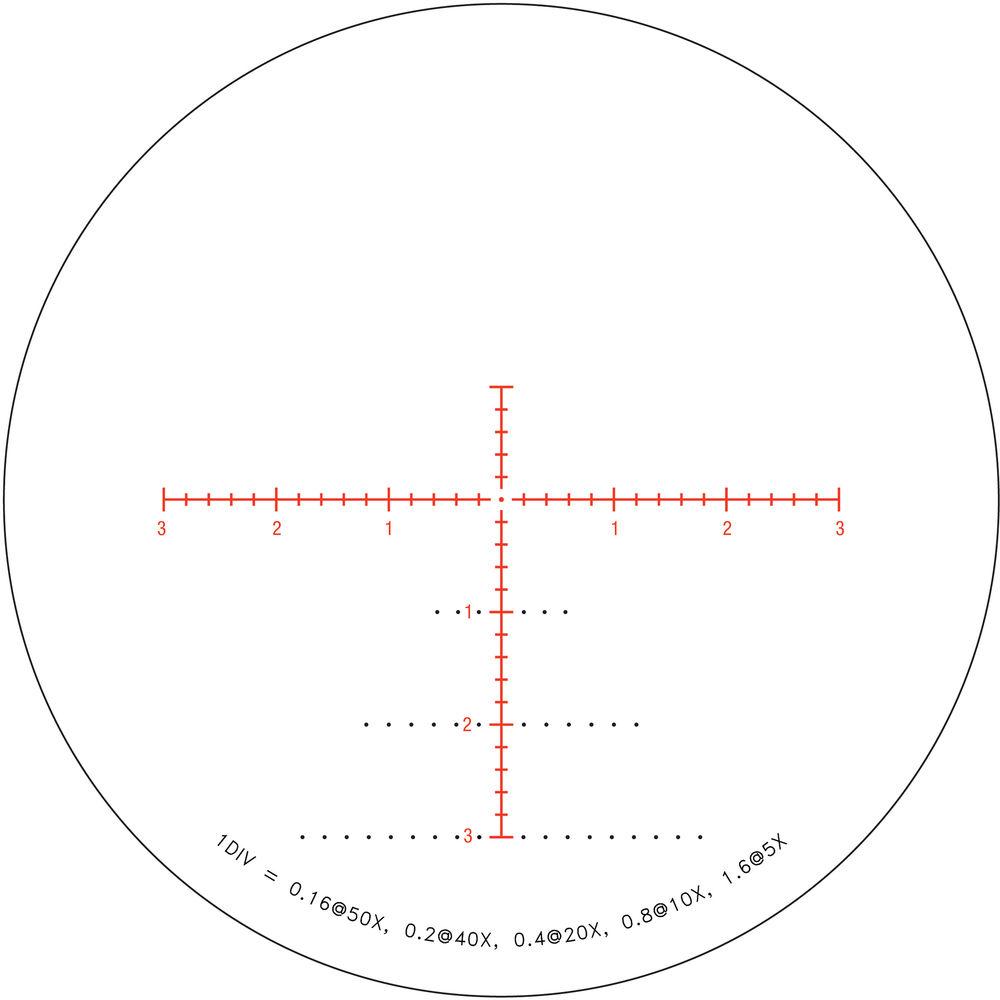

- Red/Green MRAD Dot Crosshair Reticle
-
- 2nd focal plane
- Fully illuminated milling crosshair with a short top
- Five daytime and five nighttime illumination settings
- MRAD-based stadia
UPC: 719307402690 In the Box Trijicon 5-50x56 AccuPower Extreme Long-Range Riflescope (Red/Green MRAD Dot Crosshair Reticle, Matte Black) - 2 x Flip-Up Lens Caps
- 3" Sunshade
- Scopecoat
- LensPen - TA56
- Trijicon Logo Sticker (PR15)
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 5-50x56 AccuPower Extreme Long-Range Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS50-C-1900031 Specs | | | Magnification | 5 to 50x | | Objective Lens Diameter | 56 mm | | Field of View | 5x: 21.2' @ 100 yd / 7.1 m @ 100 m
50x: 2.1' @ 100 yd / 0.7 m @ 100 m | | Exit Pupil Diameter | 5x: 7.2 mm
50x: 1.1 mm | | Eye Relief | 3.5 to 3.9" / 89 to 100 mm | | | | Reticle Type | MRAD Dot Crosshair Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | | | Impact Point Correction | 1/20 MIL per Click | | Windage Adjustment | 14.5 MIL | | Elevation Adjustment | 29.1 MIL | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16" / 40.6 cm | | Weight | 38.4 oz / 1.1 kg (without Sunshade) | | | | Package Weight | 5.82 lb | | Box Dimensions (LxWxH) | 18.4 x 7.7 x 4.3" |
