User Manual for Trijicon 5.5x50 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 5.5x50 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 5.5x50 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

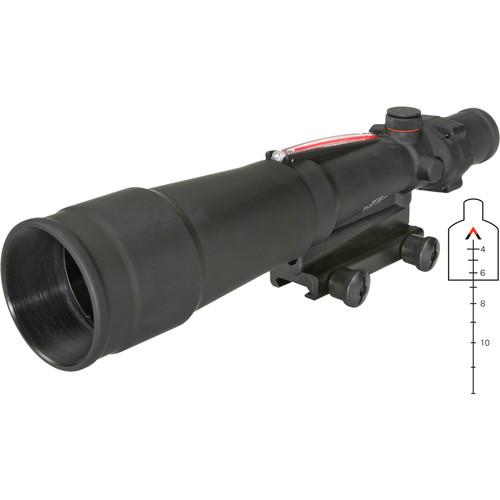

Product description Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. Every feature of the ACOG's (Advanced Combat Optical Gunsight) mechanical and optical design was designed for use with the M16 family of firearms. This sighting system was engineered for a single purpose; to provide increased hit potential in all lighting conditions - without relying upon failure-prone batteries. The ACOG is engineered upon a roof prism design for maximum optical precision and enhanced reliability. These sights combine traditional, precise long-range accuracy with rapid close-quarters target acquisition. Although the ACOGs have many features which are very advantageous for military use, they're equally well adapted for sporting and tactical applications. These compact telescopic sights are internally adjustable, with tritium illuminated reticles for use in low-light scenarios. The 5.5x50 ACOG Riflescope has a stout profile that contributes to its excellent twilight performance. The larger objective lens provides excellent light through-put for a bright sight-picture when ambient light-levels a less than optimum. Long-range target acquisition becomes significantly improved with the 5.5x magnification level of this ACOG; this provides you with a significant advantage in distance calculation, & accurate long-distance shot placement. - Rugged Construction
- Forged 7075-T6 aircraft aluminum alloy housing
- Flat Top Compatible
- Designed for use on flat top M16/AR15 receivers
- Bindon Aiming Concept
- The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.

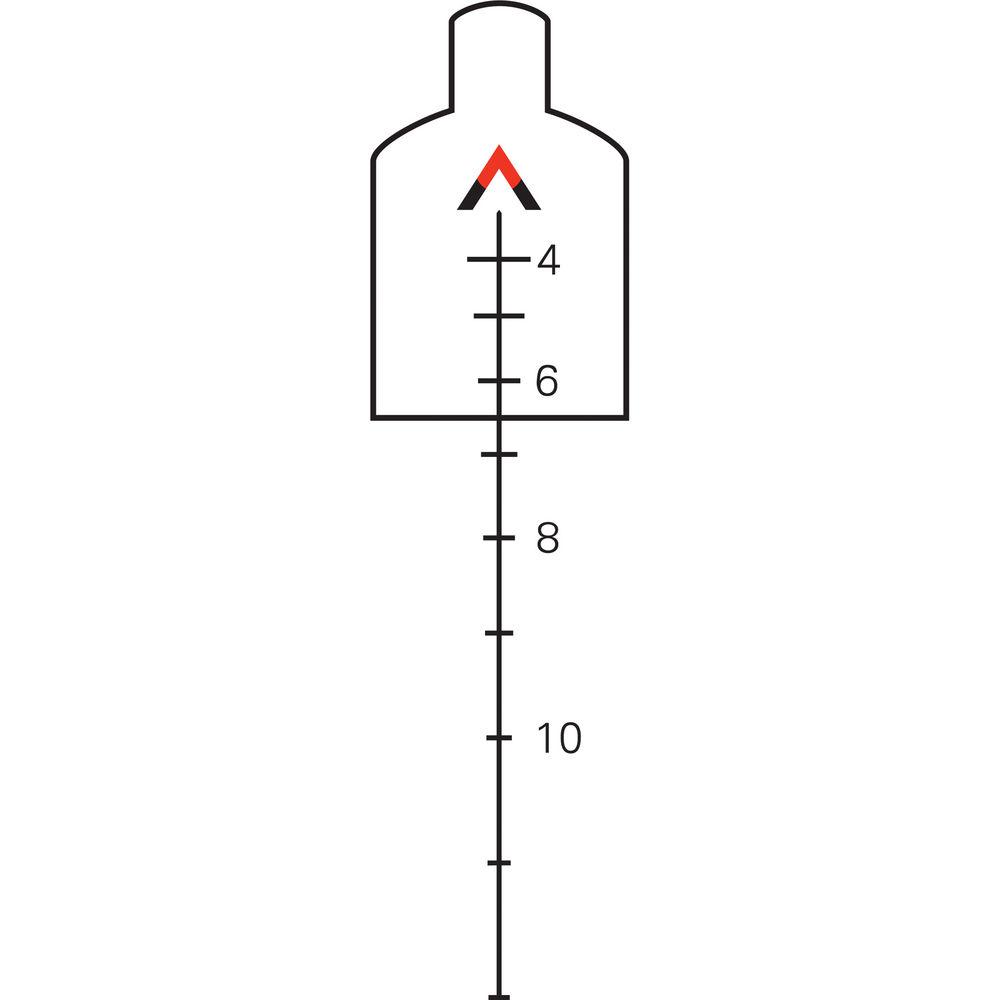

- Dual Illumination Red Chevron Reticle Calibrated for 7.62 NATO/.308
- The red chevron floating above a single post at 6 o'clock provides an easy to read aiming point. The post features hash-marks for calculating bullet drop compensation when shooting across long distances. Trijicon's proprietary tritium/fiber-optics based illumination technology provides the chevron with a highly visible red glow.

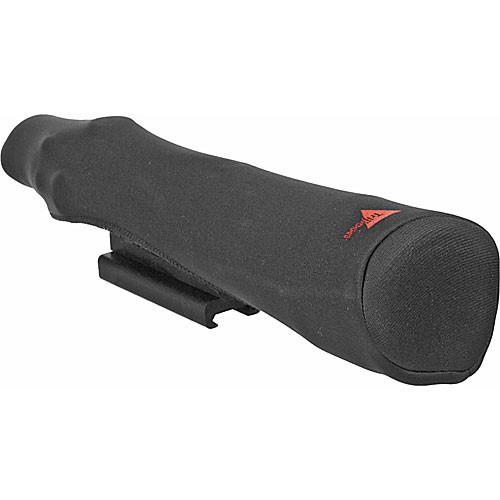

This reticle is designed for a 100 yd zero, and the chevron subtends 5.53 MOA (19" at 300 m) In the Box Trijicon 5.5x50 ACOG Riflescope ACOG Picatinny Rail Adapter zavqtwebyuwedyzxtdcdyauuwdzfaxeydyery ACOG Scopecoat LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 5.5x50 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA55A Specs | | | Magnification | 5.5x | | Objective Lens Diameter | 50 mm | | Field of View | 18.4' @ 100 yd / 6.4 m @ 100 m | | Exit Pupil Diameter | 9.1 mm | | Eye Relief | 2.2" / 56 mm | | Diopter Correction | None | | | | Impact Point Correction | 1/7 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Water Resistant | | | | Battery | None | | Dimensions | Length: 12" / 30.5 cm | | Weight | 25.6 oz / 726 g (without Mount) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
