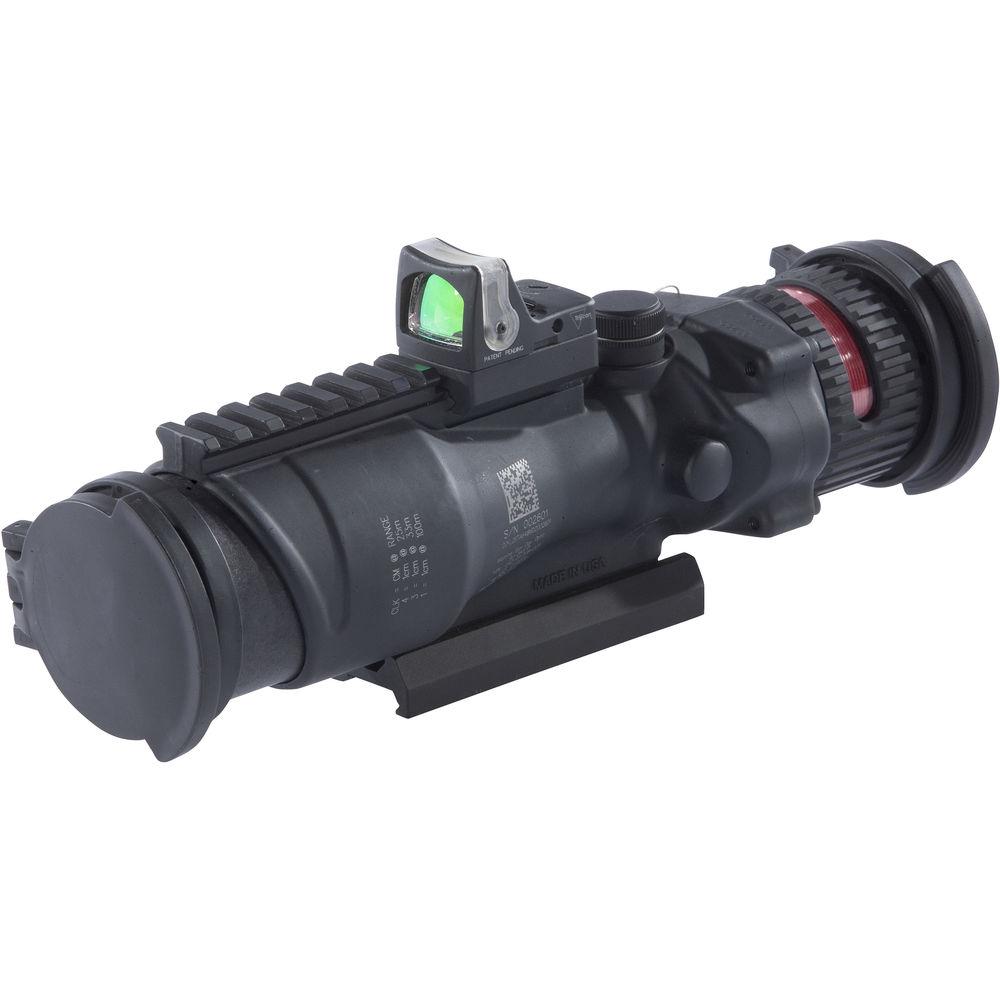

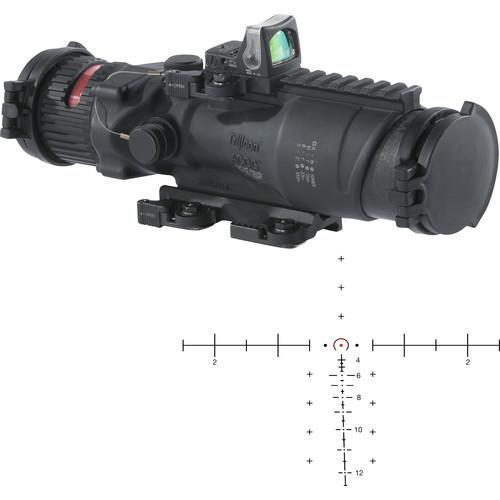

Product description Leave no chance to your foe, using the 6x48 ACOG Machine Gun Day Optic Kit. This kit includes a 6x48 ACOG Machine Gun Day Scope as the main optic for fast target acquisitions and a 1x RM05 RMR sight for close quarters combat (CQC). To achieve this goal, the primary 6x sight features clear and bright fully multi-coated optical elements that offer a notable magnification and larger than average 48mm objective lens for gathering as much light as possible. In order to reduce forward reflections from the front lens to stay undetected longer and bring about the success of your mission, the kit also includes a Tenebraex killFlash anti-reflective device that mounts to the objective bell. For laser-sharp placements, the ACOG sight is equipped with Horseshoe-Dot M240 BDC Reticle. This reticle features a battery-free fiber-optic and tritium illumination system, which lights up the center target dot during the day or at night without needing any external or internal power supply. The crosshair offers stadia markings to aid with windage and ballistic compensation holdovers for trajectories out to 1200 meters.
Never giving up or letting you down in unforgiving situations, the main scope is outfitted with a robust housing that is forged from 7075-T6 aluminum alloy. It can endure intense recoil, impact, and submersion down to 328'. It is also augmented with a corrosion and abrasion-resistant anodized coating. To accommodate the included secondary sight or other devices like lasers, cameras, or flashlights, the scope's body carries an accessory rail on the top. In order to provide a fast and rock-solid connection to your firearm in critical times, the kit provides the fault-proof LaRue Tactical RMR MDO quick release mount. A set of flip-up lens covers, and tethered windage and elevation caps are also included.
As the secondary optic, the RM05 Dual-Illuminated RMR Reflex Sight offers fast aiming capability for targets that are close by. This sight features a 1x holographic optical system, a 9 MOA amber dot aiming point, battery-free reticle illumination, and lightweight yet durable construction. The Ruggedized Miniature Reflex sight (RMR) has a forged aluminum housing (with a scratch and corrosion-resistant hard-anodized finish) and a tempered glass window that is well-suited for battlefield conditions, heavy recoil, hard impact, and submersion down to 65'. Employed in the Trijicon reticle 's illumination system are a tritium phosphor lamp and fiber optics, which offer illumination during the day or at night. The fiber optic illumination uses external, ambient light and offers a reticle with automatic adjustable illumination. For wind and ballistic compensation, the optics offers windage and elevation adjustments with 1 MOA click values. - TA648MDO ACOG 6x48 Machine Gun Day Optic
-
Optical Performance - 6x fixed magnification
- Wide 48mm objective lens
- Fully multi-coated optics
- 17' at 100 yards linear field of view
- Included Tenebraex killFlash ADR reduces forward reflections

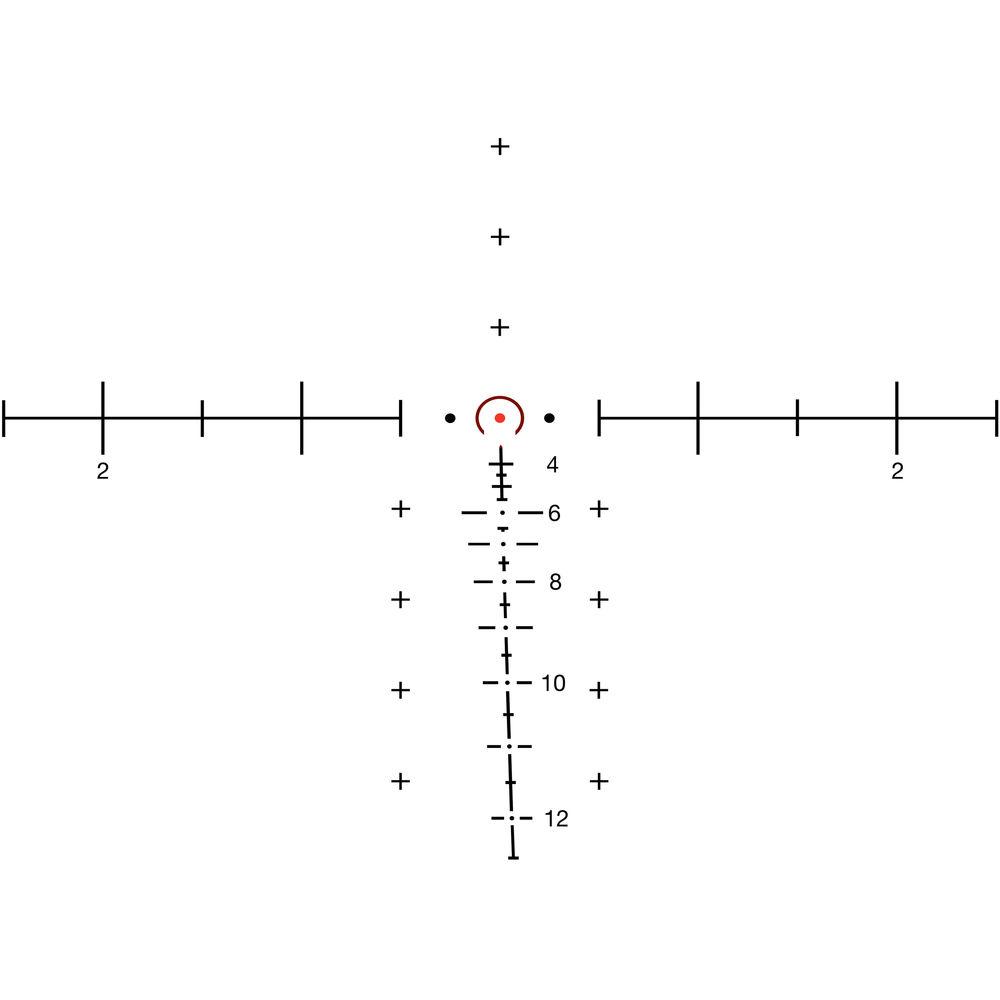

Reticle - Horseshoe-Dot M240 BDC Reticle with illuminated target dot
- Fiber-optic day and tritium night (battery-free) illumination
- Horseshoe/Dot reticle with a thin three-winged crosshair
- The crosshair offers an extensive system of BDC holdover dots, dashes, and crosses for trajectories out to 1200 meters
- Lateral crosshair wings offer vertical lines for wind compensation and moving target tracking
Use and Handling - 1/10 MRAD impact point correction
- 40 MOA windage and elevation ranges
- 8mm exit pupil
- 2.7" eye relief
Construction Details - 7075-T6 forged aluminum alloy
- Tethered caps on windage and elevation turrets
- Picatinny accessory rail on the top
- LaRue Tactical LT644MDO-A quick release mount included
- Flip-up lens covers and MOLLE carry pouch included
- Fogproof and waterproof to 328'
- RMO5 RMR Sight
-
Optical Performance - 1.0x magnification
- 22x16mm sighting window
- Parallax-free aiming point
- True-Color multi-coated window
- 9 MOA Amber dot reticle
- Fiber-optic and tritium day and night illumination
Use and Handling - 1 MOA impact point correction
- 150 MOA windage and elevation ranges
Construction Details - 7075-T6 aluminum construction
- Corrosion, chemical, and scratch-resistant coating
- Tempered glass sighting window
- Waterproof to 65'
UPC: 719307306769 In the Box Trijicon 6x48 ACOG Machine Gun Day Optic Kit (Dual Illuminated Horseshoe-Dot M240 BDC Reticle, Matte Black) RM05 Dual-Illuminated RMR Reflex Sight (9 MOA Amber Reticle, Matte Black) 6x48 ACOG Adjuster Caps and Lanyard Assembly Tenebraex killFlash Anti-Reflective Device LaRue Tactical RMR MDO Mount 2 x Flip-Up Lens Caps MOLLE Pouch Limited 15-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 6x48 ACOG Machine Gun Day Optic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA648-D-100297 Specs | Magnification | Scope: 6x
RMR: 1x | | Objective Size | Scope: 48mm
RMR: 22x16 mm | | Reticle | Scope: Horseshoe/Dot reticle
RMR: 9 MOA Amber Dot Reticle
Fiber-optic and Tritium illumination on both | | Impact Point Correction | Scope: 1/10 MRAD
RMR: 1 MOA | | Windage/Elevation Adjustment | Scope: 40 MOA
RMR: 150 MOA | | Eye Relief | Scope: 2.7" / 68.6 mm
RMR: unlimited | | Exit Pupil | Scope: 8 mm | | Field of View | Scope: 17.0' @ 100 yd / 5.8 m @ 100 m
RMR: unlimited | | Battery / Runtime | No battery required | | Waterproofing | Scope: Fogproof and waterproof to 328' / 100 m
RMR: Fogproof and waterproof to 65' / 20 m | | Dimensions | Scope: 10.5 x 4.5 x 3.0" / 26.7 x 11.4 x 76.2 cm
RMR: 1.8 x 1.2 x 1.0" / 4.6 x 3 x 2.5 cm | | Weight | Scope: 44.8 oz / 1270.1 kg
RMR: 1.2 oz / 34 g |
