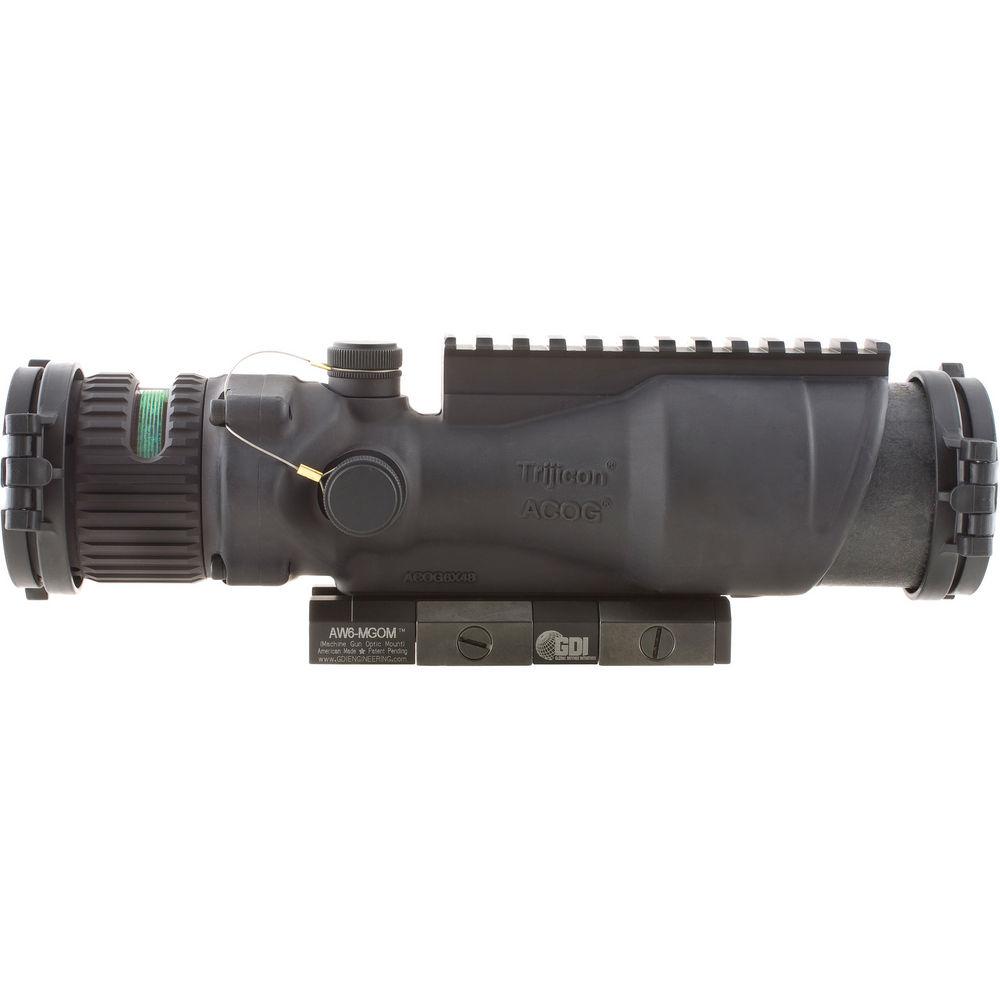

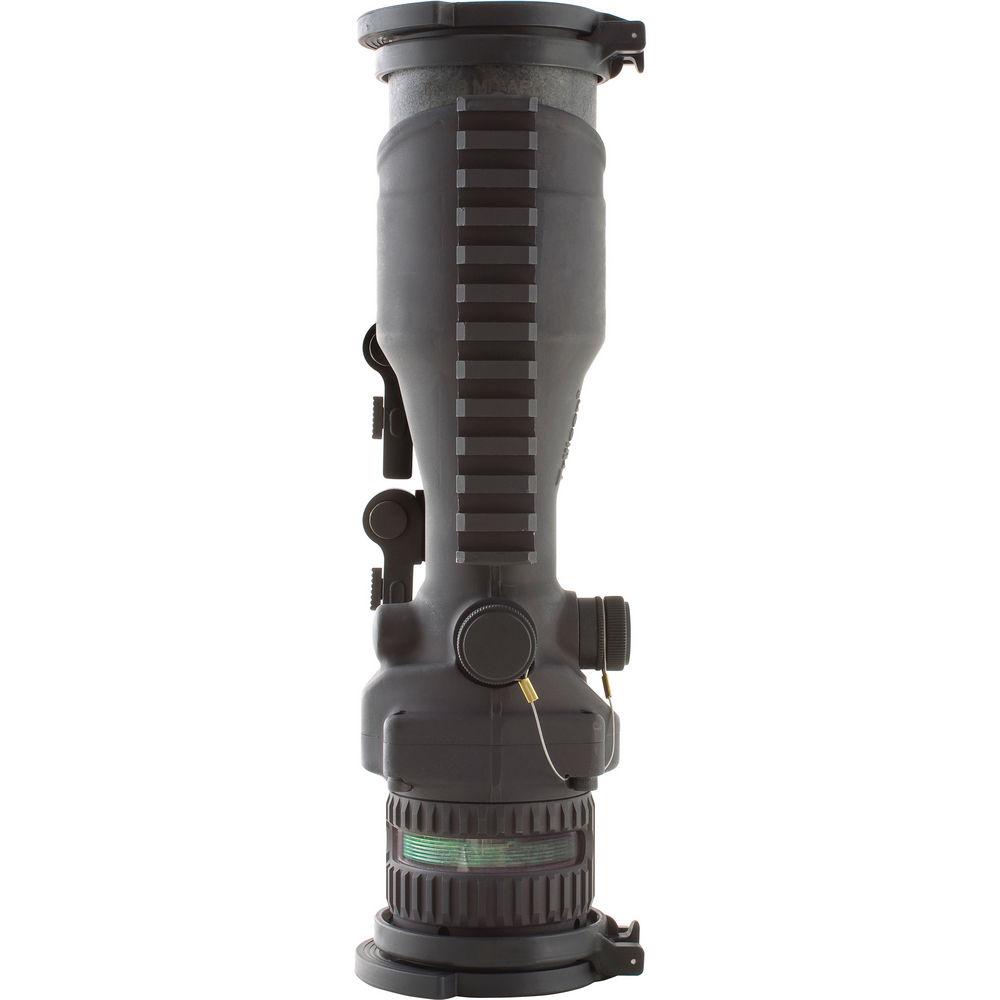

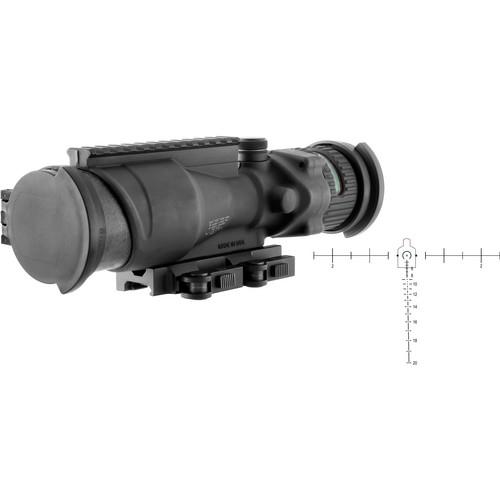

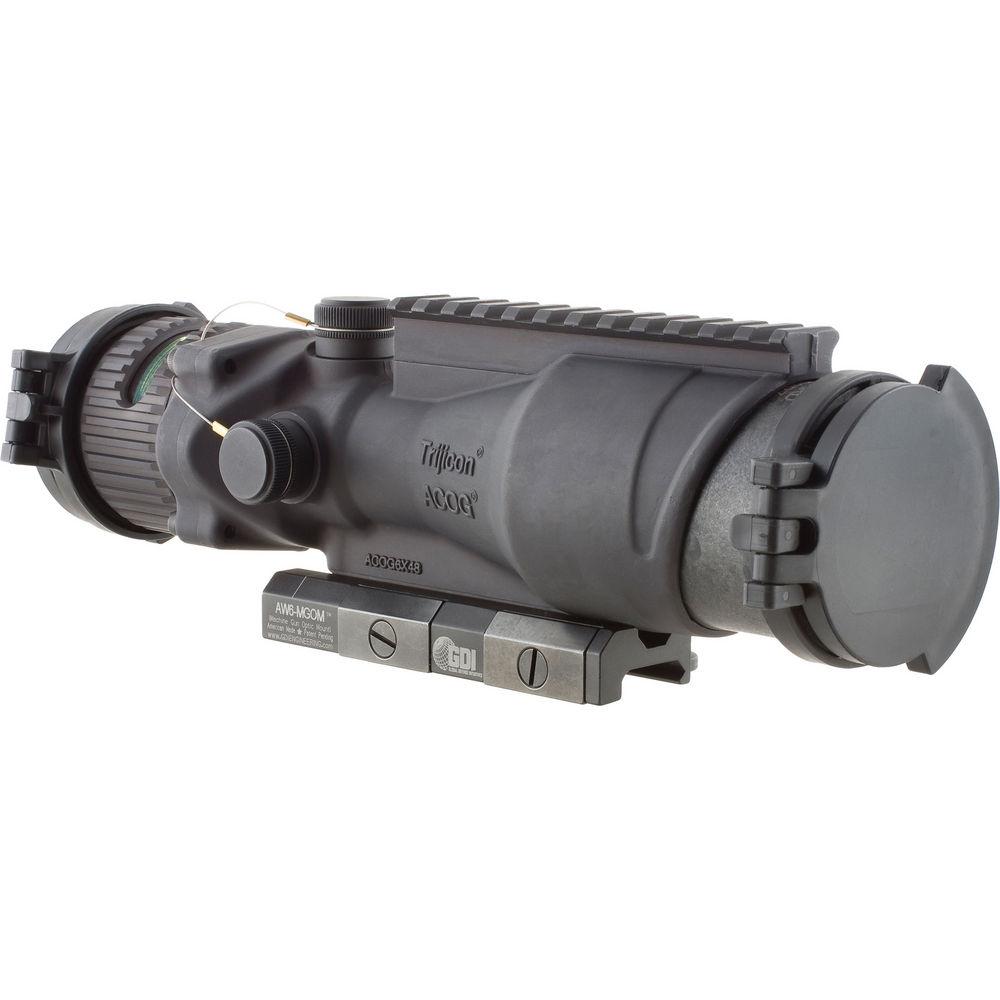

Product description The 6x48 ACOG Machine Gun Optic Riflescope (Matte Black) from Trijicon combines enhanced long-range capability with short-range target acquisition using the Bindon Aiming Concept. The large objective yields excellent twilight performance; a significant factor when light is lean and the target is camouflaged. The combination of a large exit pupil and Trijicon's proprietary reticle illumination system makes for quite a formidable sighting system. The target may choose to run; but hiding - now that could prove to be quite difficult. This ACOG is configured with a GDI Mount with Dual Auto-Locking Quick Detach Levers as well as a 1913 Picatinny top-rail. It has a dual illuminated green dot horseshoe reticle calibrated for .50 BMG ammunition out to 2000 meters. The dual illumination system empowers the self-luminous tritium to light up the aiming point in total darkness while the fiber-optic self-adjusts the reticle brightness during daylight. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Fiber Optic Illumination Adjuster allows manual control over daylight reticle glow
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy provides added strength and durability
- Waterproof: nitrogen purged and fully sealed for all-weather reliability. Submersible to 500 ft / 150 m with adjuster caps on or 50 ft / 15 m without adjuster caps on
- Use and Handling
-
- Anti-reflection device, ARD, and protective flip caps add enhanced protection to the scope
- 100 m zero and 500 m zero zeroing instructions are laser etched on the left and right sides for added convenience

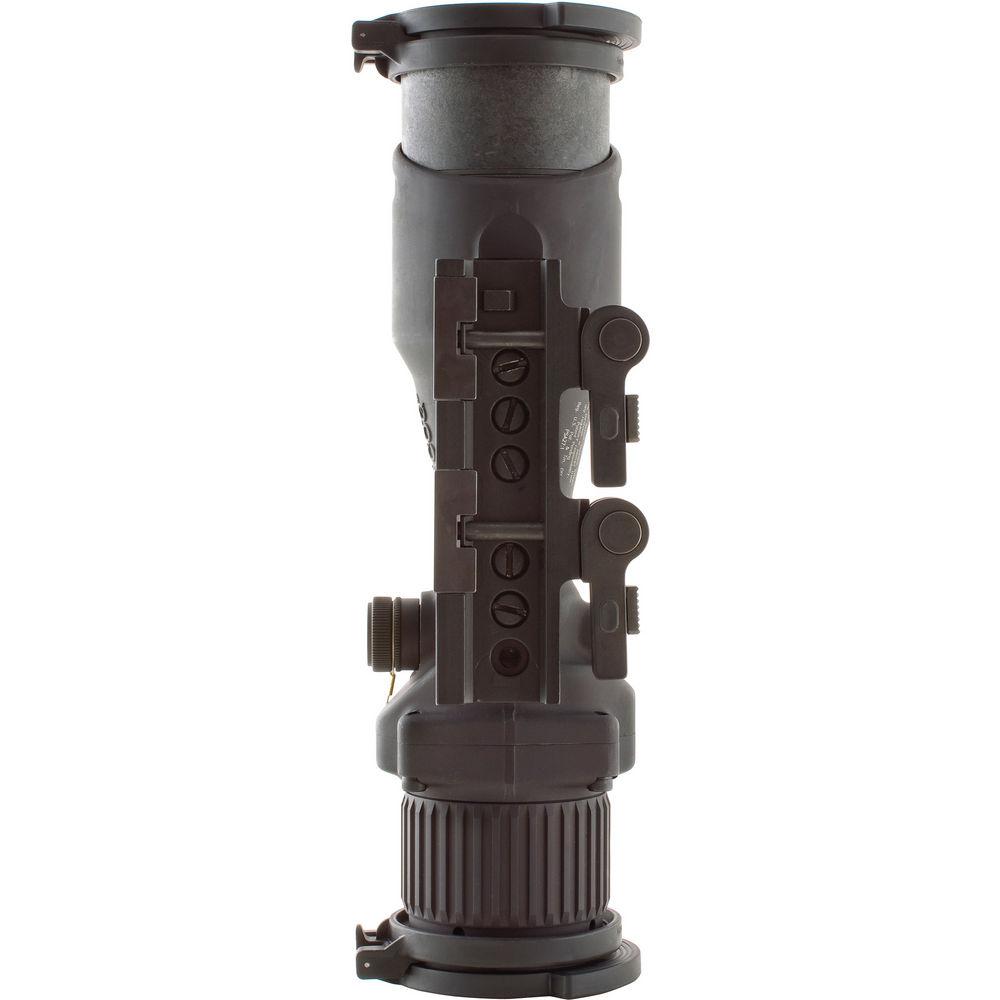

- Mount: GDI AW6 Dual Auto-Locking Quick Detach (ALQD) Levers compatible with MIL-STD-1913 rail and an additional top mounted Picatinny rail specific to the 6x48 ACOG
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target

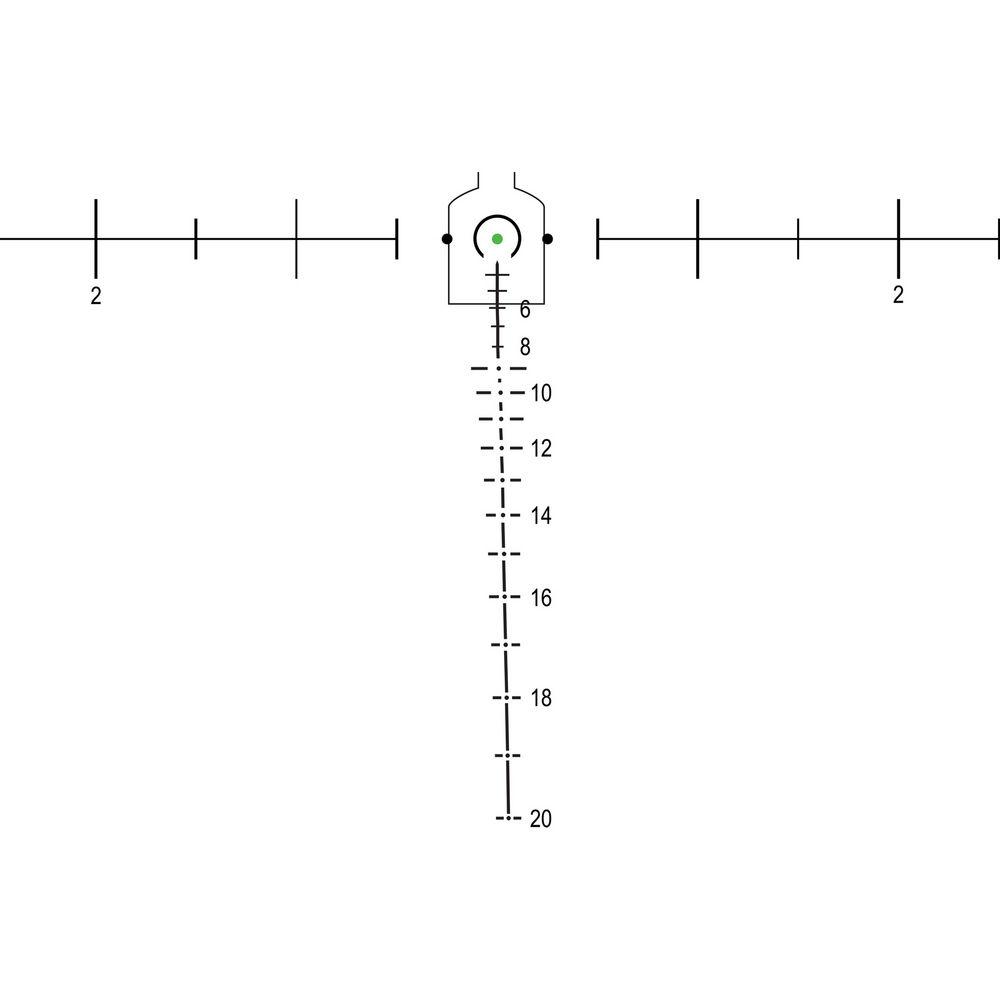

- Green dot horseshoe reticle: calibrated for .50 BMG to incorporate spin drift of the round at extended distances- an illuminated dot indicates the exact point of aim. Stadia at 3 and 9 o'clock offer a horizontal target reference system of 50 Mils of off-points for moving targets. The 6 o'clock stadia features hold-over hash-marks for distances from 100 m up to 2000 m.
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the chevron with a highly-visible green glow
In the Box Trijicon 6x48 ACOG Machine Gun Optic Riflescope (Matte Black) Tenebraex Flip-Up Lens Cover LensPen - TA56 Tenebraex killFLASH Anti Reflection Device for 6x48 ACOG GDR Dual Auto-Locking Quick Detach Mount Trijicon Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 6x48 ACOG Machine Gun Optic Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA648MGO-M2 Specs | | | Magnification | 6x | | Objective Lens Diameter | 48 mm | | Field of View | 17.3' @ 100 yd / 5.7 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 2.7" / 69 mm | | | | Reticle Type | .50 BMG Horshoe-Dot Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof to 500' / 150 m | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 10.5" / 26.7 cm
Height: 3.5" / 8.9 cm (with Mount)
Width: 3.2" / 8.1 cm | | Weight | 44.3 oz / 1.3 kg (with Mount) |
