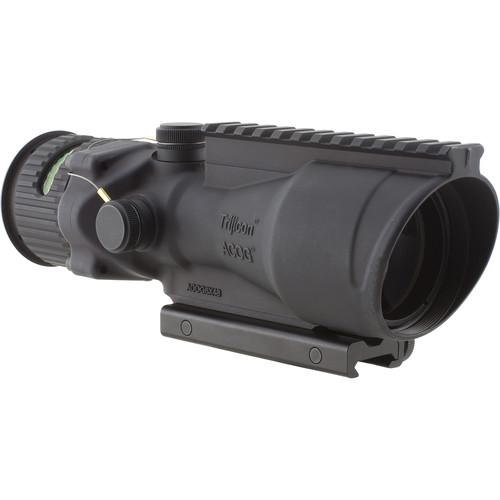

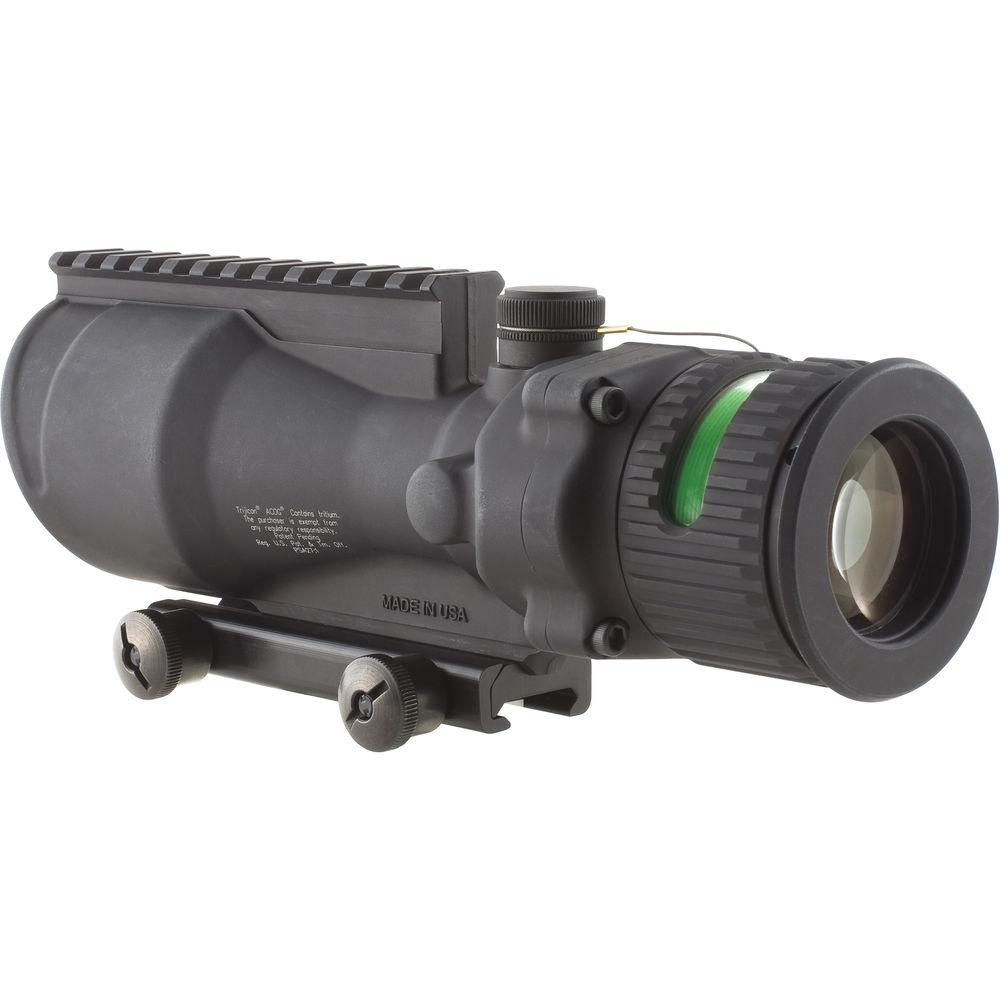

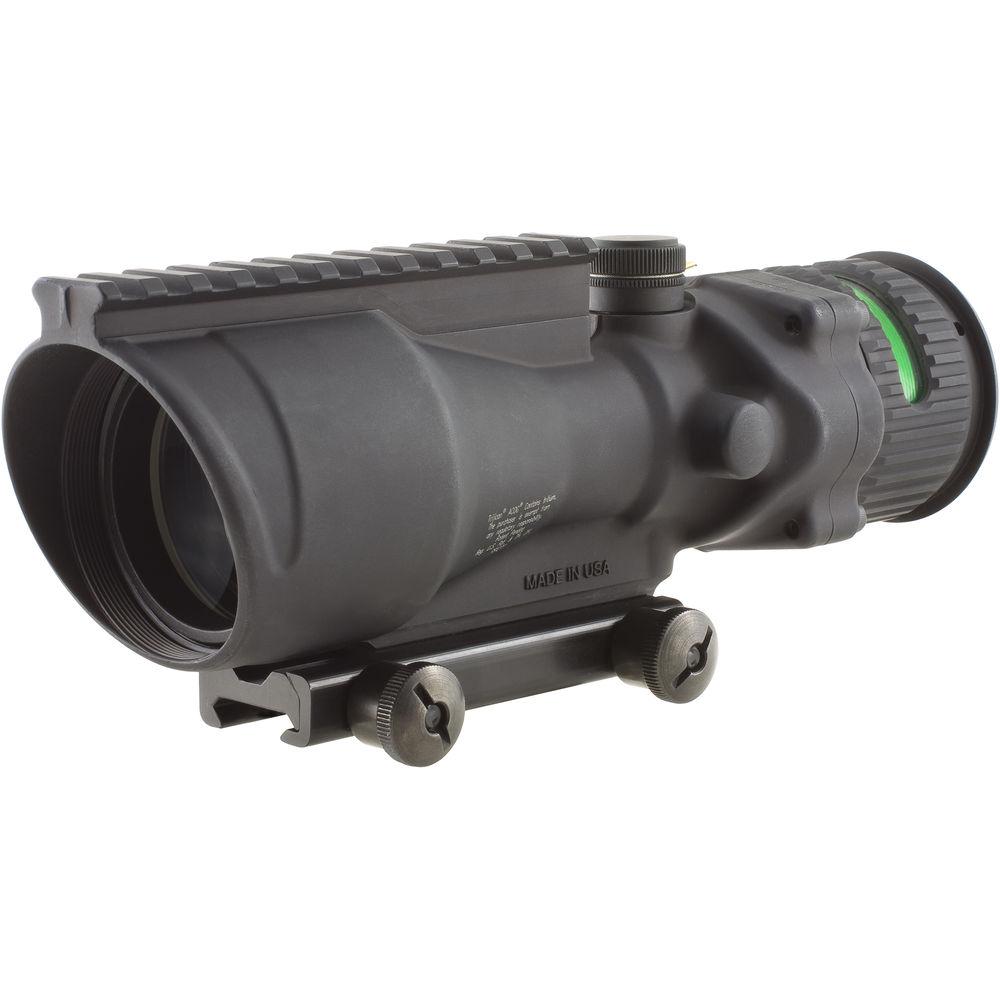

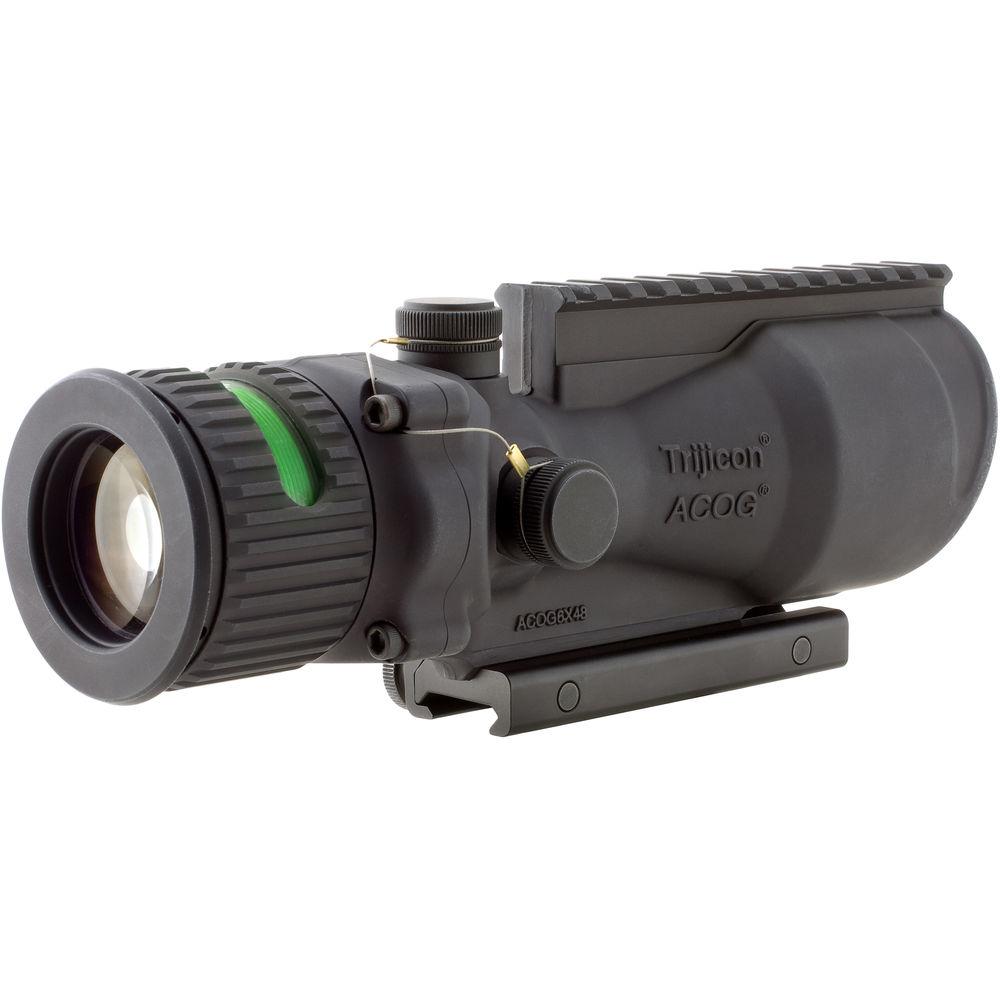

User Manual for Trijicon 6x48 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 6x48 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 6x48 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description The 6x48 ACOG from Trijicon combines enhanced long-range capability with short-range target acquisition using the Bindon Aiming Concept. The large objective yields excellent twilight performance; a significant factor when light is lean and the target is camouflaged. The combination of a large exit pupil and Trijicon's proprietary reticle illumination system makes for quite a formidable sighting system. The target may choose to run; but hiding - now that could prove to be quite difficult. This ACOG is configured with a Picatinny-compatible mount, and a dual illuminated green chevron reticle that's calibrated for 7.62x51/M80 ammunition. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy
- Waterproof: nitrogen purged and fully sealed for all-weather reliability. Submersible to 500'/152 m
- Use and Handling
-
- Flat-top rail adapter: specific to the 6x48 ACOG, compatible with Mil-Std 1913 Picatinny rails, features two Colt-style thumbscrews
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target

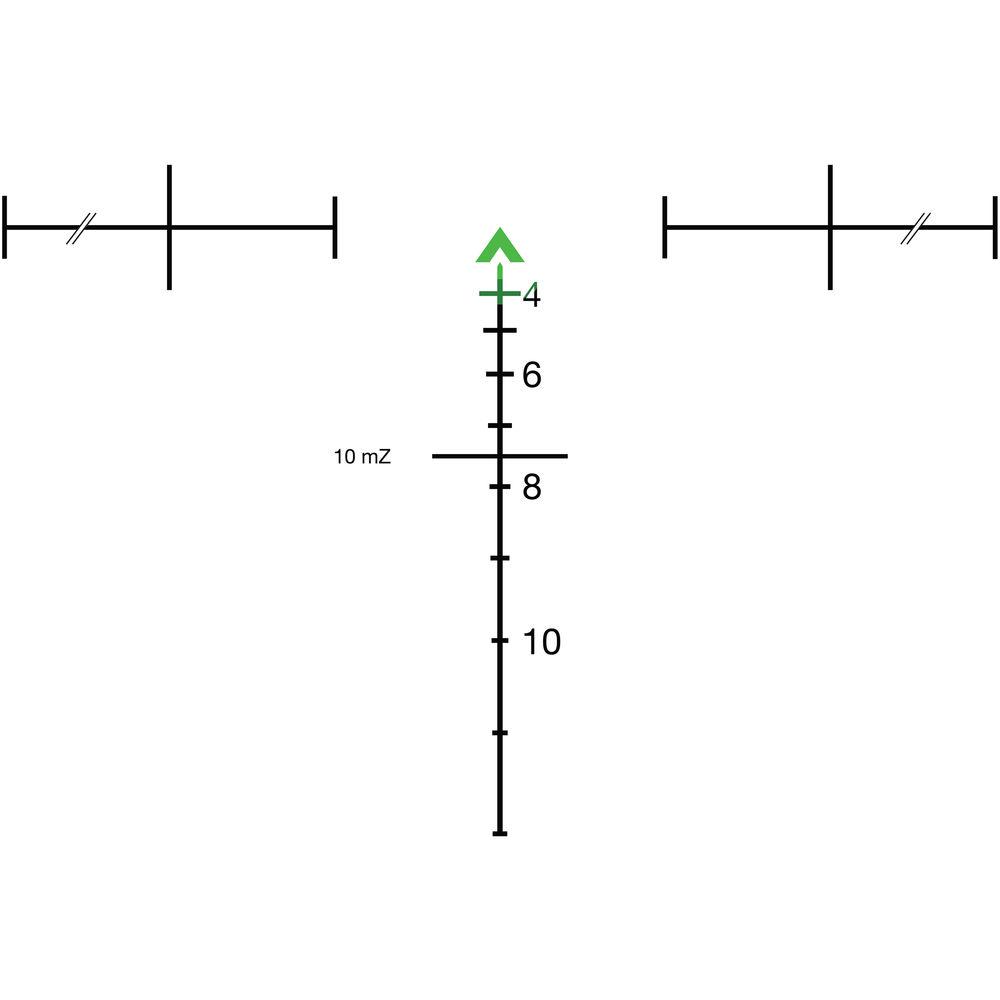

- Green chevron reticle: calibrated for 7.62x51/M80 - an illuminated chevron indicates the exact point of aim. Stadia at 3 and 9 o'clock offer hold-off points for moving targets. The 6 o'clock stadia features hold-over hash-marks for distances up to 1200 m
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the chevron with a highly-visible green glow
In the Box Trijicon 6x48 ACOG Riflescope (Matte Black) ACOG 6x48 Flattop Rail Adapter fvyvzcdsfwxcedac LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 6x48 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA648-308G Specs | | | Magnification | 6x | | Objective Lens Diameter | 48 mm | | Field of View | 17' @ 100 yd / 56.5 m @ 100 m | | Exit Pupil Diameter | 8 mm | | Eye Relief | 2.7" / 69 mm | | | | Reticle Type | 7.62x51/M80 Chevron Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof to 500' / 152 m | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 9" / 22.9 cm | | Weight | 36.9 oz / 1.1 kg |
