User Manual for Trijicon AccuPin Bow Sight with AccuDial Mount Click to enlarge the picture
Contents of the user manual for the Trijicon AccuPin Bow Sight with AccuDial
- Product category: Iron & Night Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Iron & Night Sights
 |
User manual for the Trijicon AccuPin Bow Sight with AccuDial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

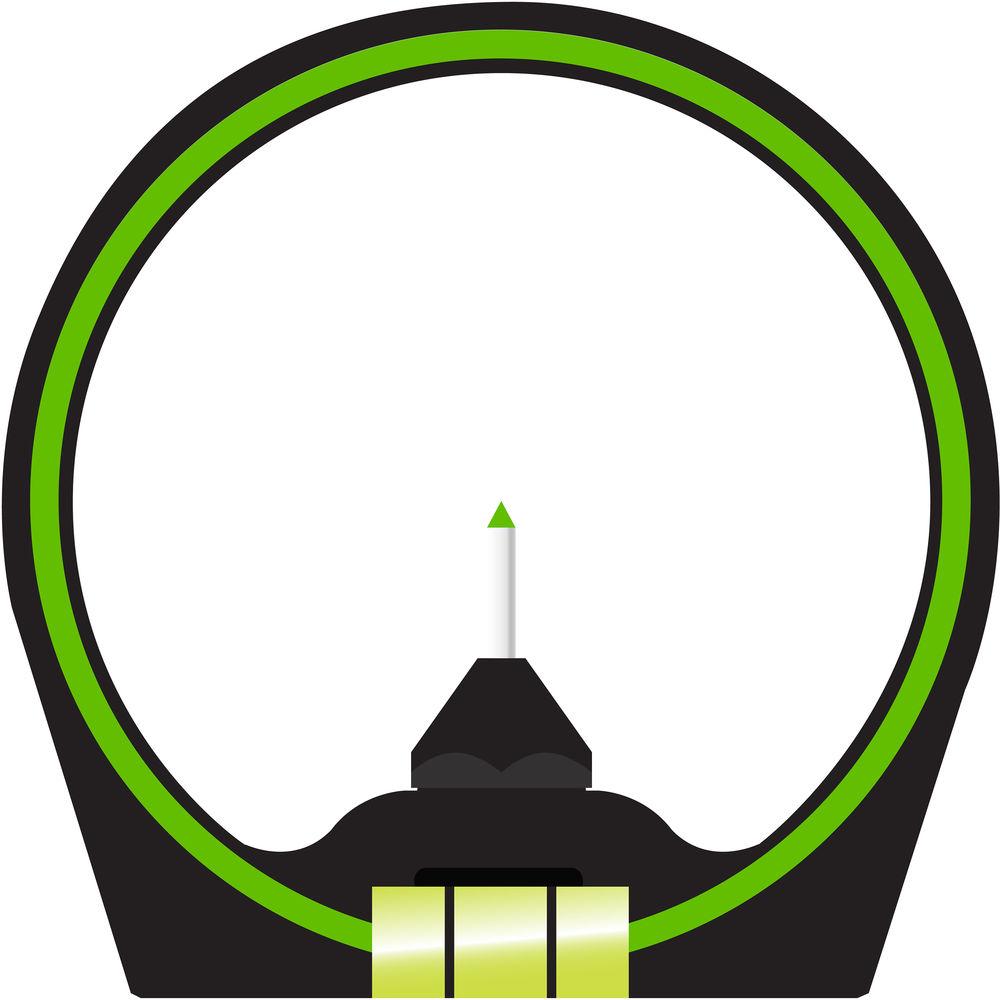

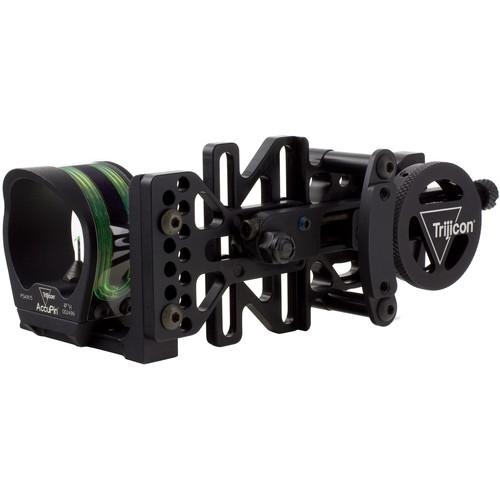

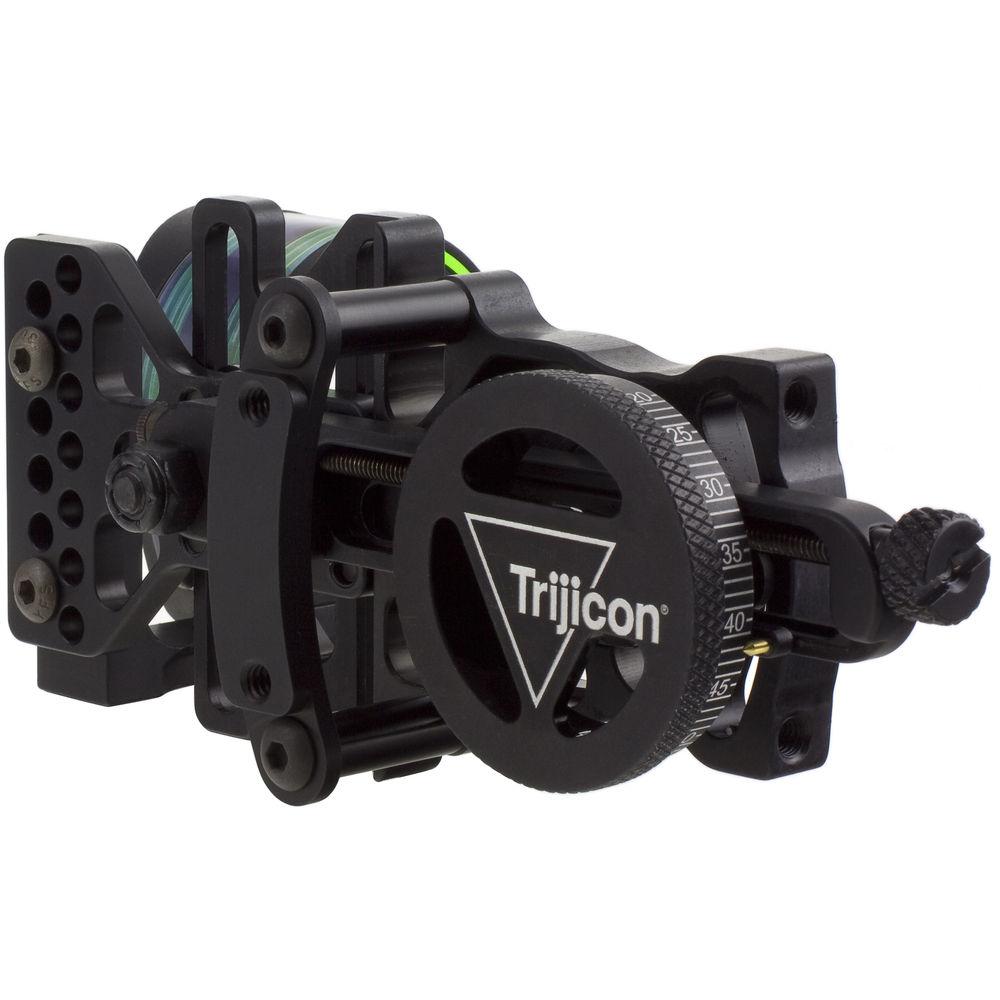

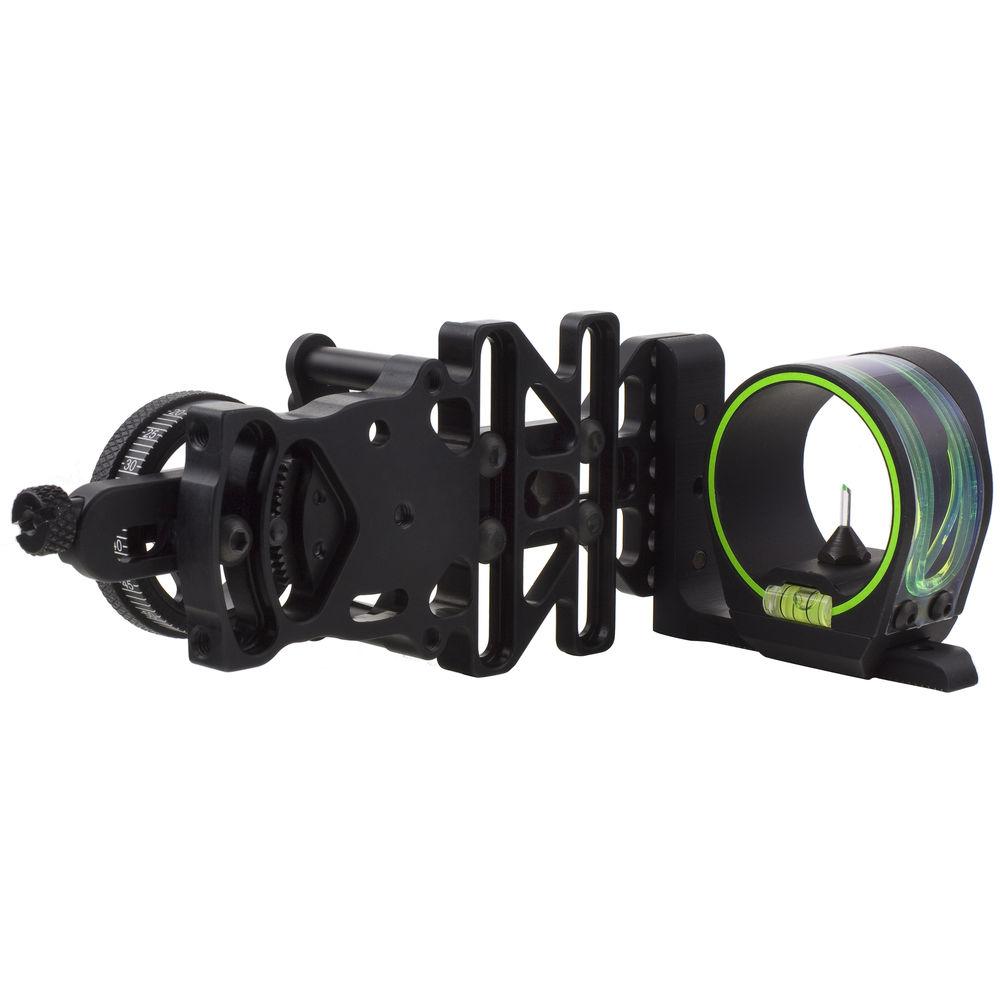

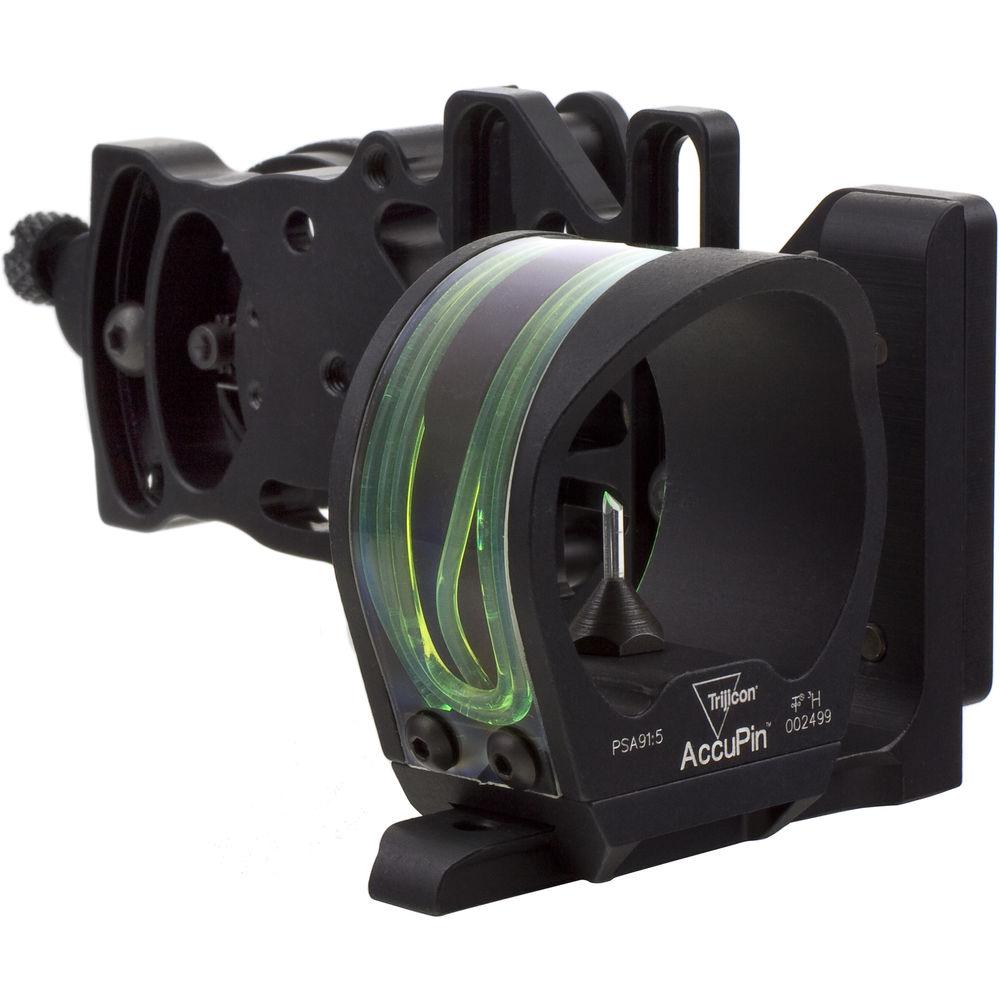

Product description The AccuPin Bow Sight with AccuDial Mount - Combo from Trijicon mates the awesome technology of the AccuPin Bow Sight with the stability and accurate ranging of the AccuDial Mount. This is a pair that brings bow shooting to new heights of accuracy.The AccuPin Bow Sight utilizes a single triangular aiming tip and clear aiming pin. This unique design affords precision aiming without obstruction being caused by the aiming pins. It points to the target instead of obscuring it. Then there's the impressive dual illumination system that provides the green tip with glow regardless of the low light conditions and without any batteries. The combination of fiber optics and tritium is a unique engineering feat providing a glowing pin tip in the toughest conditions. The AccuPin is allowed in competitions by the Pope & Young bow hunting and conservation club.This AccuDial Mount is a left-handed mount equipped with BowSync technology. It has an infinitely variable transmission and enables accurate range adjustment for any bow/arrow speed combination. It has a laser etched dial, making on-the-fly adjustments quick and accurate. The AccuDial, with its brass indicator pin, comes with a Matte Black finish; to match a variety of bows and is guaranteed for life.The AccuDial Mount accepts Trijicon AccuPin sight, side-mounted apertures / scope which utilizes #10-32 studs, or sights with Weaver or MIL-STD-1913 (Picatinny) bases. - Anodized coating protects against corrosion and outside elements
- Completely enclosed sight level helps level out for those perfect shots
- Housing made of aircraft grade aluminum provides tough, long lifetime
- Field replaceable pin makes replacement quick and easy with simple finger tightening
- High impact shade shield furnishes a high visibility aiming circle for optimal aiming point acquisition and protection
- Tritium-Phosphor lamp and fiber optics dual-illumination extends the glow of the reticle in any light condition without the need for batteries
- Shock is equal to 200 Gs providing extra strength and power
- The gears and hardware are blackened stainless steel for durability
- The housing is made from anodized aircraft grade aluminum for strength and durability
In the Box Trijicon AccuPin Bow Sight with AccuDial Mount (Left Handed) Sight Bracket Rail Adapter Limited Lifetime Warranty Tritium Lamp: Warranted to Glow for Twelve Years from the Date of Original Manufacture Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPin Bow Sight with AccuDial Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon BW51G-BL Specs | Magnification | 1x | | Aperture | Single Pin | | Hand Orientation | Left-Handed | | Illumination System | Fiber Optics and Tritium | | Reticle | Triangle | | Sight Window | 1.77" / 45 mm | | Shock | 350 G's | | Adjustment Functions | Range (Bow Speed): 245-335'/sec / 74.7-102.1 m/sec
Range to Target: 0-80+ yd / 0-73+ m
Increments (Range to Target): 1 yd / 0.9 m | | Operating Temperature | -31° to 176°F / -35° to 80°C | | Materials | Aluminum with anodized coating | | Finish | Matte Black | | Dimensions | 6.0 x 3.7 x 2.8" / 15.2 x 9.4 x 7.1 cm | | Weight | 10.29 oz / 292 g |
