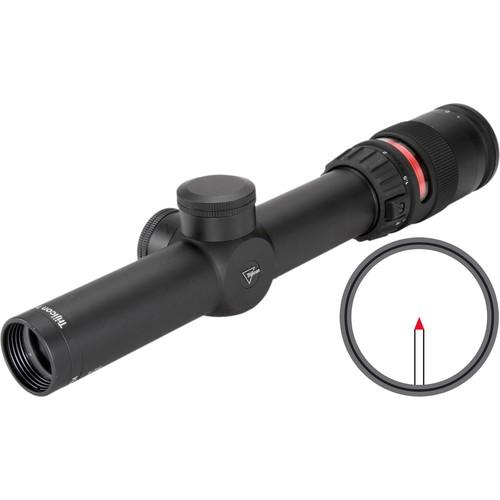

User Manual for Trijicon AccuPoint 1-4x24 Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon AccuPoint 1-4x24 Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon AccuPoint 1-4x24 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

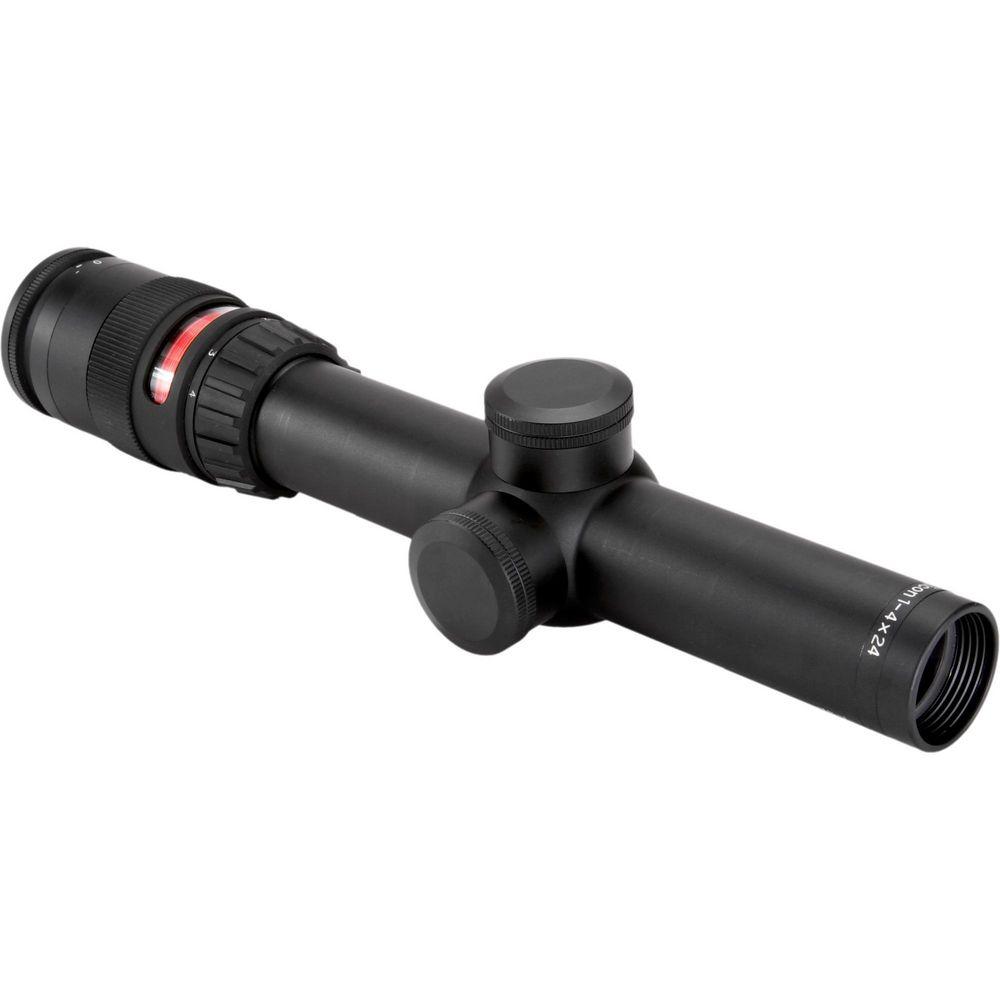

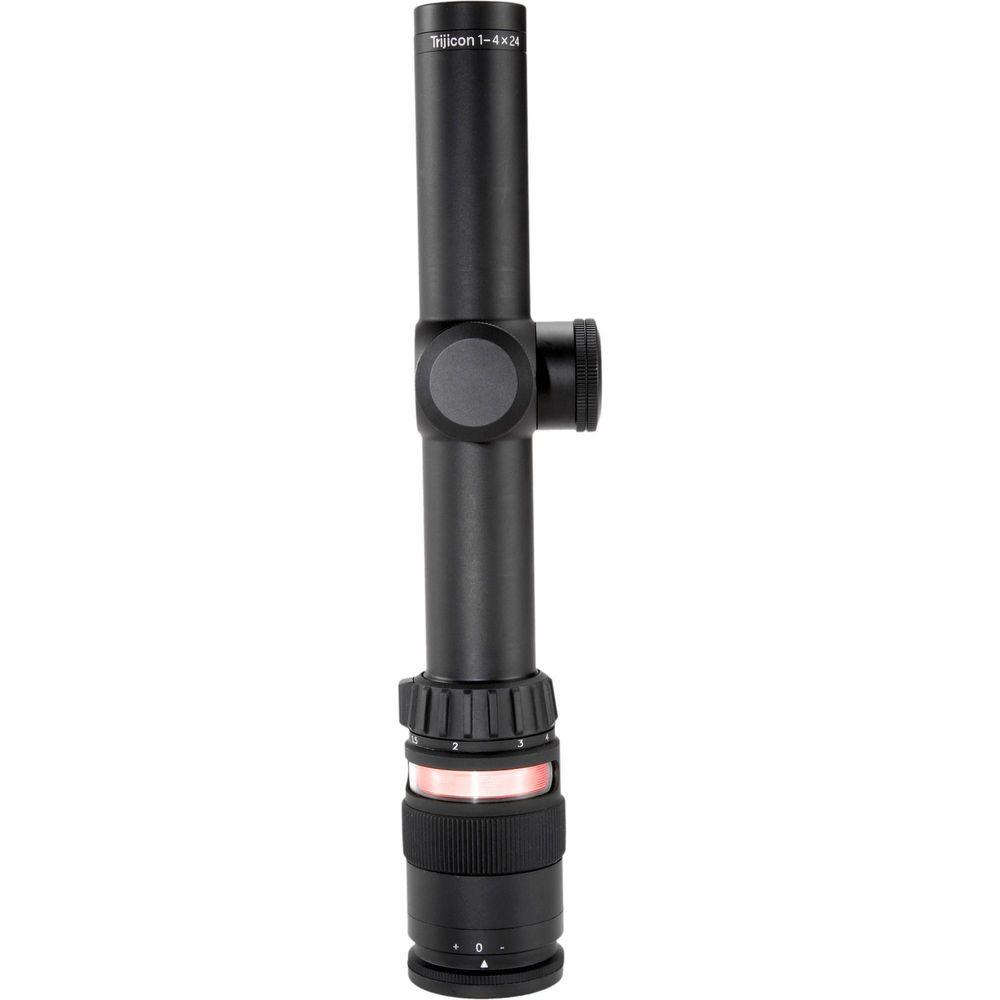

Product description Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. The AccuPoint 1-4x24 Riflescope, with its dual-illuminated reticle and generous field-of-view, delivers rapid target acquisition and the ability to lock-on to your target quickly. This AccuPoint combines a robust 30mm main-tube with a low-profile 24mm objective. The reticle is illuminated via Trijicon's proprietary fiber optic/tritium technology - no matter what time of day it is, or what kind of day it is - the aiming point will seem vibrant and vivid. When the hunt gets up-close-and-personal - this scope can be dialed down to 1x for an extremely broad FOV that will significantly improve your ability to sight-in on skittish game - even in the dense forest. Should the quarry become uncooperative and begin to bound rapidly across vast rolling prairie hills - no problemo. Just dial up to 4x, employ the both-eyes-open Bindon Aiming Concept, and you'll be back on target in a flash. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 30mm Main-Tube
- 6061-T6 Aluminum main-tube is waterproof to 10'
- Mil-Spec Finish
- Type III hard anodized per MIL-A-8625 , Class 2 dull & non reflective
- Multi-Layer Coated Lenses
- Provide superior clarity, zero distortion, flare/glare reduction
- BAC - Bindon Aiming Concept
- The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target.
- Fiber Optics and Tritium Illumination
- Proprietary battery-free technology provides a vivid aiming point without the need for failure-prone batteries

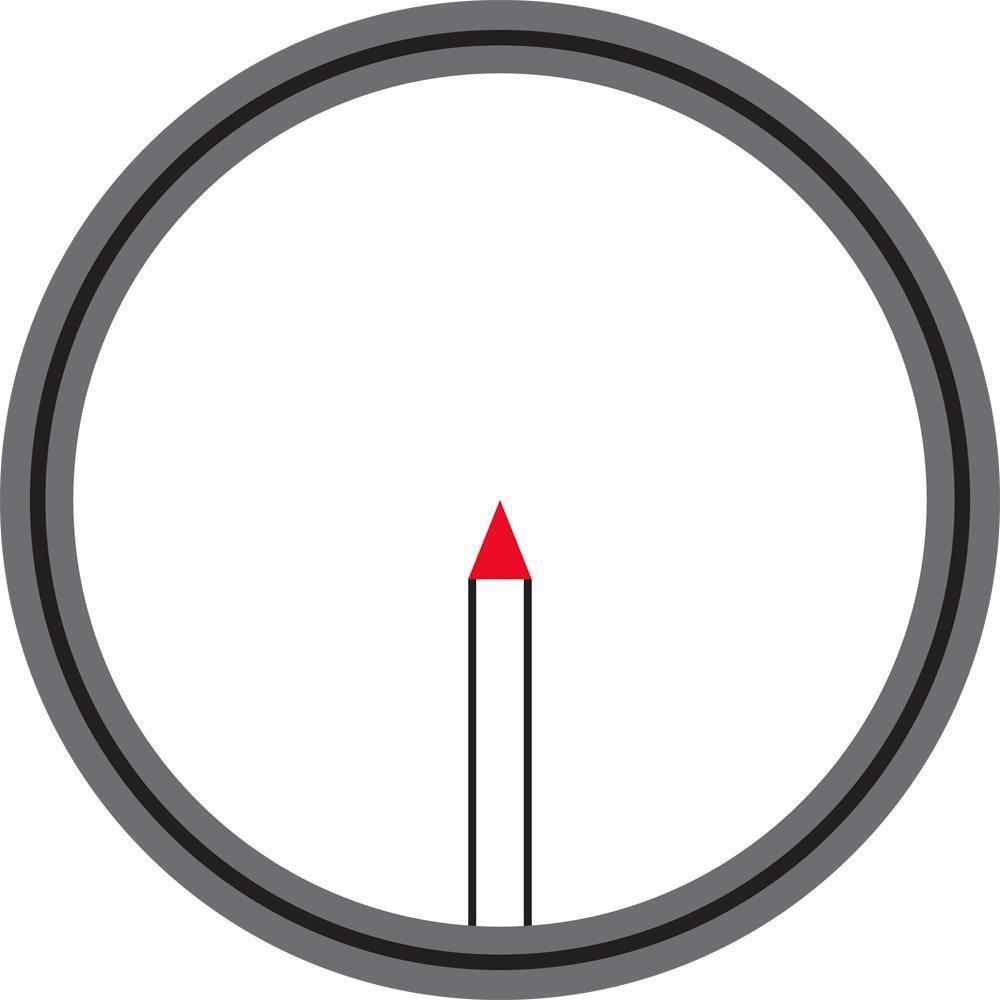

- Dual-Illuminated Red Triangle Reticle
- A brilliant red triangle sits atop a single hollow post at the 6-o'clock position.
The reticle is illuminated though the use of fiber optics and tritium, providing a vivid aiming point without the need for failure-prone batteries. UPC: 719307400290 In the Box Trijicon AccuPoint 1-4x24 Riflescope (Matte Black) LensPen - TA56 eyxbsvdzszrfru Weatherproof Logo Sticker Pair of Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPoint 1-4x24 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR24R Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 97.5' @ 100 yd / 32.4 m @ 100 m
4x: 24.2' @ 100 yd / 8 m @ 100 m | | Exit Pupil Diameter | 1x: 17.5 mm
4x: 5.1 mm | | Eye Relief | 3.2" / 81 mm | | | | Reticle Type | Triangle Reticle | | Illuminated Color | Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 10.2" / 25.9 cm | | Weight | 14.4 oz / 408 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 15.6 x 5.2 x 3.7" |
