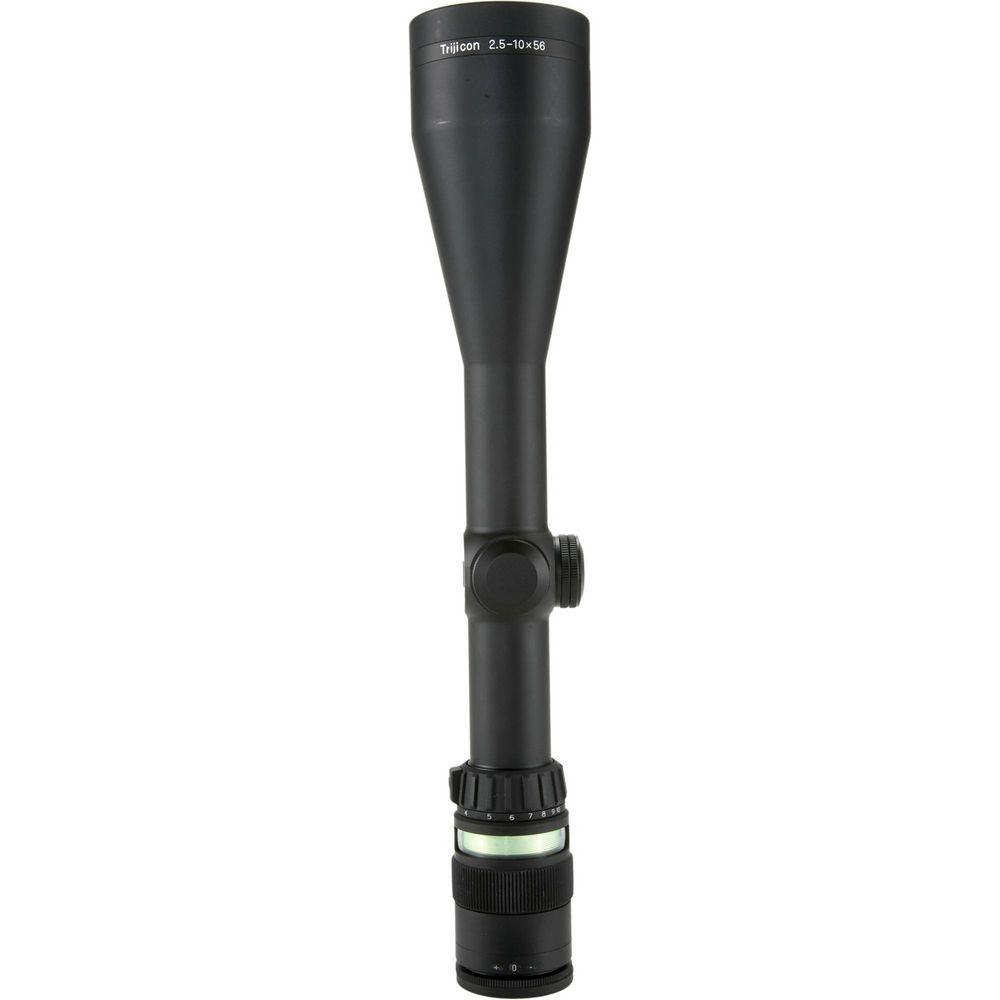

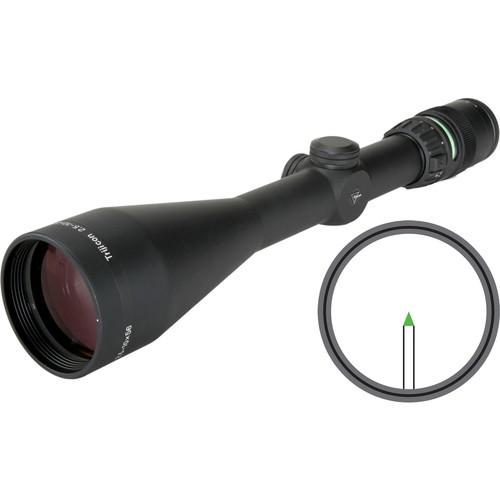

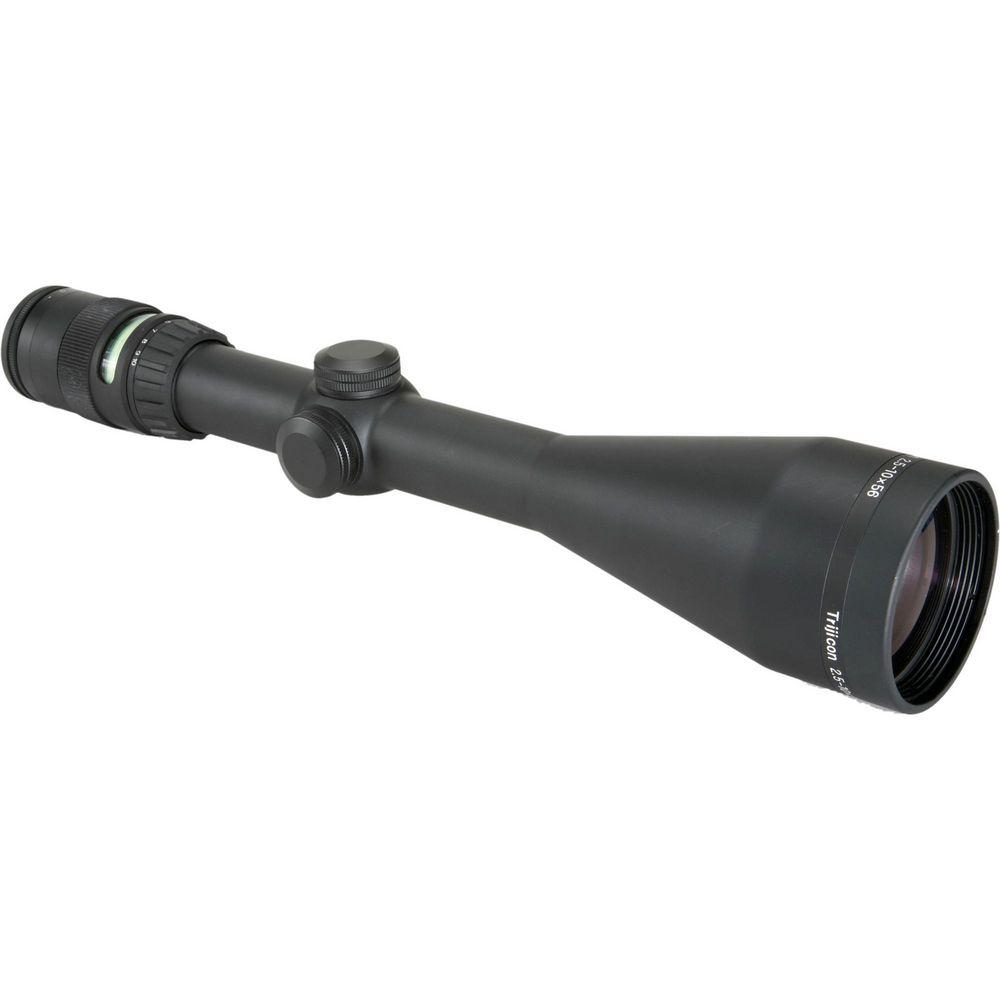

Trijicon AccuPoint 2.5-10x56 Riflescope

Search your instruction manual in PDF to download

User Manual for Trijicon AccuPoint 2.5-10x56 Riflescope

Click to enlarge the picture
Trijicon AccuPoint 2.5-10x56 Riflescope Contents of the user manual for the Trijicon AccuPoint 2.5-10x56 Riflescope
  • Product category: Riflescopes Trijicon
  • Brand: Trijicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Trijicon Riflescopes

Trijicon AccuPoint 2.5-10x56 Riflescope Trijicon AccuPoint 2.5-10x56 Riflescope Trijicon AccuPoint 2.5-10x56 Riflescope
User manual for the Trijicon AccuPoint 2.5-10x56 Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Trijicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!



Product description

  • Product Demo
Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. Some hunters need to take the time-tested performance of the venerable 3-9x40 up a notch or two, so Trijicon proudly presents the impressive 2.5-10x56 AccuPoint Riflescope. With this scope you'll realize a significant improvement in twilight performance with a moderately improved range of magnification - the stout 30mm main-tube provides a notable increase in stability and durability. The reticle is illuminated via Trijicon's proprietary tritium/fiber optic technology to ensure your ability to establish your point of aim under all conditions. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation.
    30mm Main-Tube
  • 6061-T6 Aluminum main-tube is waterproof to 10'
    Mil-Spec Finish
  • Type III hard anodized per MIL-A-8625 , Class 2 dull - non reflective
    Multi-Layer Coated Lenses
  • Provide superior clarity, zero distortion, flare/glare reduction
    Fiber Optics and Tritium Illumination
  • Proprietary battery-free technology provides a vivid aiming point without the need for failure-prone batteries

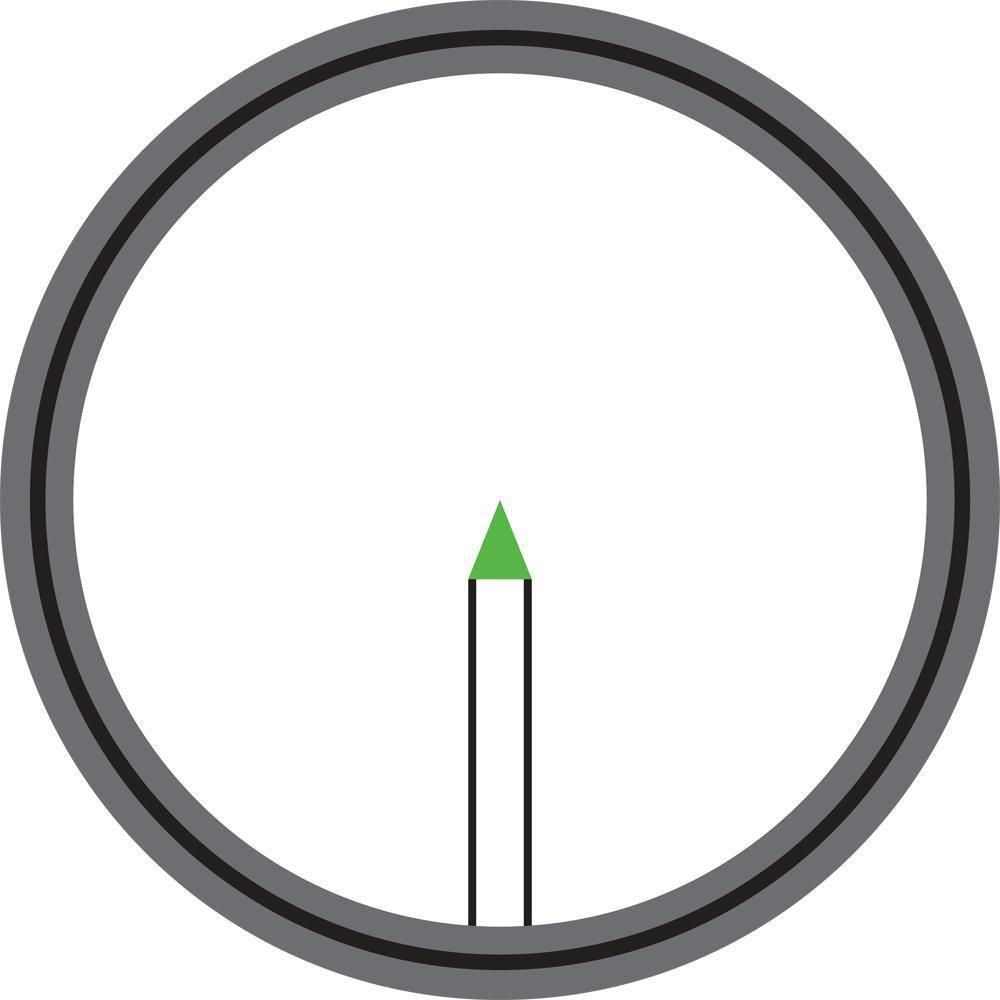

    Dual-Illuminated Green Triangle Reticle
  • A brilliant green triangle sits atop a single hollow post at the 6-o'clock position.
    The reticle is illuminated through the use of fiber optics and tritium, providing a vivid aiming point without the need for failure-prone batteries.
UPC: 719307400443 In the Box Trijicon AccuPoint 2.5-10x56 Riflescope (Matte Black)
  • LensPen - TA56 euczbvdbbbubdrwsbeczwueatxrttrxbx
  • Weatherproof Logo Sticker
  • Pair of Lens Caps
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Trijicon AccuPoint 2.5-10x56 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Trijicon TR22G Specs

    Magnification 2.5 to 10x
    Objective Lens Diameter 56 mm
    Field of View 2.5x: 37.6' @ 100 yd / 12.5 m @ 100 m
    10x: 10.1' @ 100 yd / 3.4 m @ 100 m
    Exit Pupil Diameter 2.5x: 16.3 mm
    10x: 5.6 mm
    Eye Relief 2.8 to 4.1" / 71 to 104 mm
    Reticle Type Triangle Reticle
    Illumination Illuminated
    Illuminated Color Green
    Impact Point Correction 1/4 MOA per Click
    Windage Adjustment 40 MOA
    Elevation Adjustment 40 MOA
    Water Resistance Waterproof to 10' / 3 m
    Maintube Diameter 30 mm
    Battery None
    Dimensions Length: 13.8" / 349.6 mm
    Weight 20.7 oz / 627 g
    Package Weight 2.45 lb
    Box Dimensions (LxWxH) 15.6 x 5.4 x 3.6"
