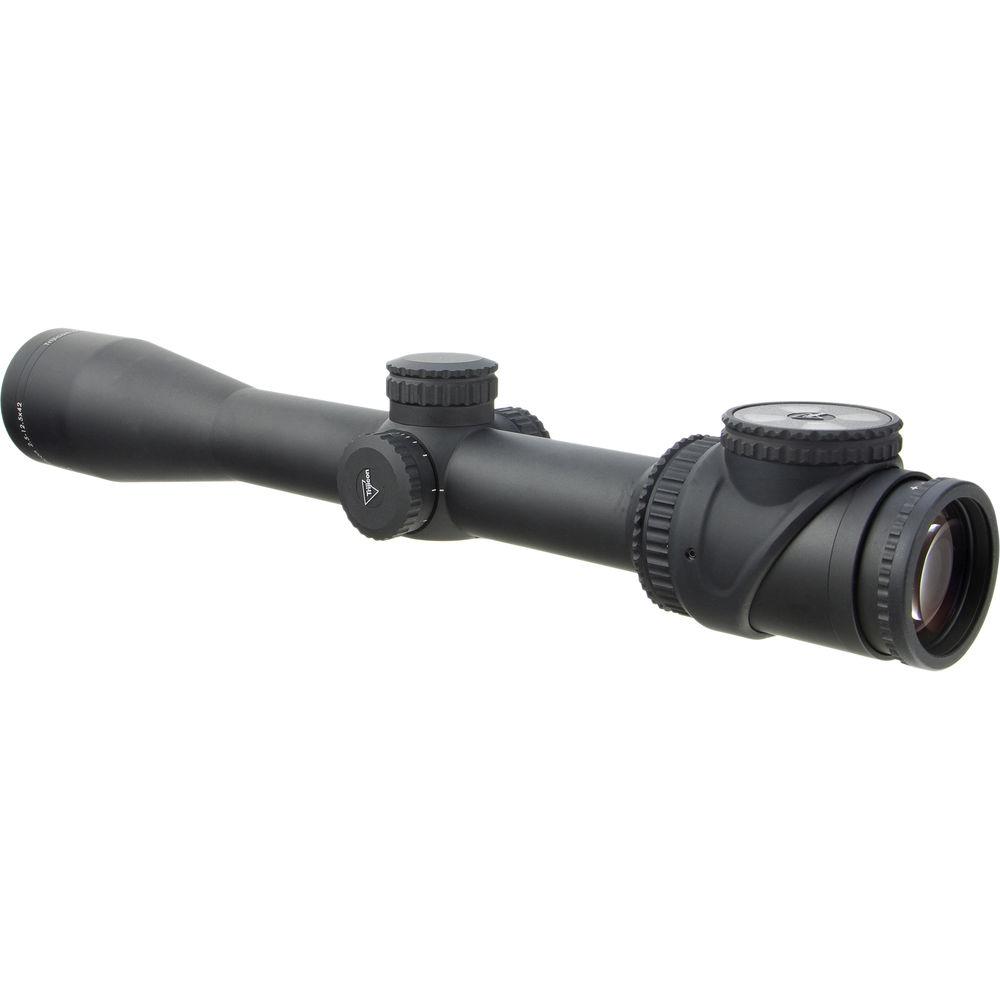

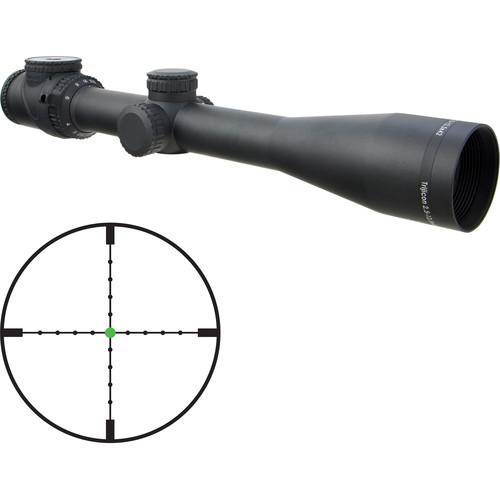

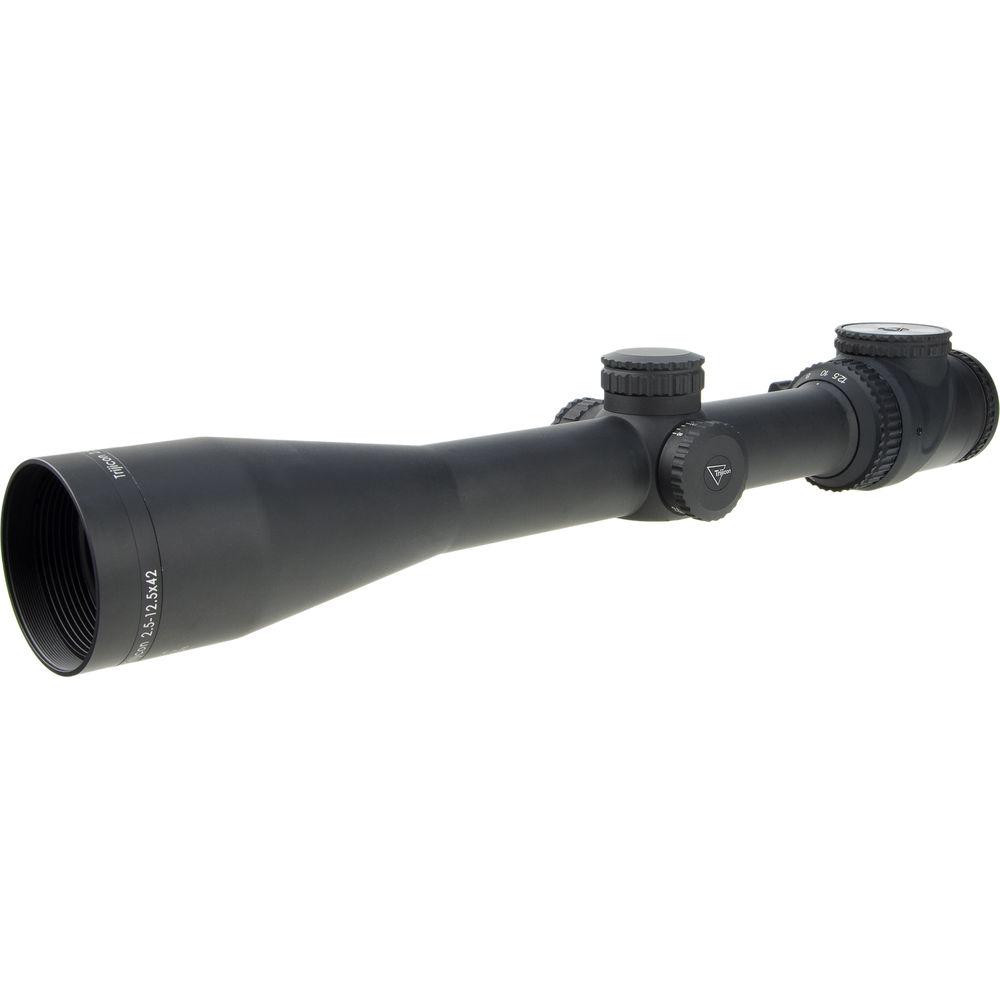

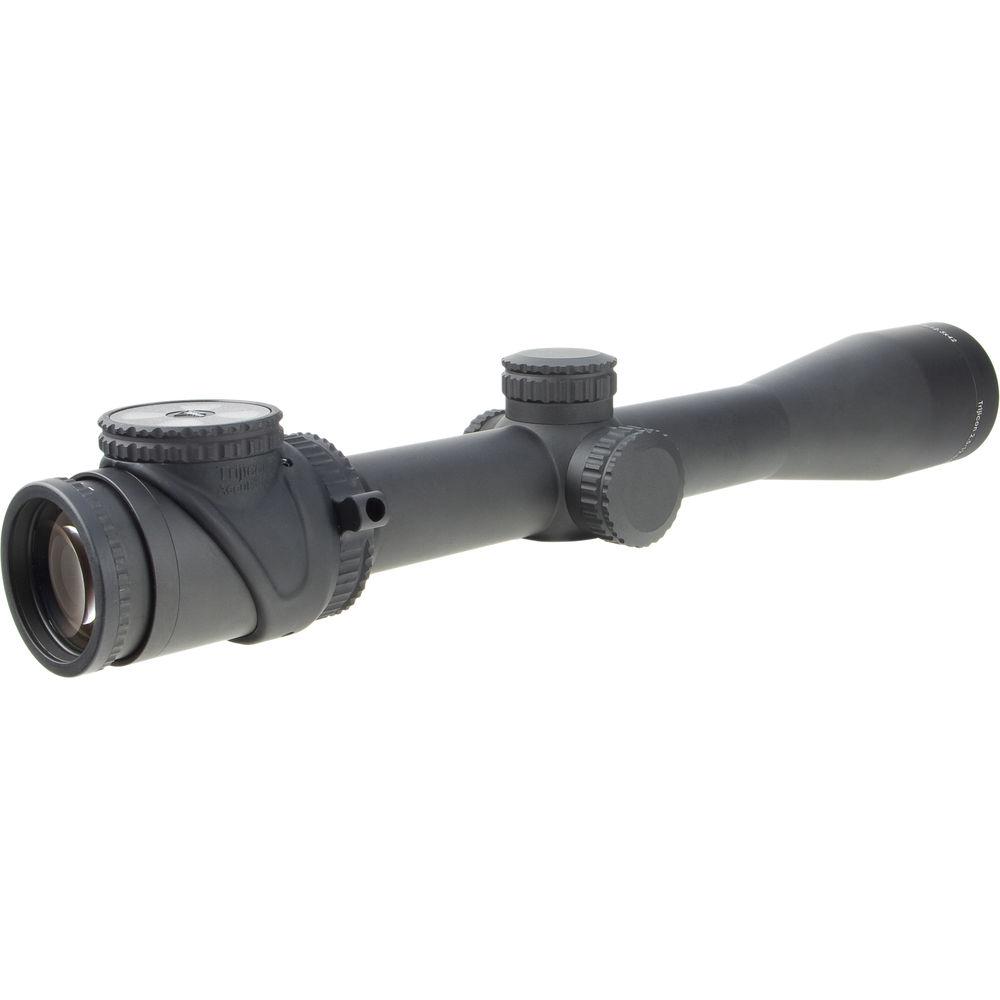

Product description Trijicon engineered the AccuPoint 2.5-12.5x42 Riflescope as a riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high quality optical glass and polished for low-distortion performance. To expand the range of your effectiveness to most lighting conditions like dusk or dawn, the riflescope also features a wide 42mm objective lens. To empower you with laser precision when making your shots, the optic is enhanced with the Green Mil-Dot Reticle Illuminated Reticle. It offers four posts, fine illuminated center dot, and 10 x 10 mil crosshair with 0.2 mil tick round tick marks. The center dot features fiber optic day illumination with variable brightness and a tritium lamp for illumination at night.

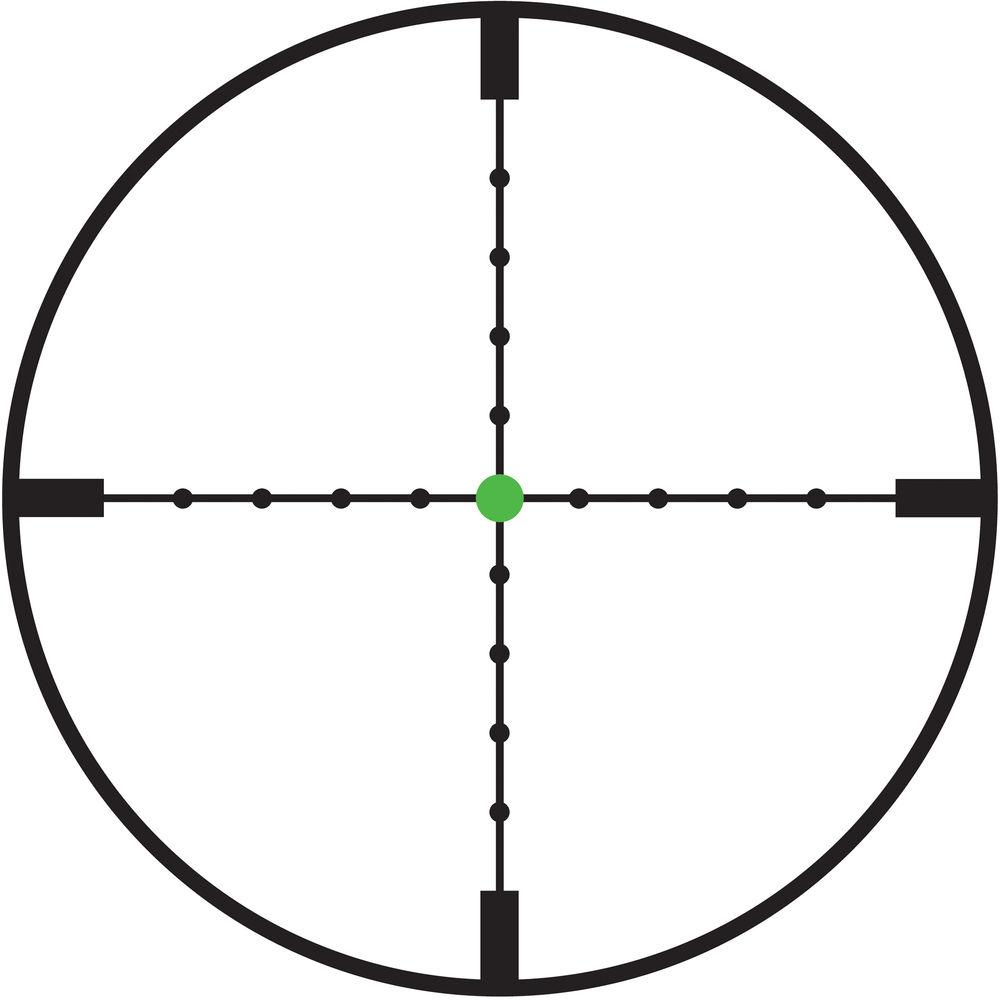

The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 30mm maintube, lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled easy-focus eyepiece features a long 3.9" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. Green Mil-Dot Crosshair -
- 2nd focal plane
- 0.05 mil thick crosshair
- 0.2 mil round tick marks
- Tick marks are spaced at 1 mil intervals
- Four posts are 0.3 mil thick
- 0.09 mil illuminated center dot
- The crosshair is 10 x 10 mil
- Daytime fiber optic illumination with variable brightness
- Nighttime tritium lamp night illumination
Optical Performance -
- Multi-coated optics
- Low-distortion optical system
- Magnification: 2.5-12.5x
- 42mm objective lens delivers bright images in most conditions
- Linear field of view: 41.3-8.3' at 100 yards
- Long eye relief of 3.9"
Use and Handling -
- 0.1 mil impact point correction
- 26.7 mil windage and elevation adjustments
Construction Details -
- 30mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped finger-operated turrets
- Easy-focus eyepiece with zoom lever
- Fogproof, nitrogen-filled
- Waterproof to 10'
- Shock-resistant
UPC: 719307401860 In the Box Trijicon AccuPoint 2.5-12.5x42 Riflescope (Green Mil-Dot Crosshair) - Trijicon Logo Sticker (PR15)
- LensPen - TA56
- 2 x Lens Caps
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPoint 2.5-12.5x42 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR26-C-200110 Specs | | | Magnification | 2.5 to 12.5x | | Objective Lens Diameter | 42 mm | | Field of View | 2.5x: 41.3' @ 100 yd / 13.8 m @ 100 m
12.5x: 8.3' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 10.6 mm
12.5x: 3.3 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | MIL Crosshair-Dot Reticle (Second Focal Plane) | | Illumination Type | Fiber Optic, Tritium | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 26.7 MIL | | Elevation Adjustment | 26.7 MIL | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.8" / 351 mm | | Weight | 22.4 oz / 635 g |
