User Manual for Trijicon AccuPoint 2.5-12.5x42 Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon AccuPoint 2.5-12.5x42 Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon AccuPoint 2.5-12.5x42 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

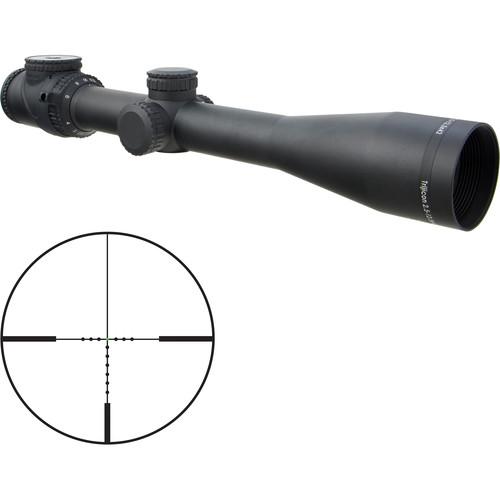

Product description Trijicon engineered the AccuPoint 2.5-12.5x42 Riflescope as a riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high quality optical glass and polished for low-distortion performance. To expand the range of your effectiveness to most lighting conditions like dusk or dawn, the riflescope also features a wide 42mm objective lens. To empower you with laser precision when making your shots, the optic is enhanced with the Green MOA-Dot Reticle Illuminated Reticle. It offers three posts, fine illuminated center dot, and crosshair with 0.65 MOA thick round tick marks. The center dot features fiber optic day illumination with variable brightness and a tritium lamp for illumination at night.

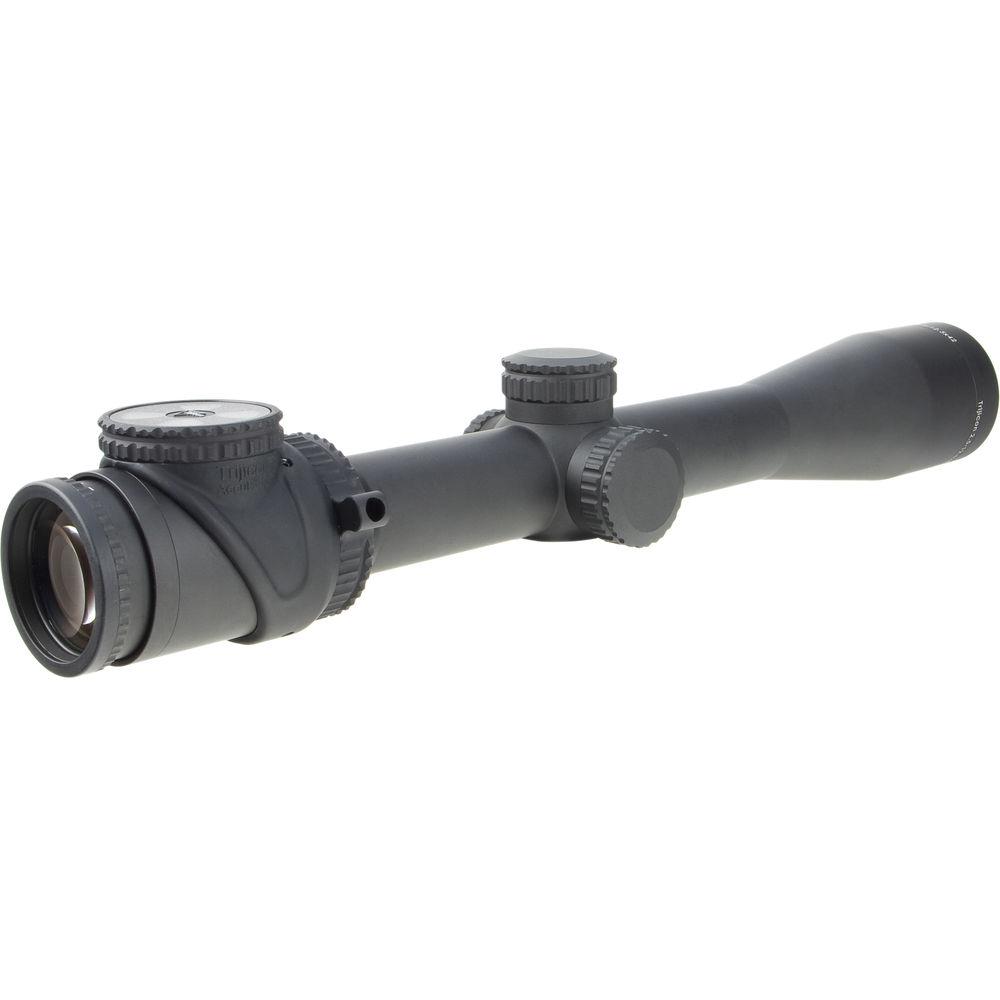

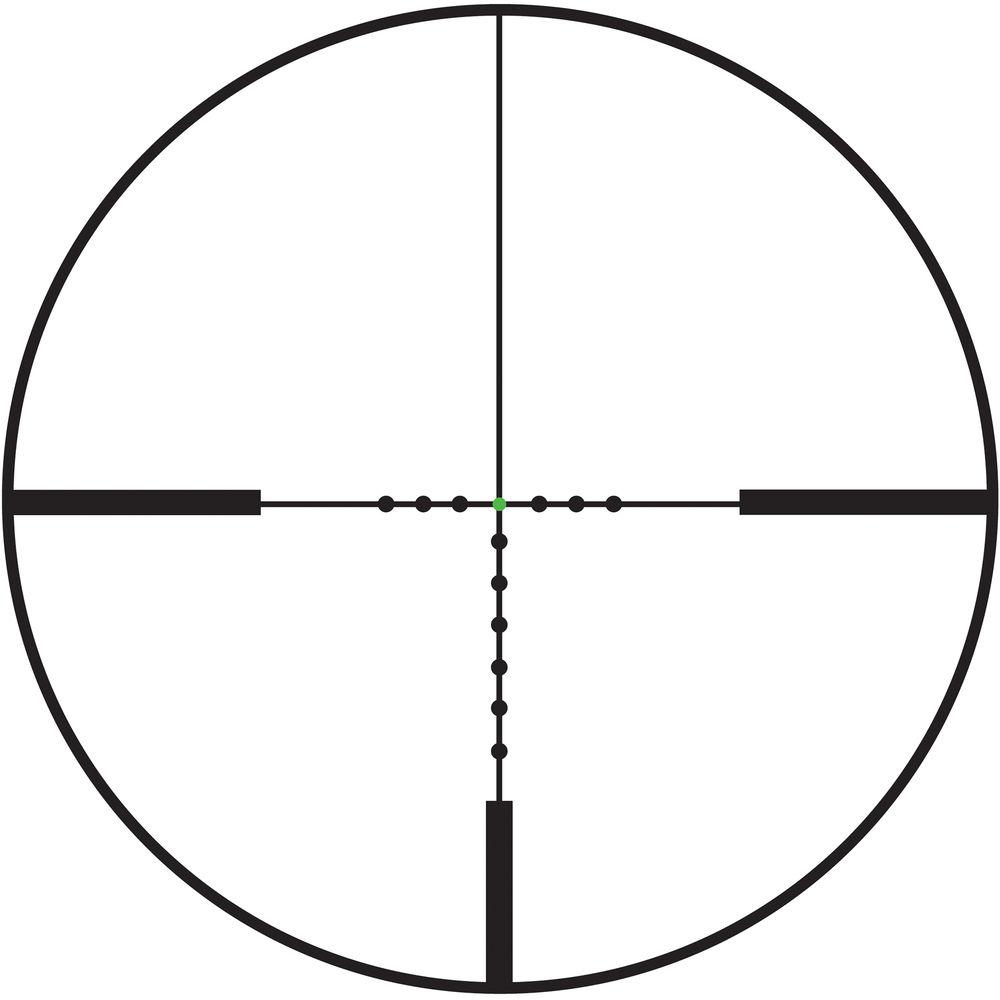

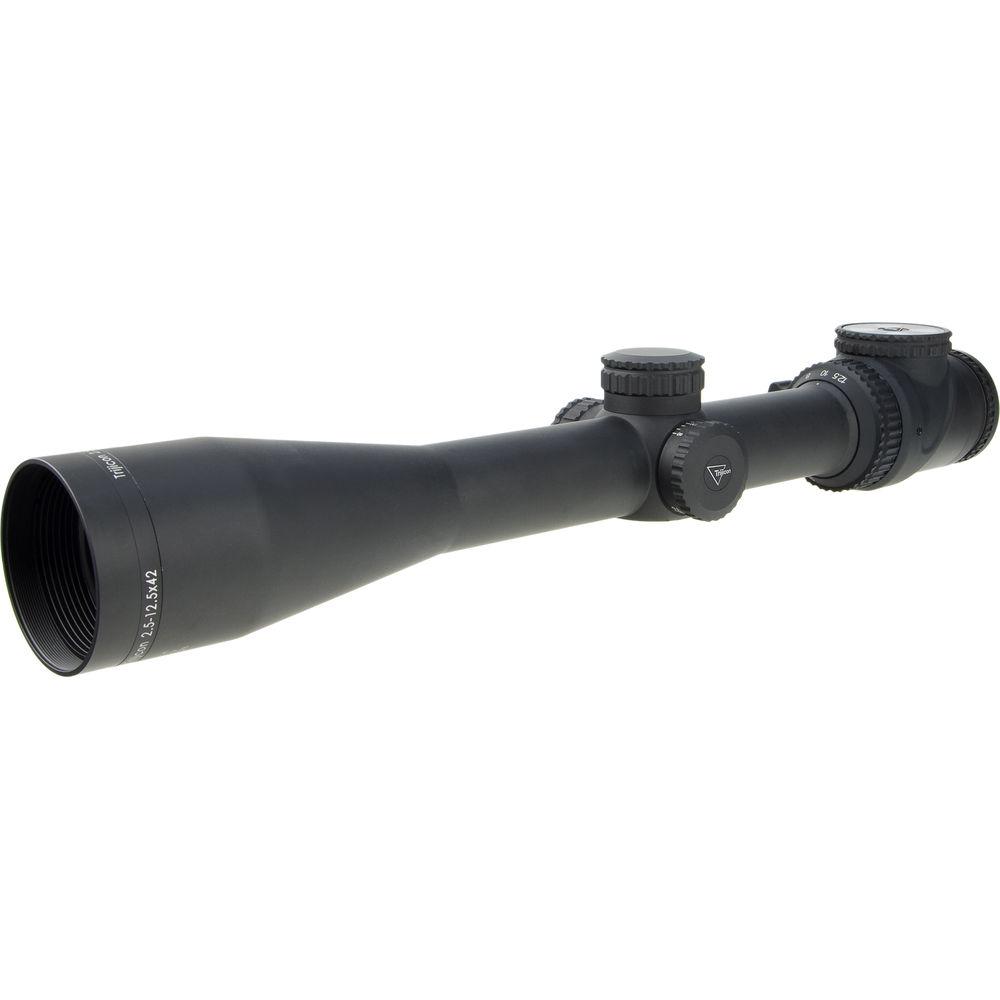

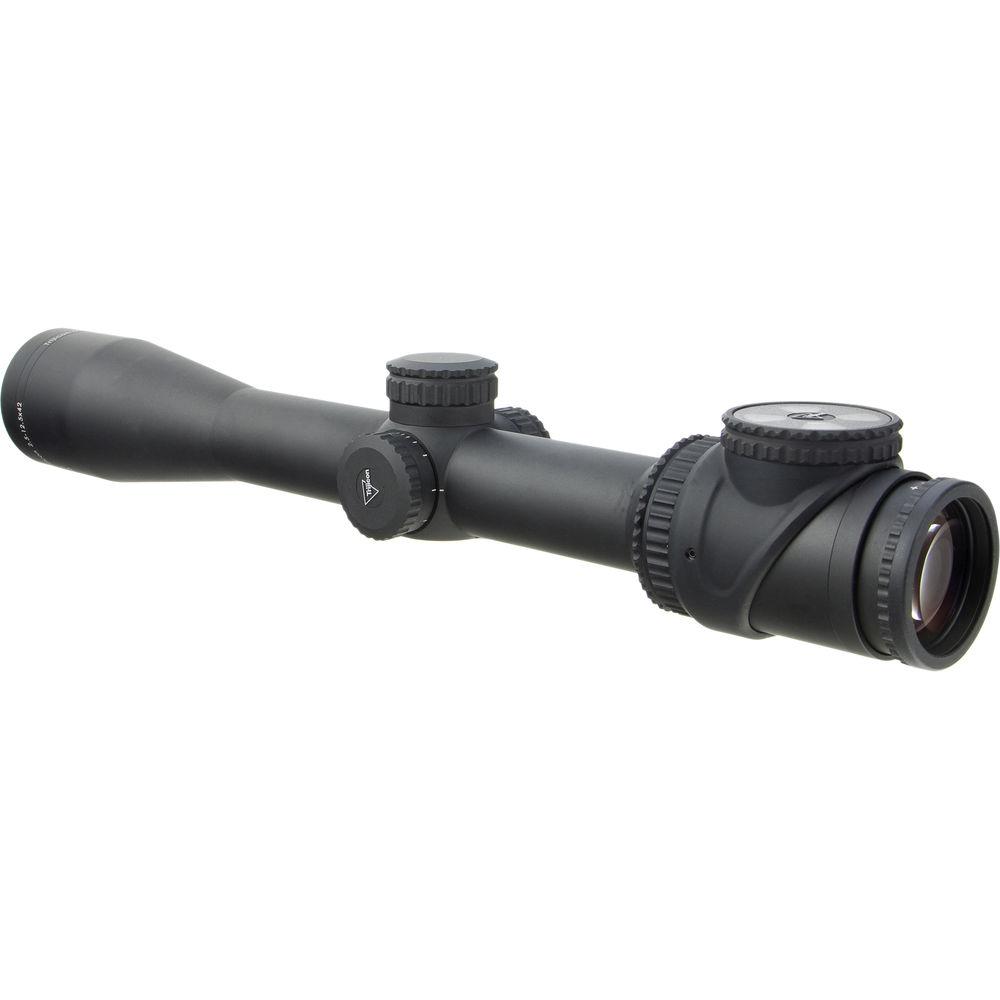

The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 30mm maintube, lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled easy-focus eyepiece features a long 3.9" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. Green MOA-Dot Crosshair -
- 2nd focal plane
- 0.16 MOA thick crosshair
- 0.65 MOA thick round marks
- Tick marks are spaced at 2 MOA intervals
- Three posts are 1 MOA thick
- 0.3 MOA illuminated center dot
- Fiber optic day illumination with variable brightness
- Tritium lamp night illumination
Optical Performance -
- Multi-coated optics
- Low-distortion optical system
- Magnification: 2.5-12.5x
- 42mm objective lens delivers bright images in most conditions
- Linear field of view: 41.3-8.3' at 100 yards
- Long eye relief of 3.9"
Use and Handling -
- 1/4 MOA impact point correction
- 90 MOA windage and elevation adjustments
Construction Details -
- 30mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped finger-operated turrets
- Easy-focus eyepiece with zoom lever
- Fogproof, nitrogen-filled
- Waterproof to 10'
- Shock-resistant
UPC: 719307401808 In the Box Trijicon AccuPoint 2.5-12.5x42 Riflescope (Green MOA-Dot Crosshair) - Trijicon Logo Sticker (PR15)
- LensPen - TA56
- 2 x Lens Caps
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPoint 2.5-12.5x42 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR26-C-200104 Specs | | | Magnification | 2.5 to 12.5x | | Objective Lens Diameter | 42 mm | | Field of View | 2.5x: 41.3' @ 100 yd / 13.8 m @ 100 m
12.5x: 8.3' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 2.5x: 10.6 mm
12.5x: 3.3 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | MOA Dot Crosshair Reticle (Second Focal Plane) | | Illumination Type | Fiber Optic, Tritium | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.8" / 351 mm | | Weight | 22.4 oz / 635 g |
