User Manual for Trijicon AccuPoint 5-20x50 Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon AccuPoint 5-20x50 Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon AccuPoint 5-20x50 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

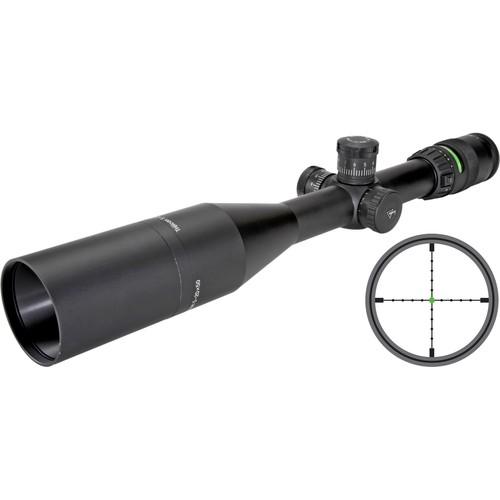

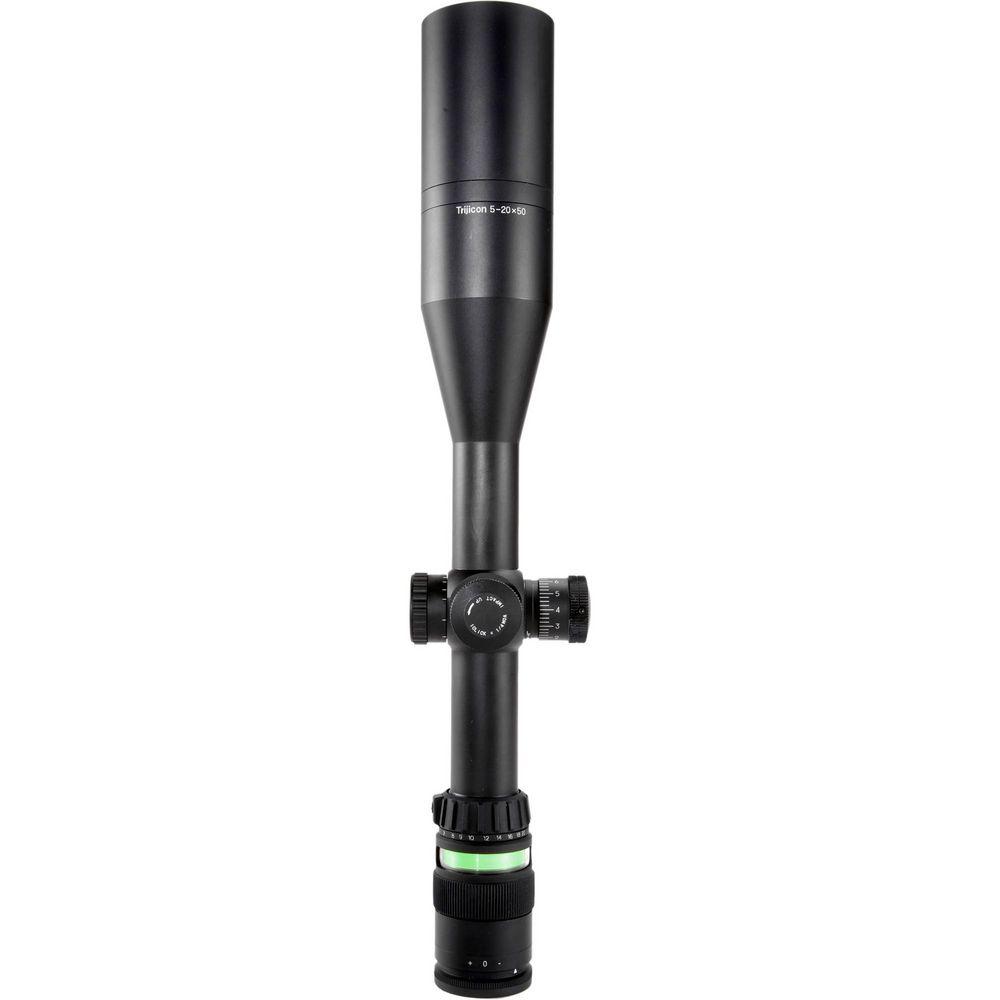

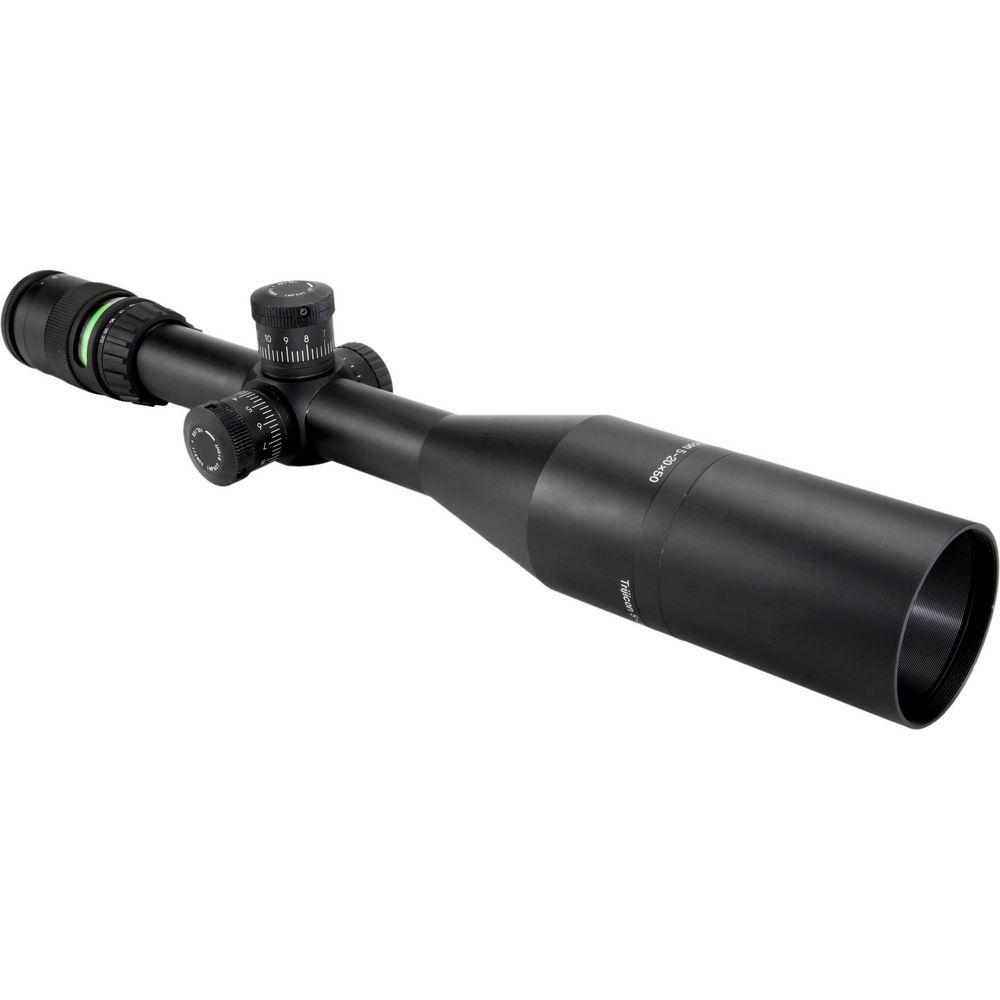

Product description Trijicon produces battle-proven aiming systems that deliver rapid target acquisition and increased hit potential under any lighting conditions. Their self-luminous aiming systems empower you to execute any shot with complete confidence in bright light, low light or no light at all. With a stunning magnification range, a 30mm tube, and an impressive objective, the AccuPoint 5-20x50 looks mighty serious while delivering the power needed to get on target across long distances. This fine optic is also graced with a very handy third turret that re-focuses the reticle to eliminate parallax error. Sighting during twilight conditions is enhanced considerably by the remarkable 50mm objective, while the dual tritium/fiber optic reticle illumination system provides a vibrant aiming point under any conditions. A mounting base and rings are used to attach a riflescope to a firearm. A comfortable sight picture is contingent upon the height of the rings. A comfortable cheek-weld is the result of properly positioning the scope over the receiver. Mounting the scope close to the receiver is preferable, yet scopes with larger objectives need higher rings so the front bell can clear the barrel. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 30mm Main-Tube
- 6061-T6 Aluminum main-tube is waterproof to 10'
- Mil-Spec Finish
- Type III hard anodized per MIL-A-8625 , Class 2 dull & non reflective
- Multi-Layer Coated Lenses
- Provide superior clarity, zero distortion, flare/glare reduction
- Side-Focus Parallax Correction
- Third turret on saddle actuates parallax correction for long-range accuracy
- Fiber Optics and Tritium Illumination
- Proprietary battery-free technology provides a vivid aiming point without the need for failure-prone batteries

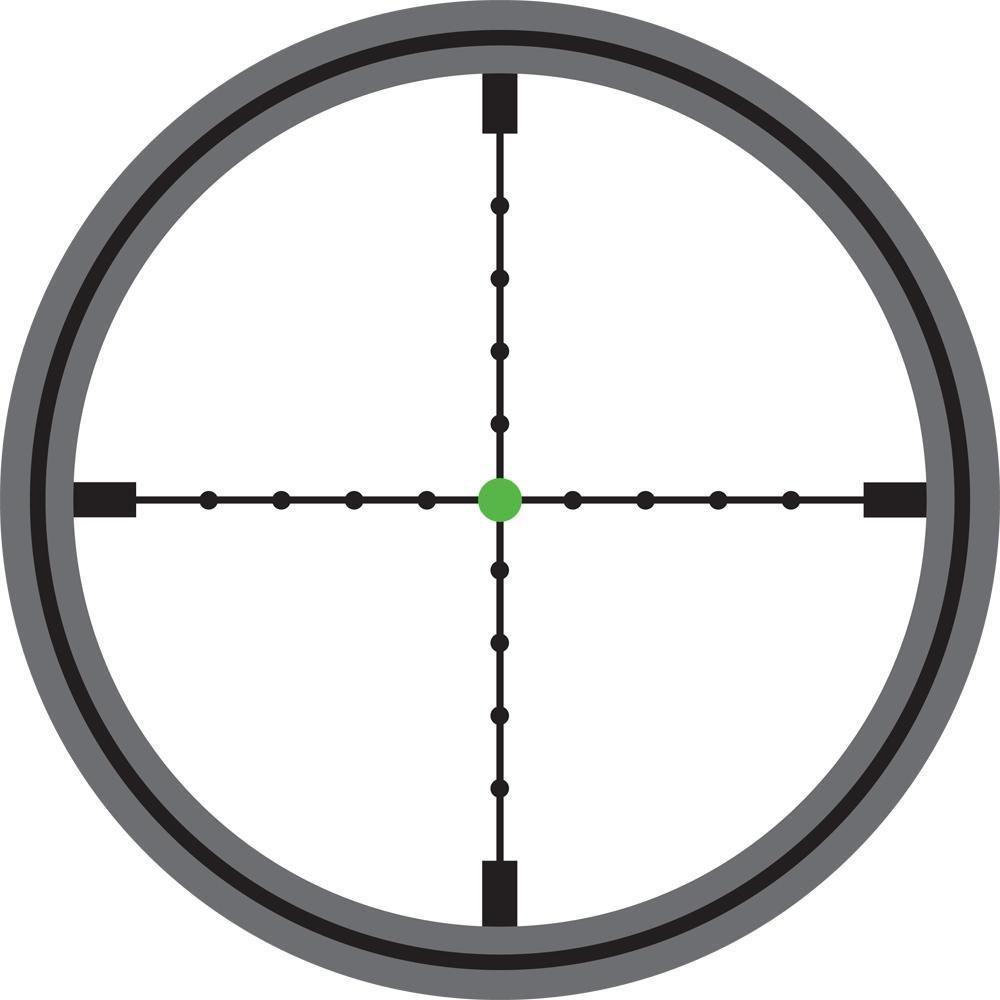

- Dual-Illuminated Mil-Dot w/Green Dot Reticle
- The Mil-Dot reticle enables long range distance calculations. A series of dots upon the cross hairs gives the shooter the ability to judge bullet drop and the proper hold over for accurate long range shot placement.Trijicon's proprietary tritium/fiber-optic illumination technology places a brilliant green dot at the intersection of the stadia. This scope has the reticle positioned in the rear or second focal plane so it will not magnify when the scope is zoomed to high power. This leaves the sight picture unobstructed for a clear view at all times. The scope must be set to 20x magnification to use the Mil-Dot system
UPC: 719307400535 In the Box Trijicon AccuPoint 5-20x50 Riflescope (Matte Black) LensPen - TA56 vbzrwtfzaquseccudctfvucdfaeuzetxer Weatherproof Logo Sticker 3.0" Sunshade Pair of Lens Caps Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPoint 5-20x50 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR23-2G Specs | | | Magnification | 5 to 20x | | Objective Lens Diameter | 50 mm | | Field of View | 5x: 19.1' @ 100 yd / 6.3 m @ 100 m
20x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 5x: 10 mm
20x: 2.5 mm | | Eye Relief | 3.8 to 4.1" / 96.5 to 104 mm | | | | Reticle Type | MIL Dot with Dot Reticle | | Illuminated Color | Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 34 MOA | | Elevation Adjustment | 34 MOA | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 13.6" / 345 mm (without Sunshade) | | Weight | 29.4 oz / 0.8 kg (with Sunshade) | | | | Package Weight | 3.31 lb | | Box Dimensions (LxWxH) | 15.95 x 5.55 x 3.8" |
