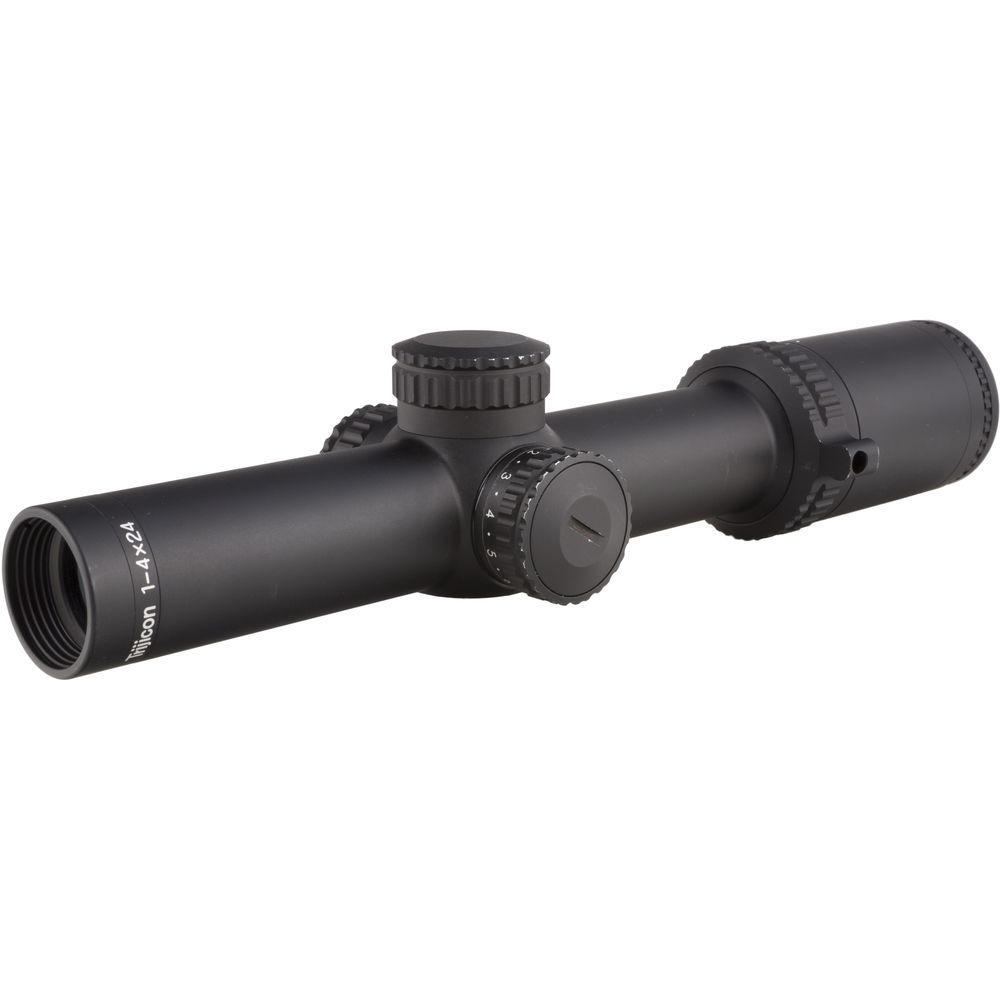

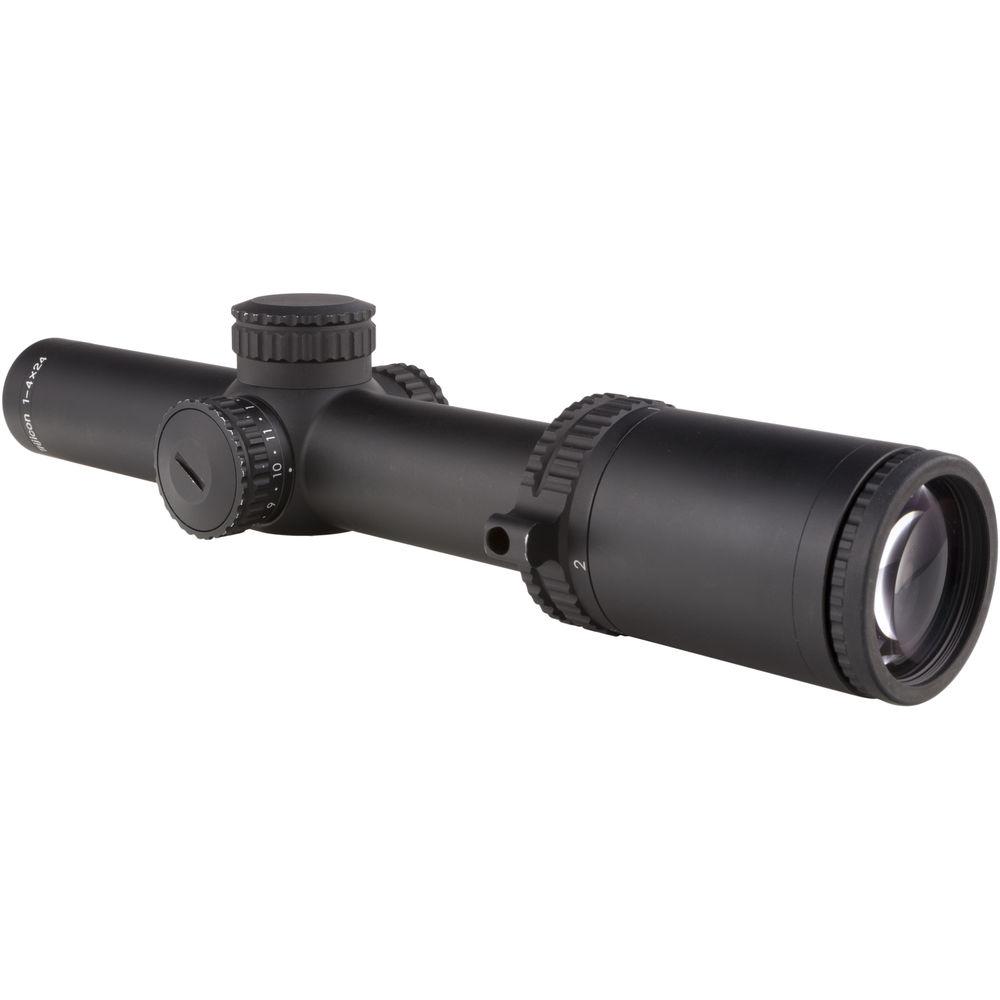

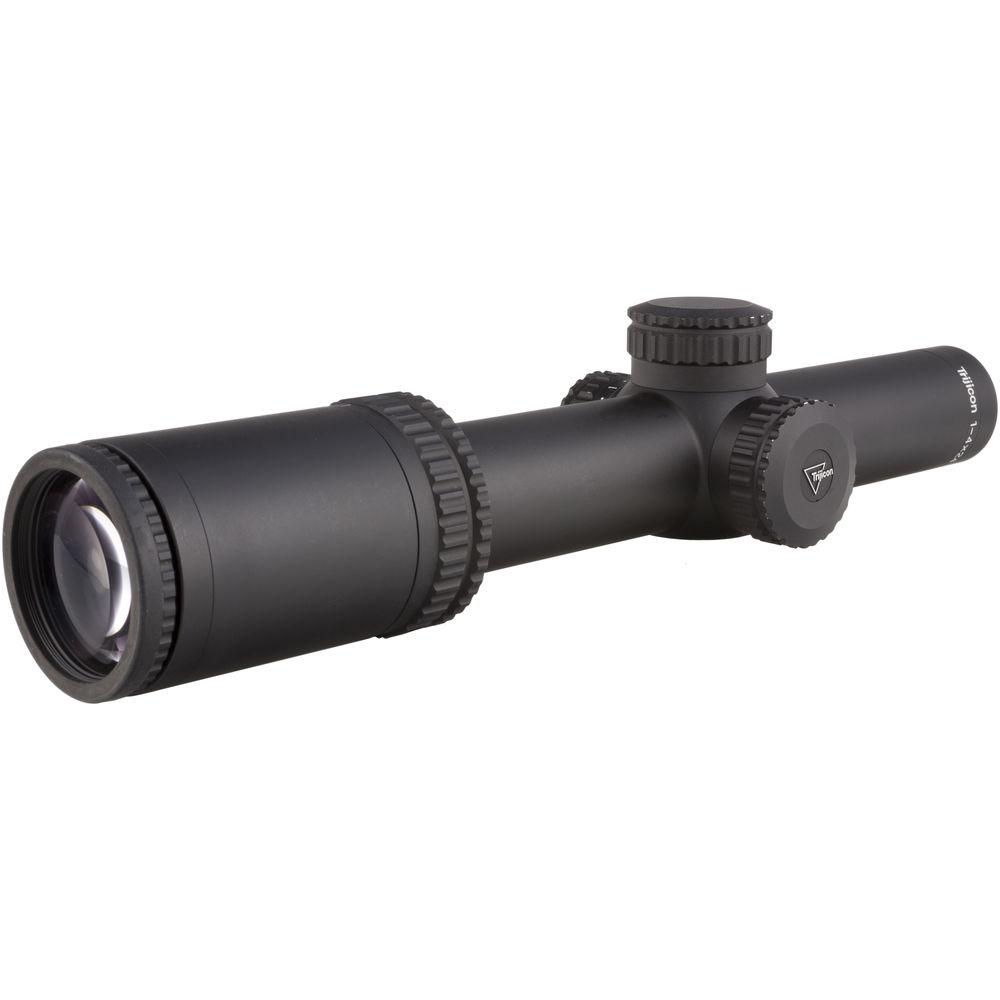

Product description Trijicon engineered the AccuPower 1-4x24 Riflescope as a battle-ready riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature full multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high-quality optical glass and polished for low-distortion performance. To empower you with laser precision when making your shots, the optic is enhanced with the Red Segmented Circle BDC Illuminated Reticle optimized for .223/55gr rounds. Its fine features provide you with an unobtrusive and clean view of your targets, yet its MOA-based measurements and segmented circle bracket help you to make accurate target acquisitions. The reticle is specifically designed for using the Trijicon's Bindon Aiming Concept (BAC). The technique allows you to engage fast moving targets with both eyes open and to make accurate target acquisitions. Its LED-based illumination system has a brightness control with an "off" mode between each brightness level setting.
The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 30mm maintube, lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled easy-focus eyepiece features 3.5" of eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10') performance and will withstand extreme conditions for years of service. - Red Segmented Circle Crosshair Illuminated Reticle
-
- 2nd focal plane
- LED illumination
- Variable brightness
- LED is off between brightness settings
- Trijicon's Bindon Aiming Concept (BAC)
- Allows aiming with both eyes open
- For fast moving targets

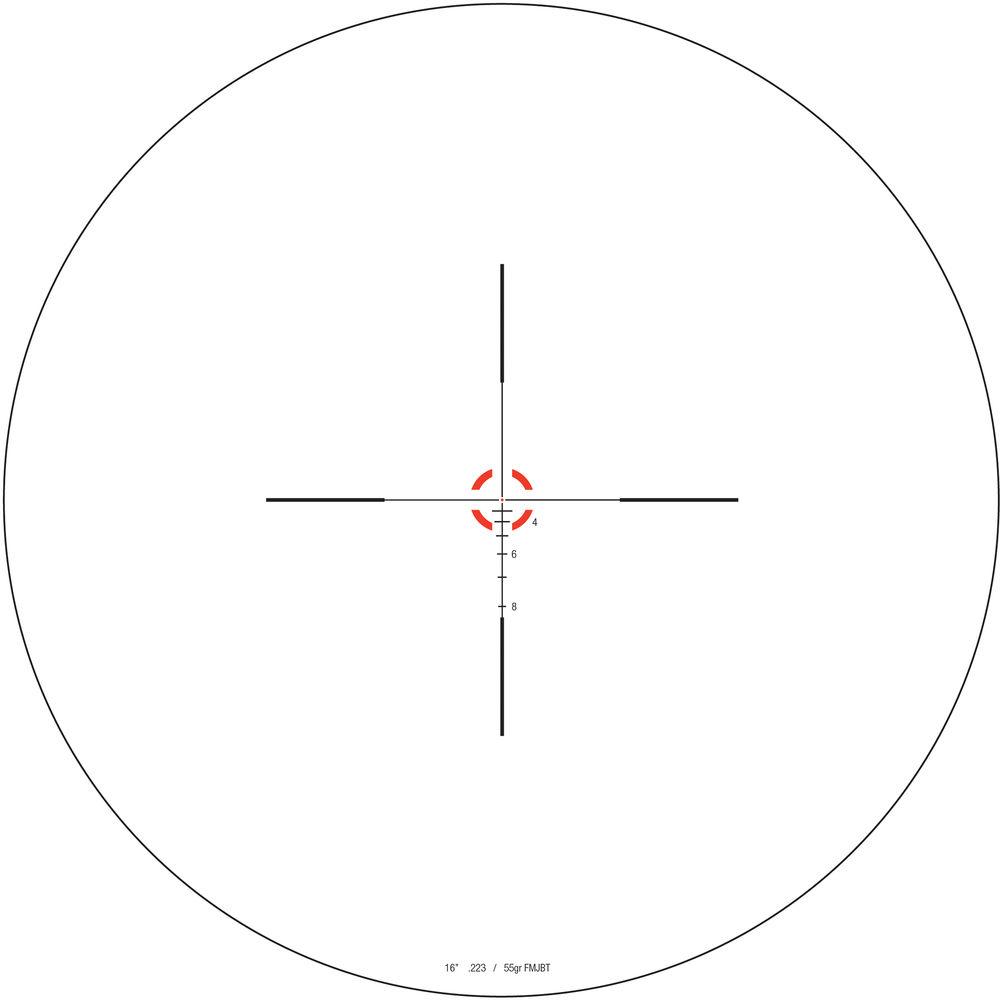

- Four thin and short posts
- Thin crosshair
- Illuminated segmented circle
- At maximum magnification:
- Crosshair line spans 70 MOA horizontally
- Circle segments span 18.1 MOA
- Horizontal gap between two segments is 6 MOA
- Illuminated center dot subtends 0.75 MOA
- Thickness of the crosshair line and holdover lines is 0.33 MOA
- Thickness of each post is 1 MOA
- Optical Performance
-
- Fully multi-coated optics
- Low-distortion lenses
- Magnification: 1-4x
- 24mm objective features low reflection signature
- Linear field of view: 97.5-24.2' at 100 yards
- Long eye relief of 3.5"
- Use and Handling
-
- 1/4 MOA impact point correction
- 100 MOA windage and elevation adjustments
- Construction Details
-
- 30mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped finger-operated turrets
- Push-pull lockable turret caps
- Turrets have numerical reference scales
- Easy-focus eyepiece with zoom lever
- Fogproof, waterproof, shock-resistant
UPC: 719307401983 In the Box Trijicon AccuPower 1-4x24 Riflescope (Red Segmented Circle Crosshair Illuminated Reticle) - Trijicon Logo Sticker (PR15)
- Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPower 1-4x24 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS24-C-1900006 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 97.5' @ 100 yd / 32.5 m @ 100 m
4x: 24.2' @ 100 yd / 8.1 m @ 100 m | | Exit Pupil Diameter | 11x: 5 mm
4x: 5 mm | | Eye Relief | 3.5" / 88 mm | | | | Reticle Type | Segmented Circle Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 31 Hours | | Dimensions | Length: 10.2" / 25.9 cm | | Weight | 16.2 oz / 459 g |
