User Manual for Trijicon AccuPower 2.5-10x56 Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon AccuPower 2.5-10x56 Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon AccuPower 2.5-10x56 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

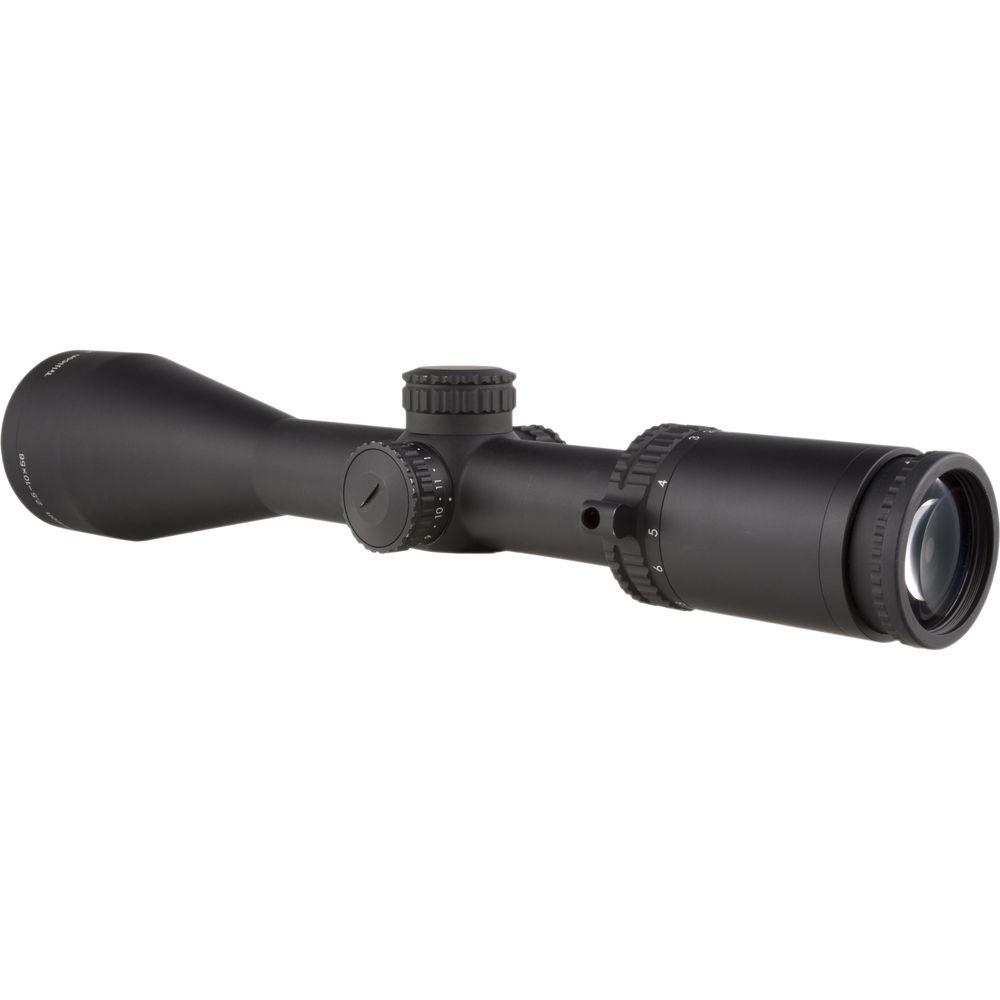

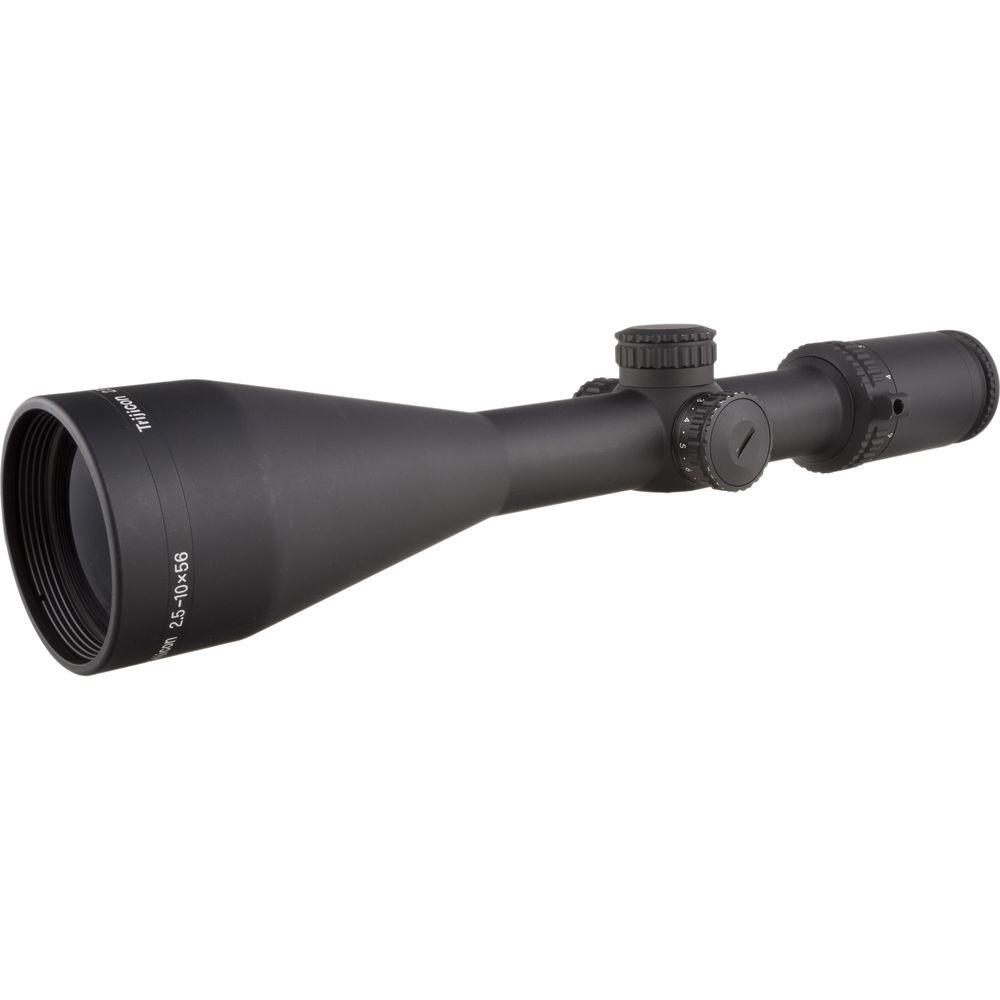

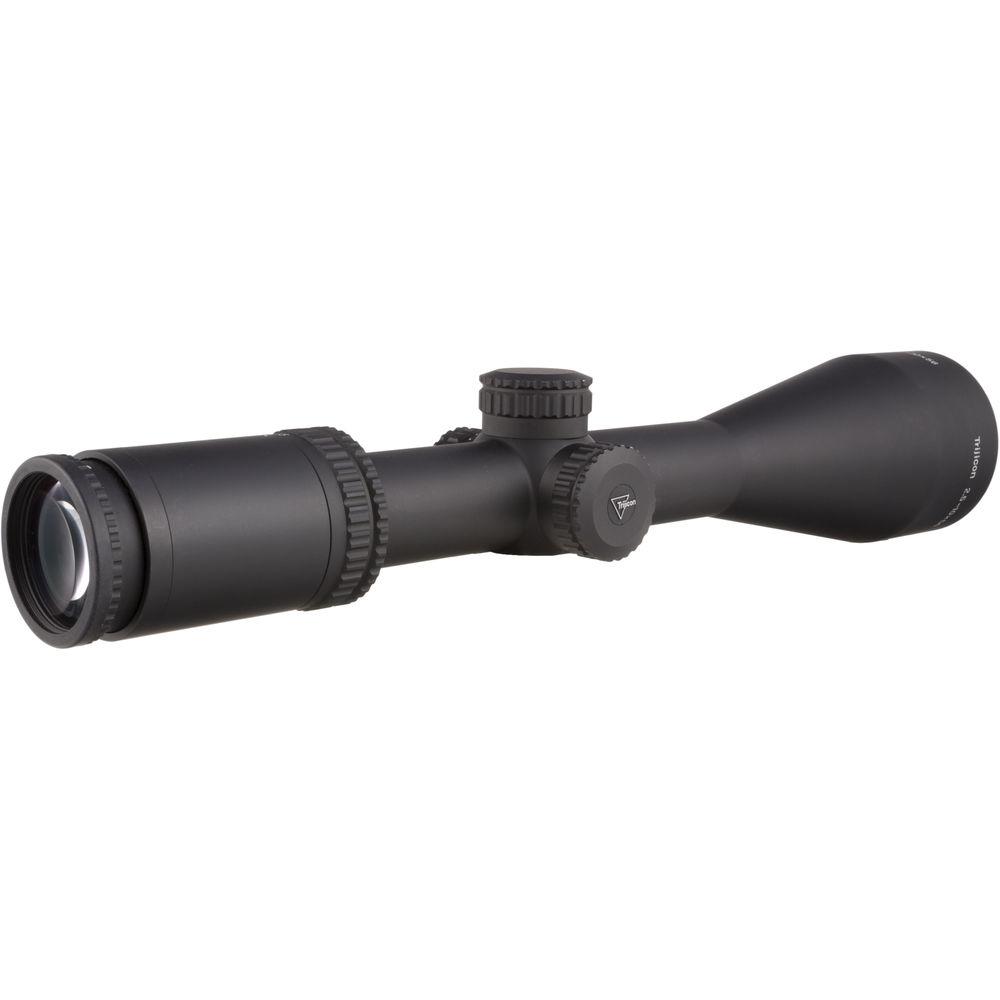

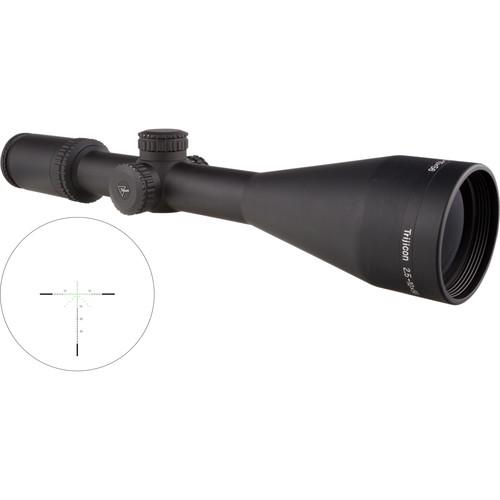

Product description Trijicon engineered the AccuPower 2.5-10x56 Riflescope as a battle-ready riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature full multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high-quality optical glass and polished for low-distortion performance. To expand the range of your effectiveness to low-light conditions like dusk or dawn, the riflescope also features an extra-wide 56mm objective lens. To empower you with laser precision when making your shots, the optic is enhanced with the Green MOA-Dot Crosshair Illuminated Reticle. Its fine features provide you with an unobtrusive and clean view of your targets, yet its MOA-based markings provide you with accurate ranging and wind corrections. The reticle is specifically designed for using the Trijicon's Bindon Aiming Concept (BAC). The technique allows you to engage fast moving targets with both eyes open and to make accurate target acquisitions. Its LED-based illumination system has a brightness control with an "off" mode between each brightness level setting.

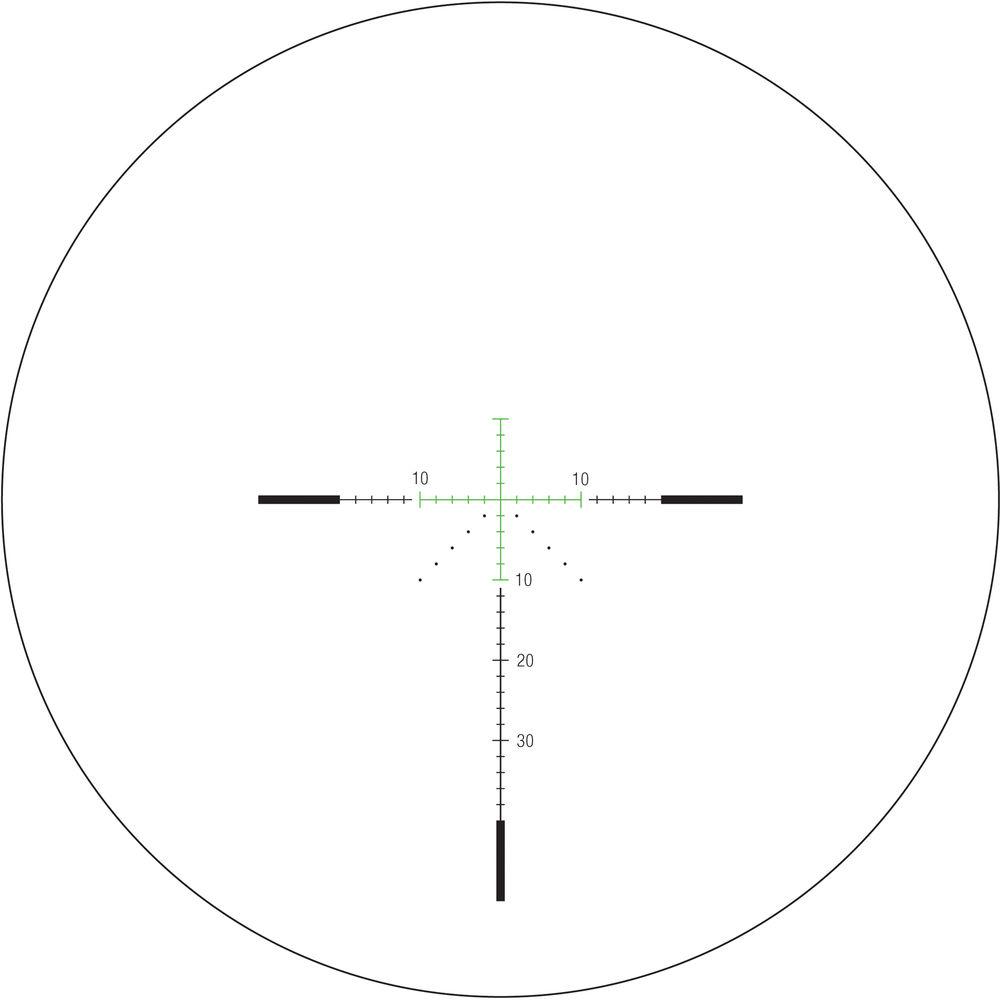

The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 30mm maintube, lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled, easy-focus eyepiece features a long 4" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10' ) performance and will withstand extreme conditions for years of service. Green MOA-Dot Crosshair Illuminated Reticle -
- 2nd focal plane
- LED illumination
- Variable brightness
- LED is off between brightness settings
- Trijicon's Bindon Aiming Concept (BAC)
- Allows aiming with both eyes open
- For fast moving targets
- Three thin and short posts
- Thin crosshair with fine hash mark lines
- Two diagonal broken lines descending from center
- At 10x magnification:
- Horizontal crosshair line spans 40 MOA
- Vertical crosshair line spans 40 MOA from center down
- Hash marks subtend 2 MOA intervals
Optical Performance -
- Fully multi-coated optics
- Low-distortion lenses
- Magnification: 2.5-10x
- 56mm objective lens delivers bright images even in low light
- Linear field of view: 37.9-10.2' at 100 yards
- Long eye relief of 4"
Use and Handling -
- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustments
Construction Details -
- 30mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped finger-operated turrets
- Push-pull lockable turret caps
- Turrets have numerical reference scales
- Easy-focus eyepiece with zoom lever
- Fogproof, waterproof, shock-resistant
UPC: 719307402072 In the Box Trijicon AccuPower 2.5-10x56 Riflescope (Green MOA-Dot Crosshair Illuminated Reticle) - Trijicon Logo Sticker (PR15)
- 2 x Lens Caps
- Lens Cloth
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon AccuPower 2.5-10x56 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS22-C-1900015 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 56 mm | | Field of View | 2.5x: 37.9' @ 100 yd / 12.6 m @ 100 m
10x: 10.2' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 2.5x: 16.5 mm
10x: 5.6 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | MOA Dot Crosshair Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Battery Runtime | 31 Hours | | Dimensions | Length: 13.8" / 349.6 mm | | Weight | 23.6 oz / 669 g | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 15.9 x 5.5 x 3.7" |
