Trijicon MGRS Machine Gun Reflex Sight

User Manual for Trijicon MGRS Machine Gun Reflex Sight & 3x Magnifier Kit

• Product category: Red Dot/Holographic Sights Trijicon
• Brand: Trijicon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Trijicon Red Dot/Holographic Sights

Product description

• MGRS Machine Gun Reflex Sight (3 MOA Red Dot & 35 MOA Segmented Circle Reticle) Leave no chance to your foe, using the Trijicon MGRS Machine Gun Reflex Sight. This battle-ready reflex sight allows you transform your machine gun into a more formidable precision weapon. The optic offers an illuminated reticle and a wide fully multi-coated 3 x 2" objective window. For quick, easy, and accurate targeting, the reticle provides a brilliant red 3 MOA center dot within an equally bright red 35 MOA segmented circle. The illumination system offers adjustable brightness with several intensity levels for daytime, one super-bright mode for bright-light environments, and two low-intensity modes for compatibility with night vision devices. Additionally, this 1x sight offers a virtually unlimited eye relief and field of view. To compensate for winds and ballistics, it also provides 100 MOA of windage and elevation ranges with 1 MOA clicks. Also noteworthy, are the included M2 (50 caliber) and M240 (.308/7.62) range dials that allow to maximize precision depending on the firearm.

  The housing is designed well for the cause: it features a robust 7075-T6 aluminum housing augmented with a corrosion and abrasion-resistant anodized coating, and offers a waterproof (submersible to 6.6') and recoil-resistant performance. A built-in Picatinny rail allows for mounting on a machine gun, while three detachable Picatinny rails offer additional space for accessories.
  Optical Performance
  • • 1x magnification
    • 3x2" objective window
    • Fully multi-coated optics
    Reticle

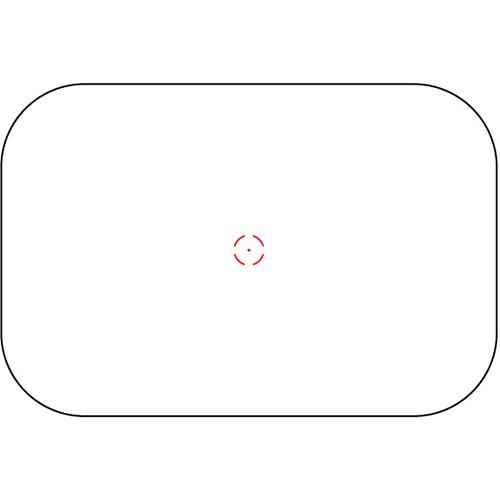

    • • 3 MOA red dot & 35 MOA segmented circle
      • Adjustable reticle brightness
      • 2 night vision, 5 day, and 1 Super-Bright setting
      • "Off" positions between brightness settings
      Use and Handling
      • • 1 MOA impact point correction
        • 100 MOA Windage and elevation range
        • Unlimited field of view
        • Unlimited eye relief
        Construction
        • • 7075-T6 forged aluminum
          • Corrosion and abrasion-resistant
          • Integrated Picatinny rail mount and three detachable rails for accessories
          • Tethered battery cap
          • Fogproof and waterproof to 6.6'
          UPC: 719307630550
        • MGRS MAG 3x Magnifier (Matte Black) Instantly bump up the magnification of your Machine Gun Reflex Sight by 3x using the Trijicon MGRS MAG 3x Magnifier. This magnifying optic can be instantly flipped in and out of the line of sight on-demand using the optional mount. It allows you to shift from near to faraway targets and make laser-sharp placements without delay. The waterproof and fogproof device offers a 4.9° field of view, bright and clear fully multi-coated lenses, and a 2.5" eye relief. Made of durable and lightweight 7075-T6 aluminum, it is a suitable companion for your gun sight in the battlefield, while only adding 5.6 ounces of weight to your gear. UPC: 719307321557
        • MGRS MAG Mount (Matte Black) Use the lightweight and durable slide-to-side Trijicon MGRS MAG Mount for mounting your 3x Magnifier to a Machine Gun Reflex Sight (MGRS). This mount is specifically designed for use with Trijicon MGRS and Mag 3x Magnifiers and will not work with any other product. It is crafted from 7075-T6 aluminum and treated with a corrosion- and abrasion-resistant Type III hard anodized finish. UPC: 719307630574
        In the Box Bundle Items MGRS Machine Gun Reflex Sight (3 MOA Red Dot & 35 MOA Segmented Circle Reticle) txdwrqtatqtevwwvvv
        • MOLLE Bag
        • LensPen - TA56
        • Trijicon Logo Sticker (PR15)
        • Limited 5-Year Warranty
        MGRS MAG 3x Magnifier (Matte Black)
        • LensPen - TA56
        • Trijicon Logo Sticker (PR15)
        • Limited Lifetime Warranty
        MGRS MAG Mount (Matte Black)
        • 2 x Mounting Screws for 3x Magnifier
        • 2 x Mounting Screws for MGRS
        • Limited Lifetime Warranty



      Also Includes

      • MGRS 3x Magnifier Mount
      • Limited 5-Year Warranty
      Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MGRS Machine Gun Reflex Sight (3 MOA Red Dot & 35 MOA Segmented Circle Reticle)

  Magnification	1x
  Objective Lens Diameter	3x2"
  Field of View	Unlimited
  Mounting System	Picatinny
  Impact Point Correction	1 MOA
  Maximum Windage/Elevation Adjustment	100 MOA
  Weatherproofing	Waterproof, fogproof, and submersible to 6.6' / 2.0 m
  Battery	1x CR-123A battery
  Dimensions	8.8 x 5.2 x 4.4" / 22.4 x 13.2 x 11.2 cm
  Weight	4.2 lb / 1.9 kg (with battery)

• MGRS MAG 3x Magnifier (Matte Black)

  Magnification	3x
  Linear Field of View	25.6' @ 100 yd / 8.5 m @ 100 m
  Angular Field of View	4.9°
  Windage/Elevation Adjustment	40 MOA
  Operating Temperature	115 to 185°F / -46 to 85°C
  Weatherproofing	Waterproof to 66' (20 m) and fogproof with dry nitrogen
  Eye Relief	2.5" / 63.5 mm
  Length	Not provide by manufacturer
  Weight	5.6 oz / 167.3 g

  Box Dimensions (LxWxH)	6.65 x 6.35 x 5.05"

• MGRS MAG Mount (Matte Black)

  Mounting	Picatinny / Weaver
  Material	Aluminum
