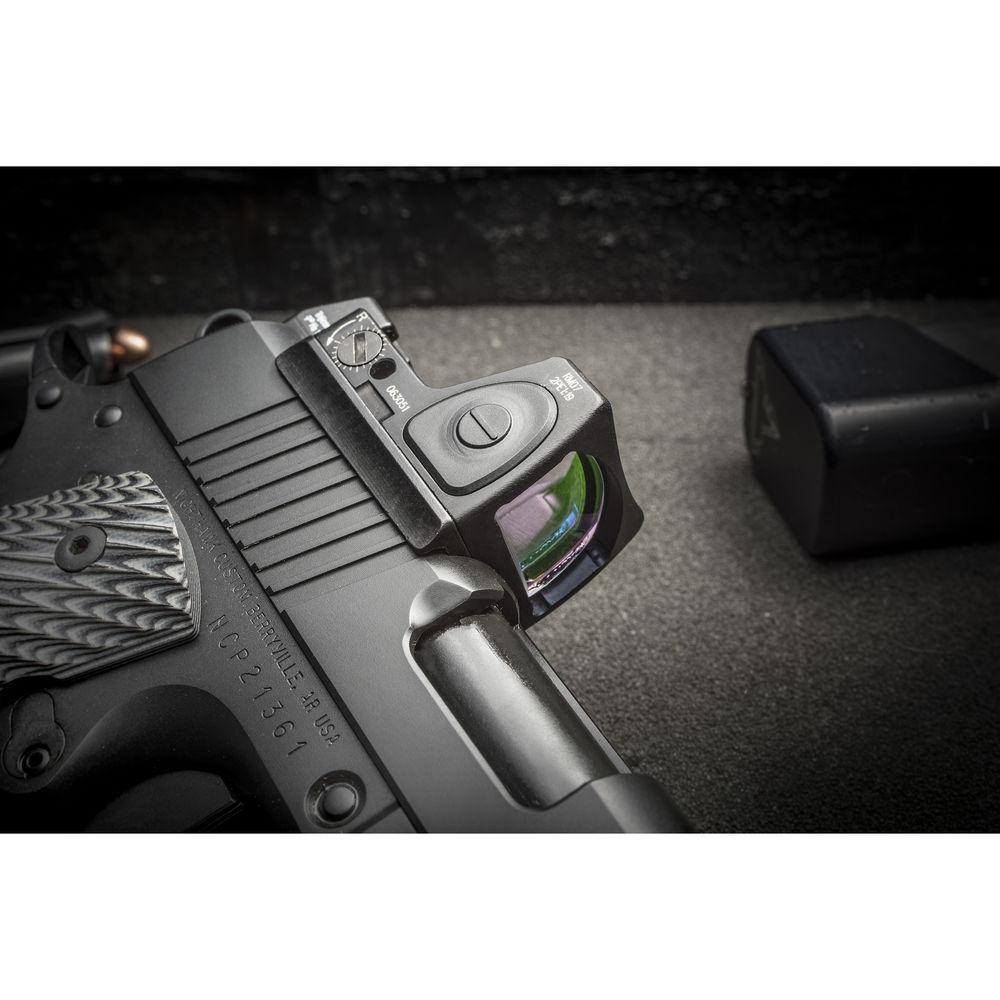

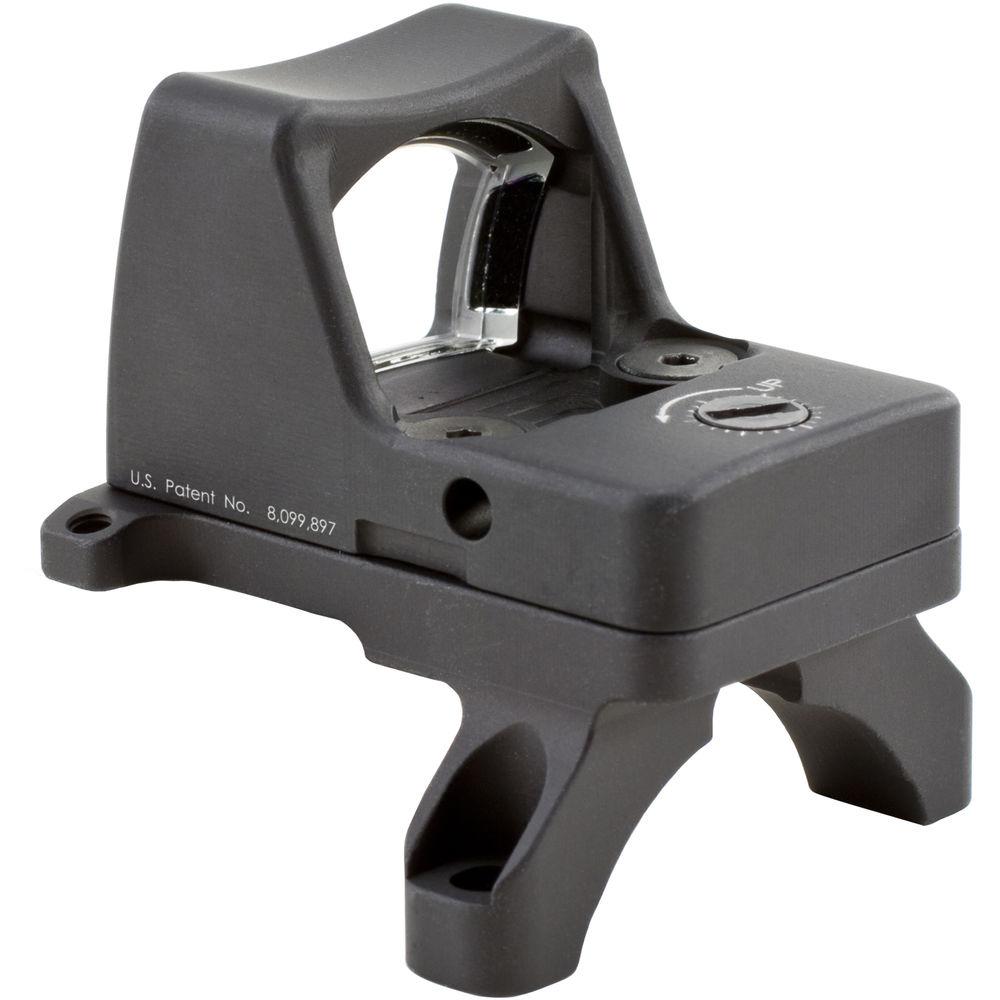

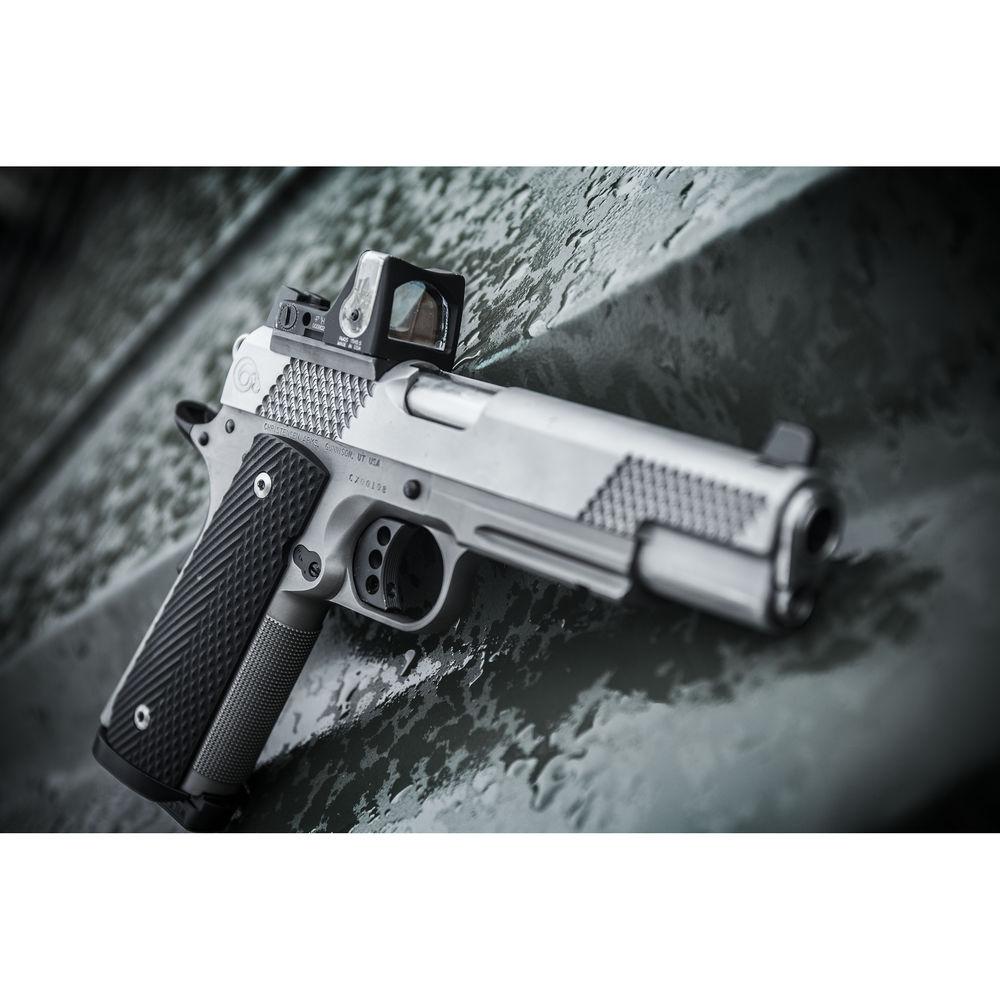

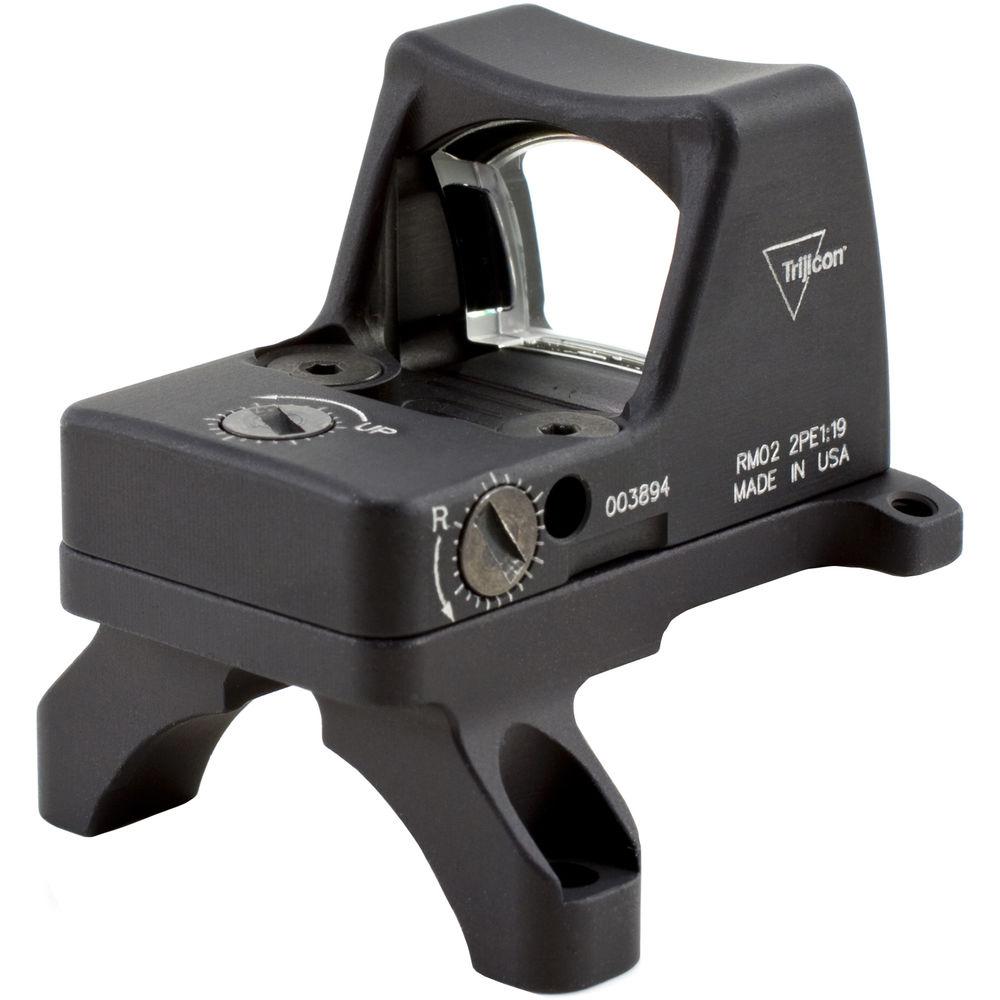

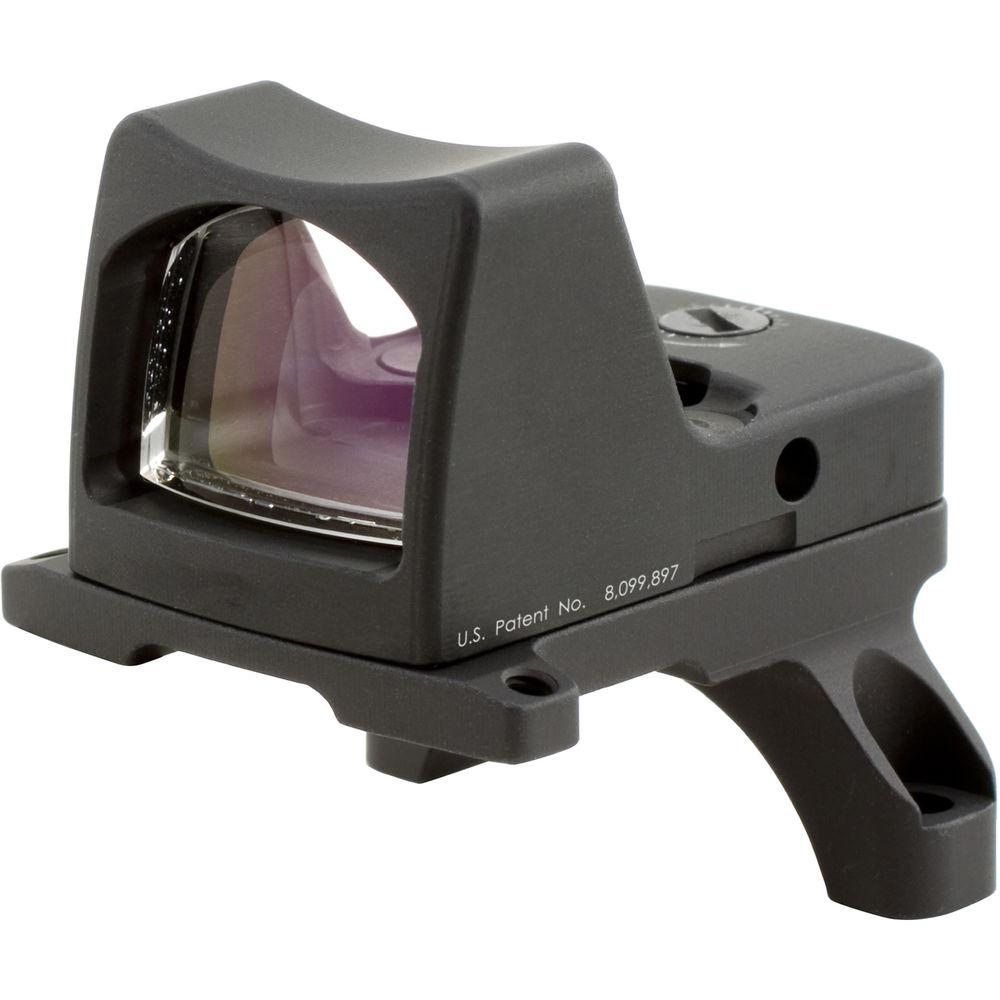

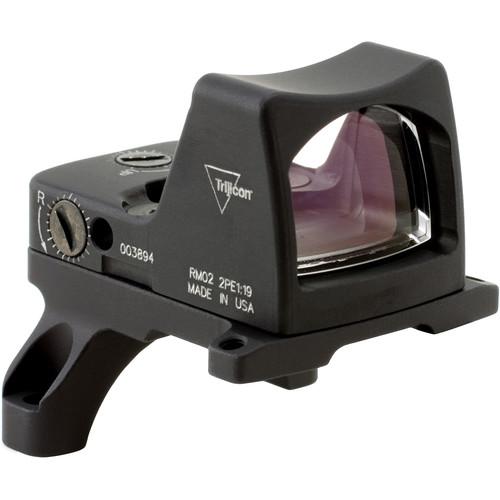

Product description Improving on previous iterations, the Trijicon RM02 RMR Type 2 LED Reflex Sight with RM35 Mount features ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. A defining feature of this optic is its 6.5 MOA brilliant Red Dot reticle with a parallax-free performance and automatic LED illumination. With the proprietary True-Color multi-coatings, you will see your targets and backgrounds exactly as they appear, without any color distortion. For target acquisitions beyond CQC (Close Quarters Combat), the sight also offers a 150 MOA windage and elevation range with 1.0 MOA clicks.
Engineered for use with pistols, rifles, or shotguns, the sight combines extreme toughness and a compact construction. Both the 7075-T6 aluminum housing and the glass window are impact-resistant and waterproof (submersible to 66') and can easily withstand the rigors of combat or training for many years of service. Another highlight is the included RM35 mount for 3.5x, 4x, and 5.5x ACOG sights with bosses. - Optical Performance
-
- 1.0x magnification
- True-Color multi-coated 0.87 x 0.63" glass window
- Unlimited field of view
- Reticle
-
- 6.5 MOA Red Dot
- LED illumination
- Automatic brightness control
- Parallax-free performance
- Use and Handling
-
- Improved electronics and battery contacts ensure high performance in harsh conditions
- 1.0 MOA impact point correction with audible clicks
- Windage and elevation adjustments
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Forged body diverts impact from the lens
- Corrosion- and scratch-resistant finish
- Scratch- and impact-resistant tempered glass window
- RM35 mount for 3.5x, 4x and, 5.5x ACOG sights with bosses
- Waterproof to 66'
UPC: 719307613638 In the Box Trijicon RM02 RMR Type 2 LED Reflex Sight with RM35 Mount (6.5 MOA Red Dot Reticle, Matte Black) - RMR Mount for TA01NSN ACOG
- Trijicon Sticker
- CR2032 Lithium Battery
- Allen Wrench
- 2 x RMR Screws
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon RM02 RMR Type 2 LED Reflex Sight with RM35 Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RM02 Specs | Magnification | 1.0x | | Field of View | Unlimited | | Impact Point Correction | 6.5 MOA Red Dot Reticle | | Maximum Windage/Elevation Adjustment | 150.0 MOA | | Battery | 1 x CR2032 lithium battery / up to 2 years of typical use, 5 years in dark storage | | Weatherproofing | Waterproof and submersible to 66' (20 m) | | Dimensions | 1.8 x 1.2 x 1" / 46.0 x 30.0 x 25.0 mm | | Weight | Sight: 1.2 oz / 34.0 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.4 x 4.8 x 3.5" |
