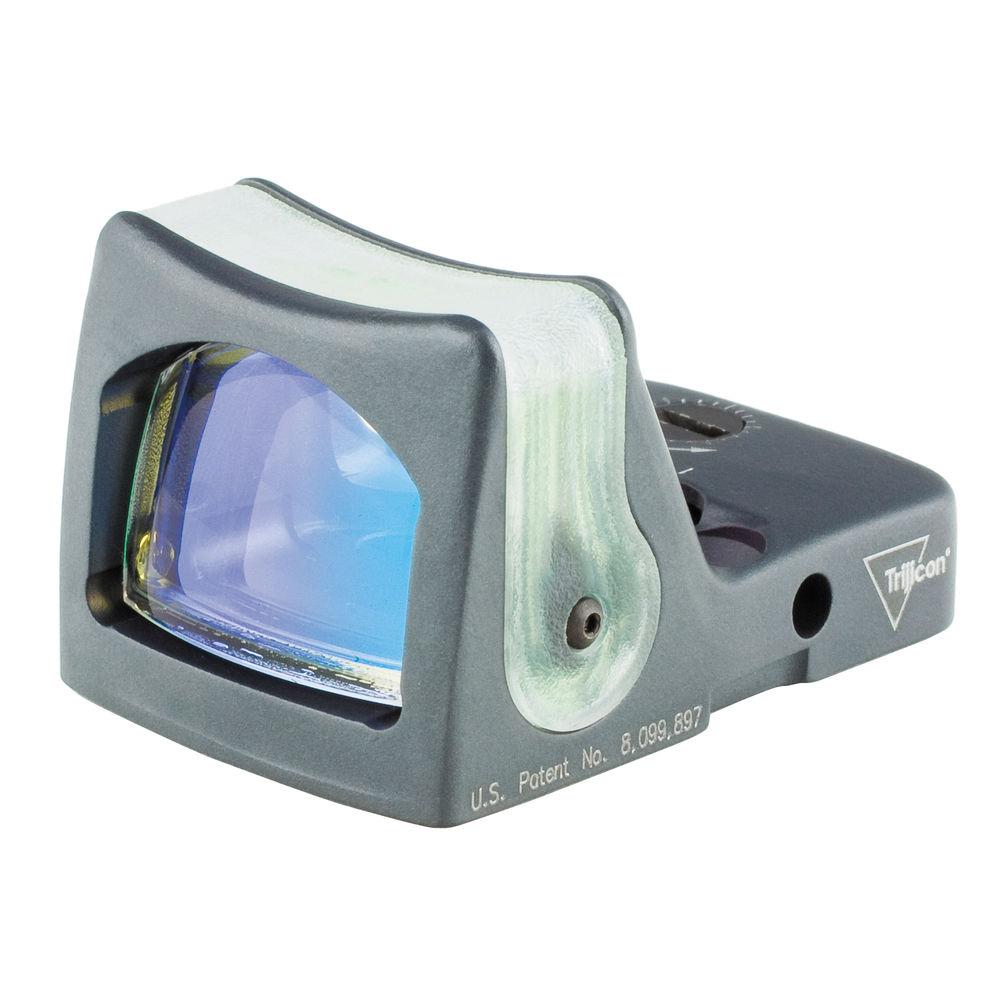

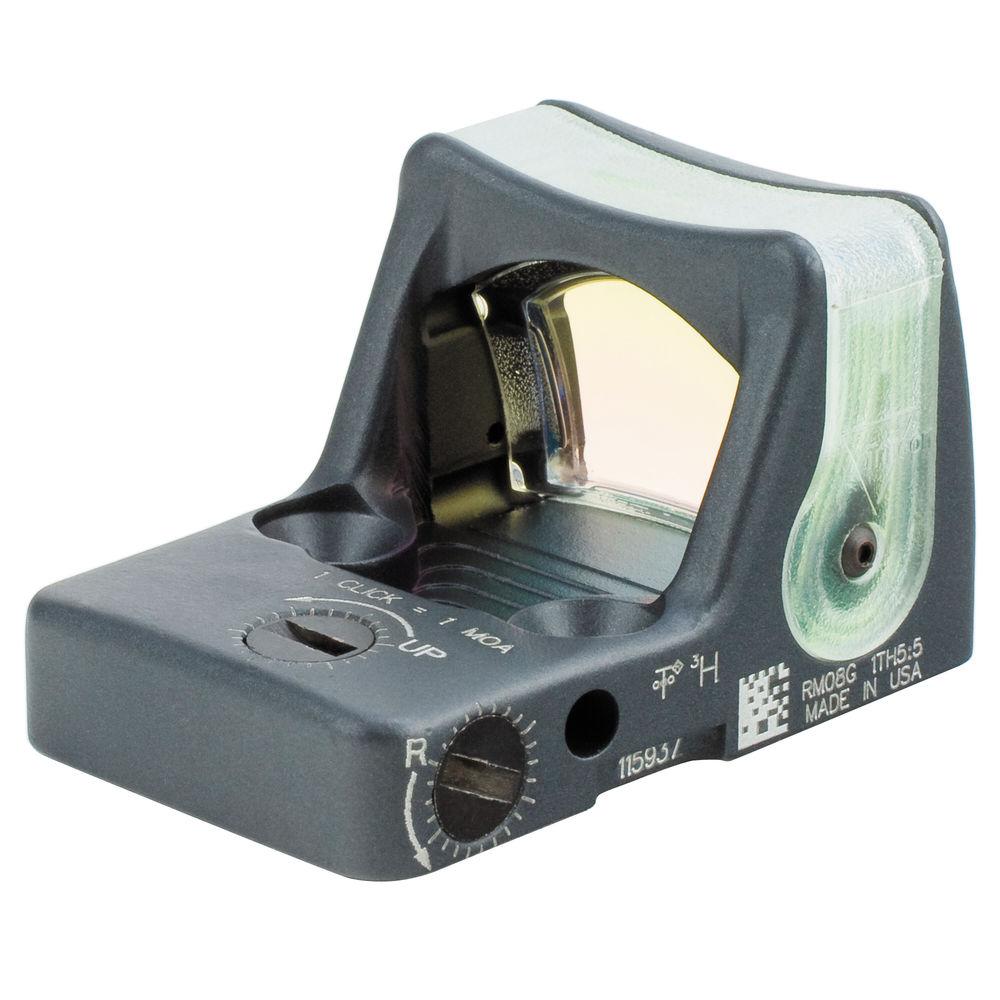

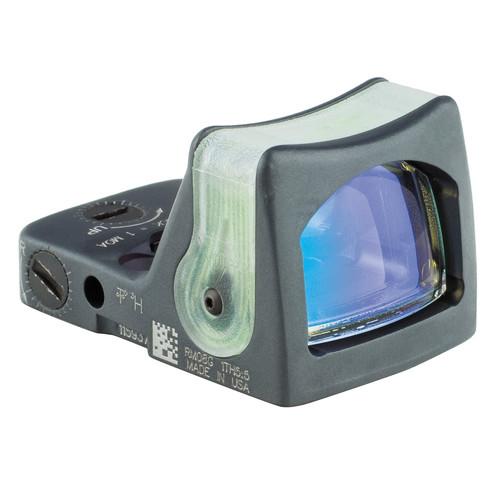

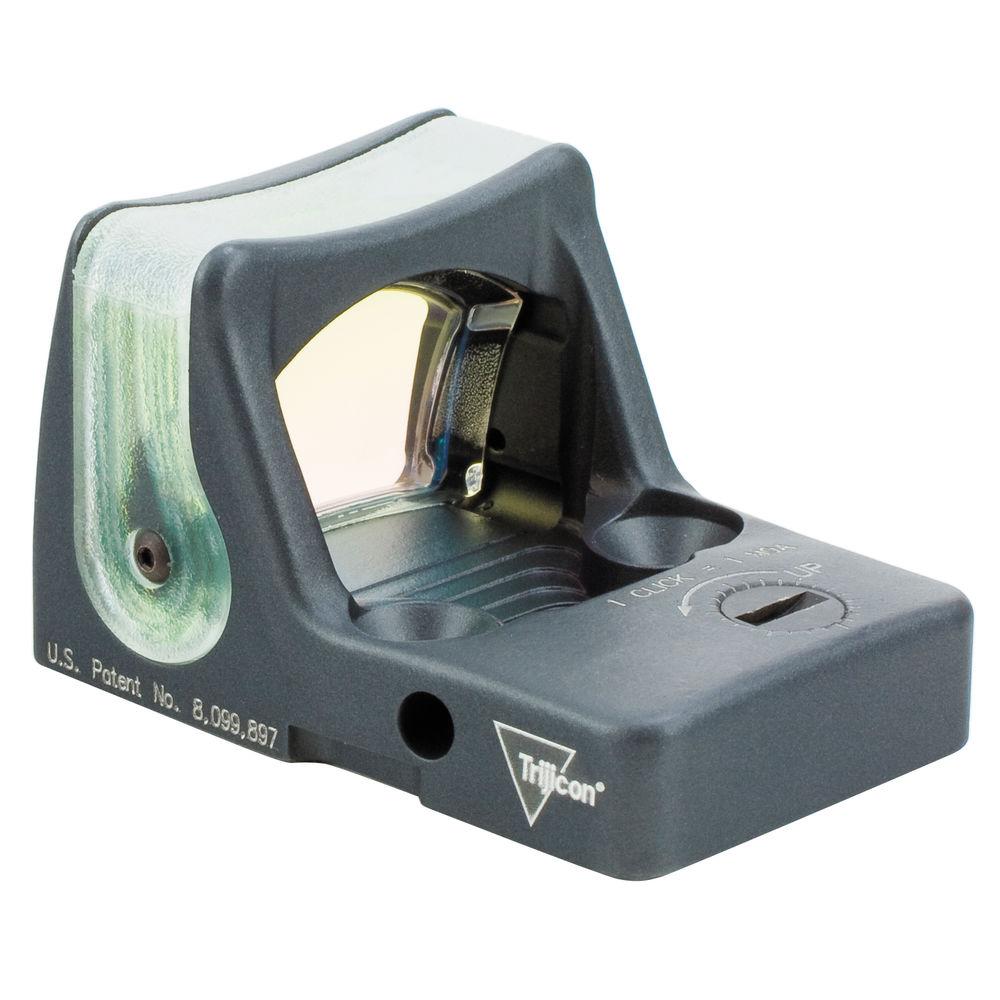

User Manual for Trijicon RM04 RMR Dual-Illuminated Reflex Sight Click to enlarge the picture
Contents of the user manual for the Trijicon RM04 RMR Dual-Illuminated Reflex Sight
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon RM04 RMR Dual-Illuminated Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description Ideal for short to mid-range use and easily mountable on any pistol, rifle, or shotgun, the Trijicon's iconic Ruggedized Miniature Reflex, the RM04 RMR Dual-Illuminated Reflex Sight combines completely independent of electrical power Tritium and fiber-optic dual illumiantion, extremely rugged and compact construction with precision and accuracy required on the battle field. While the Tritium-phosphor lamp provides illumination for the 7 MOA amber dot in low light conditions, the fiber-optic lightguide does it in well-illuminated areas. Other optics higlights are high transmission multicoated optics with glass that provides true color and a tempered impact-resistant window.
The sight also boasts unlimited field of view for aiming with both eyes and offers parallax-free operation at any range, thanks to its holographic optical configuration. The 1 MOA per click impact point correction with audible clicks allows users to make adjustments faster and in more intuitive manner, and the 150 MOA windage and elevation adjustment range provides plenty of compensation.
Complimenting the optical performance, its construction does not lag behind. Shielded with forged 7075-T6 aluminum housing that is also waterproof and submersible to 66', the optics can easily withstand the rigors of combat or training for many years of service. The housing is coated with oven-baked Cerakote paint to deliver corrosion- and abrasive-resistant performance. Also included with the sight are an Allen wrench, two screws, and a Trijicon sticker. - Optical Performance
-
- 1x magnification
- 0.87x0.63" sight window
- Multicoated optics enhance light transmission and deliver true color
- Unlimited field of view when for aiming with both eyes open
- Reticle
-

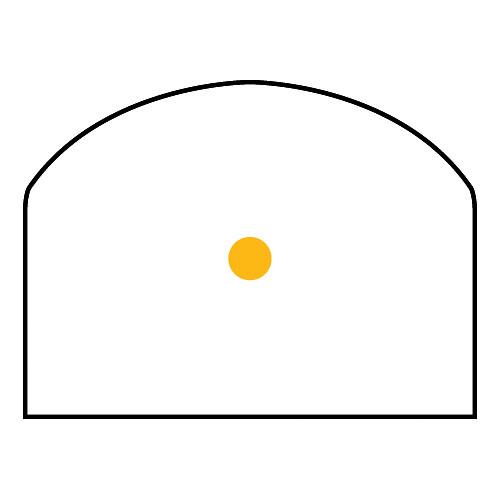

- 7 MOA amber dot reticle
- Dual illumination does not require electrical power:
Tritium lamp provides illumination in low light conditions
Fiber-optic lightguide illuminated in bright areas - Use and Handling
-
- 1 MOA per click impact point correction with audible clicks
- 150 MOA windage and elevation adjustment range
- Parallax free at any distance
- Construction Details
-
- 7075-T6 forged aluminum alloy housing
- Corrosion and scratch-resistant Cerakote paint
- Scratch and impact-resistant tempered glass sight window
- Waterproof to 66'
- Weighs 1.2 oz
- Made in the USA
UPC: 719307610651 In the Box Trijicon RM04 RMR Dual-Illuminated Reflex Sight (7 MOA Amber Dot, Serakote Sniper Gray) - Trijicon Sticker
- Allen Wrench
- 2 x RMR Screws
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon RM04 RMR Dual-Illuminated Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RM04 Specs | | | Impact Point Correction | 1 MOA | | Windage Adjustment | 150 MOA | | Elevation Adjustment | 150 MOA | | | | Water Resistance | Waterproof | | Dimensions | L: 1.8 x W: 1.2 x H: 1.0" / L: 4.6 x W: 3.0 x H: 2.5 cm | | Weight | 1.2 oz / 34 g | | | | Package Weight | 0.575 lb | | Box Dimensions (LxWxH) | 5.4 x 4.75 x 3.45" |
