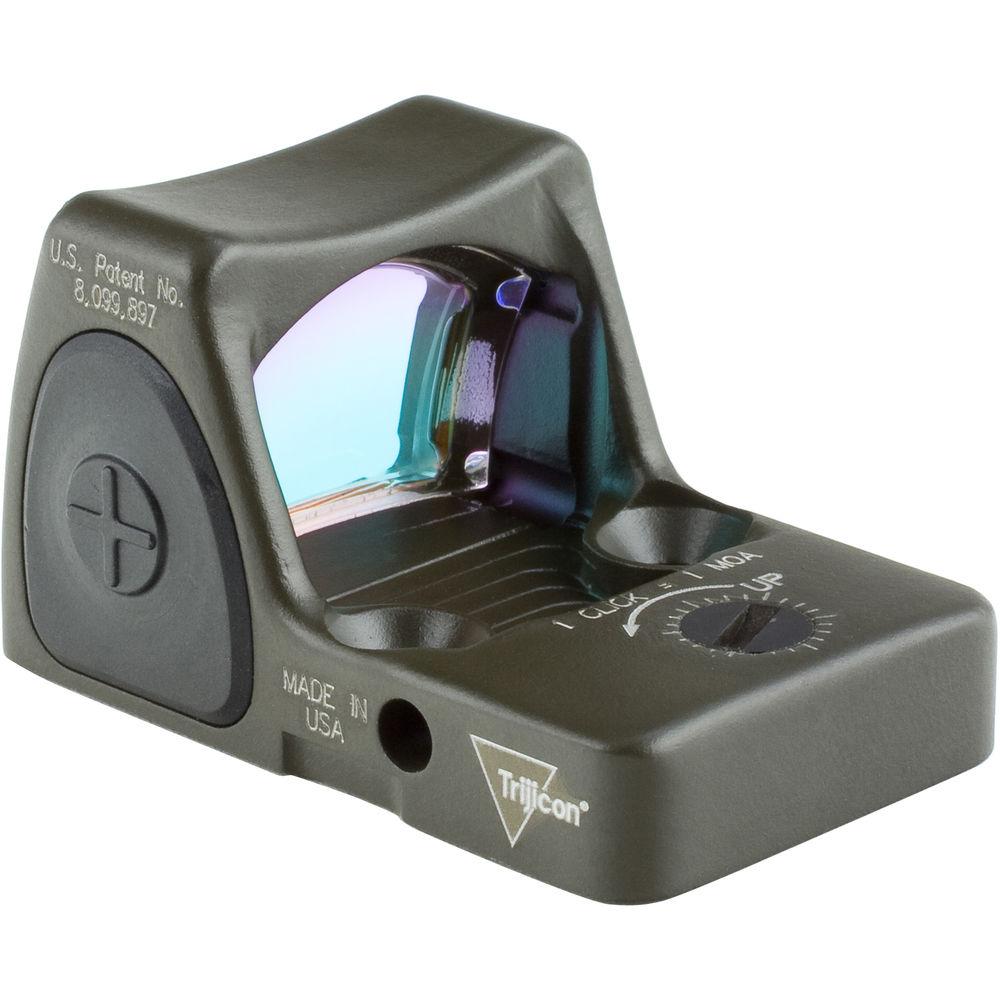

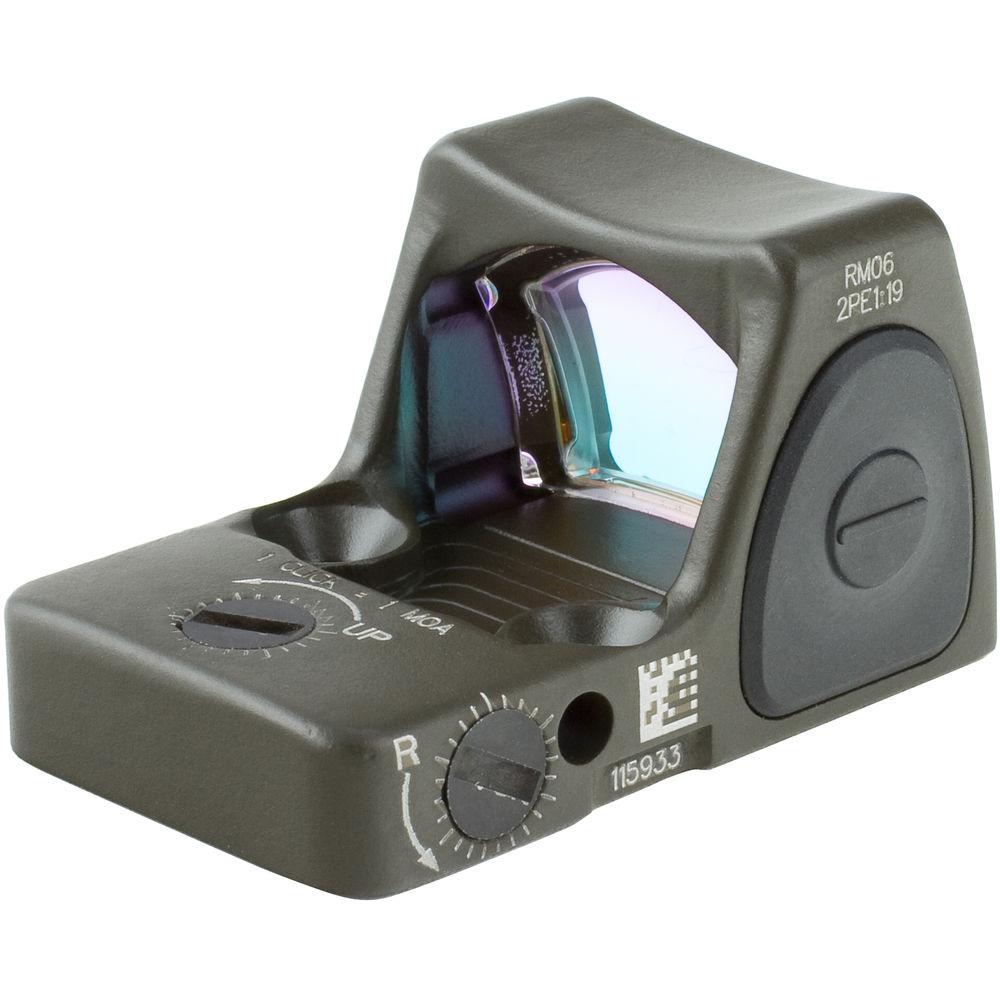

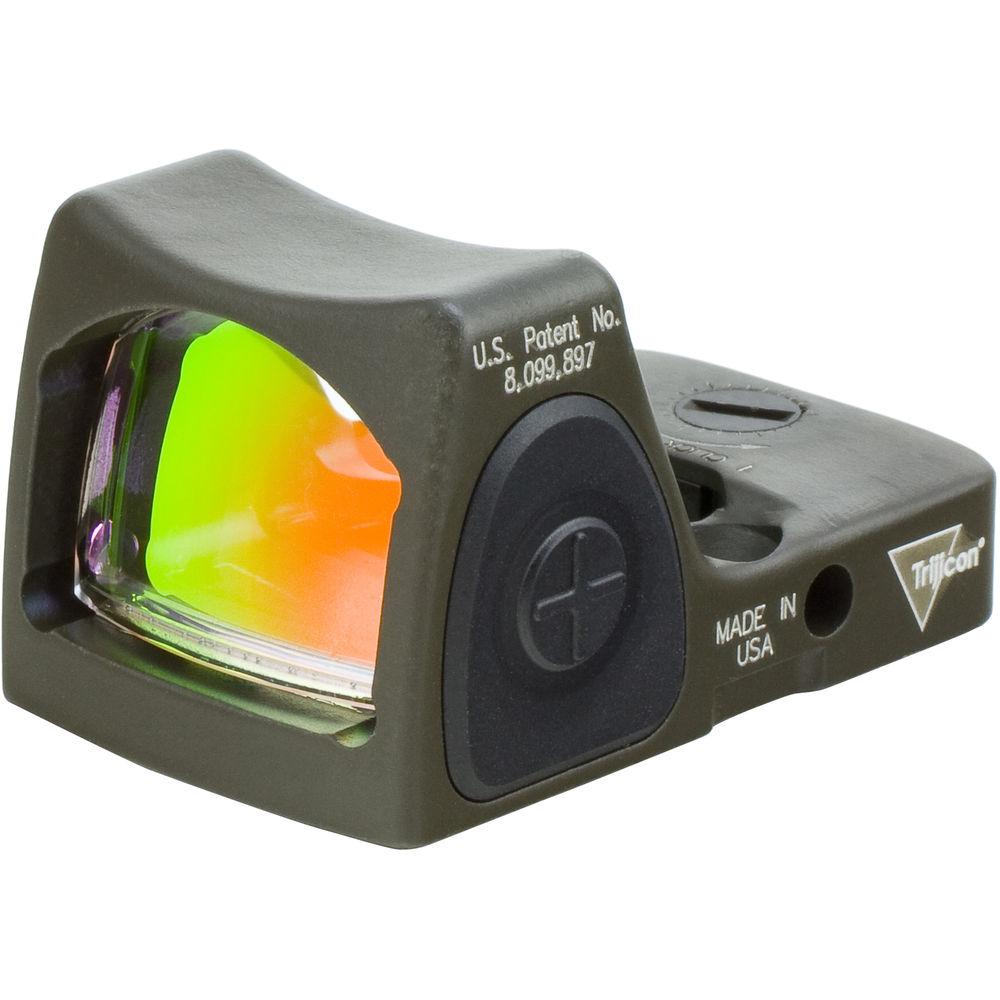

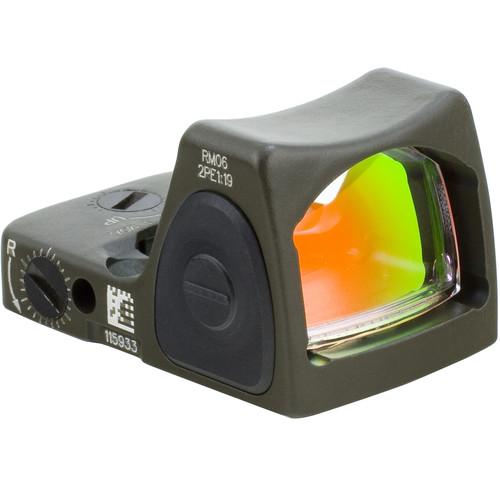

User Manual for Trijicon RM06 RMR Type 2 Adjustable LED Reflex Sight Click to enlarge the picture
Contents of the user manual for the Trijicon RM06 RMR Type 2 Adjustable
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon RM06 RMR Type 2 Adjustable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

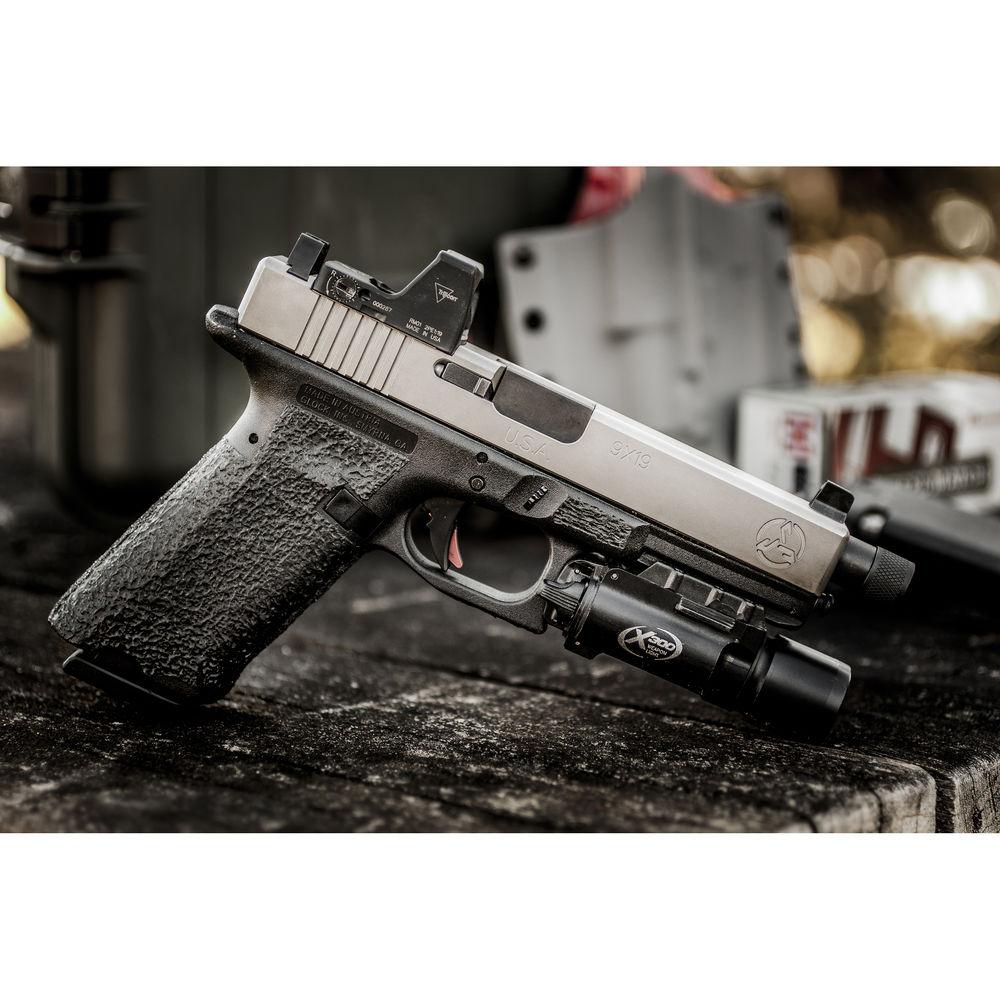

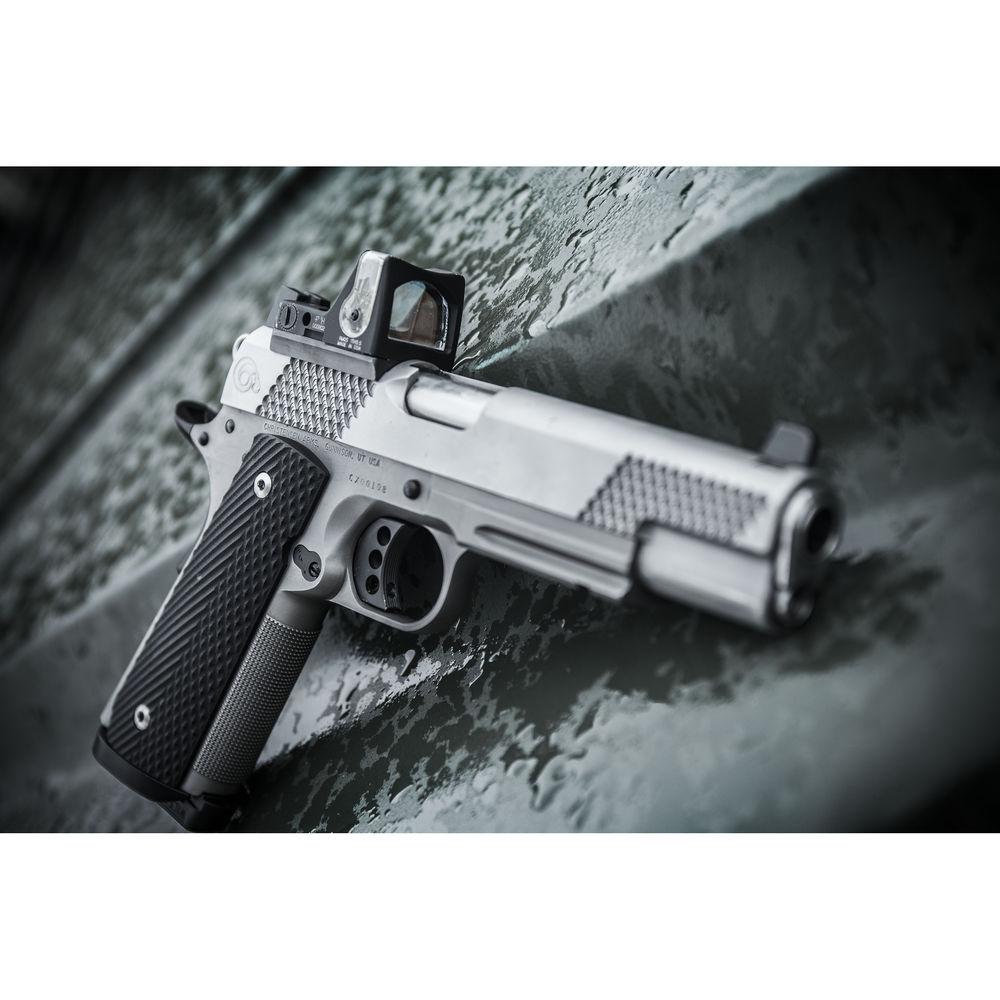

Product description Improving on previous iterations, the Trijicon RM06 RMR Type 2 Adjustable LED Reflex Sight features ruggedized electronics and battery contacts to pull it through the roughest of battlefield conditions. A defining feature of this optic is its 3.25 MOA brilliant Red Dot reticle with a parallax-free performance and adjustable LED illumination. It allows you to choose between automatic or manual brightness settings, depending on your tasks or preferences. With the proprietary True-Color multi-coatings, you will see your targets and backgrounds exactly as they appear, without any color distortions. For target acquisitions beyond CQC (Close Quarters Combat), the sight also offers a 150 MOA windage and elevation range with 1.0 MOA clicks.

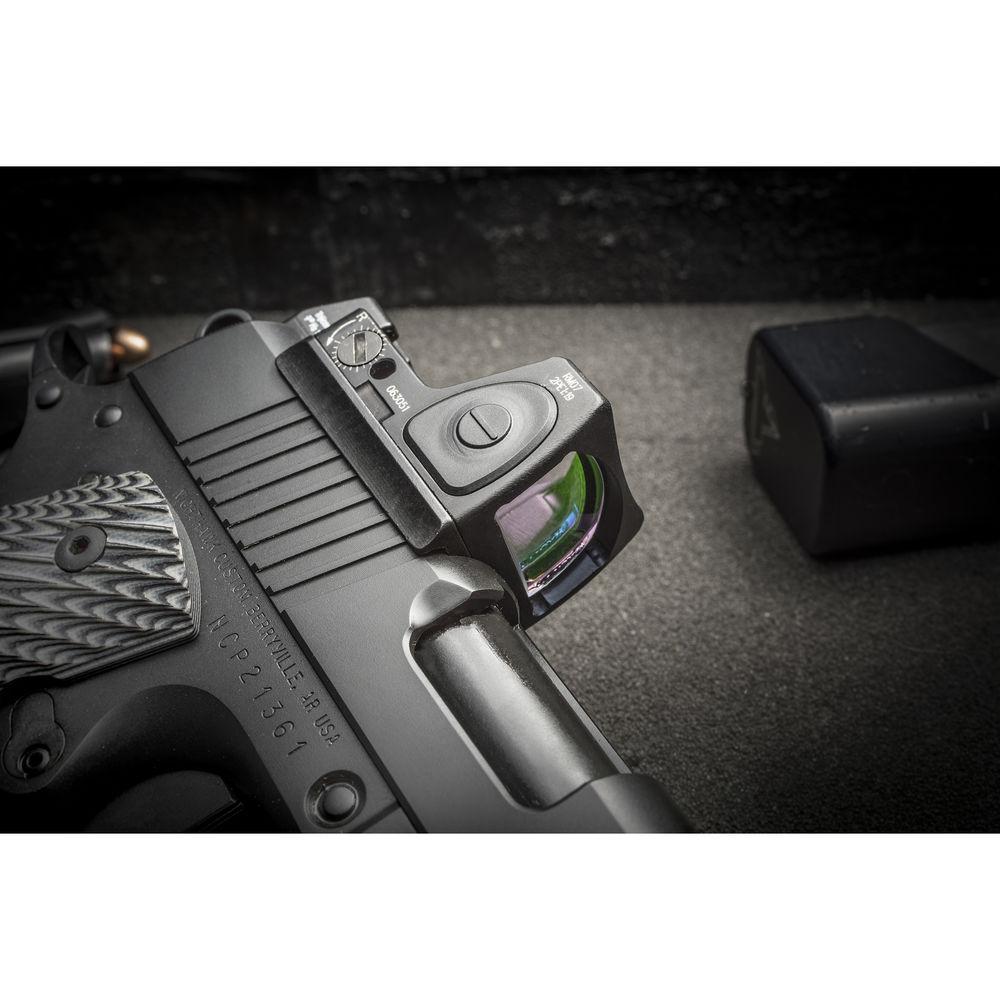

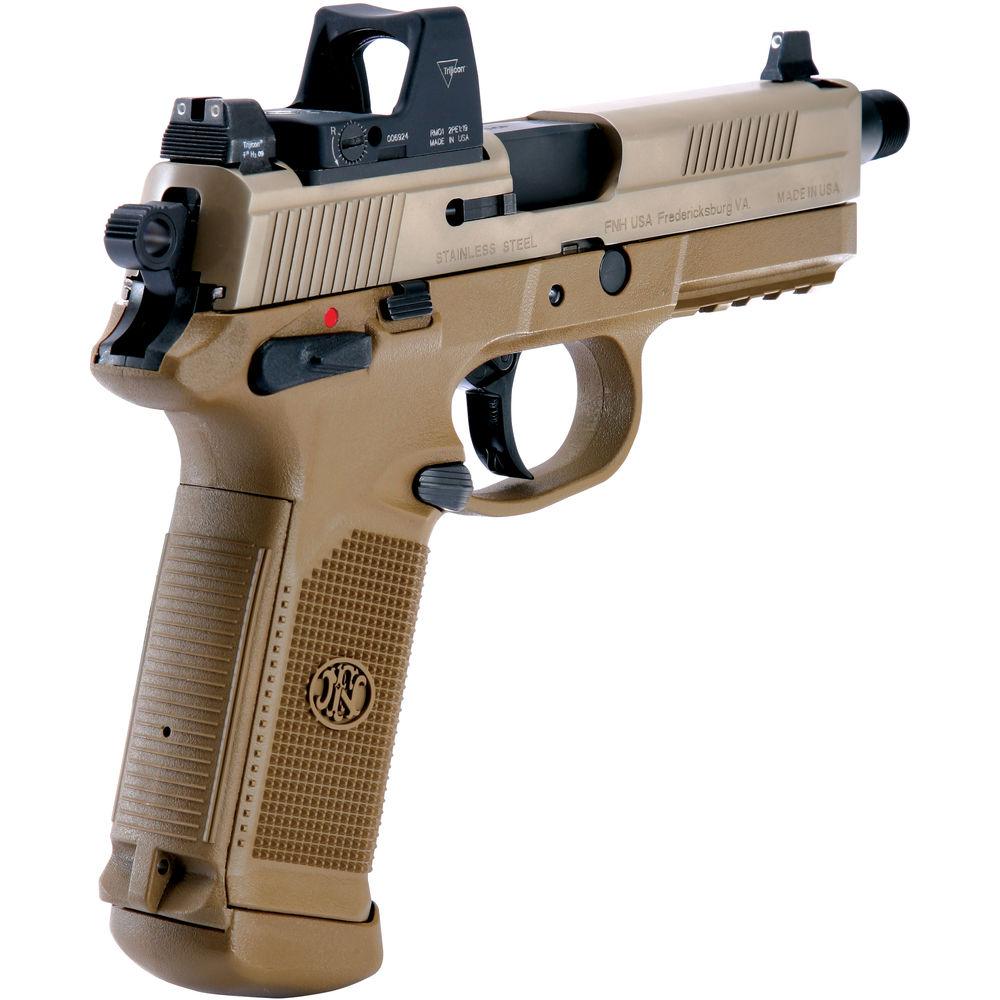

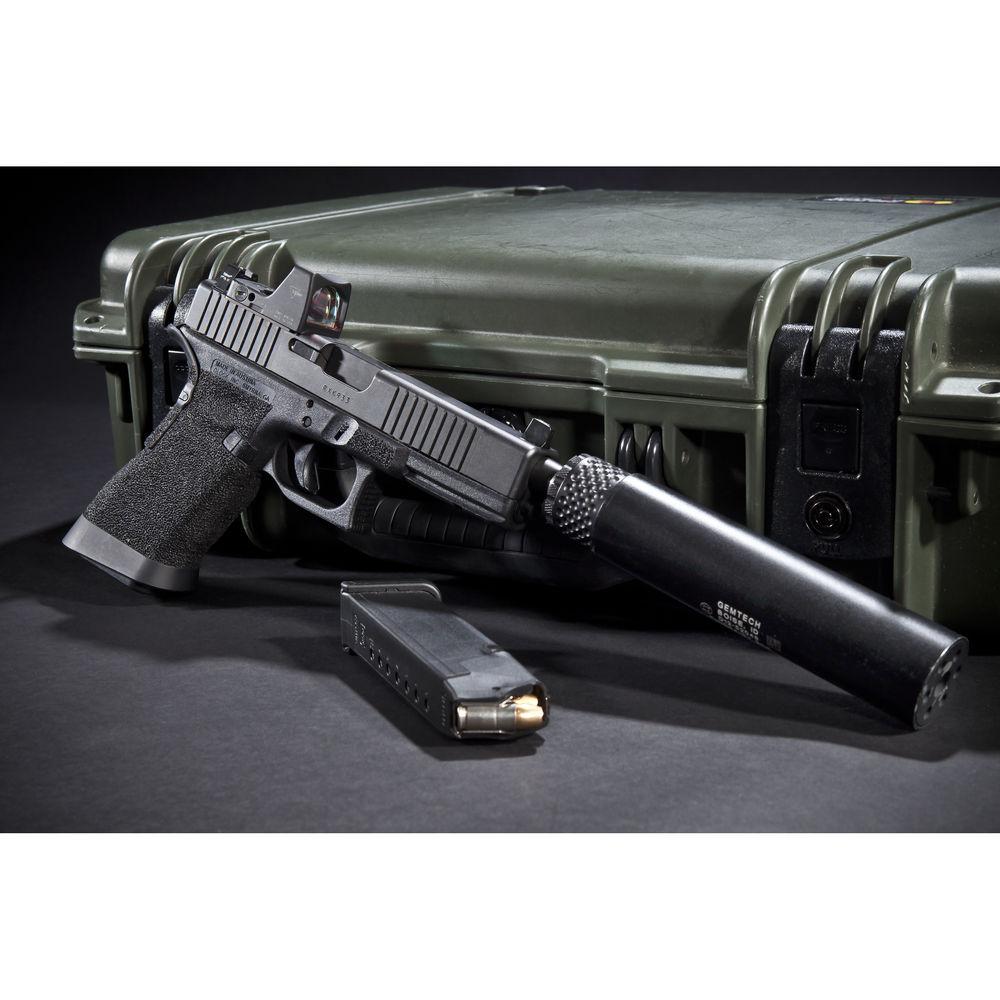

Engineered for use with pistols, rifles, or shotguns, the sight combines extreme toughness and a compact construction. Both the 7075-T6 aluminum housing and the glass window are impact-resistant and waterproof (submersible to 66') and can easily withstand the rigors of combat or training for many years of service. - Optical Performance
-
- 1.0x magnification
- True-Color multi-coated 0.87 x 0.63" glass window
- Unlimited field of view
- Reticle
-

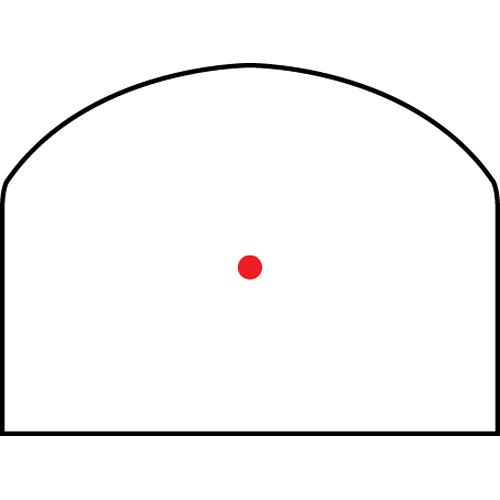

- 3.25 MOA Red Dot
- Adjustable LED illumination
- Automatic brightness control functions
- Eight manual brightness settings include two for NVDs and one super-bright
- Parallax-free performance
- Use and Handling
-
- Improved electronics and battery contacts ensure high performance in harsh conditions
- 1.0 MOA impact point correction with audible clicks
- 150 MOA total windage and elevation adjustment ranges
- Battery conservation mode adjusts red dot to ambient light conditions after 16.5 hours
- Button Lockout sets RMR into automatic mode to prevent accidental adjustments
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Forged body diverts impact from the lens
- Corrosion- and scratch-resistant finish
- Scratch- and impact-resistant tempered glass window
- Waterproof to 66'
UPC: 719307614468 In the Box Trijicon RM06 RMR Type 2 Adjustable LED Reflex Sight (3.25 MOA Red Dot, Cerakote OD Green) - Trijicon Sticker
- CR2032 Lithium Battery
- Mounting Set
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon RM06 RMR Type 2 Adjustable LED Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RM06 Specs | Magnification | 1.0x | | Field of View | Unlimited | | Reticle | 3.25 MOA Red Dot reticle | | Impact Point Correction | 1.0 MOA | | Maximum Windage/Elevation Adjustment | 150.0 MOA | | Battery | 1 x CR2032 lithium battery / 4 years of use at 4-8 brightness setting | | Weatherproofing | Waterproof and submersible to 66' (20 m) | | Dimensions | 1.8 x 1.2 x 1.0" / 46.0 x 30.0 x 25.0 mm | | Weight | Sight: 1.17 oz / 33.2 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 5.4 x 4.3 x 3.4" |
