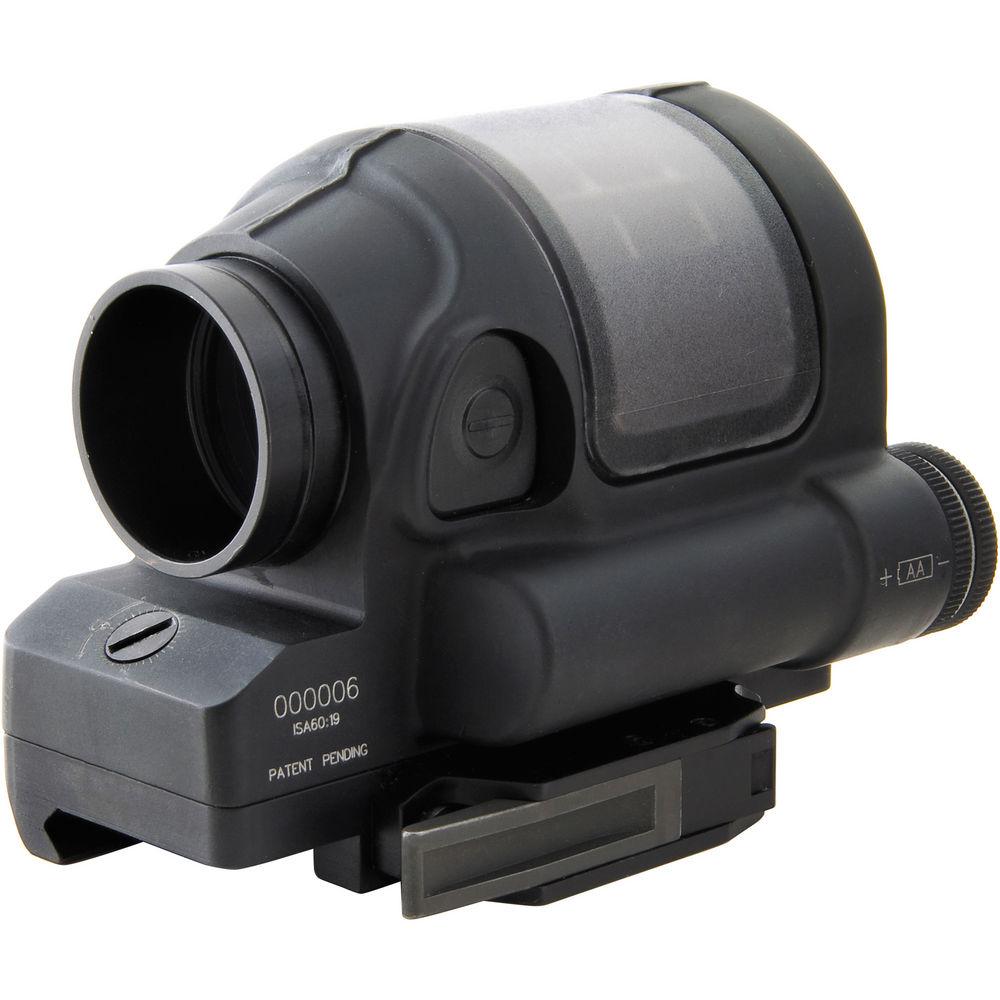

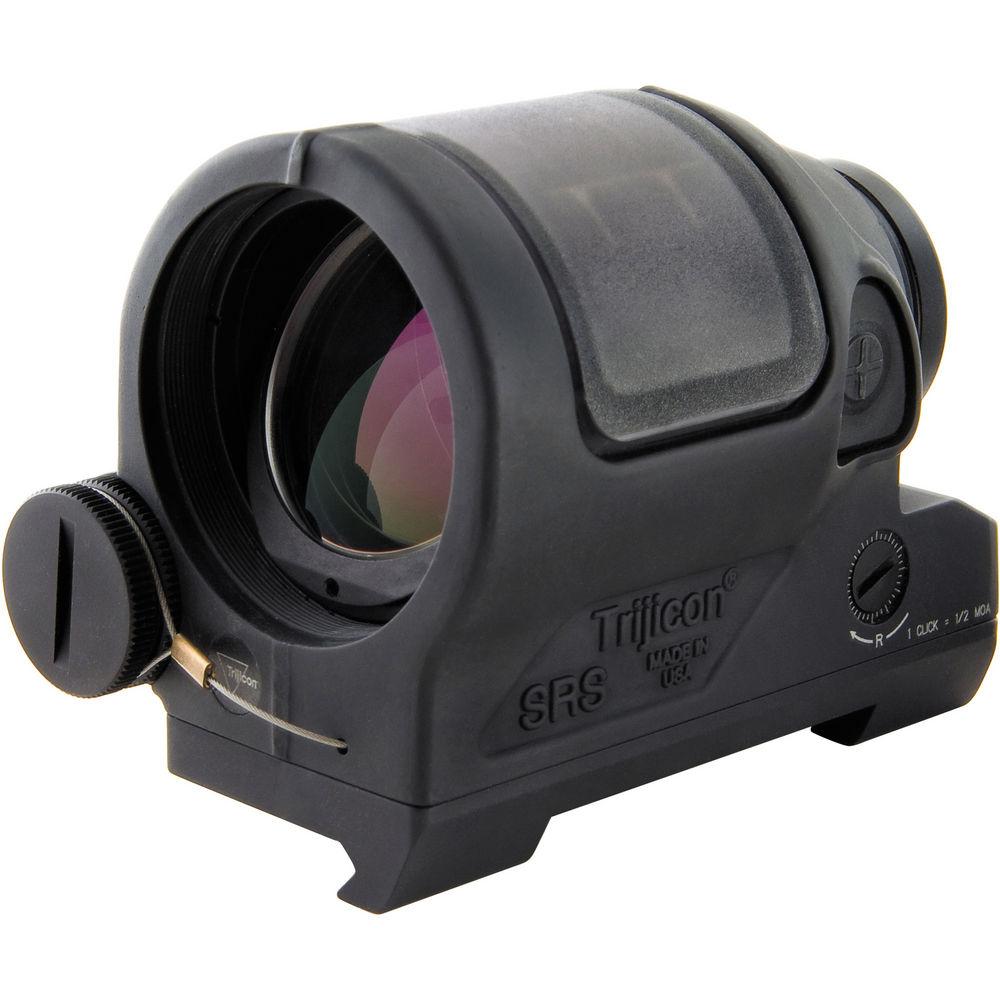

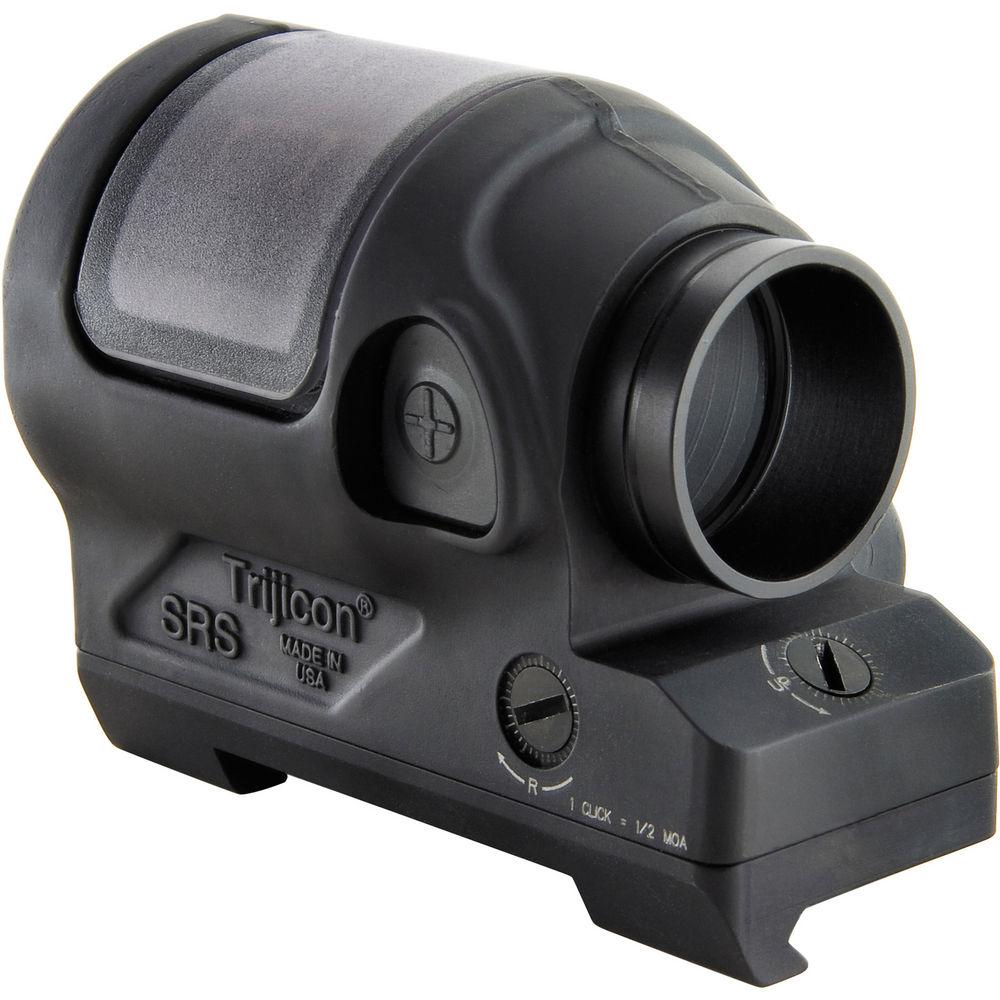

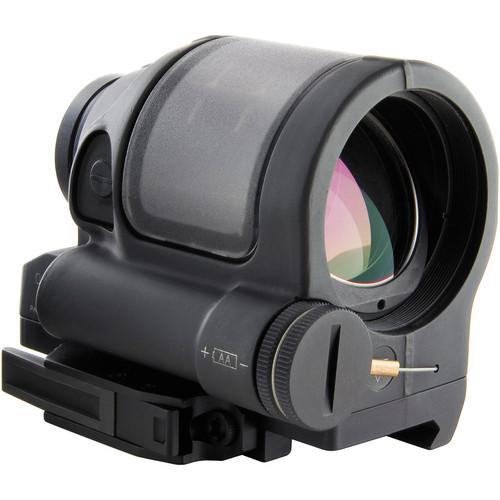

User Manual for Trijicon SRS Reflex Sight Click to enlarge the picture
Contents of the user manual for the Trijicon SRS Reflex Sight
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon SRS Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description The quick release flattop mount configuration SRS Reflex Sight from Trijicon is an unmagnified aiming device useful for close-range shooting engagements. The Sealed Reflex Sight (SRS) design uses a shorter housing to minimize the tube-effect, enabling operators to effectively use a both-eyes open shooting technique. The 1.75 MOA red dot is LED illuminated and powered by both an AA battery and a photovoltaic cell. When operating in daylight, the photovoltaic cell automatically becomes the primary power source of the SRS and helps preserve battery life. This SRS model features 1/2 MOA adjustments, manually adjustable brightness controls, quick release flattop mount, and weatherproof aircraft aluminum housing, making this reflex sight well-suited for tactical professionals and hunters alike. - Optical Performance
-
- 1.0x magnification
- Parallax free optics
- LED illuminated reticle
- 1.75 MOA red dot reticle
- 38mm objective with 28mm clear aperture
- Multicoated broadband anti-reflective optics
- 69 ft (21 m) field of view
- Use and Handling
-
- Bindon Aiming Concept
- 10 brightness settings, 3 for use with NVDs
- Power supplied by (1) AA battery and photovoltaic cell
- Mounts to Picatinny rail with included quick release flattop mount
- +/- 75 MOA adjustment range in 1/2 MOA clicks
- Construction Details
-
- Non-reflective anodized black finish
- Forged 7075-T6 aluminum construction
- Tethered battery cover
- Submersible to 165 ft (50 m)
In the Box Trijicon SRS Reflex Sight (Quick Release Mount) LensPen - TA56 Quick Release Flattop Thumbscrew Mount Trijicon Logo Sticker User Manual Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon SRS Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon SRS Specs | | | Reticle | 1.8 MOA Dot | | Reticle Color | Red | | Power Source | 1 x AA | | Runtime | 2.5 Years | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 38 mm | | Field of View | 69 @ 100 yd21 @ m | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
