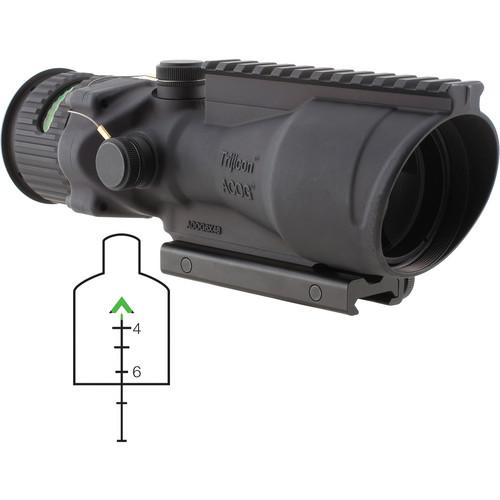

User Manual for Trijicon TA648-G ACOG 6 x 48mm Scope with Dual-Illuminated Green Chevron Reticle Click to enlarge the picture
Contents of the user manual for the Trijicon TA648-G ACOG 6 x 48mm
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon TA648-G ACOG 6 x 48mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

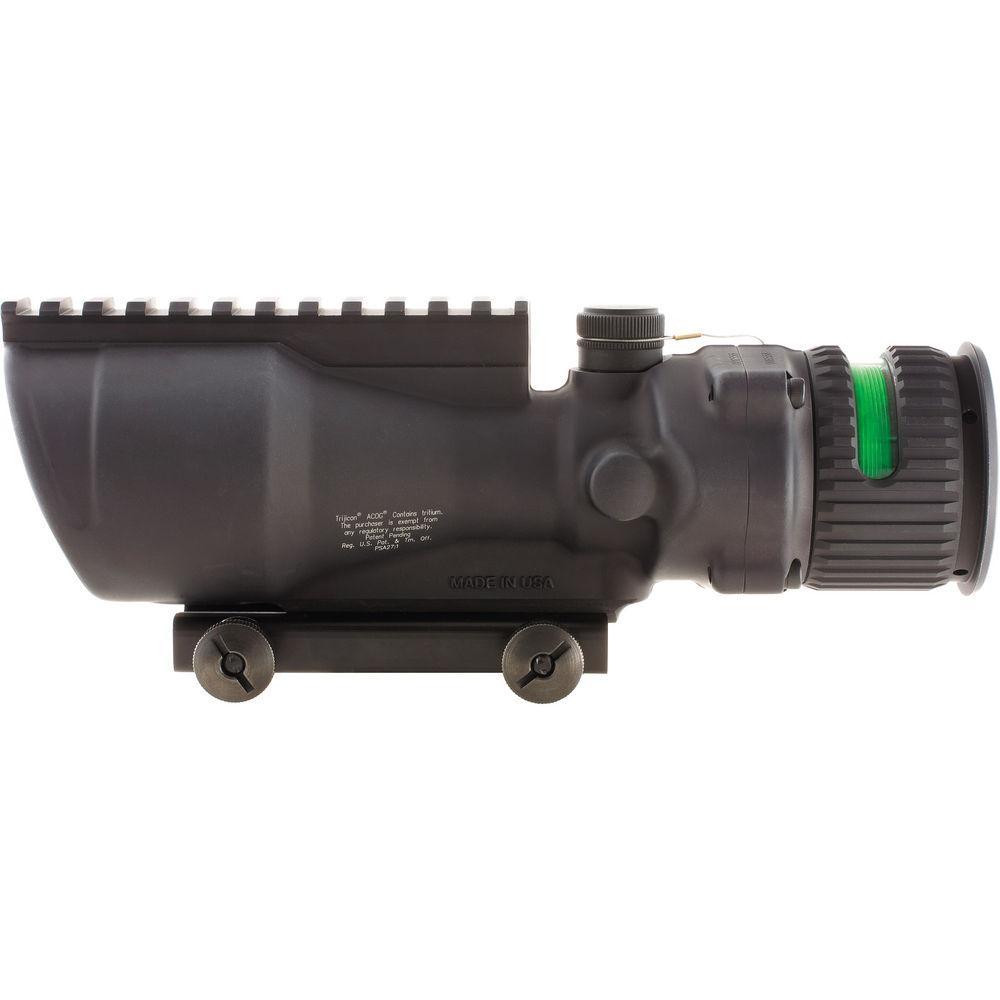

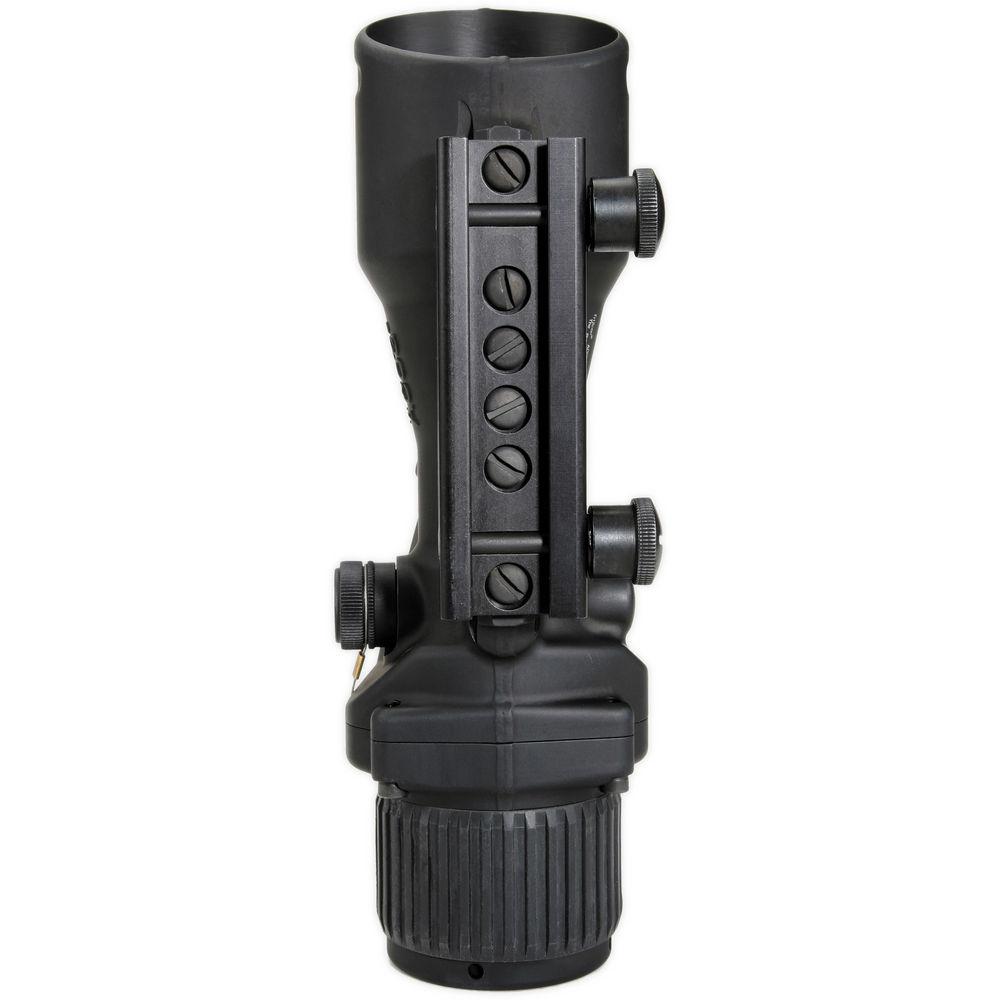

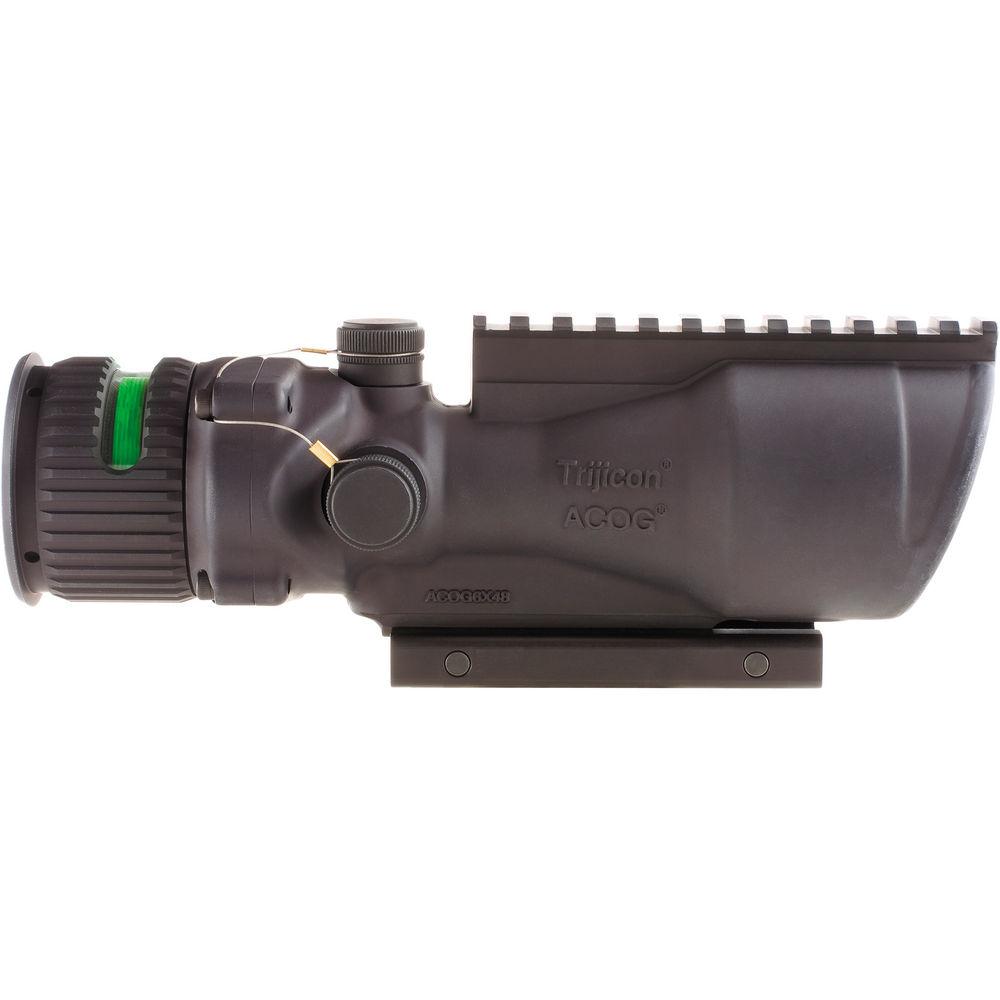

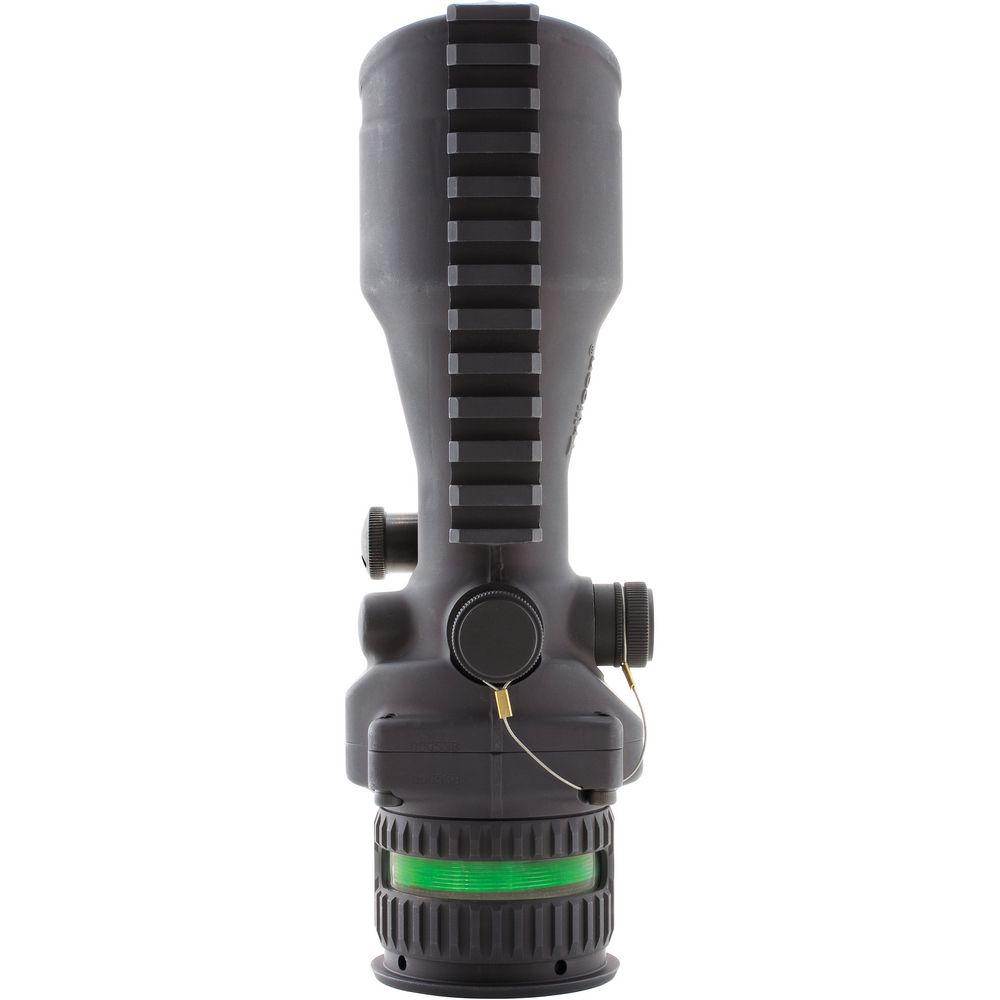

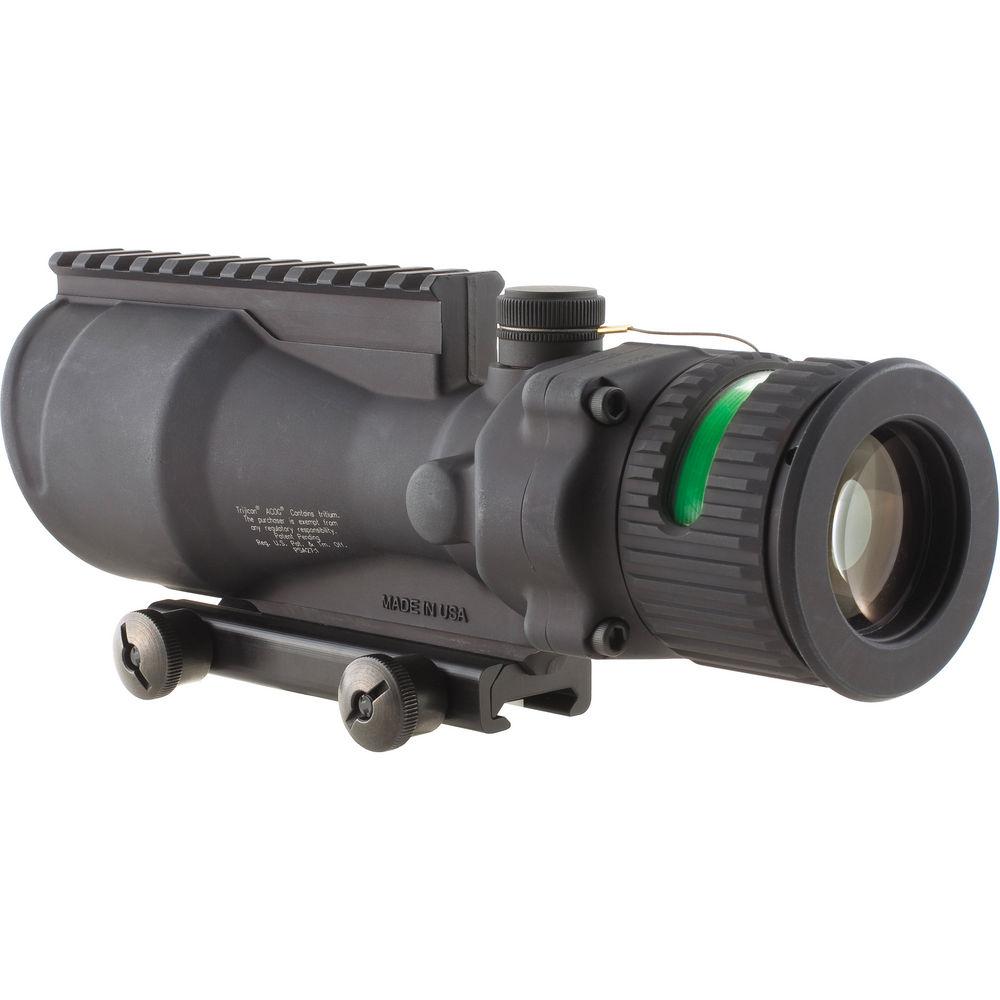

Product description The Trijicon TA648-G ACOG 6 x 48mm Scope with Dual-Illuminated Green Chevron Reticle is the military’s need for a magnified, self-luminous tactical sight that enhances target identification and increases hit probability on extended-range shots. Powered by patented fiber optics and tritium-based technology, the TA648 ACOG reticle features a green Chevron aiming point.This fixed power, compact riflescope comes with an illuminated reticle pattern for use in bright to low/no light. Combining traditional, precise distance marksmanship with CQB speed, this scope has a BDC (Bullet Drop Compensator) reticle with additional aiming points estimated for trajectory of the 5.56mm M855 out to 2624.6' (800m). To further improve target acquisition and hit potential, the ACOG 6x48 Scope incorporates the Bindon Aiming Concept (BAC), a both-eyes-open method of aiming.This scope is battery free and waterproof up to 500’ (152.4m). Every feature of its design was chosen for a single purpose: to provide increased hit potential in all lighting conditions. - Battery-Free Illumination
- Features a tritium / fiber optic illuminated reticle that automatically adjusts the brightness based on available light
- Military-Grade Aluminum-Alloy Housing
- Forged 7075-T6 aircraft-aluminum-alloy housing provides for a nearly indestructible sighting system
- Both Eyes Open Design
- It can be used as a CQB sight when shooting both eyes open utilizing the Bindon Aiming Concept
- Superior Quality Glass Lenses
- Multi-coated lenses provide superior clarity and light gathering capabilities with zero distortion
- Fixed Magnification
- Less moving parts than a variable optic offer more durability; 6x fixed magnification
- Shock-Resistant
- Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S
Military drop test requirements - Waterproof to 328' (100m)
- Dry-nitrogen filled to eliminate fogging
5 times more waterproof than military standard requirements - Additional Features
- Bullet drop Compensating & ranging reticle
Combat proven
Bindon Aiming concept In the Box Trijicon TA648-G ACOG 6 x 48mm Scope with Dual-Illuminated Green Chevron Reticle ACOG 6x48 Flattop Rail Adapter M1913 Rail Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon TA648-G ACOG 6 x 48mm Scope with Dual-Illuminated Green Chevron Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA648-G Specs | | | Magnification | 6x | | Objective Lens Diameter | 48 mm | | Field of View | 17.3' @ 100 yd / 5.8 m @ 100 m | | Exit Pupil Diameter | 8.1 mm | | Eye Relief | 2.7" / 68.5 mm | | | | Reticle Type | Chevron Reticle | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Battery | None | | Material | Aluminum | | Dimensions | Length: 6" / 152.4 mm
Width: 2.9" / 73.6 mm
Height: 3" / 76 mm | | Weight | 18.1 oz / 513.1 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
