Triplett CamView IP Pro 8071 Camera

Search your instruction manual in PDF to download

User Manual for Triplett CamView IP Pro 8071 Camera Tester with DHCP Server

Click to enlarge the picture
Triplett CamView IP Pro 8071 Camera Tester with DHCP Server Contents of the user manual for the Triplett CamView IP Pro 8071 Camera
  • Product category: Test Monitors Triplett
  • Brand: Triplett
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Triplett Test Monitors

User manual for the Triplett CamView IP Pro 8071 Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Triplett product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Triplett user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Triplett product will considerably shorten its lifespan!



Product description

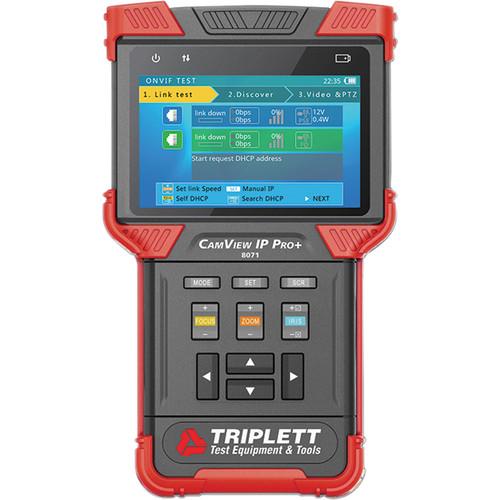

The ONVIF-compliant CamView IP Pro+ 8071 Camera Tester from Triplett tests IP, AHD, and HD-TVI cameras. It features a 4" TFT display for easy navigation and works with or without a network thanks to its built-in DHCP server, which allows you to set and assign IP addresses to cameras, auto-detect IP settings on networks, and ping, sniff, and list subnets. Additionally, this tester can perform RS485 PTZ control tests, as well as power IP cameras via PoE and analog cameras via 12 VDC. It also can test TDR cable tests, Ethernet link tests, packet loss tests, Ethernet loop detection, and more.
  • Works with IP, AHD, and HD-TVI cameras
  • Built-in DHCP server
  • Ethernet, RS485 PTZ control, TDR testing
  • ONVIF-compliant
UPC: 614395001834 In the Box Triplett CamView IP Pro+ 8071 Camera Tester with DHCP Server
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Triplett CamView IP Pro 8071 Camera Tester with DHCP Server in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Triplett 8071 Specs

    Compatibility IP, AHD, and HD-TVI cameras
    Signal Format NTSC, PAL
    Power Analog Cameras: 12 VDC @ < 2 A
    IP Cameras: Power over Ethernet (PoE)
    Detection Analog: Real-time video, PTZ control, audio test, full-screen preview, 8x digital zoom, snapshot, and record video (H.264)
    IP Cameras: Discover camera, real-time video, camera configuration, PTZ control, audio test, full screen preview, digital zoom, snapshot, record video (recording original data stream), store ONVIF camera reports
    Ethernet: 10 M, 100 M, and 1 G Ethernet link test, packet loss test, loop detection, Ethernet traffic flow monitor, and link quality test
    TDR: 0-492' (0-150 m) network cable length measurement (resolution 1 m), cable pair status
    RS485 PTZ control test
    PoE: PD test (tester accepts PoE power, displays voltage), PSE test (tester provides PoE power, displays power)
    Analog Video Generator: Generate NTSC and PAL video signals of various test patterns
    Record Playback: Support local playback of recorded video and view screenshots
    Network Ports 2 x 10 M, 100 M, 1 G RJ45 ports (blue is PoE out, green is PoE in)
    I/O Ports 2 x BNC ports (video in/out)
    1 x RS485
    1 x Audio in
    1 x USB
    Protocols ONVIF 2.4.1, RTSP, RTP
    IP Configuration Static IP, DHCP client, DHCP server
    Camera Analog: D1, 720p, 1080p resolutions
    Signal Level Analog: 1 Vpp
    PTZ Protocols Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, and more
    Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200 bps
    Screen 4" (10.2 cm) TFT 800 x 480 (WVGA) resolution, 16.7M color, backlight brightness adjustable
    Operation Power key, 12 control keys, QWERTY flip-open keyboard with 45 keys
    Auto Power Off Disable, 5-60 min
    Power Input PoE source or PoE injector (green RJ45 port)
    Power Output PoE (802.3af, 802.3at) (blue RJ45 port) and 12 VDC @ 2 A
    PoE Power Input: 100-230 VAC, 50-60 Hz
    Output: 48 V @ 15 W
    Battery Dedicated replaceable battery, 7.4 V lithium-ion polymer battery
    Capacity: 22.2 Wh
    Charging Time 3-4 hours for 10-hour maximum working time
    Internal Storage 8 GB flash
    LEDs 2 x 35 lumens LED lights
    Operating Temperature 14 to 131°F (-10 to 55°C)
    Operating Humidity 30-90%
    Dimensions 7.5 x 4.4 x 1.5" (190 x 113 x 37 mm)
    Weight 3.5 lb (1.6 kg)
    Package Weight 3.2 lb
    Box Dimensions (LxWxH) 10.9 x 6.95 x 4.6"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 30 owners. Add your rating and experience with the product.
