User Manual for Triplett CobraCam 2 Portable Inspection Camera Video Monitor Click to enlarge the picture
Contents of the user manual for the Triplett CobraCam 2 Portable Inspection Camera
- Product category: Installation & Maintenance Tools Triplett
- Brand: Triplett
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Triplett Installation & Maintenance Tools
 |
User manual for the Triplett CobraCam 2 Portable Inspection Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Triplett product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Triplett user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Triplett product will considerably shorten its lifespan!
|

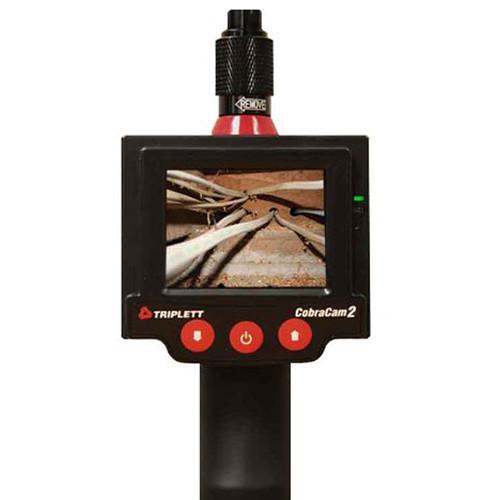

Product description Inspect wiring, view security camera footage using the video input, and more with the CobraCam 2 Portable Inspection Camera/Video Monitor from Triplett. This inspection camera comes equipped with a 2.4" LCD color display featuring 320 x 240 resolution so you can see clearly when inspecting wiring and other hard-to-reach areas. Additionally, this inspection camera features dedicated video output capabilities, a waterproof wand, and the ability to add extensions of up to 100' without loss of resolution. - Key Features
-
- Portable self-contained, low-cost inspection camera
- Monitor displays video signals from cameras, DVRs, DVDs, etc.
- 2.4" TFT LCD screen displays full-color image
- Image can rotate 180°
- Camera is less than 13/32" diameter and inserts in small places
- Camera has two adjustable white LEDs for illumination
- Camera is waterproof
- Camera focuses at approximately 2.5" (usable to infinity)
- Six-foot flexible snake can be bent to access hidden locations
- Snake is small along entire length, without bulky connector to limit usefulness
- Uses four AA batteries (not included)
- Low battery indicator
- Carrying case included
- Magnetic pickup, hook, and mirror accessories included
- Interface cables (BNC for video input and RCA for output) are included
- Replacement cameras and extension cables available
- Possible Uses
-

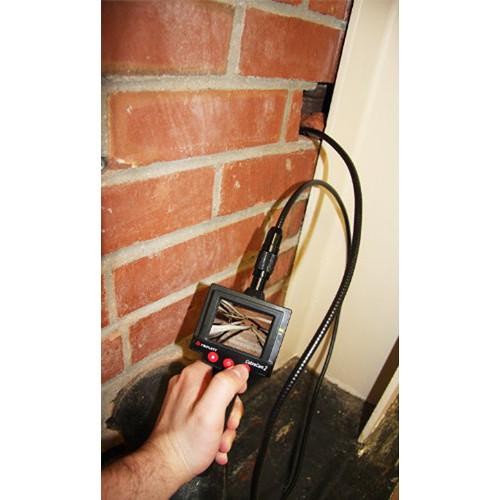

- See plumbing and electrical installations in inaccessible places
- See behind or beneath objects that are difficult to move
- See in and around furnace ductwork or heat exchanger
- See inside pipes
- See hidden nameplates
- See how cables are connected to the back of equipment
- See hidden leaks
- See Insect or Rodent infestations
- See lost jewelry
- See under car seats
- See around corners or through small holes
- Retrieve small magnetic objects
- View video camera output to adjust focus, zoom, positioning, etc.
- View DVR output to review programming or security video
- View any NTSC video signal to verify presence and quality
- In industry, around the house, during surveillance, or just as a fun toy
In the Box Triplett CobraCam 2 Portable Inspection Camera/Video Monitor Magnet Attachment Hook Attachment Mirror Attachment RCA Cable BNC Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Triplett CobraCam 2 Portable Inspection Camera Video Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTriplett CobraCam2 Specs | Camera | 320 x 240 resolution
1/18" CMOS imager
Focal Distance: 1 to 3" / 2.5 to 7.6 cm (usable to infinity)
54° viewing angle
f/2.8 lens
Autoexposure and white compensation
Water-resistant (IP67) | | LCD Display | 2.4" / 6.1 cm TFT LCD
320 x 234 pixels
Full color | | Snake | Polyethylene-covered steel flex
1.5" / 3.8 cm minimum radius bend | | Illumination | 2 x Adjustable brightness white LEDs in camera head | | Video Input / Output | BNC cable for input
RCA cable for output
NTSC format | | Power | 4 x AA alkaline batteries (sold separately) | | Controls | Headlite control (down)
Headlite control (up)
Power button
Power indicator
Low battery indicator | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.68 lb | | Box Dimensions (LxWxH) | 12.65 x 7.85 x 2.95" |
